Name: Μητρική πλακέτα, GIGABYTE GB B760 DS3H GEN5 /LGA1700
Brand: GIGABYTE
SKU: B760 DS3H GEN5 1.0
Price: 126.06 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Παράδοση· Όροι· Παράπονα· Επικοινωνία·

Σύνδεση

⇆Σύγκριση ⚙Φτιάξτε PC Καλάθι

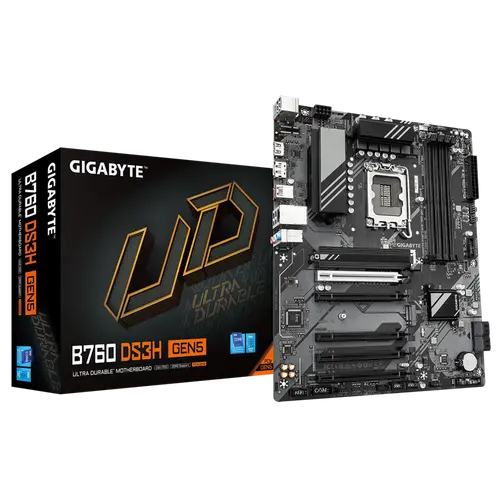

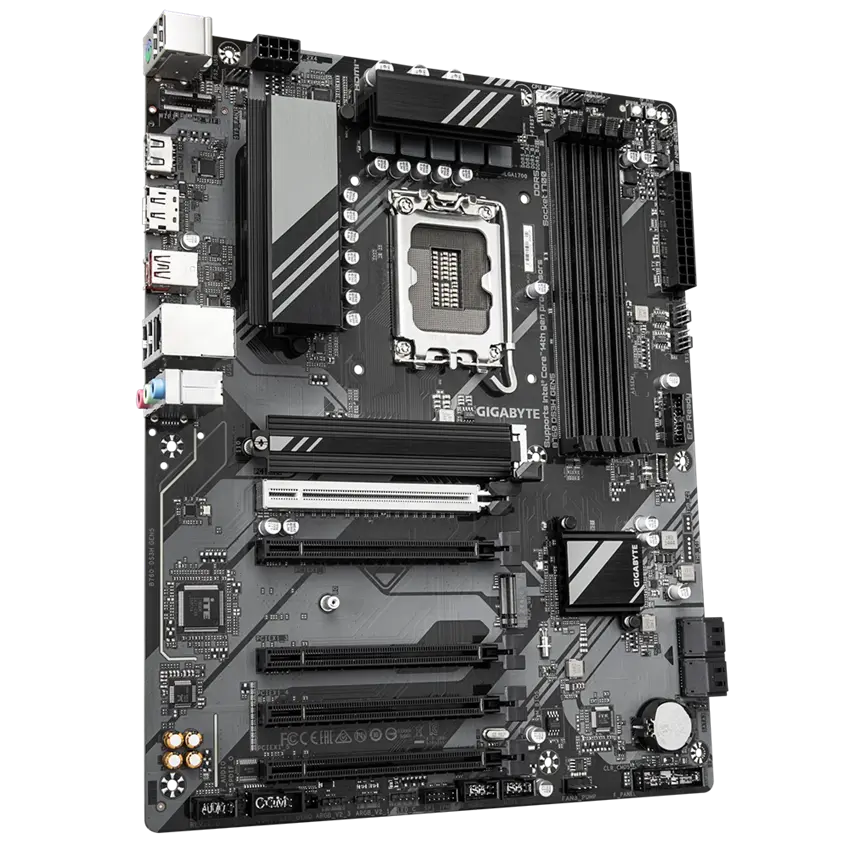

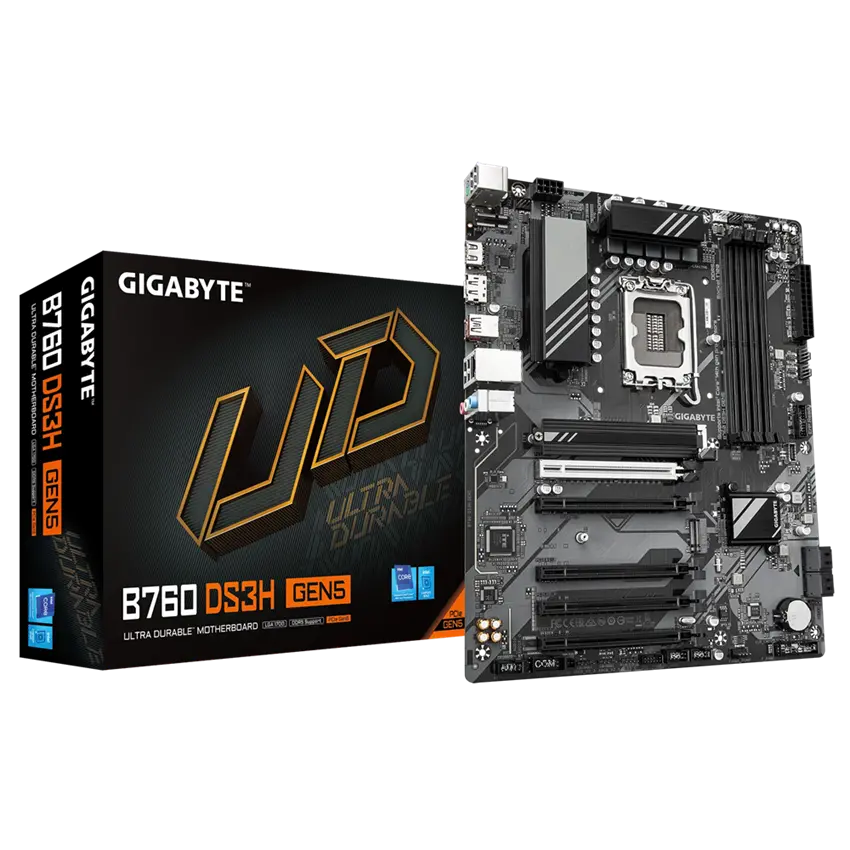

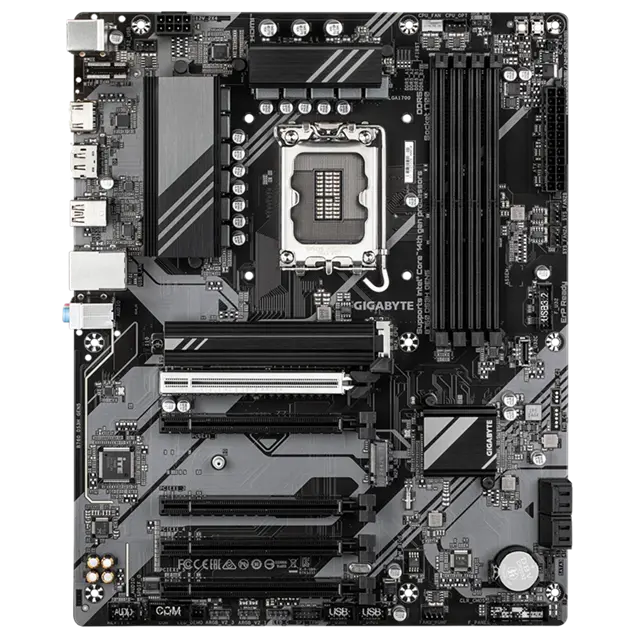

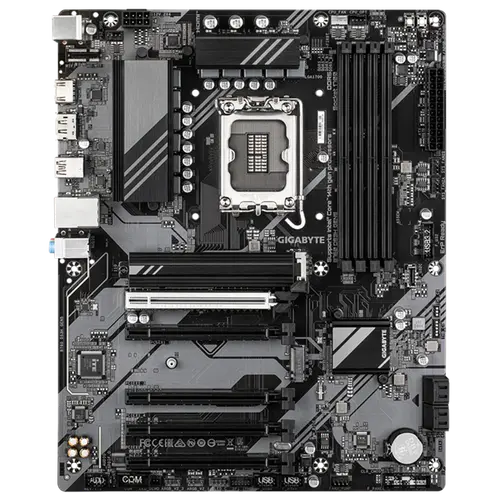

Μητρική πλακέτα, GIGABYTE GB B760 DS3H GEN5 /LGA1700 - 1

Μητρική πλακέτα, GIGABYTE GB B760 DS3H GEN5 /LGA1700 - 2

Μητρική πλακέτα, GIGABYTE GB B760 DS3H GEN5 /LGA1700 - 3

Μητρική πλακέτα, GIGABYTE GB B760 DS3H GEN5 /LGA1700 - 4

GIGABYTE

Μητρική πλακέτα, GIGABYTE GB B760 DS3H GEN5 /LGA1700

Τιμή

€126⁰⁶ / 246⁵⁵ BGN

με ΦΠΑ

* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)

* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας

Ποσ.:

Προσθήκη στο καλάθι

Επεκτείνετε την εγγύησή σας

+1 έτος: + 17€

+2 έτη: + 24€

Κωδικός: B760 DS3H GEN5 1.0
Κατηγορία: Μητρικές
Εγγύηση: 3 έτη

ΑΞΙΟΛΟΓΗΣΗ

Η ΑΞΙΟΛΟΓΗΣΗ ΣΑΣ

Κριτικές

Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.

Περιγραφή
Λεπτομέρειες
Κριτικές
Περιγραφή ΤΝ

Vendor_url

https://www.gigabyte.com/Motherboard/B760-DS3H-GEN5

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

CPU's supported

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

Chipset

Intel® B760 Express Chipset

Expansion slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)

Storage

CPU:

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Memory type

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Rear panel I/O

iTE® I/O Controller Chip

USB

Chipset:

- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

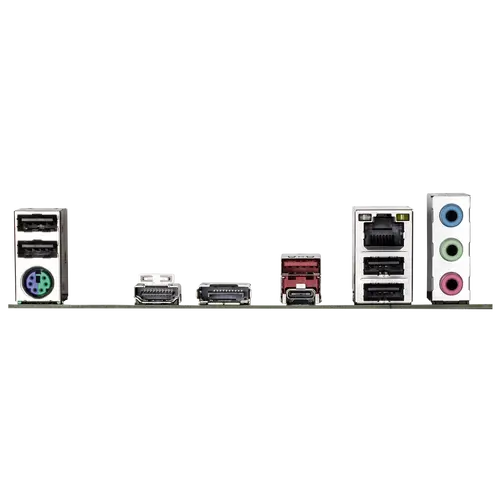

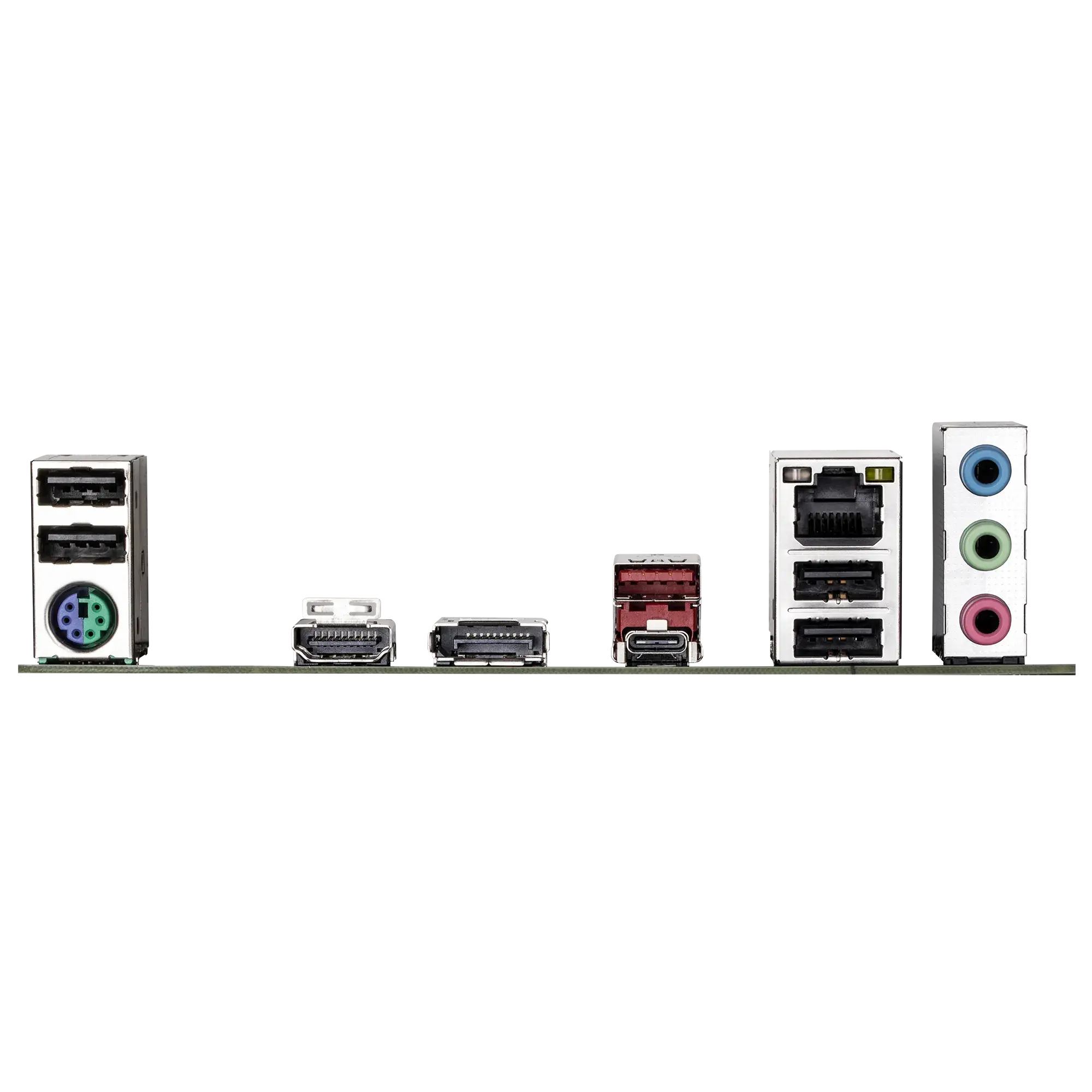

Back Panel Connectors

1 x PS/2 keyboard/mouse port

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 2.0/1.1 ports

1 x HDMI port (Note)

1 x DisplayPort (Note)

1 x RJ-45 port

3 x audio jacks

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

Lan

Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form factor

ATX Form Factor

30.5cm x 24.4cm

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty

36 Months

Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.

Χαρακτηριστικό	Τιμή
Vendor_url	https://www.gigabyte.com/Motherboard/B760-DS3H-GEN5
Chipset	Intel® B760 Express Chipset
OS	Support for Windows 10 64-bit
OS	Support for Windows 11 64-bit
Warranty	36 Months
CPU's supported	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
CPU's supported	L3 cache varies with CPU
Memory type	Dual channel memory architecture
Memory type	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory type	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory type	Support for Extreme Memory Profile (XMP) memory modules
Memory type	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory type	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Form Factor	30.5cm x 24.4cm
Form Factor	ATX Form Factor
Audio	Realtek® Audio CODEC
Audio	High Definition Audio
Audio	2/4/5.1/7.1-channel
Audio	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio	Support for S/PDIF Out
Rear panel I/O	iTE® I/O Controller Chip
LAN	Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion Slots	Chipset:
Expansion Slots	CPU:
Expansion Slots	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Expansion Slots	- 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
Graphics	* Support for DisplayPort 1.2 version and HDCP 2.3
Graphics	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics	** Support for native HDMI 2.1 TMDS compatible ports.
Graphics	* Support for HDMI 2.1 version and HDCP 2.3.
Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
Graphics	- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Features	Support for Q-Flash Plus
Features	Support for Q-Flash
Features	Support for GIGABYTE Control Center (GCC)
Features	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Features	Support for Smart Backup
BIOS	Use of licensed AMI UEFI BIOS
BIOS	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS	1 x 128 Mbit flash
I/O	iTE® I/O Controller Chip
Storage	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Storage	CPU:
Storage	Chipset:
Storage	- 4 x SATA 6Gb/s connectors
Storage	- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Storage	- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Connectors	1 x 24-pin ATX main power connector
Connectors	1 x CPU fan header
Connectors	3 x system fan headers
Connectors	1 x system fan/water cooling pump header
Connectors	1 x front panel header
Connectors	1 x front panel audio header
Connectors	1 x S/PDIF Out header
Connectors	1 x USB Type-C® header, with USB 3.2 Gen 1 support
Connectors	1 x USB 3.2 Gen 1 header
Connectors	2 x USB 2.0/1.1 headers
Connectors	1 x serial port header
Connectors	1 x reset button
Connectors	1 x Q-Flash Plus button
Connectors	1 x reset jumper
Connectors	1 x Clear CMOS jumper
Connectors	1 x 8-pin ATX 12V power connector
Connectors	4 x SATA 6Gb/s connectors
Connectors	1 x RGB LED strip header
Connectors	2 x M.2 Socket 3 connectors
Connectors	Back Panel Connectors
Connectors	1 x PS/2 keyboard/mouse port
Connectors	1 x HDMI port (Note)
Connectors	1 x DisplayPort (Note)
Connectors	1 x RJ-45 port
Connectors	3 x audio jacks
Connectors	1 x CPU fan/water cooling pump header
Connectors	4 x USB 2.0/1.1 ports
Connectors	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors	3 x addressable RGB Gen2 LED strip headers
Connectors	1 x USB 3.2 Gen 2 Type-A port (red)
Connectors	1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
USB	Chipset:
USB	- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
USB	- 2 x USB 3.2 Gen 1 ports available through the internal USB header
USB	- 4 x USB 2.0/1.1 ports available through the internal USB headers
USB	Chipset+USB 2.0 Hub:
USB	- 4 x USB 2.0/1.1 ports on the back panel
USB	- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
USB	- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
Βάρος	0.00kg

Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.

Χαρακτηριστικό	Τιμή
Socket	LGA1700
Form Factor	ATX
Chipset	Intel B760
Memory Type	DDR5
Memory Slots (count)	2
Max Memory (GB)	64
M.2 Slots (count)	2
SATA Ports (count)	4
PCIe x16 Slots (count)	1
Wi-Fi Built-in	No
LAN Speed	2.5 Gbps
USB-C Ports (count)	1
RGB Lighting	Yes
Βάρος	0.00kg

Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

GIGABYTE GB B760 DS3H GEN5 — Дънна платка LGA1700 DDR5

Извлечете максимума от вашия процесор Intel Core от 13-то/14-то поколение с GIGABYTE B760 DS3H GEN5. С поддръжка на PCIe 5.0 за графики и памет от ново поколение, DDR5 и стабилно захранване, тази ATX платка осигурява отлична производителност за игри и работа.

Ключови Предимства

PCIe 5.0 — Слотът PCIe x16 и единият M.2 слот поддържат Gen5, подготвяйки системата ви за най-бързите GPU и SSD.
DDR5 Памет — Двуканална DDR5 поддръжка с до 64GB капацитет осигурява бърза многозадачност и по-висока честотна лента.
2.5GbE LAN — Високоскоростна мрежа намалява латенцията за онлайн игри и големи трансфери.
Smart Fan 6 — Няколко температурни сензора и хибридни конектори за вентилатори позволяват прецизен контрол на охлаждането.

Технически Спецификации

Спецификация	Стойност
Сокет	LGA1700
Чипсет	Intel B760
Форм фактор	ATX
Тип памет	DDR5
Слотове за памет	2 (Dual Channel)
Максимална памет	64GB
M.2 слотове	2 (1x Gen5, 1x Gen4)
SATA портове	4
PCIe x16 слотове	1 (PCIe 5.0)
Скорост на LAN	2.5GbE
USB-C портове	1 (отзад)
Вграден Wi-Fi	Не
RGB подсветка	Да (RGB headers)

Какво има в кутията

Дънна платка GIGABYTE B760 DS3H GEN5
Ръководство за потребителя
Ръководство за инсталиране
I/O панел
2x SATA кабела
M.2 винтове и дистанционери
