Vendor_url
https://www.msi.com/Motherboard/B850M-GAMING-PLUS-WIFI
Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
CPU's supported
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset
AMD B850
Expansion slots
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only

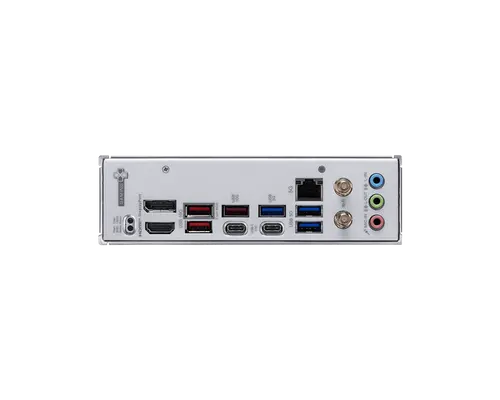

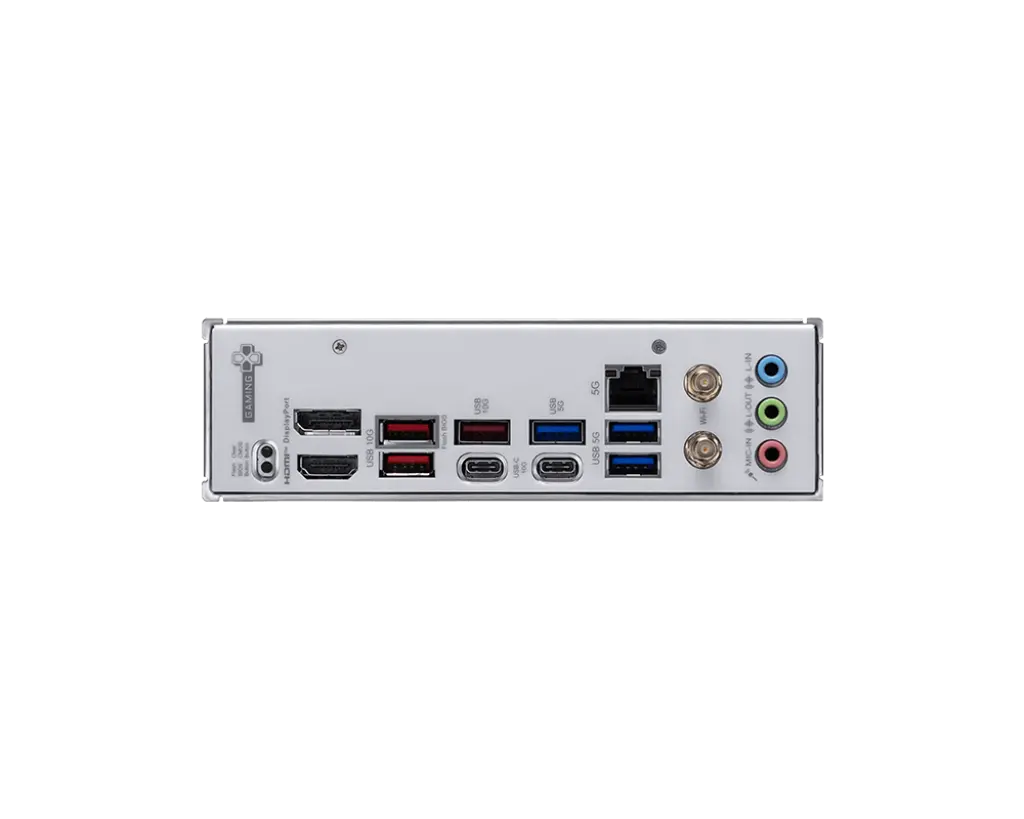

Rear panel I/O
Clear CMOS Button
DisplayPort 1.4
USB 10Gbps (Type-A)
USB 5Gbps (Type-A)
5G LAN
Wi-Fi / Bluetooth
HD Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps (Type-A)
USB 10Gbps (Type-C)
USB 5Gbps (Type-A)
USB
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Audio
Realtek® ALC897
7.1-Channel High Definition Audio
Lan
Realtek® 8126 5G LAN
Wireless
Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4, MLO, 4KQAM
Bluetooth
5.4
Form factor
mATX 243.84mmx243.84mm
OS
Support for Windows® 11 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.msi.com/Motherboard/B850M-GAMING-PLUS-WIFI |
| Chipset | AMD B850 |
| OS | Support for Windows® 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| CPU's supported | Socket AM5 |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory type | • 1DPC 2R Max speed up to 6400+ MT/s |
| Memory type | • 2DPC 1R Max speed up to 6400+ MT/s |
| Memory type | Supports AMD POR Speed and JEDEC Speed |
| Memory type | Supports Memory Overclocking and AMD EXPOTM |
| Memory type | Supports CUDIMM, Clock Driver bypass mode only |
| Memory type | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Memory type | Ryzen™ 9000 Series Processors max. overclocking frequency: |
| Memory type | • 1DPC 1R Max speed up to 8200+ MT/s |
| Memory type | • 2DPC 2R Max speed up to 6000+ MT/s |
| Form Factor | mATX 243.84mmx243.84mm |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | Flash BIOS button |
| Rear panel I/O | HD Audio Connectors |
| Rear panel I/O | Wi-Fi / Bluetooth |
| Rear panel I/O | DisplayPort 1.4 |
| Rear panel I/O | USB 5Gbps (Type-A) |
| Rear panel I/O | Clear CMOS Button |
| Rear panel I/O | USB 10Gbps (Type-A) |
| Rear panel I/O | USB 10Gbps (Type-C) |
| Rear panel I/O | 5G LAN |
| LAN | Realtek® 8126 5G LAN |
| Expansion Slots | 1x PCI-E x1 slot |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | 2x PCI-E x16 slot |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Expansion Slots | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E1 slot |
| Expansion Slots | • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Expansion Slots | • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Expansion Slots | • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) |
| Wireless | Wi-Fi 7 Solution |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps |
| Wireless | Supports Bluetooth® 5.4, MLO, 4KQAM |
| Graphics | 1x HDMI™ |
| Graphics | Support HDMITM 2.1, maximum resolution of 4K 60Hz* |
| Graphics | 1x DisplayPort |
| Graphics | Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| Graphics | Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
| Features | 4x EZ Debug LED |
| Features | 1x EZ Memory Detection LED |
| I/O | HDMI™ |
| I/O | Flash BIOS button |
| I/O | HD Audio Connectors |
| I/O | Wi-Fi / Bluetooth |
| I/O | DisplayPort 1.4 |
| I/O | USB 5Gbps (Type-A) |
| I/O | Clear CMOS Button |
| I/O | USB 10Gbps (Type-A) |
| I/O | USB 10Gbps (Type-C) |
| I/O | 5G LAN |
| Storage | 4x SATA 6G |
| Storage | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Storage | 2x M.2 |
| Storage | M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Storage | M2_2 slot |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| Storage | M2_1 slot |
| Storage | • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) |
| Storage | • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
| Storage | • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) |
| Storage | • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| Bluetooth | 5.4 |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x Com Port (JCOM) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x USB 5Gbps Type A ports |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 1x Tuning Controller connector(JDASH) |
| Connectors | 3x System Fan |
| Connectors | 1x USB 10Gbps Type C ports |
| Connectors | 3x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 1x Combo Fan (Pump_Sys Fan) |
| Connectors | 1x Power Connector(PCIE_PWR 8pin) |
| USB | 4x USB 2.0 (Front) |
| USB | 2x USB 5Gbps Type A (Front) |
| USB | 1x USB 10Gbps Type C (Front) |
| USB | 3x USB 5Gbps Type A (Rear) |
| USB | 3x USB 10Gbps Type A (Rear) |
| USB | 2x USB 10Gbps Type C (Rear) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM5 |
| Form Factor | Micro-ATX |
| Chipset | AMD B850 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 256 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
MSI B850M GAMING PLUS WIFI – Мощна Micro-ATX дънна платка за AM5
Освободете пълния потенциал на вашия AMD Ryzen 7000/8000/9000 процесор с MSI B850M GAMING PLUS WIFI. С най-новия чипсет AMD B850, поддръжка на DDR5 памет и вграден Wi-Fi 6E, тази Micro-ATX платка предлага изключителна игрална производителност и свързаност в компактен форм фактор.
Ключови Предимства
- Платформа AMD AM5 — Поддръжка на най-новите Ryzen процесори с PCIe 5.0 за изключително бързи GPU и SSD скорости.
- DDR5 Памет — Двуканална DDR5 с поддръжка на скорости до 8000+ MHz (OC) за изключително отзивчива многозадачност.
- Бърза мрежова свързаност — Интегриран Wi-Fi 6E и 2.5G LAN осигуряват ниска латентност при онлайн игри и стрийминг.
- Подобрен дизайн на радиаторите — Солидно термично решение поддържа VRM и M.2 устройствата хладни при натоварване.
- Mystic Light RGB — Персонализирайте вграденото RGB осветление и синхронизирайте със съвместими периферни устройства.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | Micro-ATX |
| Чипсет | AMD B850 |
| Тип памет | DDR5 |
| Слотове за памет | 4 (Dual Channel) |
| Максимална памет | 256 GB |
| M.2 слотове | 2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4) |
| SATA портове | 4 |
| PCIe x16 слотове | 2 (1x PCIe 5.0 x16, 1x PCIe 4.0 x4) |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 (USB 3.2 Gen2x2) |
| RGB подсветка | Да |

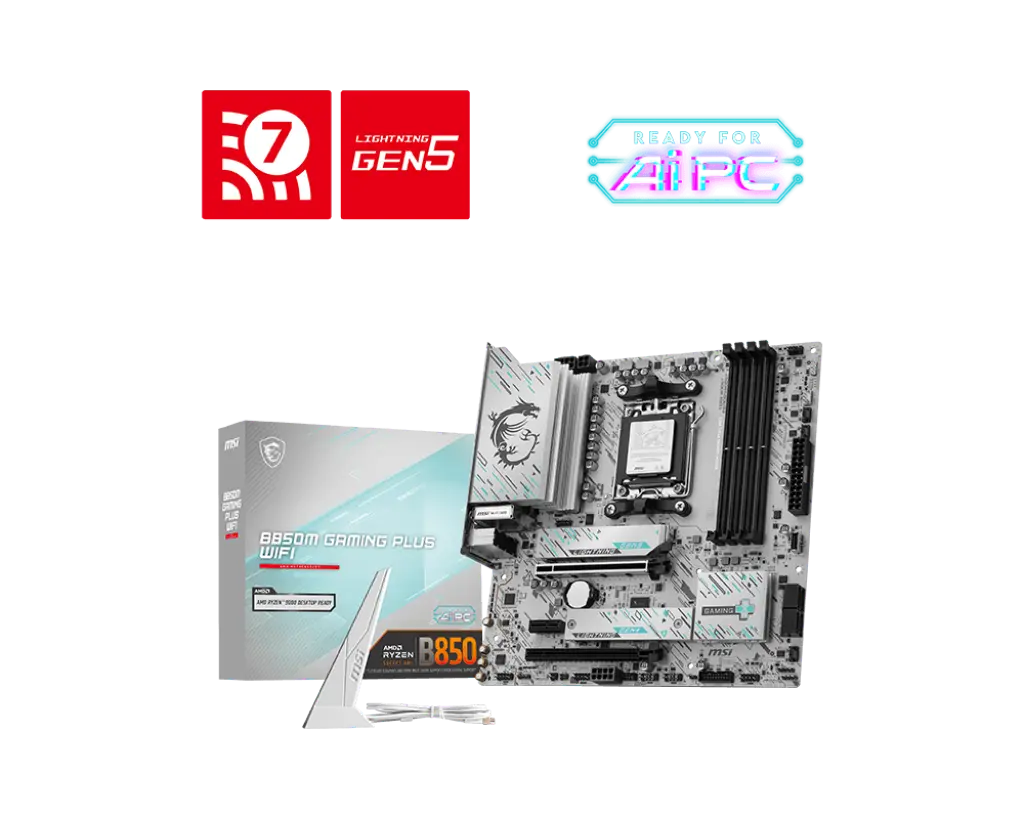

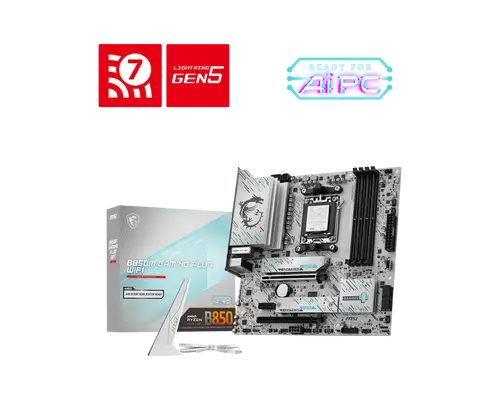

Какво има в кутията
- MSI B850M GAMING PLUS WIFI дънна платка
- Ръководство за потребителя
- I/O Shield
- 2x SATA кабела
- M.2 винтове и дистанционери
- Wi-Fi антена
- Driver DVD
