- ASUS
Τιμή
€121 48 / 237 59 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/csm/prime-b650-plus-csm/
Graphics
1 x DisplayPort
1 x HDMI® port
CPU's supported
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD B650 Chipset
Expansion slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4/x2 mode)
AMD B650 Chipset
4 x SATA 6Gb/s ports
Memory type
4 x DIMM, Max. 192GB, DDR5 7600+(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II

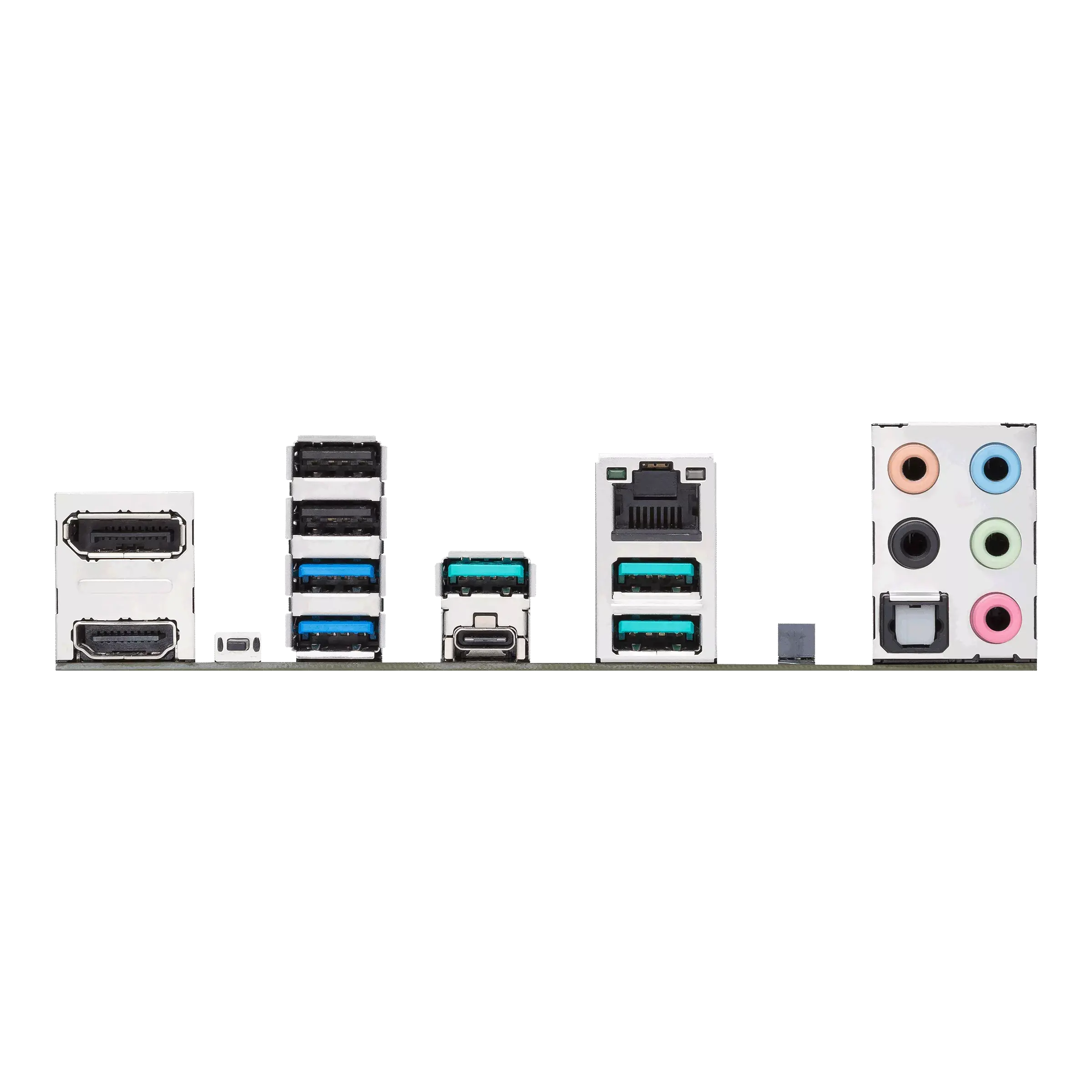

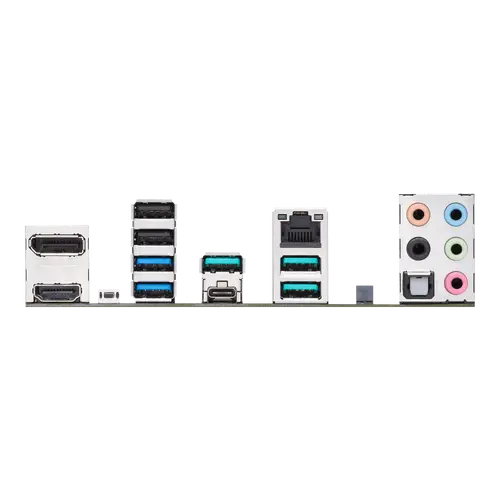

Rear panel I/O
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
USB
Rear USB (Total 8 ports)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Lan
1 x Realtek 2.5Gb Ethernet
Wireless
Vertical M.2 slot only (Key E, PCIe)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX Form Factor, 30.5 cm x 24.4 cm
OS
Windows® 11, Windows® 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/csm/prime-b650-plus-csm/ |
| Chipset | AMD B650 Chipset |
| OS | Windows® 11, Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Supports AMD Extended Profiles for Overclocking (EXPO™) |
| Memory type | OptiMem II |
| Memory type | 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory |
| Form Factor | ATX Form Factor, 30.5 cm x 24.4 cm |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | - Supports up to 24-Bit/192 kHz playback |
| Audio | - Premium audio capacitors |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 2 x USB 2.0 ports (2 x Type-A) |
| Rear panel I/O | 1 x BIOS FlashBack™ button |
| Rear panel I/O | 1 x Realtek 2.5Gb Ethernet port |
| Rear panel I/O | 5 x Audio jacks |
| Rear panel I/O | 1 x Optical S/PDIF out port |
| Rear panel I/O | 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) |
| Rear panel I/O | 2 x USB 3.2 Gen 1 ports (2 x Type-A) |
| Rear panel I/O | 1 x HDMI® port |
| Rear panel I/O | 1 x Vertical M.2 slot (Key E) |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x16 mode) |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Expansion Slots | AMD Ryzen™ 8000 Series Desktop Processors |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
| Expansion Slots | 2 x PCIe 4.0 x1 slots |
| Expansion Slots | AMD B650 Chipset |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Wireless | Vertical M.2 slot only (Key E, PCIe) |
| Graphics | 1 x DisplayPort |
| Graphics | 1 x HDMI® port |
| Features | ASUS Exclusive Software |
| Features | Armoury Crate |
| Features | AI Suite 3 |
| Features | ASUS CPU-Z |
| Features | WinRAR |
| Features | UEFI BIOS |
| Features | ASUS EZ DIY |
| Features | - ASUS CrashFree BIOS 3 |
| Features | - ASUS EZ Flash 3 |
| Features | - ASUS UEFI BIOS EZ Mode |
| Features | ASUS 5X PROTECTION III |
| Features | ASUS Q-Design |
| Features | ASUS Thermal Solution |
| Features | IT Management software supported |
| Features | - ASUS Control Center Express(ACCE) |
| Features | - DIGI+ VRM |
| Features | - LANGuard |
| Features | - Overvoltage Protection |
| Features | - Stainless-Steel Back I/O |
| Features | - Q-DIMM |
| Features | - Q-LED Core |
| Features | - Q-Slot |
| Features | Aura Sync |
| Features | - Addressable Gen 2 headers |
| Features | - Aura RGB header |
| Features | - Aura Creator |
| Features | - Aura Sync |
| Features | - Power Saving |
| Features | - TurboV EVO |
| Features | - VRM heatsink design |
| Features | - BIOS FlashBack™ button |
| Features | - BIOS FlashBack™ LED |
| Features | - SafeSlot Core+ |
| Features | - Fan Xpert 2+ |
| Features | - Flexible M.2 heatsink |
| Features | - ProCool |
| Features | Software Features: |
| Features | - DIGI+ VRM- PC Cleaner |
| Features | Norton Anti-virus software (Free Trial version) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 1 x DisplayPort |
| I/O | 5 x audio jacks |
| I/O | 2 x USB 2.0 ports (2 x Type-A) |
| I/O | 1 x BIOS FlashBack™ button |
| I/O | 1 x Realtek 2.5Gb Ethernet port |
| I/O | 1 x Optical S/PDIF out port |
| I/O | 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) |
| I/O | 2 x USB 3.2 Gen 1 ports (2 x Type-A) |
| I/O | 1 x HDMI® port |
| I/O | 1 x Vertical M.2 slot (Key E) |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| Storage | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Storage | AMD Ryzen™ 8000 Series Desktop Processors |
| Storage | M.2_1 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 5.0 x4 mode) |
| Storage | M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4/x2 mode) |
| Storage | AMD B650 Chipset |
| Connectors | 1 x COM port header |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | 1 x 8-pin +12V Power connector |
| Connectors | Storage related |
| Connectors | USB |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 1 x Front Panel Audio header (AAFP) |
| Connectors | 1 x SPI TPM header (14-1pin) |
| Connectors | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Connectors | 3 x Addressable Gen 2 headers |
| Connectors | 1 x Aura RGB header |
| Connectors | 1 x 4-pin CPU OPT Fan header |
| Connectors | 1 x 4-pin AIO Pump header |
| Connectors | 3 x 4-pin Chassis Fan headers |
| Connectors | 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) |
| Connectors | 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
| Connectors | 1 x 20-3 pin System Panel header with Chassis intrude function |
| Connectors | 1 x Thunderbolt™ (USB4®) header |
| Connectors | 2 x M.2 slots (Key M)4 x SATA 6Gb/s ports |
| USB | 2 x USB 2.0 ports (2 x Type-A) |
| USB | Front USB (Total 7 ports) |
| USB | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| USB | Rear USB (Total 8 ports) |
| USB | 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) |
| USB | 2 x USB 3.2 Gen 1 ports (2 x Type-A) |
| USB | 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) |
| USB | 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM5 |
| Form Factor | ATX |
| Chipset | AMD B650 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

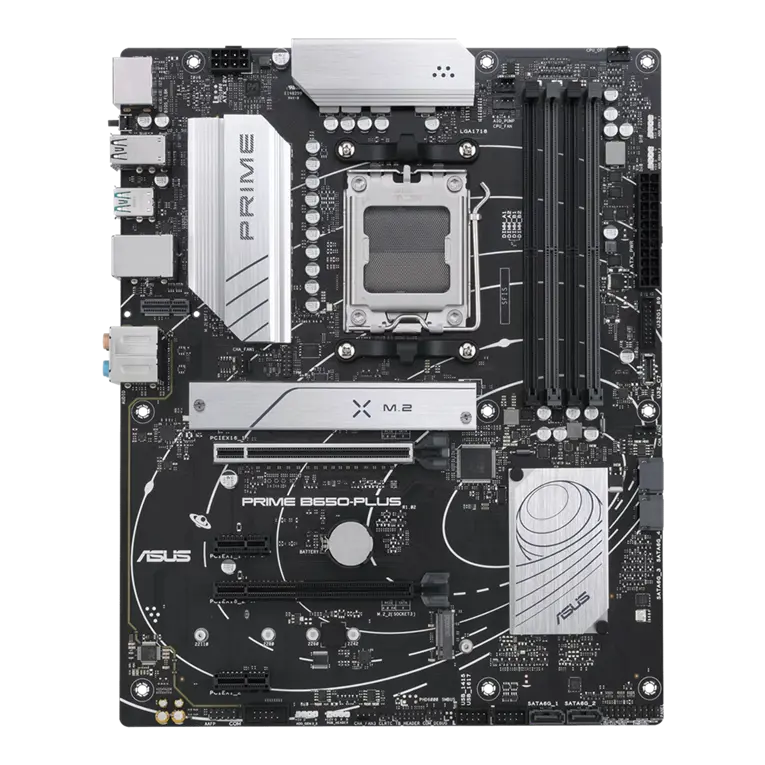

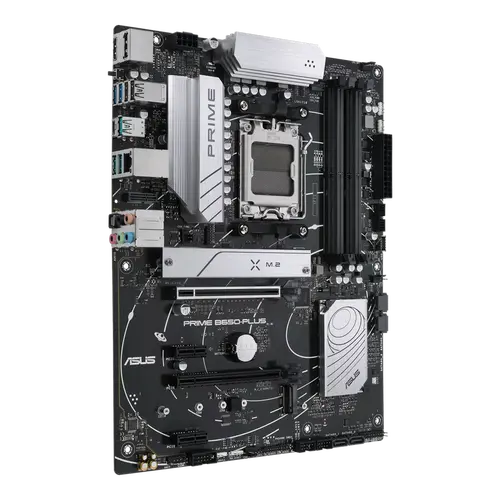

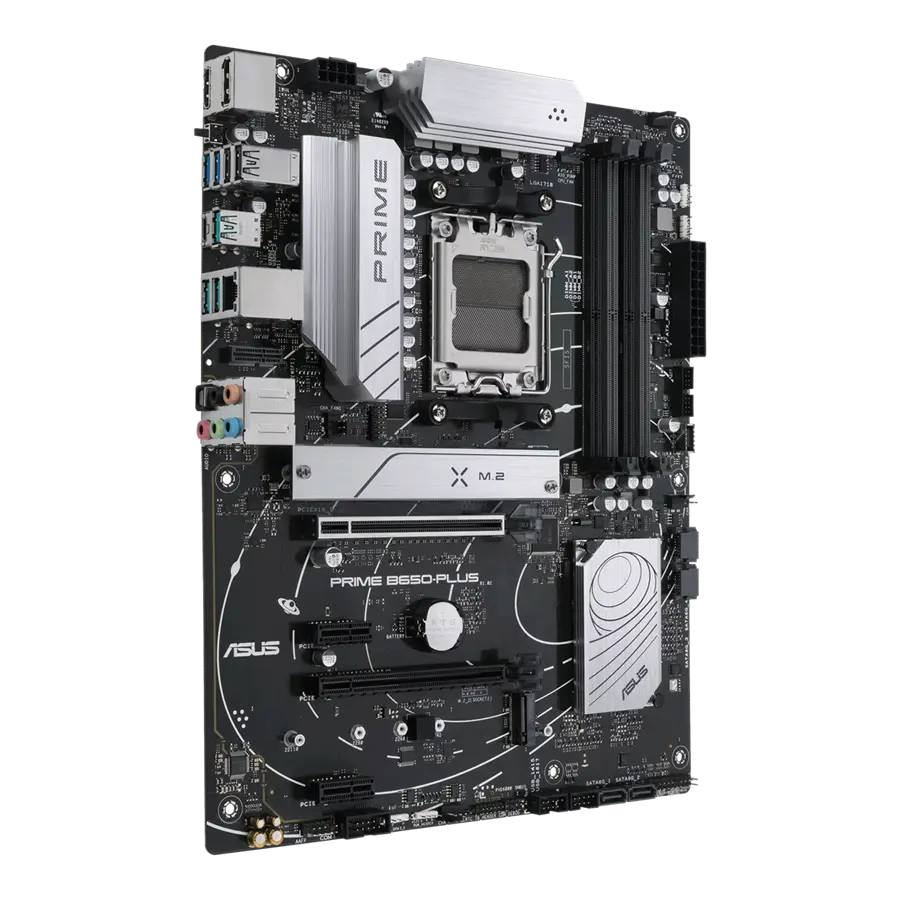

ASUS PRIME B650-PLUS-CSM – Надеждна AM5 дънна платка за високопроизводителни компютри
Базирана на платформата AMD AM5, ASUS PRIME B650-PLUS-CSM осигурява солидна основа за вашето следващо поколение PC. С поддръжка на DDR5 памет и PCIe 5.0 свързаност, тази ATX дънна платка гарантира бърз трансфер на данни и готовност за бъдещето. Независимо дали изграждате гейминг машина или работна станция, серията PRIME предлага стабилна работа и широки опции за охлаждане.
Ключови Предимства
- AMD AM5 Сокет — Съвместимост с процесори Ryzen 7000, отключваща най-новите технологии.
- Поддръжка на DDR5 Памет — До 128GB DDR5 с честоти над 6000MHz за безпроблемна многозадачност.
- PCIe 5.0 x16 Слотове — Два пълноразмерни PCIe 5.0 слота за графични карти и NVMe SSD, осигуряващи максимална честотна лента.
- Двойни M.2 Слотове — Един PCIe 5.0 и един PCIe 4.0 M.2 слот за ултрабърза конфигурация на паметта.
- 2.5Gb Ethernet — Високоскоростна кабелна мрежа с Realtek 2.5Gb LAN за безпроблемна игра онлайн.
- Цялостно Охлаждане — Множество вентилаторни заглавни части, радиатори за VRM и поддръжка на AIO помпа за оптимално управление на температурата.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | ATX |
| Чипсет | AMD B650 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| M.2 слотове | 2 (1x PCIe 5.0, 1x PCIe 4.0) |
| SATA портове | 4 |
| PCIe x16 слотове | 2 (и двата PCIe 5.0) |
| Скорост на LAN | 2.5 Gb Ethernet |
| USB-C портове | 1 (отзад) |
| RGB подсветка | Не (наличен Aura Sync хедър) |
Какво има в кутията
- ASUS PRIME B650-PLUS-CSM Дънна платка
- Ръководство за потребителя
- I/O Скоба
- 2x SATA 6Gb/s Кабела
- M.2 Гумен пакет
- Пакет с винтове за M.2 SSD
- ASUS Support DVD
Εγγραφείτε στο Newsletter μας
Εγγραφείτε στο online newsletter μας και μάθετε πρώτοι για προσφορές και νέα προϊόντα.
ΕΙΚ: 203294915 · Αρ. ΦΠΑ: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Τρόπος πληρωμής
- Αντικαταβολή
- Πιστωτική/Χρεωστική κάρτα
- Τραπεζική μεταφορά
- Με δόσεις ΠΒ Προσωπικά Οικονομικά
