- MSI
Τιμή
€139 99 / 273 80 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.msi.com/Motherboard/B760M-GAMING-PLUS-WIFI/Specification
Graphics
2x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
Chipset
INTEL B760
Expansion slots
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Memory type
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

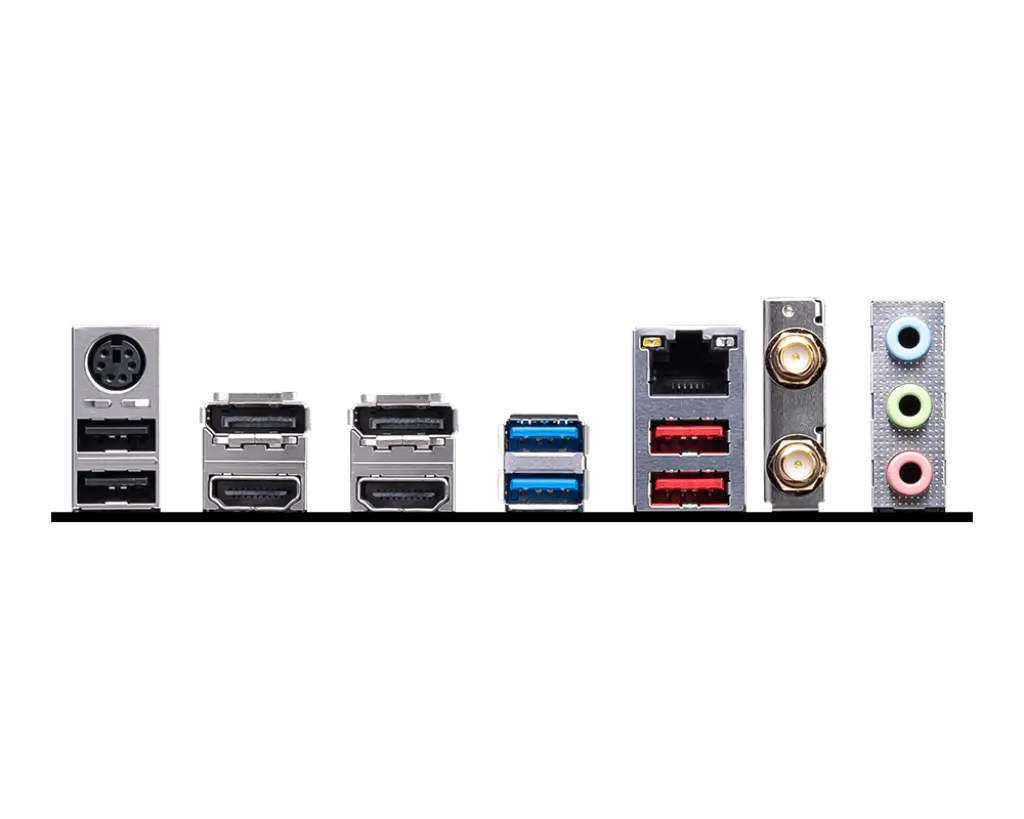

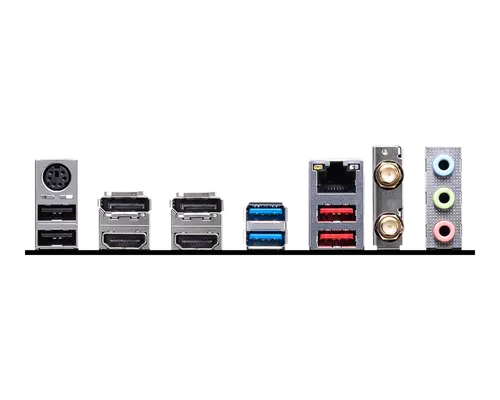

Rear panel I/O
Keyboard / Mouse
DisplayPort
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
USB 2.0
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
Audio Connectors
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Lan
Realtek® RTL8125BG 2.5G LAN
Form factor
mATX,243.84mmx243.84mm
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Other
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.msi.com/Motherboard/B760M-GAMING-PLUS-WIFI/Specification |
| Chipset | INTEL B760 |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| CPU's supported | LGA 1700 |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | • 2DPC 1R Max speed up to 6000+ MHz |
| Memory type | 4x DDR5, Maximum Memory Capacity 192GB |
| Memory type | Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz |
| Memory type | • 1DPC 2R Max speed up to 6400+ MHz |
| Memory type | Supports Intel® XMP 3.0 OC |
| Memory type | Supports Dual-Controller Dual-Channel mode |
| Memory type | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Memory type | • 2DPC 2R Max speed up to 5600+ MHz |
| Form Factor | mATX,243.84mmx243.84mm |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 Codec |
| Rear panel I/O | Keyboard / Mouse |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | DisplayPort |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | 2.5G LAN |
| Rear panel I/O | USB 3.2 Gen 1 5Gbps (Type-A) |
| Rear panel I/O | Wi-Fi / Bluetooth |
| Rear panel I/O | USB 3.2 Gen 2 10Gbps (Type-A) |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Expansion Slots | 1x PCI-E x1 slot |
| Expansion Slots | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | 2x PCI-E x16 slot |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Graphics | Support HDMITM 2.1, maximum resolution of 4K 60Hz* |
| Graphics | Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| Graphics | Support DP 1.4, maximum resolution of 4K 60Hz* |
| Graphics | 2x HDMI™ |
| Graphics | 2x DisplayPort |
| Other | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Other | Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Other | Intel® Wi-Fi 6E |
| Other | Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
| Other | Supports Bluetooth® 5.3, FIPS, FISMA |
| I/O | Keyboard / Mouse |
| I/O | Audio Connectors |
| I/O | HDMI™ |
| I/O | DisplayPort |
| I/O | USB 3.2 Gen 1 5Gbps (Type-A) |
| I/O | 2.5G LAN |
| I/O | USB 2.0 |
| I/O | Wi-Fi / Bluetooth |
| I/O | USB 3.2 Gen 2 10Gbps (Type-A) |
| Storage | 4x SATA 6G |
| Storage | 2x M.2 |
| Storage | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x Com Port (JCOM) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 2x System Fan |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 1x Pump Fan |
| Connectors | 2x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 4x USB 3.2 Gen1 Type A ports |
| Connectors | 1x USB 3.2 Gen1 Type C ports |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

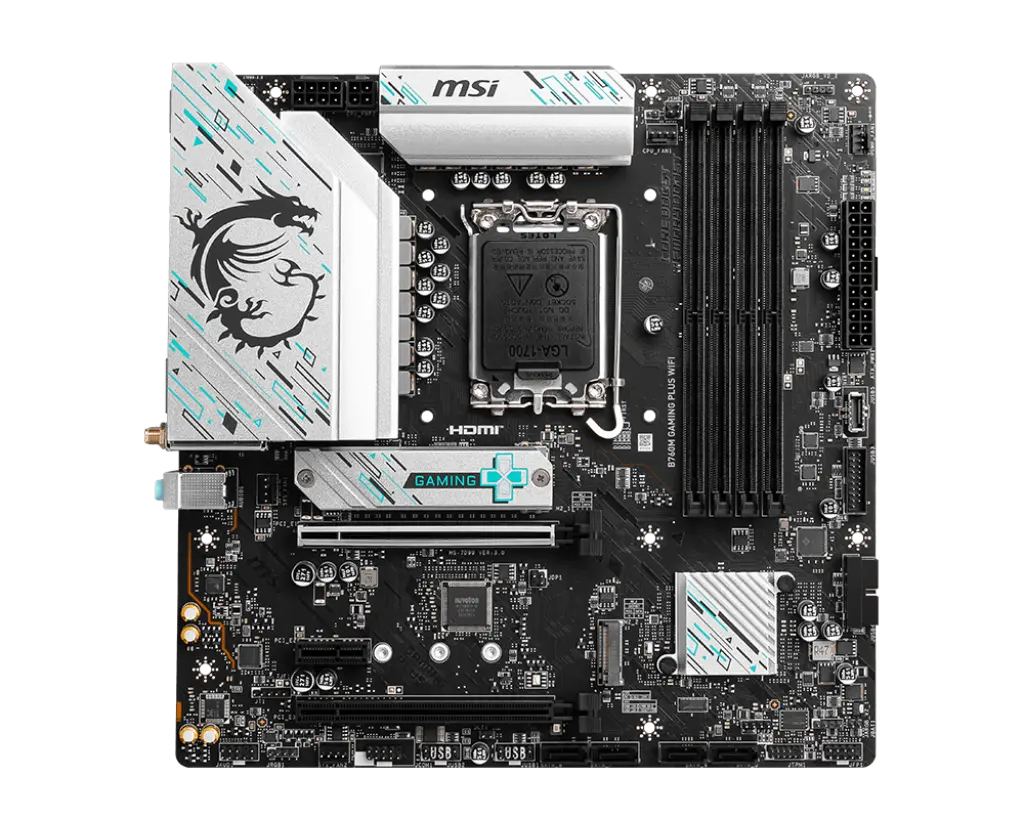

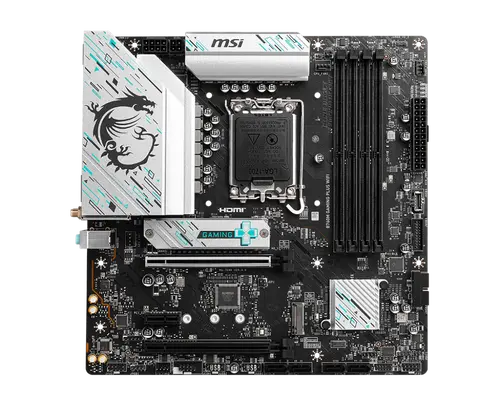

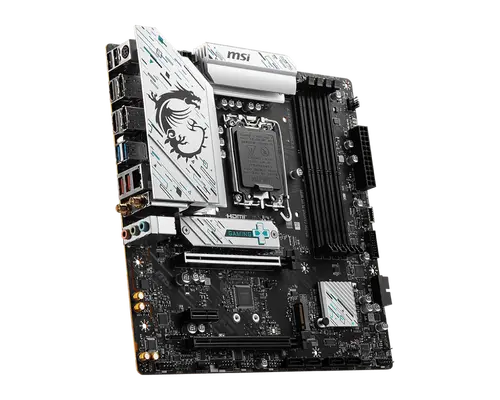

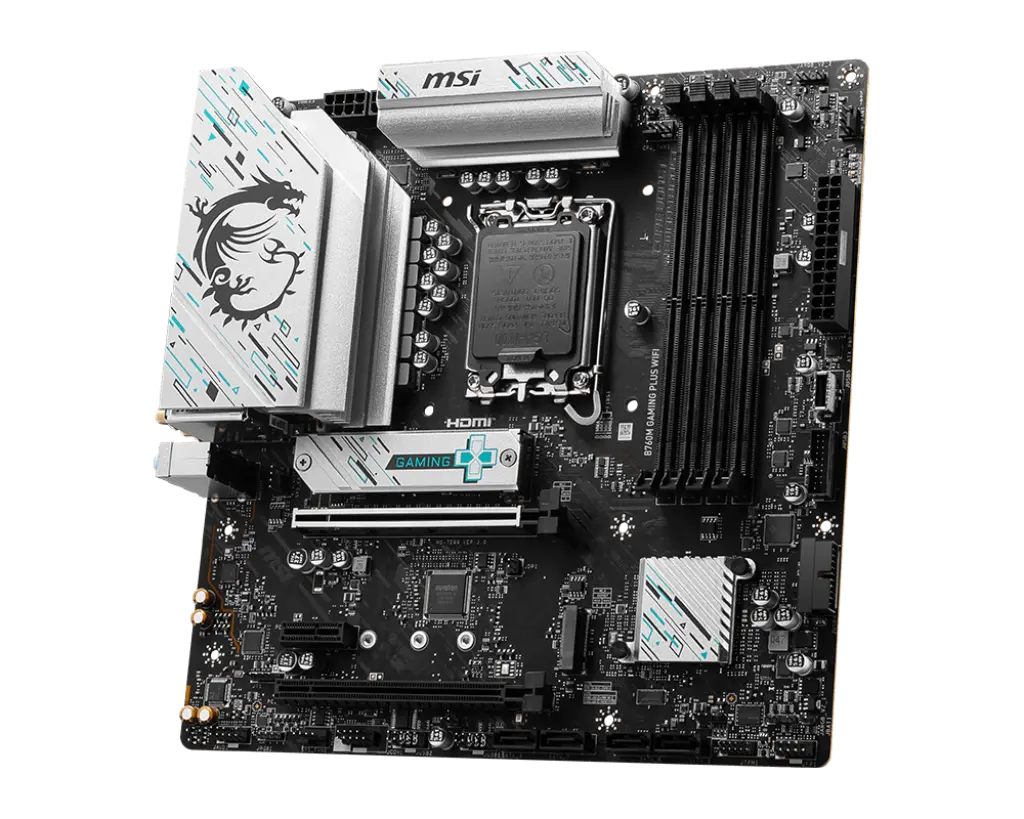

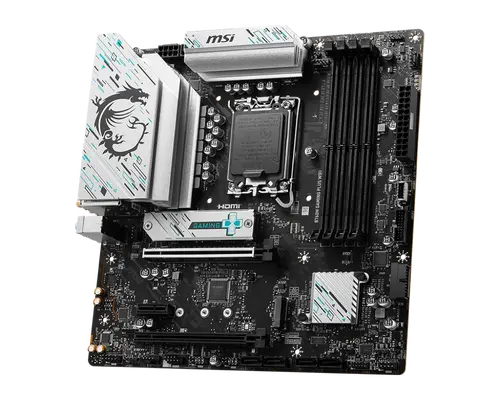

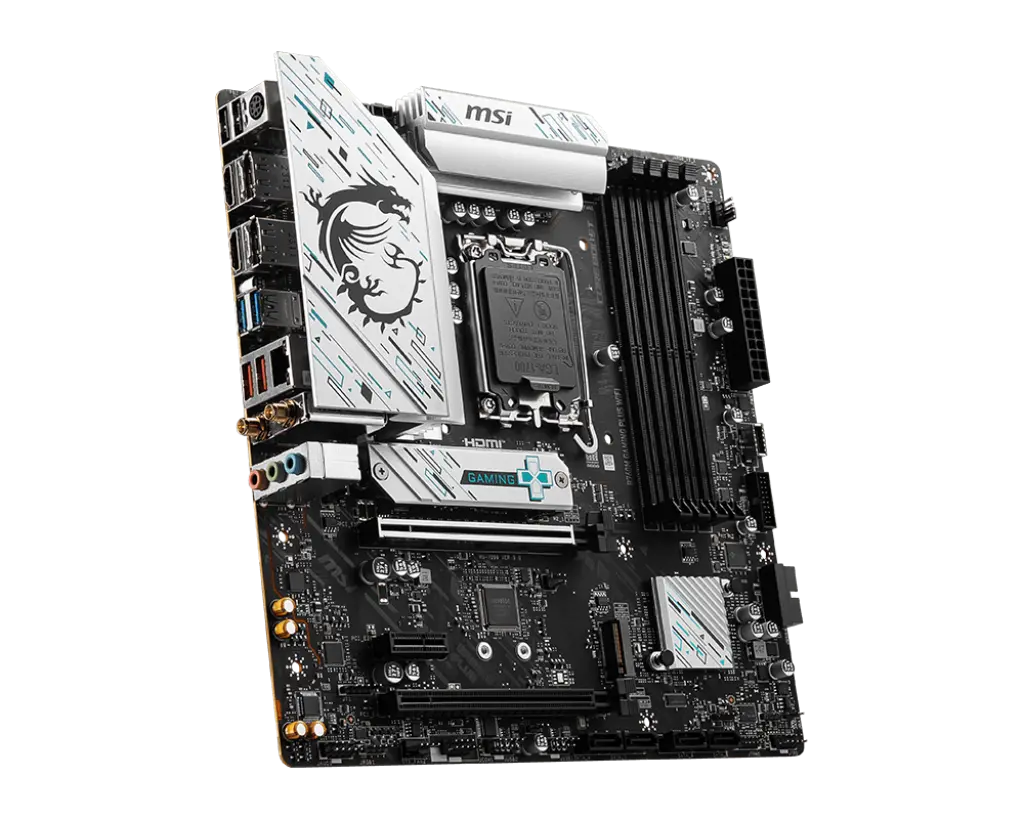

MSI B760M GAMING PLUS WIFI – Микро-ATX дънна платка с DDR5 и Wi-Fi 6E
Постигнете невероятна гейминг производителност с дънната платка MSI B760M GAMING PLUS WIFI. Базирана на чипсет Intel B760 и сокет LGA1700, тази Micro-ATX платка поддържа процесори Intel Core от 12-то и 13-то поколение, разполага с бърза DDR5 памет, вграден Wi-Fi 6E и 2.5G LAN за гладка онлайн игра и продуктивност.
Ключови Предимства
- Поддръжка на DDR5 памет – Отключете по-висока честотна лента и скорост с двуканална DDR5, повишавайки реакцията на системата.
- Wi-Fi 6E и 2.5G LAN – Насладете се на изключително ниска латентност при безжични и кабелни мрежи за безпроблемен гейминг и стрийминг.
- Свръхбързо съхранение – Два M.2 слота с PCIe 4.0 осигуряват бърз достъп до данни за игри и приложения.
- Подобрено охлаждане – Удължен радиатор държи VRM и M.2 устройствата хладни при натоварване.
- Mystic Light RGB – Персонализирайте своя компютър с RGB управление чрез софтуера MSI Center.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 2 (Dual Channel) |
| Максимална памет | 64 GB |
| M.2 слотове | 2 (PCIe 4.0 x4) |
| SATA портове | 4 |
| PCIe x16 слотове | 2 (1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16) |
| Wi-Fi | Wi-Fi 6E |
| LAN | 2.5 Gbps (Realtek RTL8125) |
| USB-C портове | 1 (отзад) |
| RGB подсветка | Не (поддържа външни RGB ленти) |

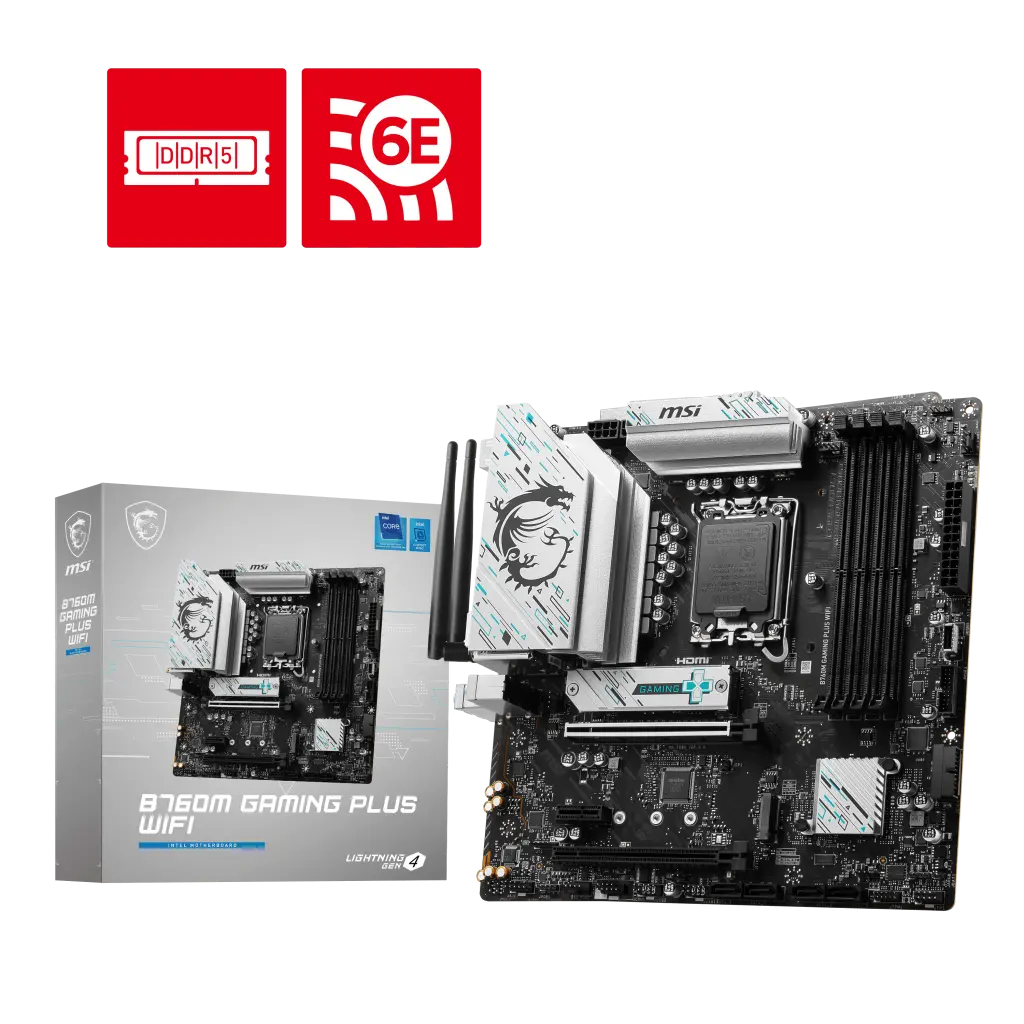

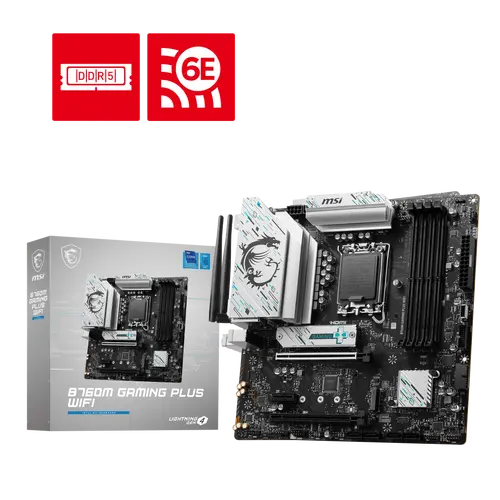

Какво има в кутията
- Дънна платка MSI B760M GAMING PLUS WIFI
- 2 x SATA кабела
- I/O щит
- Wi-Fi антени
- Ръководство за потребителя
- DVD с драйвери
