- ASROCK
Τιμή
€202 96 / 396 96 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://pg.asrock.com/mb/Intel/B860%20Lightning%20WiFi/index.asp#Overview
Graphics
Intel® Xe LPG Graphics Architecture
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Chipset
Intel® B860
Expansion slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x2 mode
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory type
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC)
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 256GB
Supports Intel® Extreme Memory Profile (XMP) 3.0x

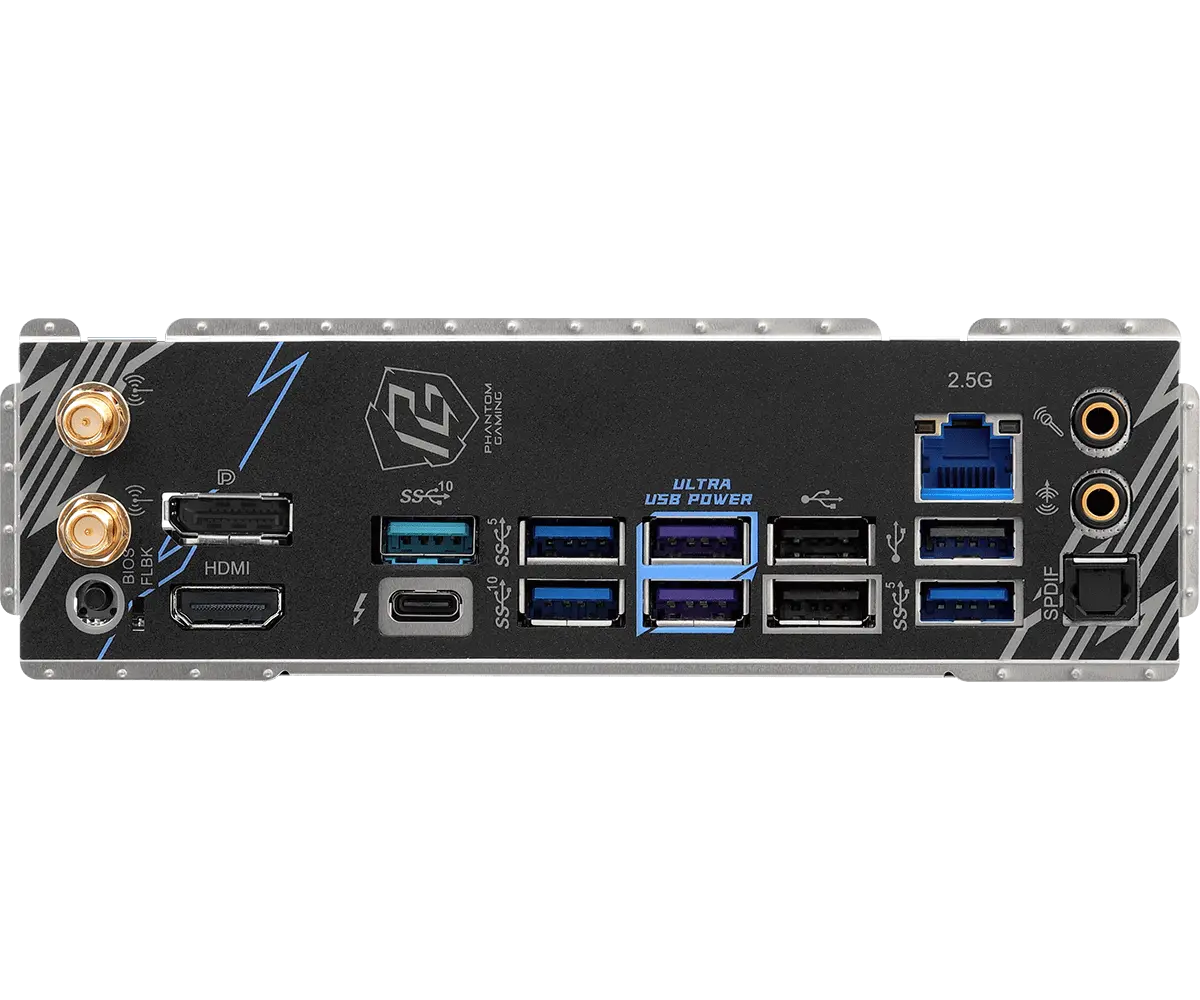

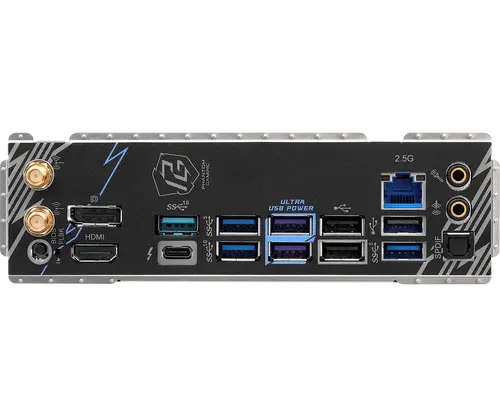

Rear panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol
40Gb/s for Thunderbolt™ protocol)
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
4 x USB 3.2 Gen1 Ports
3 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
USB
CPU:
- 1 x Thunderbolt™ 4 Type-C (Rear) Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 2 x USB 3.2 Gen2 Type-A (Rear)- 8 x USB 3.2 Gen1 (4 Rear, 4 Front)
- 7 x USB 2.0 (3 Rear, 4 Front)
Connectors
1 x Thermistor Cable Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Nahimic Audio
Lan
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Killer E3100G
Supports Killer LAN Software
Supports Killer DoubleShot™ Pro
Wireless
802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.3
Supports MU-MIMO
Supports Killer LAN Software
Supports Killer DoubleShot™ Pro802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.3
Supports MU-MIMO
Supports Killer LAN Software
Supports Killer DoubleShot™ Pro
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
OS
Microsoft Windows® 11 64-bit
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://pg.asrock.com/mb/Intel/B860%20Lightning%20WiFi/index.asp#Overview |
| Chipset | Intel® B860 |
| OS | Microsoft Windows® 11 64-bit |
| OS | Software |
| OS | UEFI |
| OS | - ASRock Full HD UEFI |
| OS | - ASRock Auto Driver Installer |
| OS | - ASRock Instant Flash |
| OS | - ASRock Polychrome SYNC |
| OS | - ASRock EZ Mode |
| OS | - ASRock My Favorites in UEFI |
| OS | - ASRock Motherboard Utility (Phantom Gaming Tuning) |
| OS | - Killer Control Center |
| Warranty | 36 Months |
| CPU's supported | Supports Intel® Hybrid Technology |
| CPU's supported | Supports Intel® Turbo Boost Max 3.0 Technology |
| CPU's supported | Supports Intel® Thermal Velocity Boost (TVB) |
| CPU's supported | Supports Intel® Adaptive Boost Technology (ABT) |
| CPU's supported | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) |
| CPU's supported | Integrated NPU for dedicated AI acceleration |
| Memory type | Dual Channel DDR5 Memory Technology |
| Memory type | 4 x DDR5 DIMM Slots |
| Memory type | Max. capacity of system memory: 256GB |
| Memory type | Supports Clocked Unbuffered DIMM (CUDIMM) |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Memory type | Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC) |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Form Factor | 2oz Copper PCB |
| Audio | Nahimic Audio |
| Audio | Individual PCB Layers for R/L Audio Channel |
| Audio | Impedance Sensing on Rear Out port |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| Rear panel I/O | 1 x HDMI port |
| Rear panel I/O | 1 x RJ-45 LAN Port |
| Rear panel I/O | 1 x BIOS Flashback Button |
| Rear panel I/O | 2 x Antenna Ports |
| Rear panel I/O | 1 x DisplayPort 1.4 |
| Rear panel I/O | 1 x Optical SPDIF Out Port |
| Rear panel I/O | 1 x Line Out Jack (Gold Audio Jack) |
| Rear panel I/O | 1 x Microphone Input Jack (Gold Audio Jack) |
| Rear panel I/O | 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) |
| Rear panel I/O | 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol |
| Rear panel I/O | 40Gb/s for Thunderbolt™ protocol) |
| Rear panel I/O | 4 x USB 3.2 Gen1 Ports |
| Rear panel I/O | 3 x USB 2.0 Ports |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | Killer E3100G |
| LAN | Supports Killer LAN Software |
| LAN | Supports Killer DoubleShot™ Pro |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Expansion Slots | - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x2 mode |
| Wireless | 802.11axe Wi-Fi 6E Module |
| Wireless | Supports IEEE 802.11a/b/g/n/ac/ax/axe |
| Wireless | 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology |
| Wireless | Supports MU-MIMO |
| Wireless | Supports Bluetooth 5.3 |
| Wireless | Supports Dual-Band 2x2 160MHz with extended 6GHz band* support |
| Wireless | Supports Killer LAN Software |
| Wireless | Supports Killer DoubleShot™ Pro |
| Wireless | Supports Killer DoubleShot™ Pro802.11axe Wi-Fi 6E Module |
| Graphics | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Graphics | Intel® Xe LPG Graphics Architecture |
| Graphics | 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Features | Superb Productivity |
| Features | - Dual Channel DDR5 |
| Features | Rock-Solid Durability |
| Features | - ASRock Auto Driver Installer |
| Features | EZ Troubleshooter |
| Features | - ASRock Post Status Checker |
| Features | - PCIe Gen5 (Graphics, M.2) |
| Features | - Flexible Integrated I/O Shield |
| Features | - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) |
| Features | EZ Update- BIOS Flashback Button |
| Features | Ultrafast Gaming |
| Features | - Server-Grade Low-Loss PCB |
| Features | - Thunderbolt™ 4 Type-C Port (40 Gb/s) |
| Features | - 14+1+1+1+1 Power Phase, 80A Dr.MOS for VCore+GT+SA with Enlarged Heatsink Armor |
| Features | - Memory OC Shield |
| Features | - Killer 2.5G LAN, 802.11axe Wi-Fi 6E Module |
| Features | - Killer DoubleShot™ Pro |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| I/O | 1 x HDMI Port |
| I/O | 1 x DisplayPort 1.4 |
| I/O | 2 x Antenna Ports |
| I/O | 1 x RJ-45 LAN Port |
| I/O | 1 x BIOS Flashback Button |
| I/O | 1 x Optical SPDIF Out Port |
| I/O | 1 x Line Out Jack (Gold Audio Jack) |
| I/O | 1 x Microphone Input Jack (Gold Audio Jack) |
| I/O | 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) |
| I/O | 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol |
| I/O | 40Gb/s for Thunderbolt™ protocol) |
| I/O | 4 x USB 3.2 Gen1 Ports |
| I/O | 3 x USB 2.0 Ports |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Storage | - 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x Power LED and Speaker Header |
| Connectors | 1 x 24 pin ATX Power Connector |
| Connectors | 1 x Front Panel Audio Connector |
| Connectors | 1 x RGB LED Header |
| Connectors | 3 x Addressable LED Headers |
| Connectors | 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) |
| Connectors | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Connectors | 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
| Connectors | 1 x Thermistor Cable Header |
| Connectors | 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Connectors | 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) |
| Connectors | 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) |
| USB | CPU: |
| USB | - 1 x USB 3.2 Gen2x2 Type-C (Front) |
| USB | - 1 x Thunderbolt™ 4 Type-C (Rear) Chipset: |
| USB | - 7 x USB 2.0 (3 Rear, 4 Front) |
| USB | - 2 x USB 3.2 Gen2 Type-A (Rear)- 8 x USB 3.2 Gen1 (4 Rear, 4 Front) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1851 |
| Form Factor | ATX |
| Chipset | Intel B860 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 256 |
| M.2 Slots (count) | 3 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 7 |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
Дънна платка ASROCK B860 LIGHTNING WIFI
Извлечете максимума от процесорите Intel Core Ultra с дънната платка ASRock B860 Lightning WiFi. Създадена за геймъри и творци, тя предлага бърза DDR5 памет, PCIe 5.0 графика и Wi-Fi 7 свързаност в здрав ATX форм фактор.
Ключови Предимства
- Свързаност от ново поколение — Wi-Fi 7 и 2.5 GbE LAN осигуряват безпроблемен онлайн гейминг и свръхбърз трансфер на файлове.
- Мълниеносно бързи дискове — Три M.2 слота, включително един PCIe 5.0, за моментално зареждане.
- Поддръжка на DDR5 памет — До 256 GB DDR5-8000+ (OC) за безпроблемна многозадачност и високи честотни ленти.
- Премиум аудио и RGB — Realtek ALC1220 аудио кодек и вградени RGB конектори с Polychrome Sync.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1851 |
| Форм фактор | ATX |
| Чипсет | Intel B860 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 3 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |
Какво има в кутията

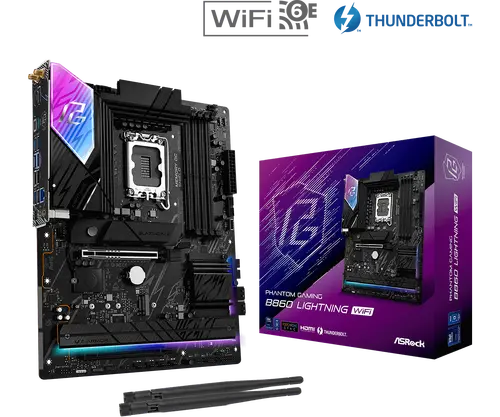

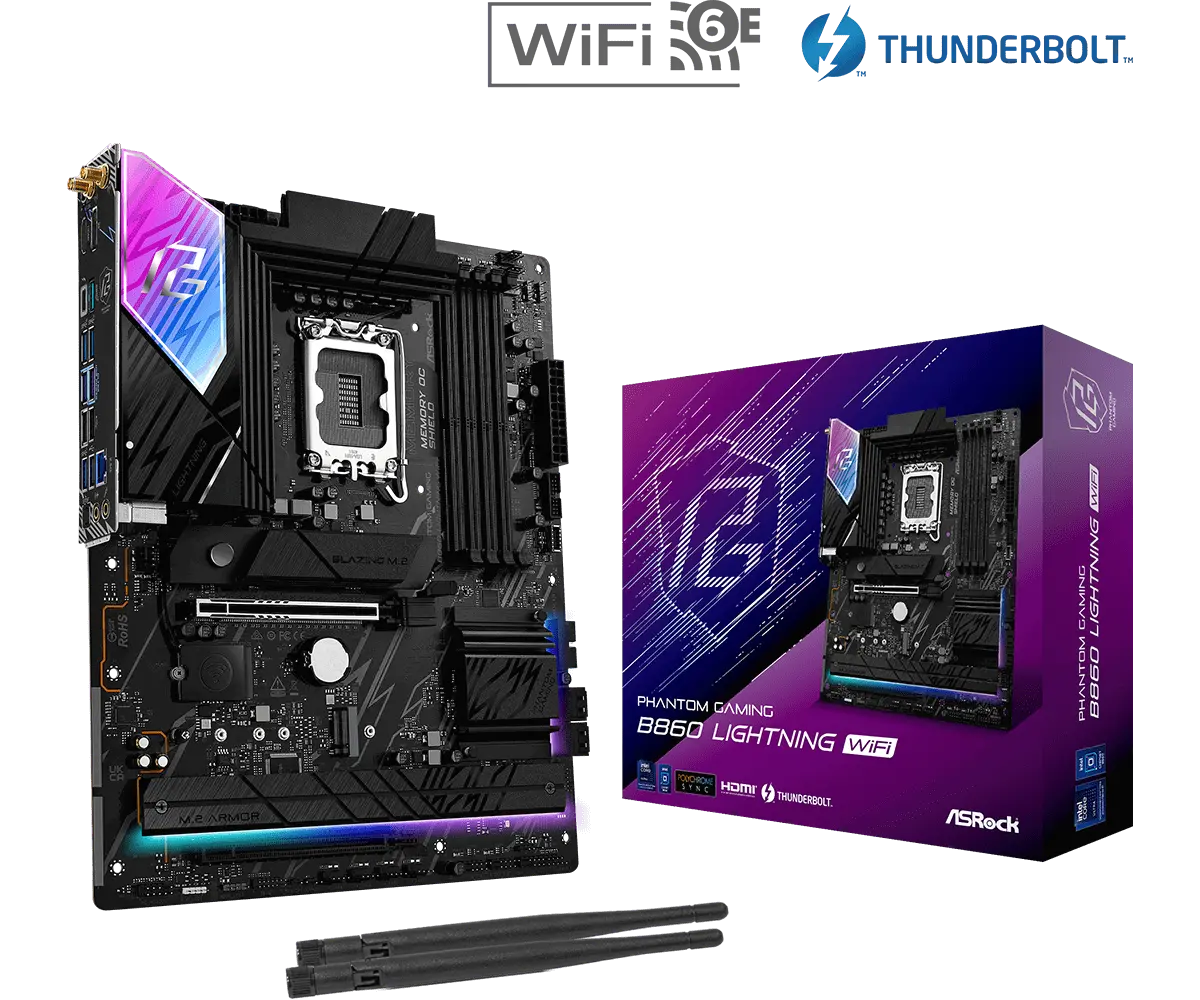

- Дънна платка ASRock B860 Lightning WiFi
- Ръководство за потребителя
- CD с драйвери
- 2 x SATA кабела
- Wi-Fi антена
- I/O щит
Εγγραφείτε στο Newsletter μας
Εγγραφείτε στο online newsletter μας και μάθετε πρώτοι για προσφορές και νέα προϊόντα.
ΕΙΚ: 203294915 · Αρ. ΦΠΑ: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Τρόπος πληρωμής
- Αντικαταβολή
- Πιστωτική/Χρεωστική κάρτα
- Τραπεζική μεταφορά
- Με δόσεις ΠΒ Προσωπικά Οικονομικά
