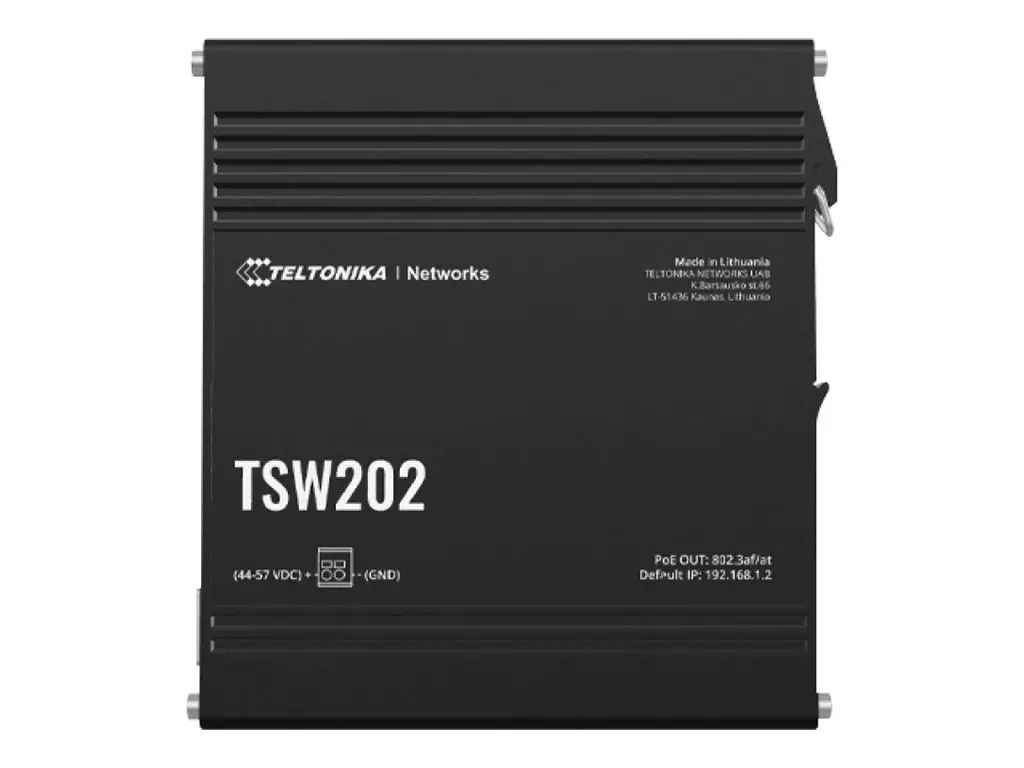

Teltonika TSW202 - Switch - Διαχειριζόμενο - 8 x 10/100/1000 (PoE+) + 2 x SFP - Τοποθέτηση σε DIN rail - PoE+ (240 W)
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
TSW202 is the Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fiber optic communication and 8 Gigabit Ethernet ports providing 30W of power each.
| Description | |
|---|---|
| Marketing Description | TSW202 is the Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fiber optic communication and 8 Gigabit Ethernet ports providing 30W of power each. |
| General | |
| Device Type | Switch - 8 ports - Managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Non-blocking bandwidth: 20 Gbps |
| Capacity | Packet buffer size: 512 KB |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Remote Management Protocol | SNMP 2, SNMP 3 |
| Features | Auto-uplink (auto MDI/MDI-X), PROFINET, EtherNet/IP enabled, LLDP support, loop protection, VLAN support, STP support, RSTP support, DHCP server, DHCP client, port isolation, port mirroring, static routing, DHCPv6 client, port-based priority, DSCP prioritisation, ToS, SP, WFQ, WRR, traffic shaping, FOTA |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at |
| RAM | 128 MB DDR3 SDRAM |
| Flash Memory | 16 MB |
| Status Indicators | Power, AUX, port status |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 30 W 2 x LAN SFP |
| Power | |
| Voltage Required | DC 7 - 57 V |
| Miscellaneous | |
| Compliant Standards | IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, EN IEC 62368-1:2020+A11:2020, AS/NZS 62368-1:2022, IEC 62368-1:2018 |
| Dimensions & Weight | |
| Width | 13.2 cm |
| Depth | 12.22 cm |
| Height | 4.42 cm |
| Weight | 610 g |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Device Type | Switch - 8 ports - Managed |
| Device Type | Switch - 8 ports - Managed |
| Marketing Description | TSW202 is the Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M commu |
| Marketing Description | TSW202 is the Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M commu |
| Enclosure Type | DIN rail mountable |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Enclosure Type | DIN rail mountable |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x SFP |
| Subtype | Gigabit Ethernet |
| Performance | Non-blocking bandwidth: 20 Gbps |
| Capacity | Packet buffer size: 512 KB |
| Power Over Ethernet (PoE) | PoE+ |
| Features | Auto-uplink (auto MDI/MDI-X), PROFINET, EtherNet/IP enabled, LLDP support, loop protection, VLAN support, STP support, RSTP support, DHCP server, DHCP client, port isolation, port mirroring, static routing, DHCPv6 client, port-based priority, DSCP priorit |
| MAC Address Table Size | 8K entries |
| PoE Budget | 240 W |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at |
| Compliant Standards | IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:20 |
| Jumbo Frame Support | 10000 bytes |
| Performance | Non-blocking bandwidth: 20 Gbps |
| Status Indicators | Power, AUX, port status |
| Width | 13.2 cm |
| Remote Management Protocol | SNMP 2, SNMP 3 |
| Depth | 12.22 cm |
| MAC Address Table Size | 8K entries |
| Height | 4.42 cm |
| Jumbo Frame Support | 10000 bytes |
| Interfaces | 8 x 1000Base-T RJ-45 30 W 2 x LAN SFP |
| Features | Auto-uplink (auto MDI/MDI-X), PROFINET, EtherNet/IP enabled, LLDP support, loop protection, VLAN support, STP support, RSTP support, DHCP server, DHCP client, port isolation, port mirroring, static routing, DHCPv6 client, port-based priority, DSCP priorit |
| Min Operating Temperature | -40 °C |
| Remote Management Protocol | SNMP 2, SNMP 3 |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at |
| Compliant Standards | IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:20 |
| Max Operating Temperature | 75 °C |
| RAM | 128 MB DDR3 SDRAM |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Marketing Description | TSW202 is the Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M commu |
| Flash Memory | 16 MB |
| Device Type | Switch - 8 ports - Managed |
| RAM | 128 MB DDR3 SDRAM |
| Status Indicators | Power, AUX, port status |
| Flash Memory | 16 MB |
| Width | 13.2 cm |
| Interfaces | 8 x 1000Base-T RJ-45 30 W 2 x LAN SFP |
| Status Indicators | Power, AUX, port status |
| Depth | 12.22 cm |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x SFP |
| Height | 4.42 cm |
| Weight | 610 g |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Weight | 610 g |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Features | Auto-uplink (auto MDI/MDI-X), PROFINET, EtherNet/IP enabled, LLDP support, loop protection, VLAN support, STP support, RSTP support, DHCP server, DHCP client, port isolation, port mirroring, static routing, DHCPv6 client, port-based priority, DSCP priorit |
| Voltage Required | DC 7 - 57 V |
| Capacity | Packet buffer size: 512 KB |
| Width | 13.2 cm |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at |
| Compliant Standards | IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:20 |
| Depth | 12.22 cm |
| Height | 4.42 cm |
| Weight | 610 g |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Interfaces | 8 x 1000Base-T RJ-45 30 W 2 x LAN SFP |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Performance | Non-blocking bandwidth: 20 Gbps |
| Remote Management Protocol | SNMP 2, SNMP 3 |
| Voltage Required | DC 7 - 57 V |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 128 MB DDR3 SDRAM |
| PoE Budget | 240 W |
| Flash Memory | 16 MB |
| Voltage Required | DC 7 - 57 V |
| Power Over Ethernet (PoE) | PoE+ |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Capacity | Packet buffer size: 512 KB |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x SFP |
| Subtype | Gigabit Ethernet |
| PoE Budget | 240 W |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Number of Ports (count) | 2 |
| Port Speed | 10/100/1000 Mbps |
| Switch Type | Managed |
| PoE Support | PoE+ |
| Form Factor | Wall Mount |
| Layer | Layer 3 |
| SFP Ports (count) | 2 |
| SFP+ Ports (count) | 0 |
| Switching Capacity (Gbps) | 8 Gbps |
| PoE Power Budget (W) | 60 |
| VLAN Support | Yes |
| Stackable | No |
| Fanless | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
Teltonika Networks TSW202 – Управляем Layer 2/3 PoE+ комутатор с SFP портове
Подобрете вашата индустриална или корпоративна мрежа с Teltonika TSW202 – компактен, но мощен управляем комутатор. Той комбинира два Gigabit PoE+ порта с два SFP слота за гъвкави оптични връзки, като същевременно предлага здрава конструкция за тежки условия. Опростете мрежовата сегментация и сигурност с усъвършенствани Layer 2/3 функции.
Ключови Предимства
- Пълно управление и сигурност — VLAN, QoS, IGMP snooping и port mirroring осигуряват прецизен контрол. Статичното маршрутизиране (L3) позволява комуникация между VLAN без отделен рутер.
- Двойно PoE+ захранване — Всеки RJ45 порт доставя до 30W (IEEE 802.3at) за захранване на IP камери, точки за достъп или сензори.
- Оптична свързаност — Два 100/1000BASE‑X SFP слота поддържат дълги оптични връзки, осигурявайки електрическа изолация.
- Здрав и надежден — Безвентилаторен дизайн с широк работен температурен диапазон (-40°C до 75°C) и възможност за монтаж на стена или DIN шина, идеален за индустриален IoT и външни шкафове.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Брой портове | 2 x Gigabit RJ45 (PoE+) |
| SFP портове | 2 x 100/1000BASE‑X |
| Скорост на портовете | 10/100/1000 Mbps |
| Тип суич | Управляем (L2/L3) |
| PoE поддръжка | PoE+ (IEEE 802.3at) |
| PoE бюджет | До 60 W (30 W на порт) |
| Капацитет на превключване | 8 Gbps |
| Слой | Layer 2+ / Layer 3 (статично маршрутизиране) |
| VLAN поддръжка | Да, до 4094 VLAN-а |
| Форм фактор | За монтаж на стена / DIN шина (опция) |
| Без вентилатор | Да |
| Работна температура | -40°C до 75°C |
Какво има в кутията
- Комутатор Teltonika TSW202
- Кратко ръководство за употреба
- Захранващ адаптер (конектор за клемна връзка)
- Скоби за монтаж на стена
- Клип за DIN шина (опционален аксесоар)
