Name: Μητρική πλακέτα, GIGABYTE GB B840 EAGLE WF6E
Brand: GIGABYTE
SKU: B840 EAGLE WF6E 1.0
Price: 143.23 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Παράδοση· Όροι· Παράπονα· Επικοινωνία·

Σύνδεση

⇆Σύγκριση ⚙Φτιάξτε PC Καλάθι

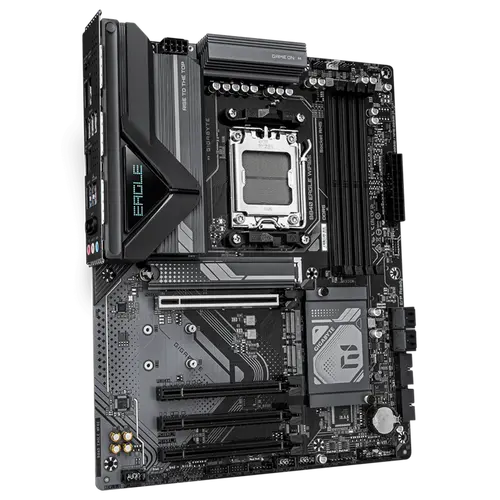

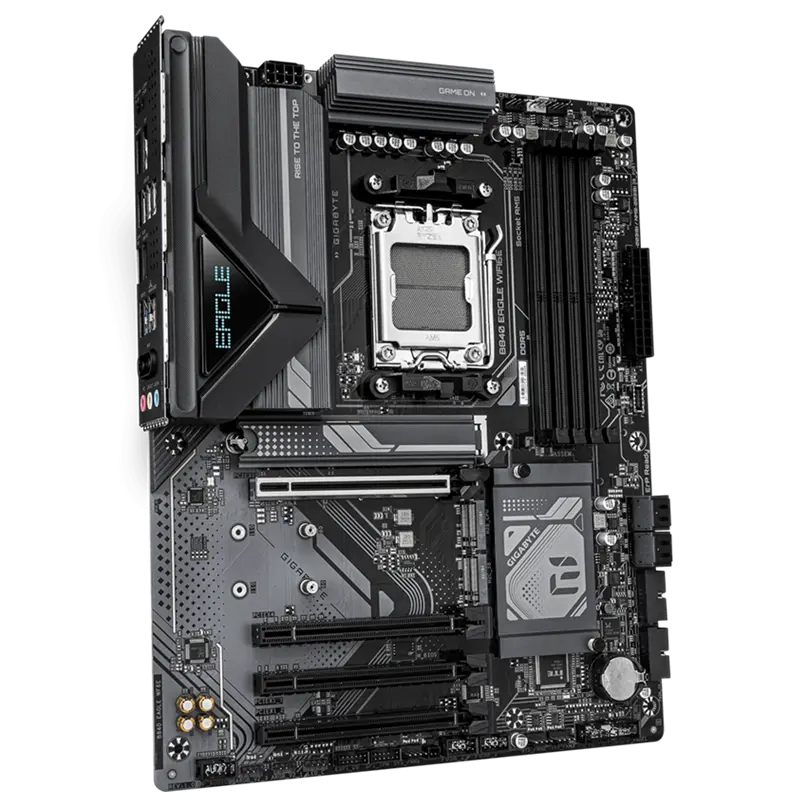

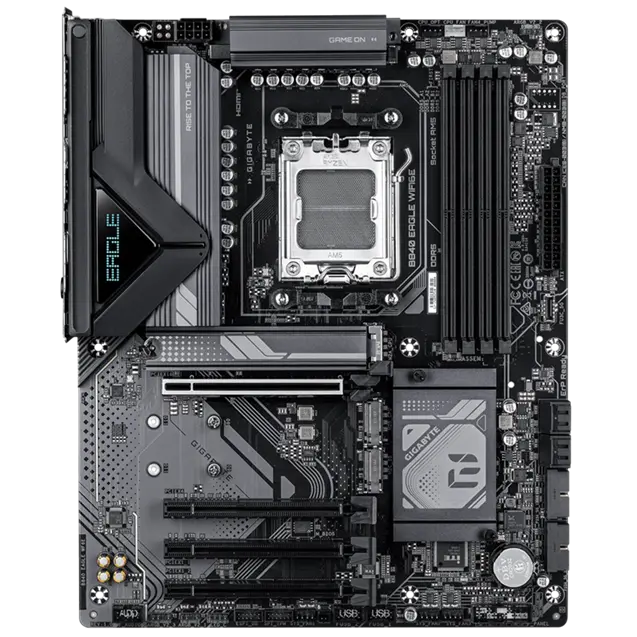

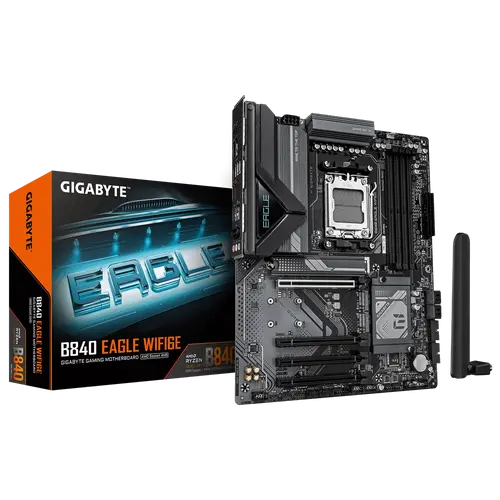

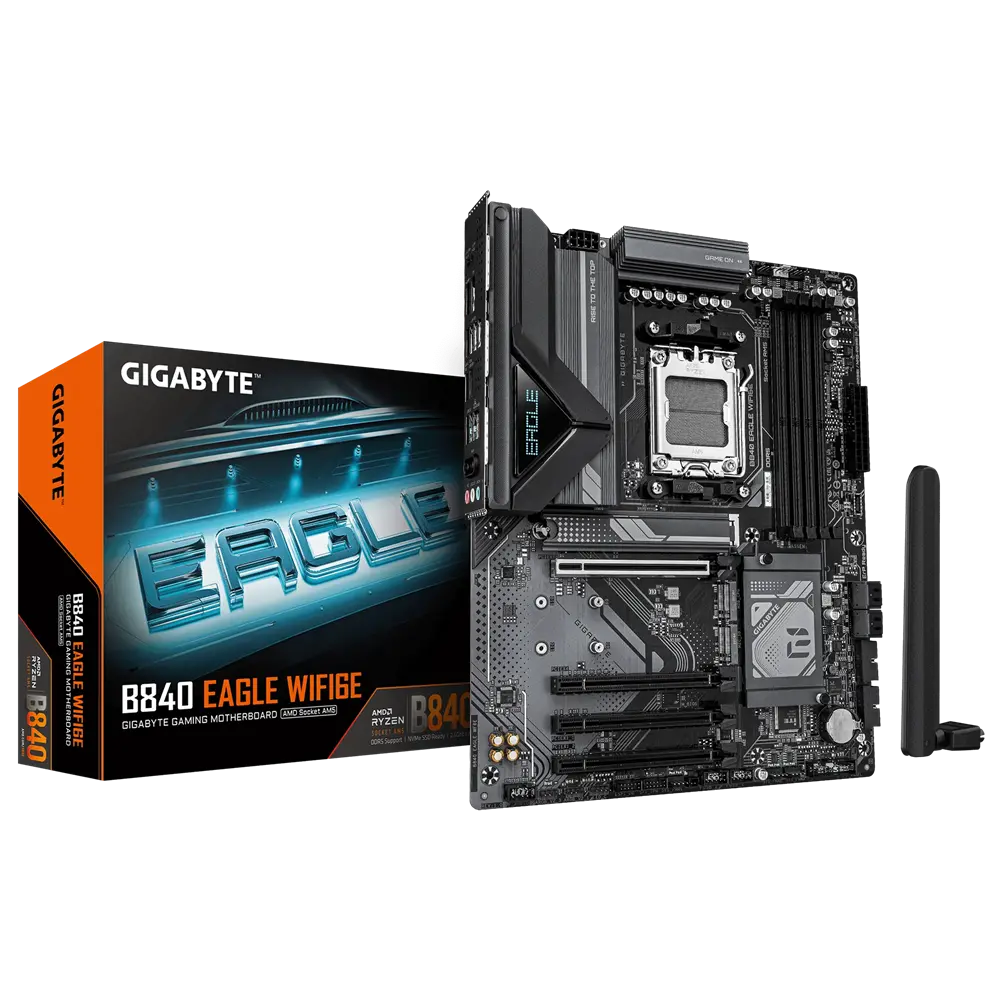

Μητρική πλακέτα, GIGABYTE GB B840 EAGLE WF6E - 1

Μητρική πλακέτα, GIGABYTE GB B840 EAGLE WF6E - 2

Μητρική πλακέτα, GIGABYTE GB B840 EAGLE WF6E - 3

Μητρική πλακέτα, GIGABYTE GB B840 EAGLE WF6E - 4

GIGABYTE

Μητρική πλακέτα, GIGABYTE GB B840 EAGLE WF6E

Τιμή

€143²³ / 280¹³ BGN

με ΦΠΑ

* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)

* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας

Ποσ.:

Προσθήκη στο καλάθι

Επεκτείνετε την εγγύησή σας

+1 έτος: + 19€

+2 έτη: + 28€

Κωδικός: B840 EAGLE WF6E 1.0
Κατηγορία: Μητρικές
Εγγύηση: 3 έτη

ΑΞΙΟΛΟΓΗΣΗ

Η ΑΞΙΟΛΟΓΗΣΗ ΣΑΣ

Κριτικές

Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.

Περιγραφή
Λεπτομέρειες
Κριτικές
Περιγραφή ΤΝ

Vendor_url

https://www.gigabyte.com/Motherboard/B840-EAGLE-WIFI6E

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.

CPU's supported

AMD Socket AM5, support for:

AMD Ryzen™ 9000 Series Processors/

AMD Ryzen™ 8000 Series Processors/

AMD Ryzen™ 7000 Series Processors

Chipset

AMD B840

Expansion slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode

- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Storage

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:

- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:

- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Memory type

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Rear panel I/O

iTE® I/O Controller Chip

USB

CPU:

- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

- 2 x USB 3.2 Gen 1 ports on the back panel

CPU+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the back panel

Chipset:

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x reset jumper

1 x Clear CMOS jumper

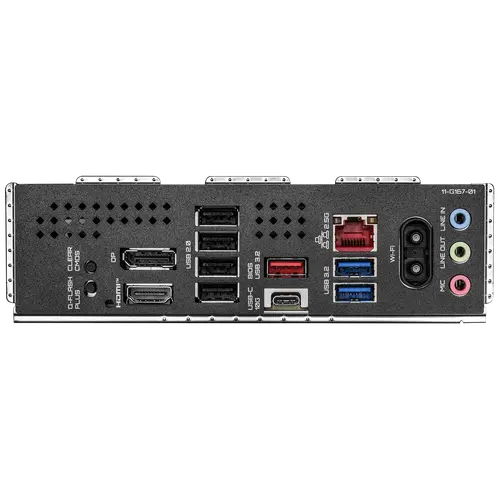

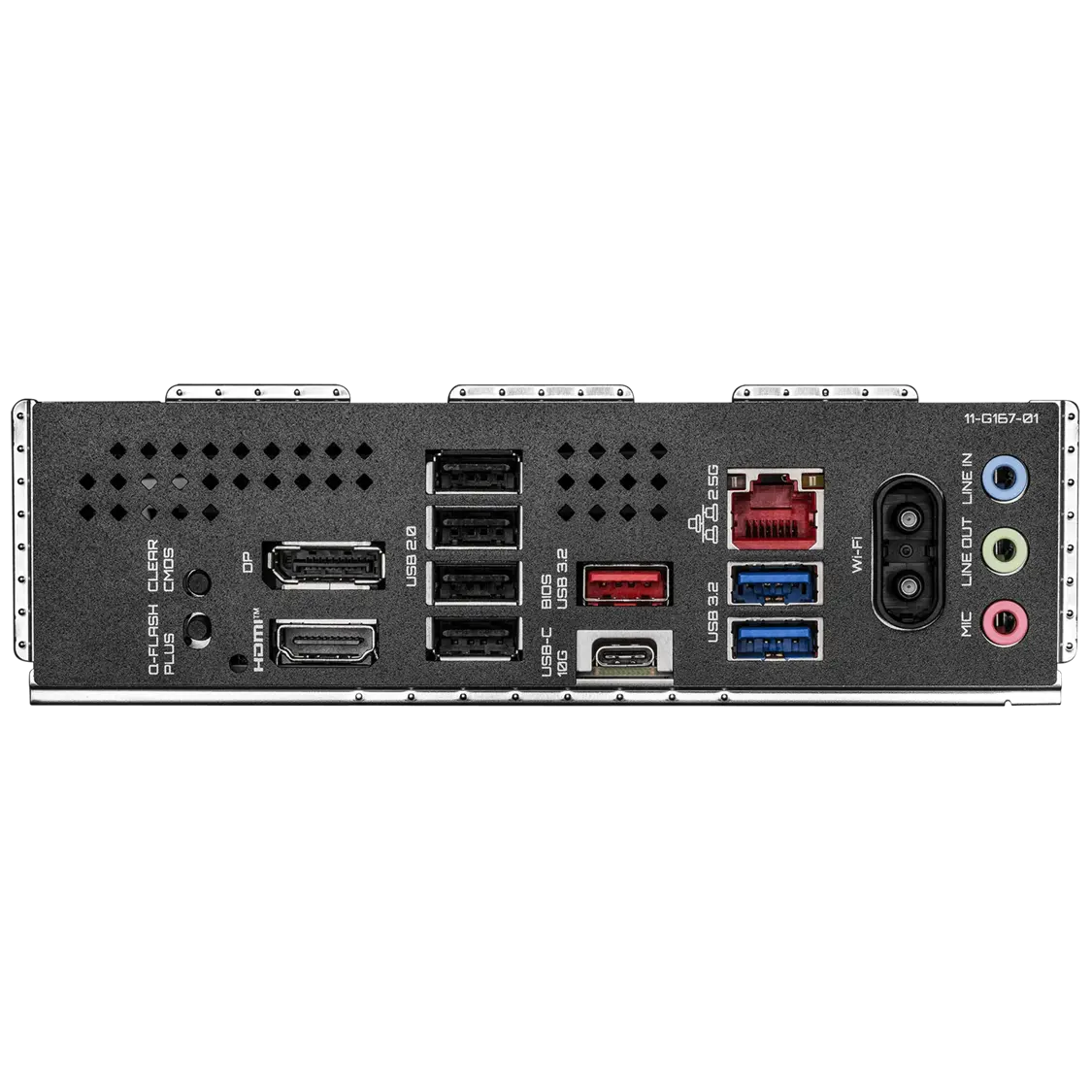

Back Panel Connectors

1 x Q-Flash Plus button

1 x Clear CMOS button

1 x DisplayPort*

1 x HDMI port*

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red)

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

2 x antenna connectors (2T2R)

3 x audio jacks

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure

7.1-channel audio, access the audio software for audio settings.

Lan

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless

Realtek® Wi-Fi 6E RTL8852CE

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

Bluetooth

5.3

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form factor

ATX Form Factor

30.5cm x 24.4cm

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty

36 Months

Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.

Χαρακτηριστικό	Τιμή
Vendor_url	https://www.gigabyte.com/Motherboard/B840-EAGLE-WIFI6E
Chipset	AMD B840
OS	Support for Windows 10 64-bit
OS	Support for Windows 11 64-bit
Warranty	36 Months
CPU's supported	AMD Socket AM5, support for:
CPU's supported	AMD Ryzen™ 9000 Series Processors/
CPU's supported	AMD Ryzen™ 8000 Series Processors/
CPU's supported	AMD Ryzen™ 7000 Series Processors
Memory type	Dual channel memory architecture
Memory type	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory type	Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Memory type	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory type	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules
Form Factor	30.5cm x 24.4cm
Form Factor	ATX Form Factor
Audio	Realtek® Audio CODEC
Audio	High Definition Audio
Audio	2/4/5.1/7.1-channel
Audio	* You can change the functionality of an audio jack using the audio software. To configure
Audio	7.1-channel audio, access the audio software for audio settings.
Rear panel I/O	iTE® I/O Controller Chip
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Expansion Slots	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion Slots	Chipset:
Expansion Slots	- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
Expansion Slots	- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion Slots	- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Expansion Slots	- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Expansion Slots	- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
Wireless	- BLUETOOTH 5.3
Wireless	- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless	- Support for 11ax 160MHz wireless standard
Wireless	Realtek® Wi-Fi 6E RTL8852CE
Graphics	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support:
Graphics	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics	** Support for native HDMI 2.1 TMDS compatible ports.
Graphics	* Support for DisplayPort 1.4 version.
Graphics	- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Features	Support for Q-Flash Plus
Features	Support for Q-Flash
Features	Support for GIGABYTE Control Center (GCC)
Features	Support for Smart Backup
BIOS	1 x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
BIOS	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/O	iTE® I/O Controller Chip
Storage	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
Storage	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage	4 x SATA 6Gb/s connectors
Storage	- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage	- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Storage	- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:
Storage	1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:
Storage	* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
Storage	- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
Storage	1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 PCIe 3.0 x4/x2 SSDs
Bluetooth	5.3
Connectors	1 x 24-pin ATX main power connector
Connectors	1 x CPU fan header
Connectors	3 x system fan headers
Connectors	1 x system fan/water cooling pump header
Connectors	3 x M.2 Socket 3 connectors
Connectors	1 x front panel header
Connectors	1 x front panel audio header
Connectors	1 x USB Type-C® header, with USB 3.2 Gen 1 support
Connectors	2 x USB 2.0/1.1 headers
Connectors	1 x Q-Flash Plus button
Connectors	1 x reset jumper
Connectors	1 x Clear CMOS jumper
Connectors	1 x 8-pin ATX 12V power connector
Connectors	4 x SATA 6Gb/s connectors
Connectors	1 x RGB LED strip header
Connectors	Back Panel Connectors
Connectors	1 x RJ-45 port
Connectors	3 x audio jacks
Connectors	1 x CPU fan/water cooling pump header
Connectors	4 x USB 2.0/1.1 ports
Connectors	2 x USB 3.2 Gen 1 ports
Connectors	3 x addressable RGB Gen2 LED strip headers
Connectors	2 x antenna connectors (2T2R)
Connectors	1 x USB Type-C® port, with USB 3.2 Gen 2 support
Connectors	1 x USB 3.2 Gen 2 Type-A port (red)
Connectors	1 x HDMI port*
Connectors	2 x USB 3.2 Gen 1 headers
Connectors	1 x Clear CMOS button
Connectors	1 x DisplayPort*
Connectors	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
USB	CPU:
USB	Chipset:
USB	- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
USB	- 2 x USB 3.2 Gen 1 ports on the back panel
USB	- 4 x USB 2.0/1.1 ports available through the internal USB headers
USB	- 4 x USB 2.0/1.1 ports on the back panel
USB	CPU+USB 2.0 Hub:
USB	- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
USB	Chipset+USB 3.2 Gen 1 Hub:
USB	- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
USB	- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Βάρος	0.00kg

Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.

Χαρακτηριστικό	Τιμή
Socket	AM5
Form Factor	Micro-ATX
Chipset	AMD B840
Memory Type	DDR5
Memory Slots (count)	2
Max Memory (GB)	64
M.2 Slots (count)	2
SATA Ports (count)	4
PCIe x16 Slots (count)	1
Wi-Fi Built-in	Wi-Fi 6E
LAN Speed	2.5 Gbps
USB-C Ports (count)	1
RGB Lighting	No
Βάρος	0.00kg

Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

Дънна платка GIGABYTE B840 EAGLE WF6E

Насладете се на изключително бърза връзка с дънната платка GIGABYTE B840 EAGLE WF6E, оборудвана с вграден Wi-Fi 6E за безжични скорости от следващо поколение. Създадена за процесори AMD AM5 и памет DDR5, тази Micro-ATX платка осигурява надеждна производителност за ежедневна работа и игри.

Ключови Предимства

Вграден Wi-Fi 6E — Изключително ниска латентност и скорости до 6 Gbps с най-новия безжичен стандарт.
Платформа AMD AM5 — Поддръжка на процесори Ryzen 7000/8000 за бъдещо ъпгрейдване.
Поддръжка на DDR5 памет — По-бърз трансфер на данни и подобрена многозадачност.
