- MSI
Τιμή
€132 00 / 258 17 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.msi.com/Motherboard/B650M-PROJECT-ZERO
Graphics
1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
Expansion slots
1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Memory type
4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

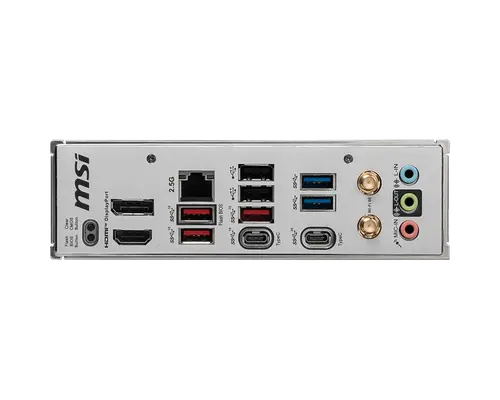

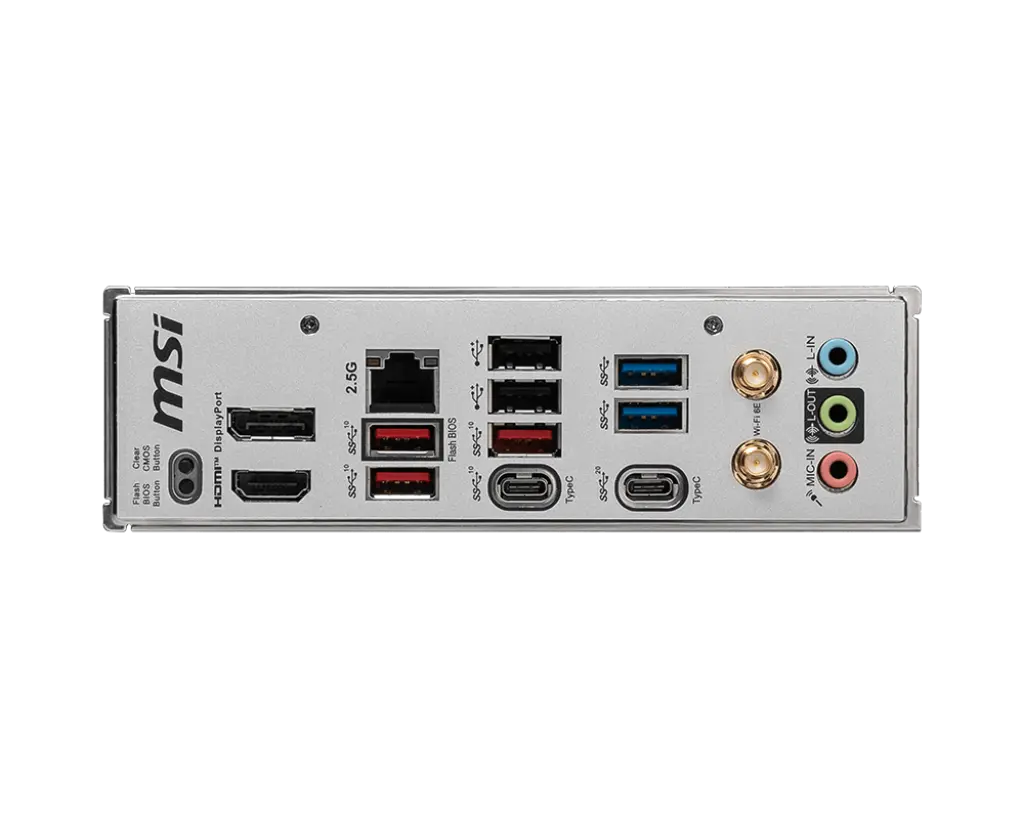

Rear panel I/O
DisplayPort
2.5G LAN
USB 2.0
USB 5Gbps (Type-A)
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
Clear CMOS Button
HDMI™
USB 10Gbps (Type-A)
USB 10Gbps (Type-C)
USB 20Gbps (Type-C)
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports up to 32-Bit/384 kHz playback on front panel
Lan
Realtek® RTL8125BG 2.5Gbps LAN
Wireless
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth
5.3
Form factor
mATX, 243.84mmx243.84mm
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.msi.com/Motherboard/B650M-PROJECT-ZERO |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Socket AM5, Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Memory type | Max. overclocking frequency: |
| Memory type | • 2DPC 2R Max speed up to 5400+ MHz |
| Memory type | 4x DDR5, Maximum Memory Capacity 256GB |
| Memory type | Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Memory type | • 1DPC 1R Max speed up to 7600+ MHz |
| Memory type | • 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6400+ MHz |
| Form Factor | mATX, 243.84mmx243.84mm |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 Codec |
| Audio | Supports up to 32-Bit/384 kHz playback on front panel |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | DisplayPort |
| Rear panel I/O | Flash BIOS button |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | 2.5G LAN |
| Rear panel I/O | Wi-Fi / Bluetooth |
| Rear panel I/O | USB 5Gbps (Type-A) |
| Rear panel I/O | Clear CMOS Button |
| Rear panel I/O | USB 10Gbps (Type-A) |
| Rear panel I/O | USB 10Gbps (Type-C) |
| Rear panel I/O | USB 20Gbps (Type-C) |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Expansion Slots | 1x PCI-E x16 slot |
| Expansion Slots | 1x PCI-E x1 slot |
| Expansion Slots | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Expansion Slots | • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) |
| Expansion Slots | • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) |
| Wireless | AMD Wi-Fi 6E |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Supports MU-MIMO TX/RX |
| Wireless | Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Graphics | 1x HDMI™ |
| Graphics | 1x DisplayPort |
| Graphics | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz |
| Graphics | Support DP 1.4, maximum resolution of 4K 60Hz |
| Features | 4x EZ Debug LED |
| I/O | Audio Connectors |
| I/O | HDMI™ |
| I/O | DisplayPort |
| I/O | 2.5G LAN |
| I/O | USB 2.0 |
| I/O | Flash BIOS button |
| I/O | Wi-Fi / Bluetooth |
| I/O | USB 5Gbps (Type-A) |
| I/O | Clear CMOS Button |
| I/O | USB 10Gbps (Type-A) |
| I/O | USB 10Gbps (Type-C) |
| I/O | USB 20Gbps (Type-C) |
| Storage | 4x SATA 6G |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | 2x M.2 |
| Storage | M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor |
| Storage | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Storage | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Bluetooth | 5.3 |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 2x USB 5Gbps Type A ports |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 1x Pump Fan |
| Connectors | 3x System Fan |
| Connectors | 1x USB 10Gbps Type C ports |
| Connectors | 3x Addressable V2 RGB LED connector (JARGB_V2) |
| USB | 2x USB 2.0 (Rear) |
| USB | 4x USB 2.0 (Front) |
| USB | 2x USB 5Gbps Type A (Front) |
| USB | 2x USB 5Gbps Type A (Rear) |
| USB | 3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear) |
| USB | 1x USB 10Gbps Type C (Front) |
| USB | 1x USB 20Gbps Type C (Rear) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM5 |
| Form Factor | Micro-ATX |
| Chipset | AMD B650 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 256 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
MSI B650M PROJECT ZERO – Най-чистото изграждане на системен блок
Открийте революционния дизайн на MSI Project Zero, който премества всички конектори на гърба на дънната платка за напълно безкабелен преден изглед. Тази B650M Micro-ATX платка предлага изключителна производителност за процесори AMD Ryzen 7000 с поддръжка на DDR5 и PCIe 5.0.
Ключови Предимства
- Project Zero дизайн – Всички кабели са скрити отзад, осигурявайки ултра-чист и професионален вид.
- Свързаност от ново поколение – Поддръжка на DDR5 памет, PCIe 5.0 за графики и съхранение, както и вграден Wi-Fi 6E и 2.5G LAN.
- Стабилно захранване – Висококачествени VRM компоненти осигуряват стабилна мощност дори за най-взискателните процесори.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Чипсет | AMD B650 |
| Форм фактор | Micro-ATX |
| Тип памет | DDR5 |
| Слотове за памет | 4 (двуканален режим) |
| Максимална памет | 256 GB |
| M.2 слотове | 2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4) |
| SATA портове | 4 |
| PCIe x16 слотове | 2 (1x PCIe 5.0 x16, 1x PCIe 4.0 x16 @ x4) |
| Wi-Fi | Wi-Fi 6E |
| LAN | 2.5 Gbps |
| USB-C портове | 1 (на задния панел) |
| RGB подсветка | Да (с Mystic Light) |
Какво има в кутията
- Дънна платка MSI B650M PROJECT ZERO
- Ръководство за потребителя
- I/O панел (интегриран)
- SATA кабели (2)
- Wi-Fi антена
- M.2 винтове и дистанционери
- DRAGON Armor стикер
