- MSI
Τιμή
€98 10 / 191 87 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.msi.com/Motherboard/PRO-B760M-P-DDR4/Specification
Graphics
1x HDMI™
1x DisplayPort
1x VGA
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Chipset
INTEL B760
Expansion slots
1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Storage
2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port
Memory type
4x DDR4, Maximum Memory Capacity 128GB
Memory Support 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4200(OC) / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

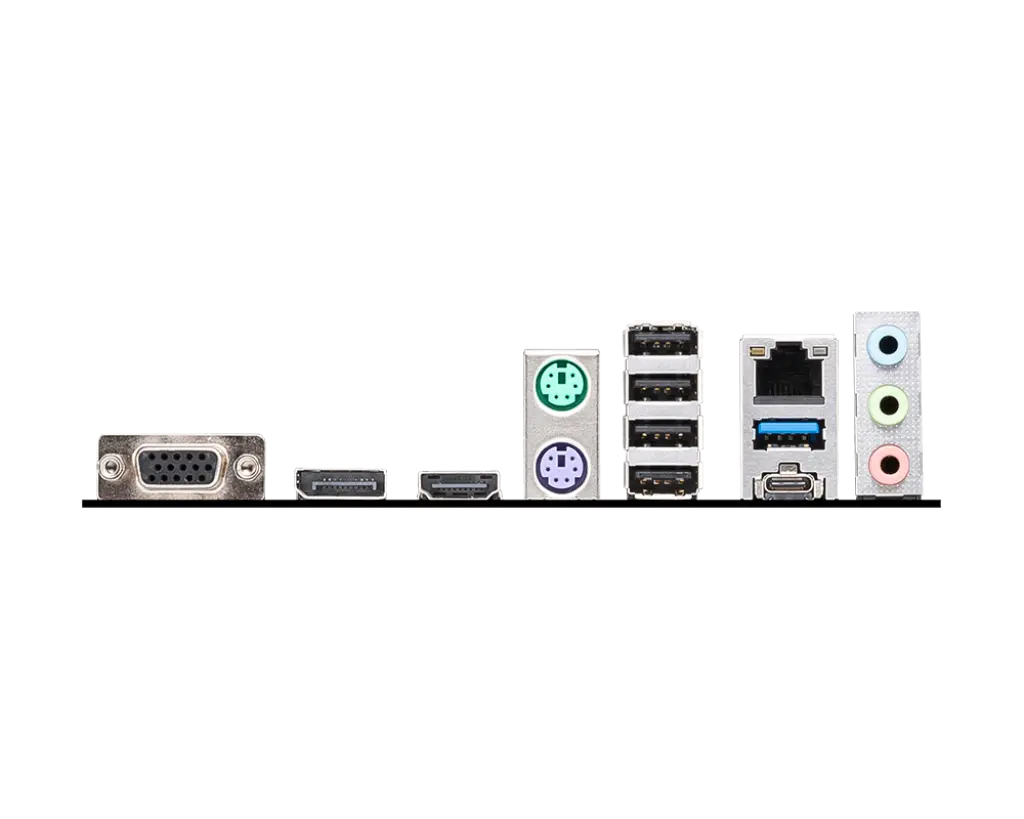

Rear panel I/O
VGA
DisplayPort
HDMI™
Keyboard / Mouse
USB 2.0
LAN port
Audio Connectors
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
Connectors
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Lan
Realtek® RTL8111H Gigabit LAN
Form factor
mATX,243.84mmx243.84mm
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.msi.com/Motherboard/PRO-B760M-P-DDR4/Specification |
| Chipset | INTEL B760 |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory type | • 2DPC 1R Max speed up to 4400+ MHz |
| Memory type | • 2DPC 2R Max speed up to 4000+ MHz |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) |
| Memory type | Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Memory type | Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz |
| Memory type | • 1DPC 2R Max speed up to 4600+ MHz |
| Form Factor | mATX,243.84mmx243.84mm |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 Codec |
| Rear panel I/O | LAN port |
| Rear panel I/O | Keyboard / Mouse |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | VGA |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | DisplayPort |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | USB 3.2 Gen 1 5Gbps (Type-A) |
| Rear panel I/O | USB 3.2 Gen 2 10Gbps (Type-C) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Expansion Slots | 1x PCI-E x16 slot |
| Expansion Slots | PCI_E1 PCIe 4.0 supports up to x16 (From CPU) |
| Expansion Slots | 2x PCI-E x1 slot |
| Expansion Slots | PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) |
| Graphics | 1x HDMI™ |
| Graphics | 1x VGA |
| Graphics | Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Graphics | 1x DisplayPort |
| Graphics | Support DP 1.4, maximum resolution of 4K 60Hz* |
| Graphics | Support HDMI™ 1.4, maximum resolution of 4K 30Hz* |
| I/O | LAN port |
| I/O | Keyboard / Mouse |
| I/O | Audio Connectors |
| I/O | VGA |
| I/O | HDMI™ |
| I/O | DisplayPort |
| I/O | USB 3.2 Gen 1 5Gbps (Type-A) |
| I/O | USB 2.0 |
| I/O | USB 3.2 Gen 2 10Gbps (Type-C) |
| Storage | 4x SATA 6G port |
| Storage | 2x M.2 slot |
| Storage | M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| Storage | M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x Power Connector(CPU_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x Com Port (JCOM) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 2x System Fan |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 4x USB 2.0 |
| Connectors | 2x USB 3.2 Gen1 Type A |
| Connectors | 1x Printer Port (JLPT) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| Memory Type | DDR4 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

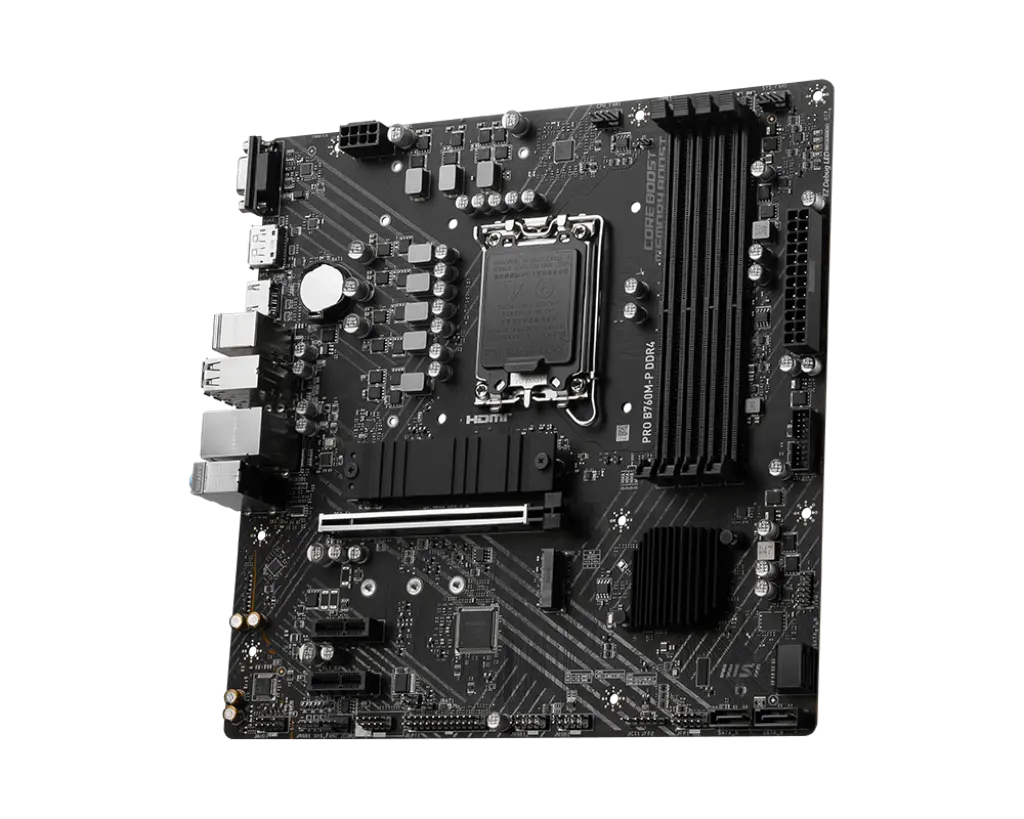

Дънна платка MSI PRO B760M-P DDR4 – Надеждна производителност за бизнес и създаване на съдържание
Базирана на чипсет Intel B760 и поддържаща процесори Intel Core от 12-то, 13-то и 14-то поколение (LGA1700), MSI PRO B760M-P DDR4 осигурява стабилна и ефективна работа за професионални натоварвания. С поддръжка на DDR4 памет, подобрено захранване и широк набор от свързаност, тази Micro-ATX дънна платка е перфектната основа за надежден офис или домашен компютър.
Ключови Предимства
- Стабилно захранване — 6+2+1 фазна VRM секция с DrMOS гарантира стабилно подаване на енергия дори при продължително натоварване, идеално за многозадачност и създаване на съдържание.
- Два M.2 слота с Lightning Gen4 — Единият M.2 слот поддържа PCIe 4.0 x4 за изключително бързи SSD дискове, намалявайки времето за зареждане и подобрявайки отзивчивостта на системата.
- Пълна свързаност — Предлага USB 3.2 Gen2 Type-C, четири SATA 6Gb/s порта, Realtek 1G LAN и HDMI/DisplayPort изходи за разнообразни периферни устройства и дисплеи.
- Поддръжка на DDR4 памет — Два DIMM слота поддържат до 64GB DDR4-3200 (OC), позволявайки рентабилни конфигурации с голям капацитет.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR4 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 2 (1x PCIe 4.0 x4, 1x PCIe 3.0 x4) |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| LAN скорост | 1 Gbps |
| USB-C портове | 1 |
| Вграден Wi-Fi | Не |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка MSI PRO B760M-P DDR4
- SATA кабели (2 бр.)
- Заден панел I/O Shield
- Ръководство за потребителя и бързо ръководство за инсталиране
- DVD с драйвери
- Корпусна емблема
