Vendor_url
https://www.asrock.com/MB/Intel/B760M-X%20Gen5/index.asp
Graphics
Intel® Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Chipset
Intel® B760
Expansion slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 1 x PCIe 3.0 x1 Slots (PCIE2)
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
Chipset:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes
- 4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

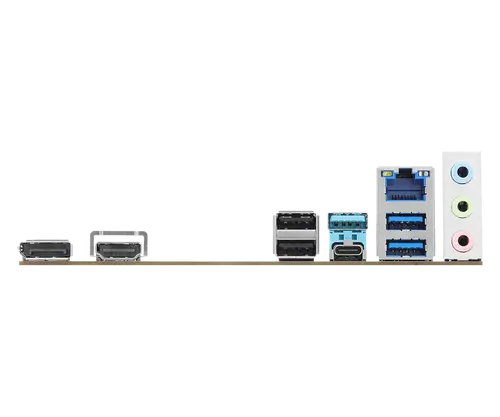

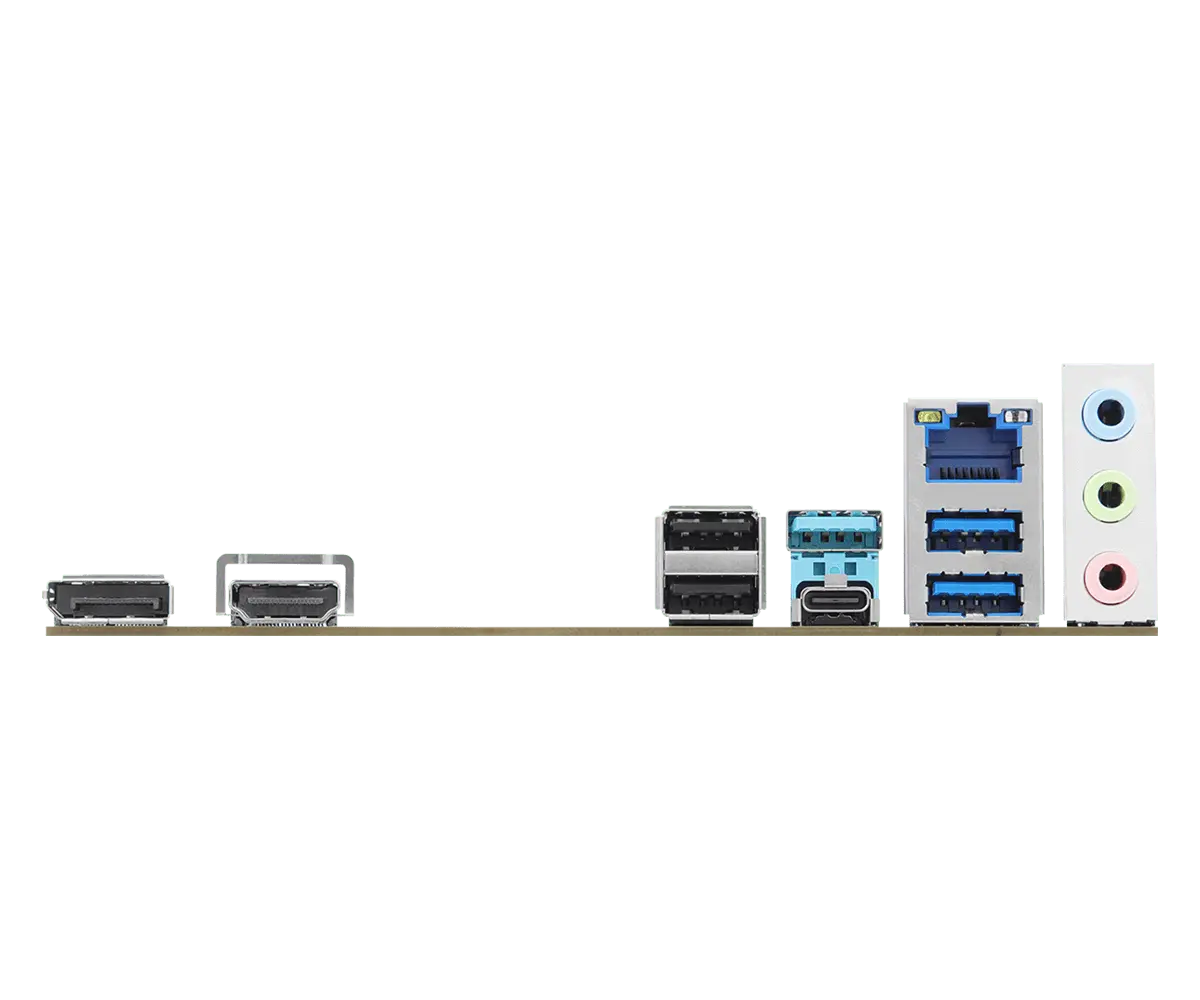

Rear panel I/O
2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
USB
Chipset:
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
Connectors
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Lan
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Form factor
Micro ATX Form Factor: 9.6-in x 8.7-in, 24.4 cm x 22.1 cm
OS
Microsoft Windows® 10 64-bit / 11 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asrock.com/MB/Intel/B760M-X%20Gen5/index.asp |
| Chipset | Intel® B760 |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
| Form Factor | Micro ATX Form Factor: 9.6-in x 8.7-in, 24.4 cm x 22.1 cm |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Rear panel I/O | 1 x HDMI port |
| Rear panel I/O | 2 x Antenna Mounting Points |
| Rear panel I/O | 1 x RJ-45 LAN Port |
| Rear panel I/O | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | 3 x USB 3.2 Gen1 Type-A Ports |
| Rear panel I/O | 1 x USB 3.2 Gen1 Type-C Port |
| Rear panel I/O | 1 x DisplayPort 1.4 |
| Rear panel I/O | 2 x USB 2.0 Ports |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | Dragon RTL8125BG |
| LAN | Smart Auto Adjust Bandwidth Control |
| LAN | Visual User Friendly UI |
| LAN | Visual Network Usage Statistics |
| LAN | Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | User Customized Priority Control |
| LAN | Supports Dragon 2.5G LAN Software |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
| Expansion Slots | - 1 x PCIe 3.0 x1 Slots (PCIE2) |
| Graphics | Intel® Xe Graphics Architecture (Gen 12) |
| Graphics | 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
| Graphics | 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | Chipset: |
| Storage | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Storage | - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x 24 pin ATX Power Connector |
| Connectors | 1 x 8 pin 12V Power Connector |
| Connectors | 1 x Front Panel Audio Connector |
| Connectors | 1 x RGB LED Header |
| Connectors | 3 x Addressable LED Headers |
| Connectors | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Connectors | 1 x CPU Fan Connector (4-pin) |
| Connectors | 1 x Chassis Intrusion and Speaker Header |
| Connectors | 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control |
| Connectors | 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) |
| USB | Chipset: |
| USB | - 1 x USB 3.2 Gen1 Type-C (Rear) |
| USB | - 6 x USB 2.0 (2 Rear, 4 Front) |
| USB | - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

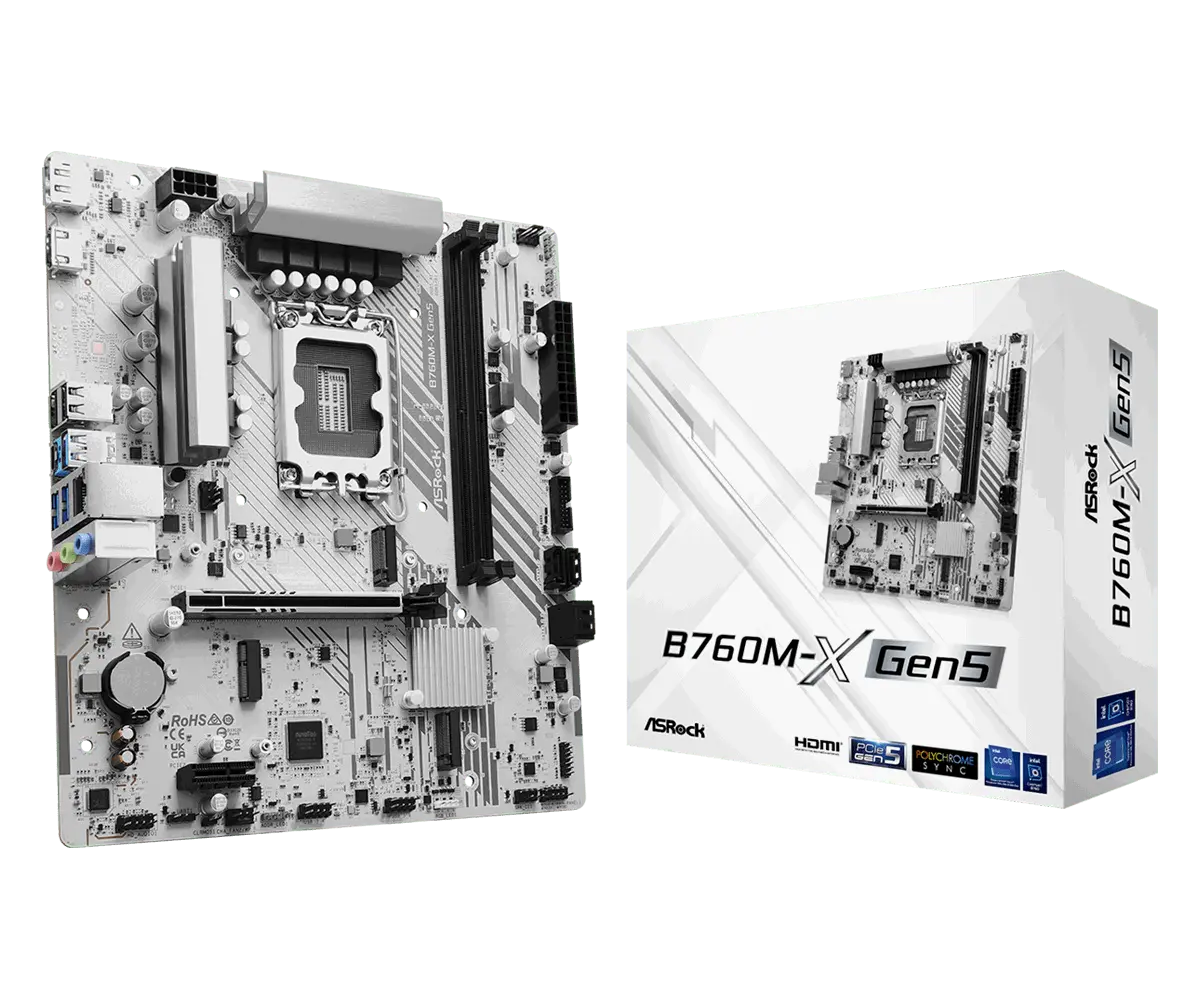

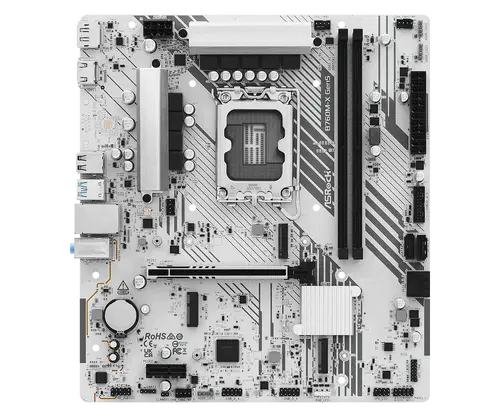

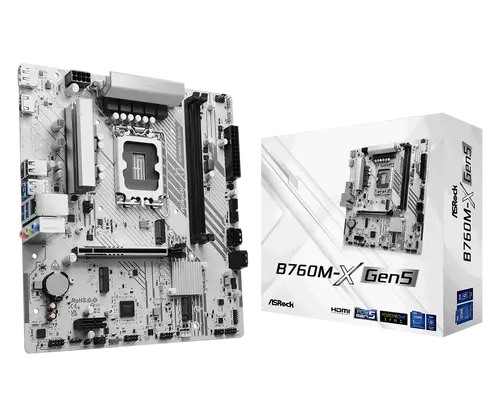

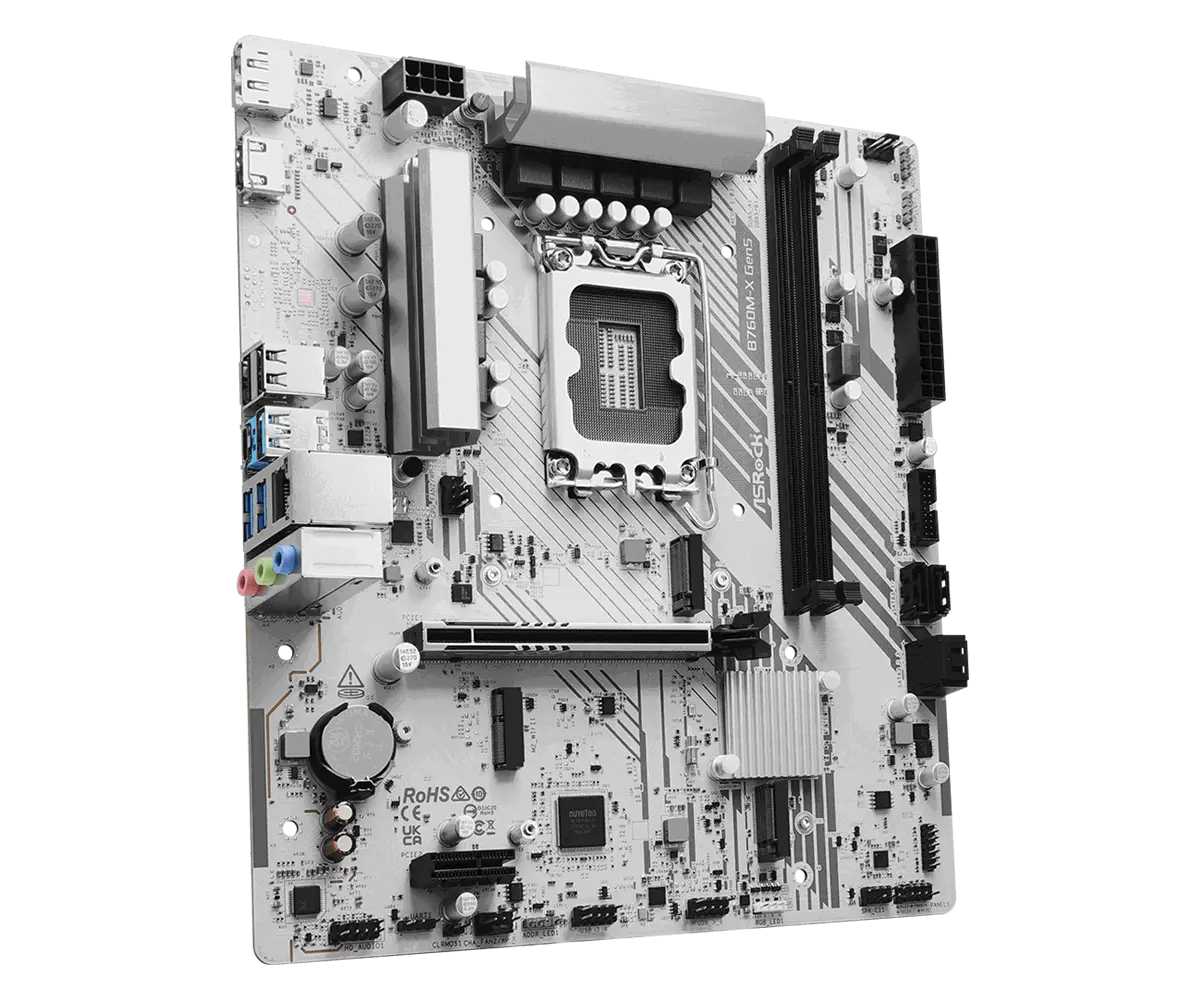

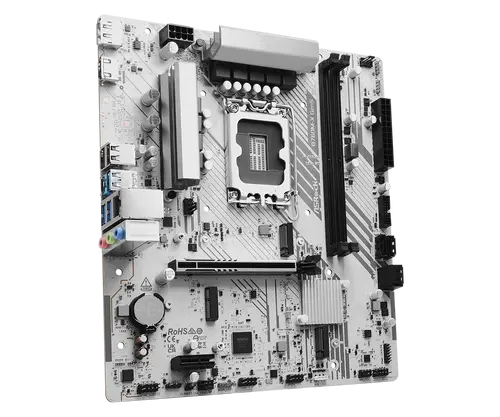

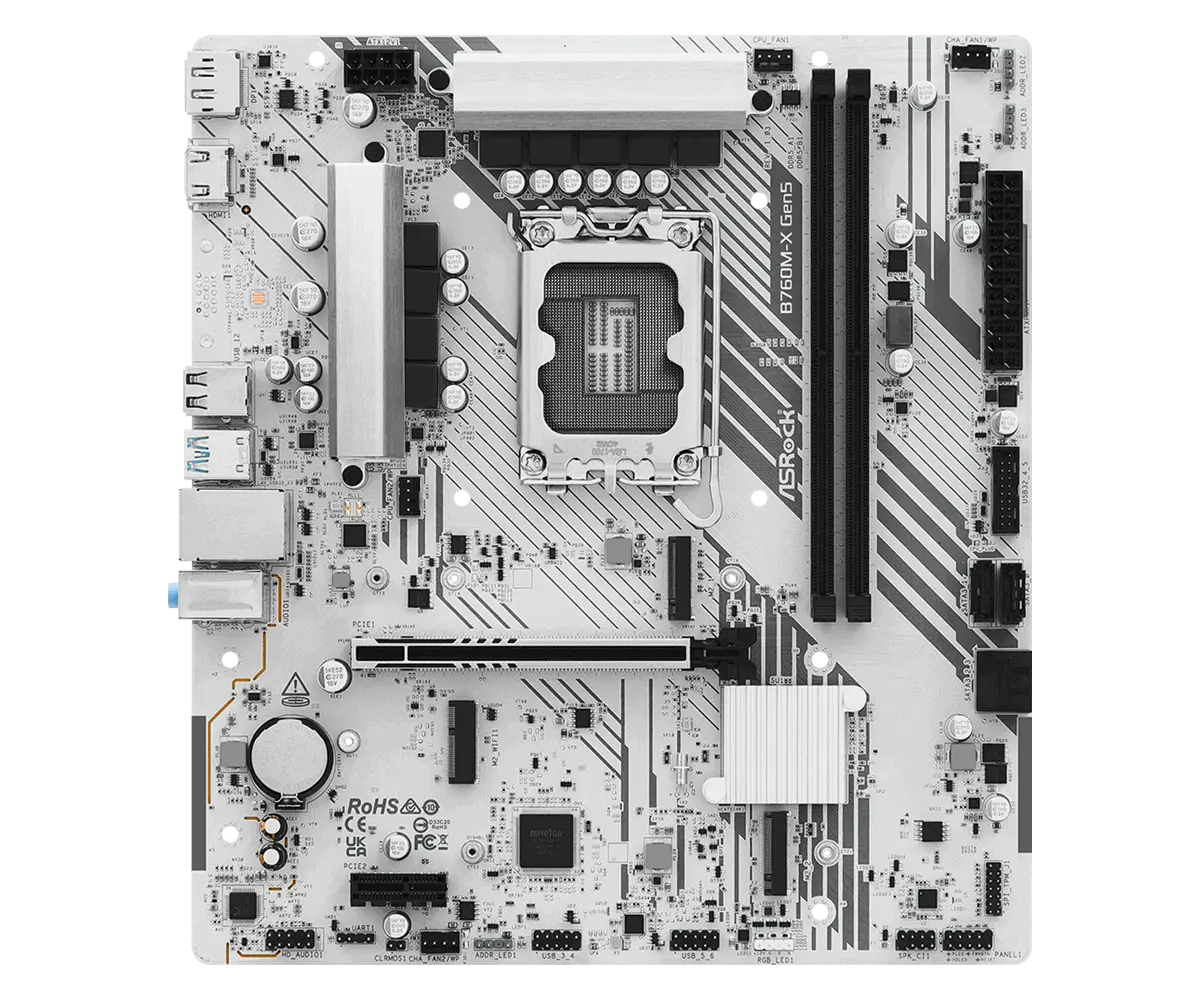

Дънна платка ASROCK B760M-X GEN5 – Захранване за Вашата компактна система
Разгърнете потенциала на Вашия Intel 12-то, 13-то или 14-то поколение процесор с дънната платка ASROCK B760M-X GEN5. Проектирана във форм фактор Micro-ATX, тази платка предлага перфектен баланс между производителност и размер, което я прави идеална за компактни гейминг конфигурации, офис работни станции или мощни домашни компютри. Насладете се на светкавично бърза DDR5 памет и поддръжка на PCIe 5.0 графика от следващо поколение.
Ключови Предимства
- Поддръжка на сокет LGA1700 — Съвместима с най-новите Intel Core процесори (12-то, 13-то и 14-то поколение) за стабилна производителност.
- Предимство на DDR5 паметта — Възползвайте се от двуканална DDR5 памет, поддържаща скорости до 7200+(OC) MHz и максимален капацитет от 128GB за безпроблемен мултитаскинг и игри.
- Готова за PCIe 5.0 графика — Оборудвана с PCIe 5.0 x16 слот, гарантиращ, че Вашата система е готова за най-бързите настоящи и бъдещи графични карти.
- Свръхбързи опции за съхранение — Разполага с два M.2 слота (Hyper M.2 PCIe Gen4x4 и Ultra M.2 PCIe Gen3x4) и четири SATA3 порта за разнообразни и високоскоростни решения за съхранение.
- 2.5 Gigabit LAN — Насладете се на превъзходна мрежова производителност с интегрирания 2.5 Gigabit LAN, идеален за онлайн игри, стрийминг и прехвърляне на големи файлове.
- Polychrome RGB — Персонализирайте Вашата система с интегрирани RGB и Addressable LED хедъри, позволяващи синхронизация със съвместими осветителни устройства.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 128 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 (PCIe 5.0) |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове (отзад) | 1 (USB 3.2 Gen1) |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка ASROCK B760M-X GEN5
- I/O планка
- SATA кабели за данни
- Ръководство за потребителя
