- ASUS
Τιμή
€165 59 / 323 87 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-d4-csm/techspec/
Graphics
1 x DisplayPort**
2 x HDMI® ports***
Chipset
Intel® B760 Chipset
Expansion slots
Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
Storage
Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Memory type
4 x DIMM, Max. 128GB, DDR4 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

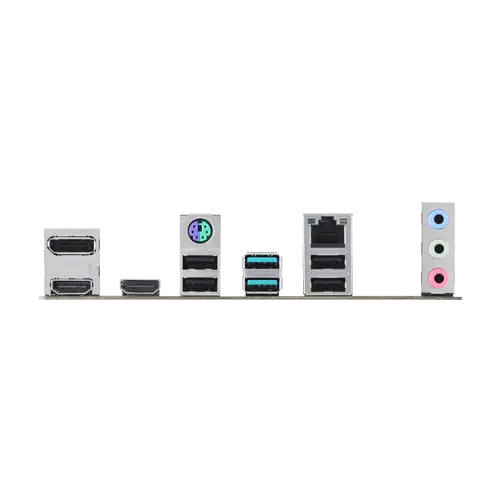

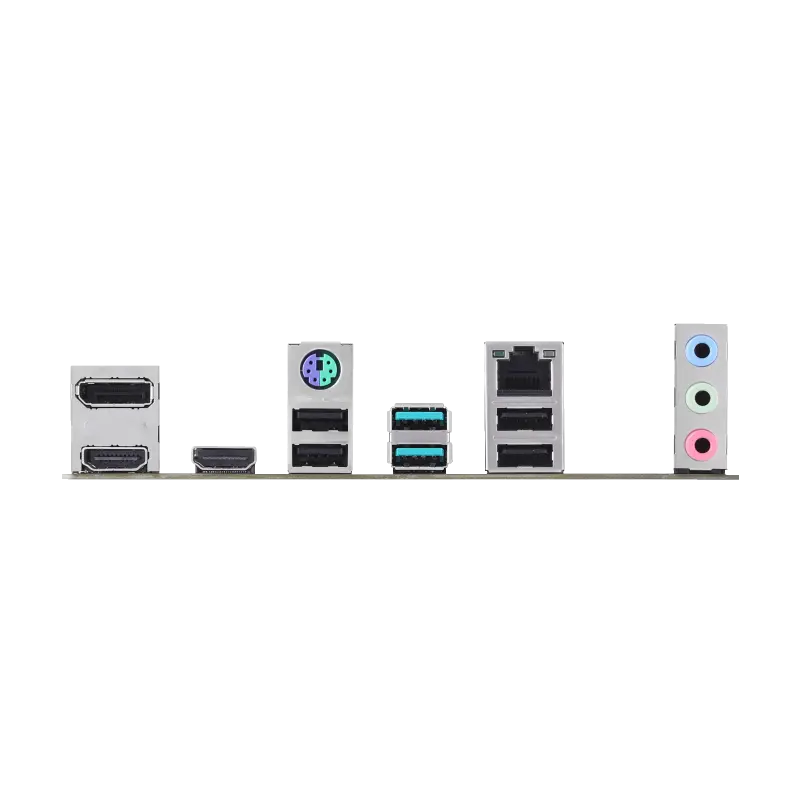

Rear panel I/O
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMI® ports
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Connectors
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Lan
1 x Realtek 2.5Gb Ethernet
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
OS
Windows® 11, Windows® 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-d4-csm/techspec/ |
| Chipset | Intel® B760 Chipset |
| OS | Windows® 11, Windows® 10 64-bit |
| Warranty | 36 Months |
| Memory type | Dual channel memory architecture |
| Memory type | OptiMem II |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) |
| Memory type | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Form Factor | mATX Form Factor |
| Form Factor | 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Audio | - Supports up to 24-Bit/192 kHz playback |
| Audio | - Premium audio capacitors |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 1 x PS/2 Keyboard/Mouse combo port |
| Rear panel I/O | 1 x Realtek 2.5Gb Ethernet port |
| Rear panel I/O | 4 x USB 2.0 ports (4 x Type-A) |
| Rear panel I/O | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) |
| Rear panel I/O | 2 x HDMI® ports |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Expansion Slots | Intel® B760 Chipset |
| Expansion Slots | Intel® 13th & 12th Gen Processors |
| Graphics | 1 x DisplayPort** |
| Graphics | 2 x HDMI® ports*** |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Storage | Intel® B760 Chipset |
| Storage | Intel® 13th & 12th Gen Processors |
| Storage | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* |
| Connectors | 1 x S/PDIF Out header |
| Connectors | 1 x COM port header |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | 2 x 4-pin Chassis Fan headers |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | 1 x 8-pin +12V Power connector |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | 1 x Clear CMOS header |
| Connectors | 1 x Front Panel Audio header (AAFP) |
| Connectors | 1 x LPT header |
| Connectors | 1 x SPI TPM header (14-1pin) |
| Connectors | 2 x M.2 slots (Key M) |
| Connectors | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Connectors | 3 x Addressable Gen 2 headers |
| Connectors | 1 x Aura RGB header |
| Connectors | 1 x 4-pin CPU OPT Fan header |
| Connectors | 1 x 20-3 pin System Panel header with Chassis intrude function |
| Connectors | 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) |
| Connectors | 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports |
| Connectors | 1 x USB 2.0 header supports 1 additional USB 2.0 port |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| Memory Type | DDR4 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
ASUS PRIME B760M-A D4-CSM - Надеждна microATX дънна платка за Intel 12-то/13-то поколение
Изградете стабилен и ефективен бизнес или домашен компютър с ASUS PRIME B760M-A D4-CSM. Проектирана за 24/7 работа, тази дънна платка предлага цялостно охлаждане, стабилно захранване и предимствата на програмата ASUS CSM като гарантирана наличност и дългосрочна поддръжка.
Ключови Предимства
- Цялостно охлаждане — VRM радиатор, PCH радиатор и Fan Xpert 2+ поддържат ниски температури за надеждна работа.
- Свръхбърза свързаност — PCIe 4.0, два M.2 слота и 2.5 Gb Ethernet осигуряват бърз трансфер на данни и мрежова връзка.
- Програма ASUS CSM — Възползвайте се от стабилни доставки, управление на жизнения цикъл и валидирана съвместимост за бизнес внедрявания.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | Intel LGA 1700 |
| Форм фактор | microATX (mATX) |
| Чипсет | Intel B760 |
| Тип памет | DDR4 |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Не |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASUS PRIME B760M-A D4-CSM
- 2 x SATA 6Gb/s кабела
- 1 x I/O щит
- 1 x M.2 гумен пакет
- 1 x Пакет с винтове за M.2 SSD
- 1 x Поддържащ DVD
- 1 x Ръководство за потребителя
