- ASUS
Τιμή
€64 83 / 126 80 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-k-d4-argb/
Model
PRIME H610M-K D4 ARGB
Graphics
1 x HDMI™ port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.
CPU's supported
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H610
Expansion slots
Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot (supports x16 mode)
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Memory type
2 x DIMM slots, max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module

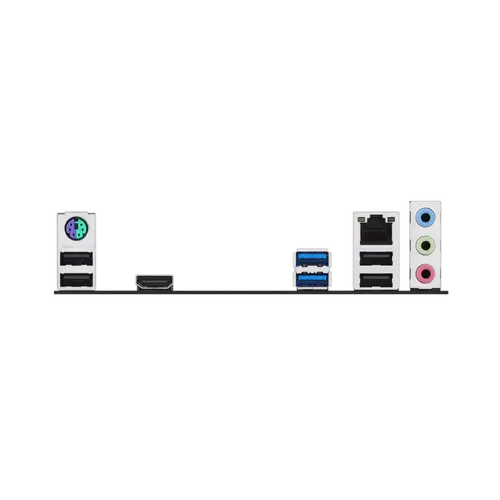

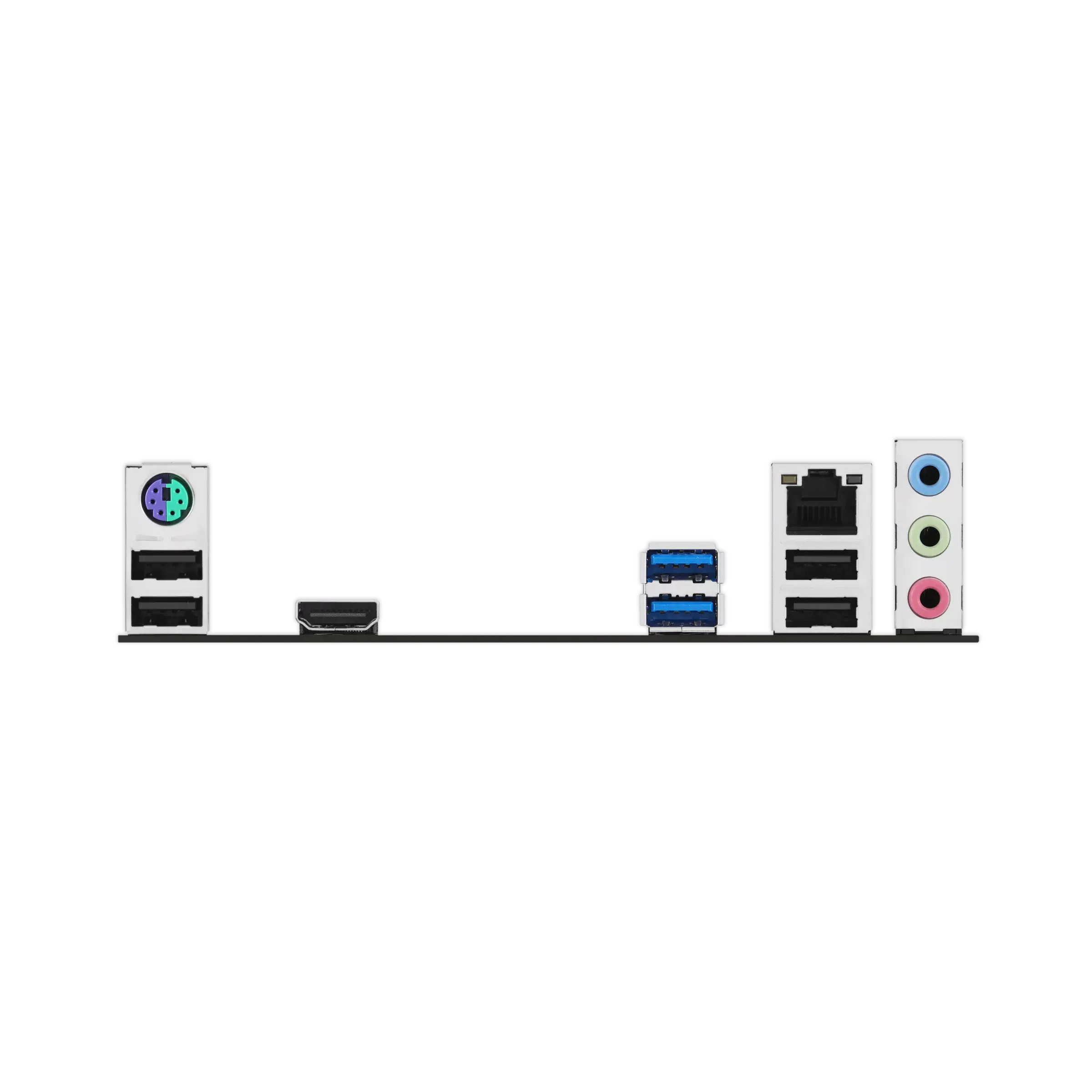

Rear panel I/O
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port
USB
Rear USB (Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 3 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage Related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous
2 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Lan
1 x Realtek 1Gb Ethernet
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form factor
micro-ATX Form Factor
23.4 cm x 20.3 cm
OS
Windows® 11, Windows® 10 64-bit
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-k-d4-argb/ |
| Chipset | Intel® H610 |
| OS | Windows® 11, Windows® 10 64-bit |
| CPU's supported | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| CPU's supported | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* |
| CPU's supported | * Refer to www.asus.com for CPU support list. |
| CPU's supported | ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Memory type | Dual channel memory architecture |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) memory module |
| Memory type | 2 x DIMM slots, max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Form Factor | Micro-ATX Form Factor |
| Form Factor | 23.4 cm x 20.3 cm |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Audio | - Supports up to 24-Bit/192 kHz playback |
| Audio | - Premium audio capacitors |
| Audio | * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x Realtek 1Gb Ethernet port |
| Rear panel I/O | 1 x PS/2 Keyboard/Mouse combo port |
| Rear panel I/O | 4 x USB 2.0 ports (4 x Type-A) |
| Rear panel I/O | 2 x USB 5Gbps ports (2 x Type-A) |
| LAN | 1 x Realtek 1Gb Ethernet |
| Model | PRIME H610M-K D4 ARGB |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x16 mode) |
| Expansion Slots | 1 x PCIe 3.0 x1 slot |
| Expansion Slots | Intel® H610 Chipset |
| Expansion Slots | Intel® Core™ Processors (14th & 13th & 12th Gen) |
| Expansion Slots | - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Graphics | 1 x HDMI™ port** |
| Graphics | ** Supports 4K@60Hz as specified in HDMI 2.1. |
| Graphics | * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | Intel® H610 Chipset |
| Storage | M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) |
| Connectors | 1 x S/PDIF Out header |
| Connectors | 1 x speaker header |
| Connectors | 1 x COM port header |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | 1 x 8-pin +12V Power connector |
| Connectors | Storage related |
| Connectors | 1 x M.2 slot (Key M) |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | USB |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 1 x 10-1 pin System Panel header |
| Connectors | 1 x SPI TPM header (14-1 pin) |
| Connectors | 1 x 4-pin Chassis Fan header |
| Connectors | 2 x Addressable Gen 2 headers |
| Connectors | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Connectors | 1 x Front Panel Audio header (F_AUDIO) |
| Connectors | 1 x USB 2.0 header supports 1 additional USB 2.0 port |
| USB | Rear USB (Total 6 ports) |
| USB | 4 x USB 2.0 ports (4 x Type-A) |
| USB | 2 x USB 5Gbps ports (2 x Type-A) |
| USB | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| USB | 1 x USB 2.0 header supports 1 additional USB 2.0 port |
| USB | Front USB (Total 3 ports) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel H610 |
| Memory Type | DDR4 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

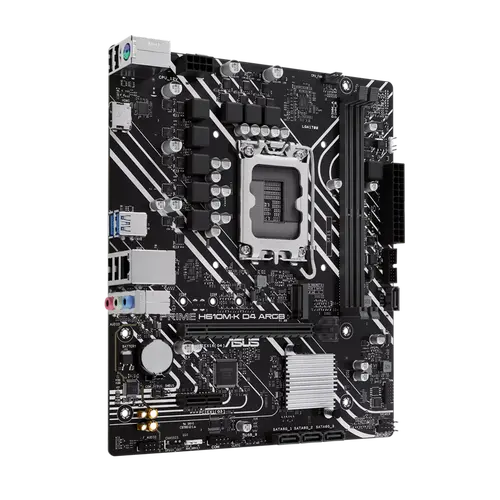

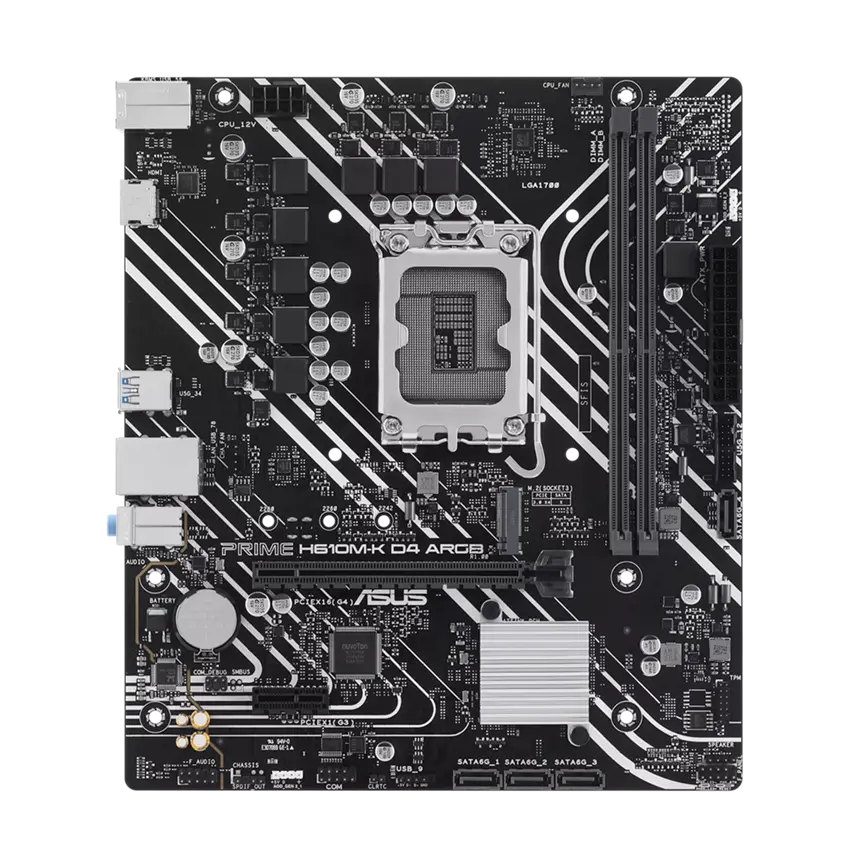

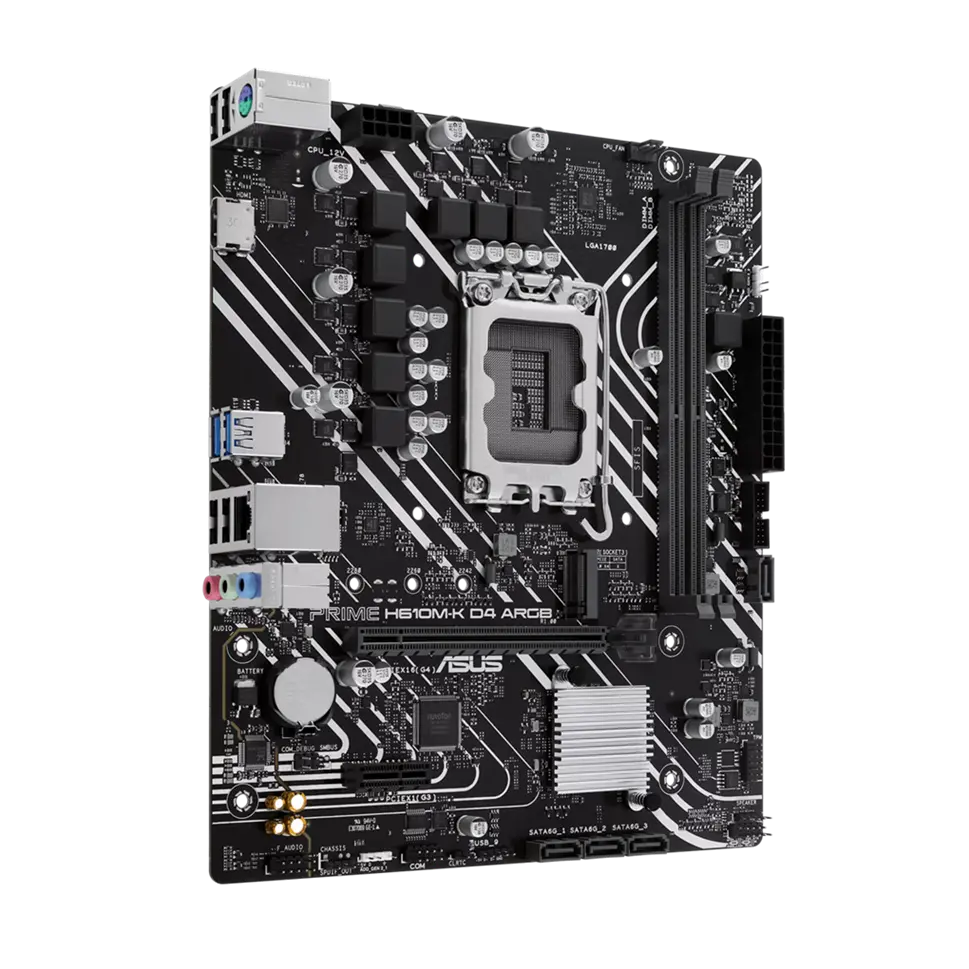

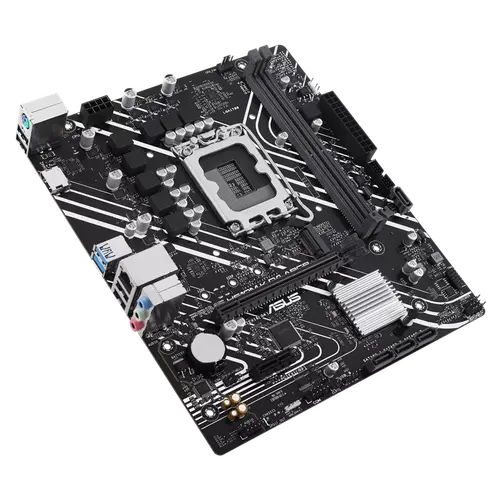

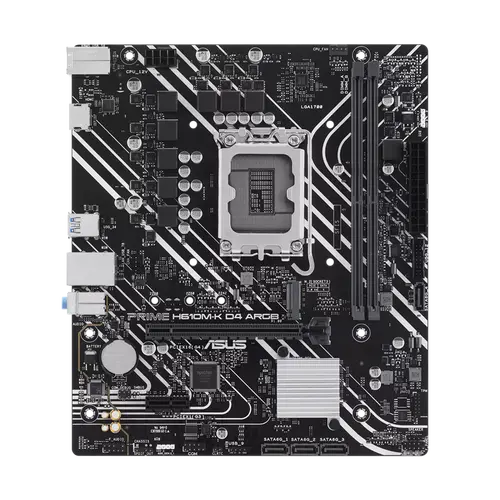

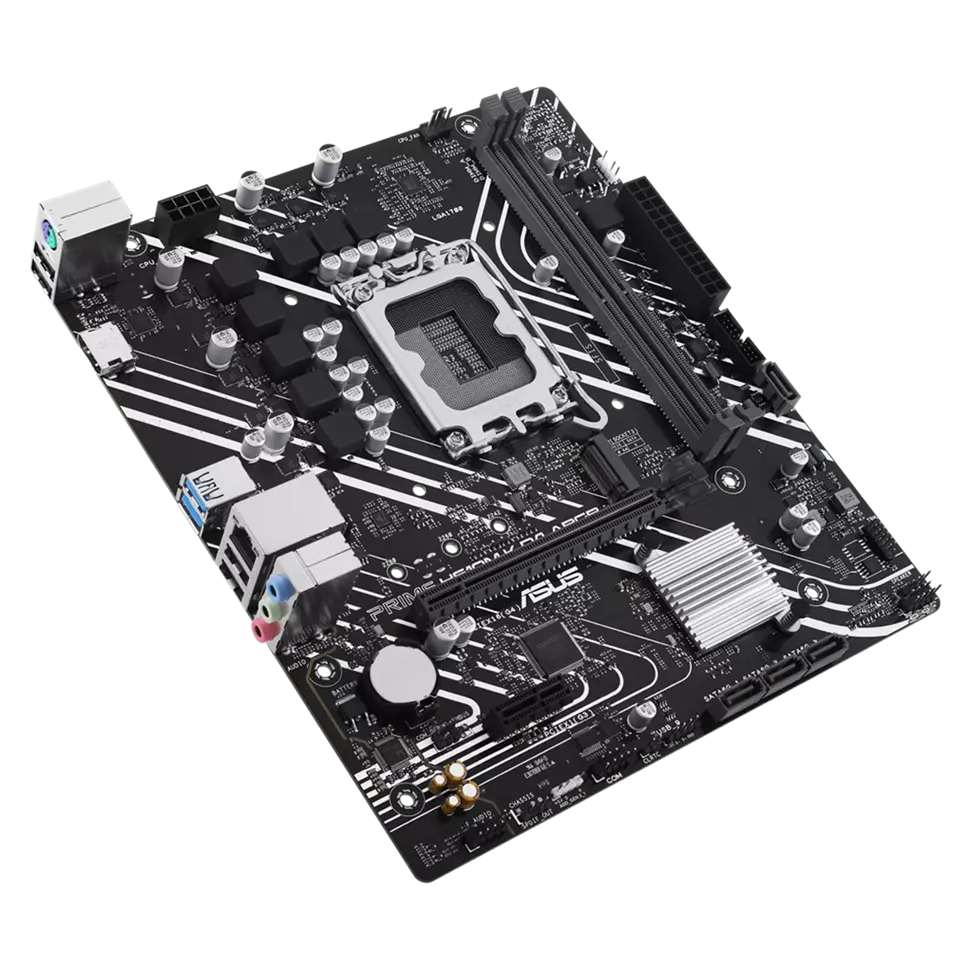

Дънна платка ASUS PRIME H610M-K-D4 ARGB
Създайте надеждна и ефективна система с ASUS PRIME H610M-K-D4 ARGB, проектирана за процесори Intel Core от 12-о, 13-о и 14-о поколение. Тази microATX платка предлага основна производителност с поддръжка на PCIe 4.0, цялостно охлаждане и персонализируемо ARGB осветление, което да пасне на вашия стил.
Ключови Предимства
- Готова за модерни процесори Intel — Сокет LGA 1700 поддържа Intel Core, Pentium Gold и Celeron от 12-о, 13-о и 14-о поколение.
- Бърза свързаност — PCIe 4.0 M.2 слот и USB 3.2 Gen 1 портове осигуряват бърз трансфер на данни и минимално време за зареждане.
- Персонализируемо ARGB осветление — Вградените Addressable Gen 2 хедъри позволяват синхронизиране на LED ленти и съвместими устройства чрез Aura Sync.
- Стабилно захранване — 6+1+1 DrMOS силови стъпала, ProCool конектор и легирани дросели осигуряват чисто и ефективно захранване на процесора.
- Цялостно охлаждане — Радиатор на VRM, радиатор на чипсета и Fan Xpert 2+ поддържат ниски температури при натоварване.
- Създадена да издържи — ASUS 5X Protection III с LANGuard, защита от пренапрежение и неръждаем заден панел гарантират дълготрайна надеждност.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA 1700 |
| Чипсет | Intel H610 |
| Форм фактор | microATX |
| Тип памет | DDR4 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| PCIe x16 слотове | 1 |
| M.2 слотове | 1 |
| SATA портове | 4 |
| Скорост на LAN | 1 Gbps |
| Wi-Fi | Не |
| USB-C портове | 0 |
| RGB подсветка | Да (ARGB хедъри) |
Какво има в кутията
- Дънна платка ASUS PRIME H610M-K-D4 ARGB
- 2 x SATA 6Gb/s кабела

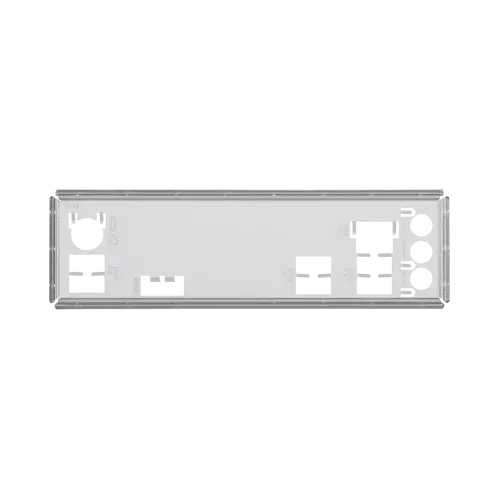

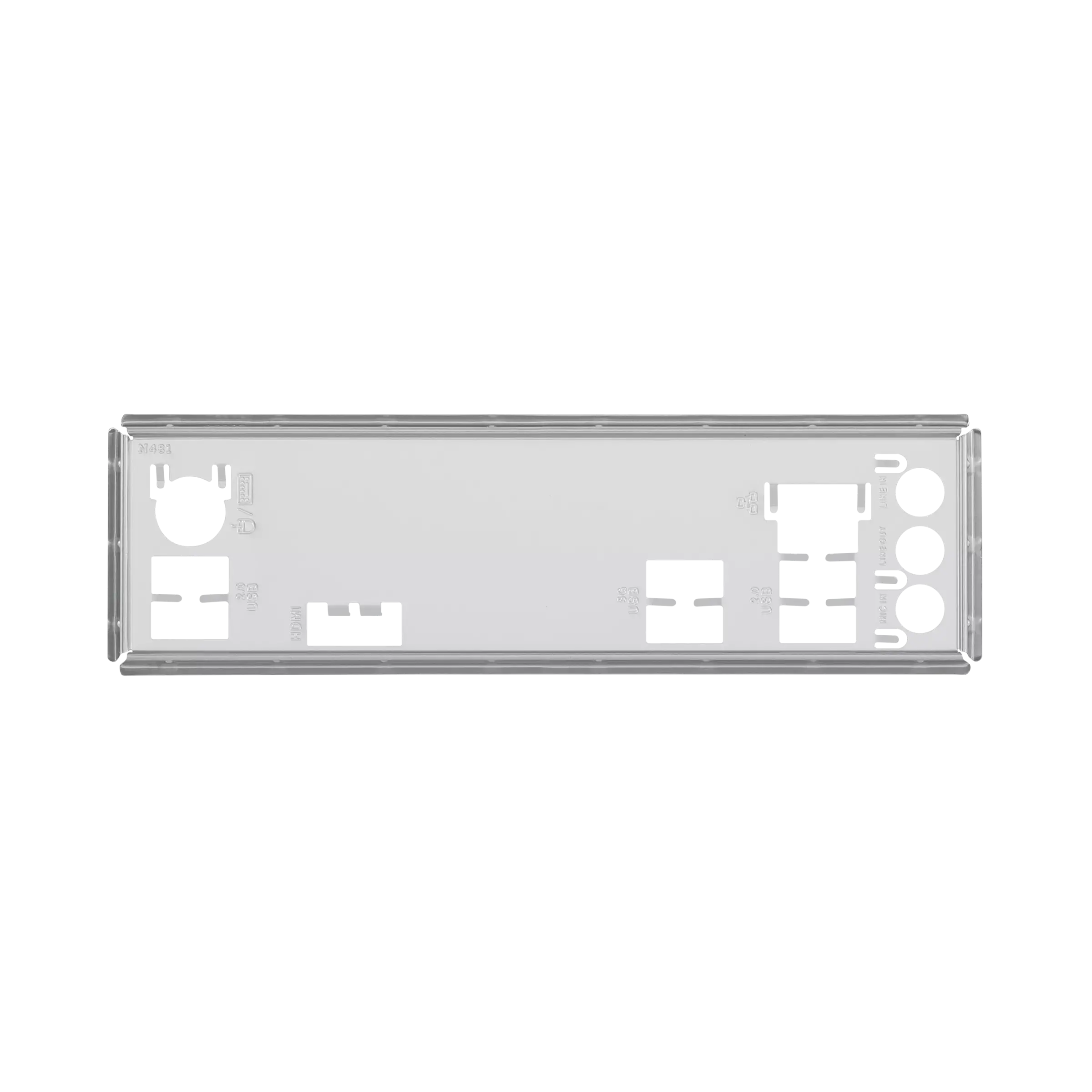

- 1 x I/O щит
- 1 x M.2 анкер
- Ръководство на потребителя
