- MSI
Τιμή
€128 05 / 250 44 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.msi.com/Motherboard/B550-GAMING-WIFI6E
Socket
Socket AM4
Graphics
1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz
1x DisplayPort
Support DisplayPort 1.2, maximum resolution of 4K 60Hz
CPU's supported
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset
AMD B550
Expansion slots
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
*The supported specification depends on installed processor.
**When installing PCIe SSD in M.2_2 slot, PCI_E2 slot will be unavailable.
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
6x SATA 6G
Memory type
4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 3866+ MHz
• 2DPC 1R Max speed up to 4000+ MHz
• 2DPC 2R Max speed up to 3600+ MHz
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

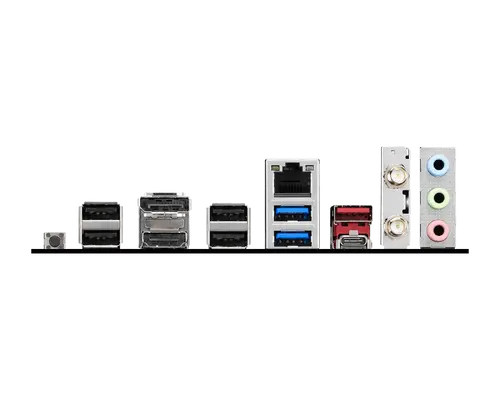

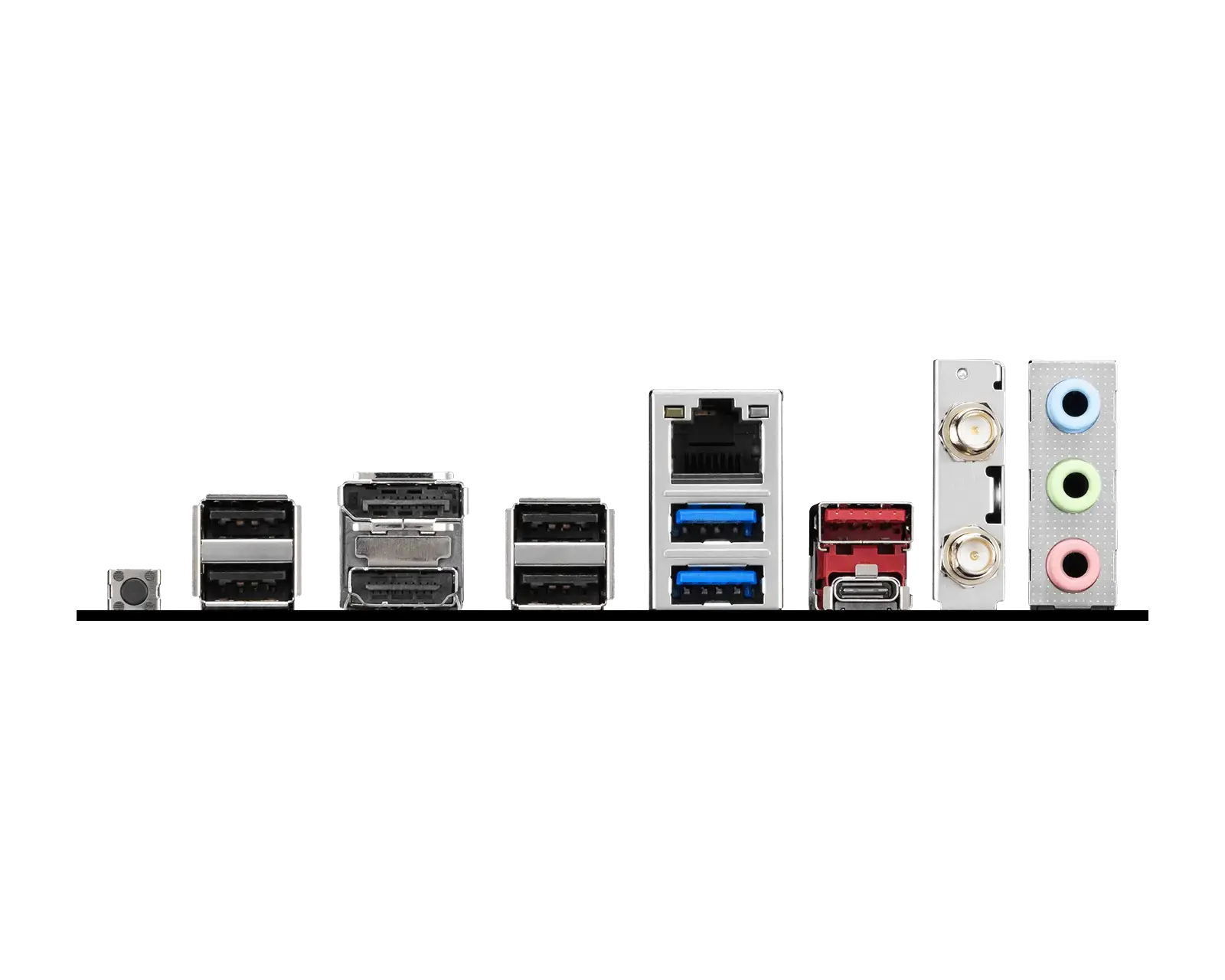

Rear panel I/O
USB 2.0
DisplayPort 1.2
1G LAN
USB 10Gbps (Type-A)
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 2.0
USB 5Gbps (Type-A)
USB 10Gbps (Type-C)
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
Connectors
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Audio
Realtek® ALC897
7.1-Channel High Definition Audio
Lan
Realtek® 8111H 1G LAN
Wireless
Wi-Fi 6E Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Dual-band 1T1R mode
Supports MU-MIMO RX
Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
* The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
Form factor
ATX 243.84mmx304.8mm
OS
Support for Windows® 11 64-bit
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | Socket AM4 |
| Vendor_url | https://www.msi.com/Motherboard/B550-GAMING-WIFI6E |
| Chipset | AMD B550 |
| OS | Support for Windows® 11 64-bit |
| CPU's supported | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| Memory type | Max. overclocking frequency: |
| Memory type | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory type | • 1DPC 2R Max speed up to 3866+ MHz |
| Memory type | Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE |
| Memory type | • Dual channel memory architecture |
| Memory type | • Supports non-ECC UDIMM memory |
| Memory type | • Supports ECC UDIMM memory (non-ECC mode) |
| Memory type | • Supports un-buffered memory |
| Memory type | • 1DPC 1R Max speed up to 4800+ MHz |
| Memory type | • 2DPC 1R Max speed up to 4000+ MHz |
| Memory type | • 2DPC 2R Max speed up to 3600+ MHz |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | Flash BIOS button |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | Wi-Fi / Bluetooth |
| Rear panel I/O | USB 5Gbps (Type-A) |
| Rear panel I/O | USB 10Gbps (Type-A) |
| Rear panel I/O | USB 10Gbps (Type-C) |
| Rear panel I/O | DisplayPort 1.2 |
| Rear panel I/O | 1G LAN |
| LAN | Realtek® 8111H 1G LAN |
| Expansion Slots | 1x PCI-E x1 slot |
| Expansion Slots | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Expansion Slots | 2x PCI-E x16 slot |
| Expansion Slots | PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) |
| Expansion Slots | *The supported specification depends on installed processor. |
| Expansion Slots | **When installing PCIe SSD in M.2_2 slot, PCI_E2 slot will be unavailable. |
| Wireless | Supports 2.4GHz/ 5GHz/ 6GHz* frequency band |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Wireless | Wi-Fi 6E Solution |
| Wireless | ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. |
| Wireless | Dual-band 1T1R mode |
| Wireless | Supports MU-MIMO RX |
| Wireless | Supports Bluetooth® 5.3** |
| Wireless | * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. |
| Graphics | 1x HDMI™ |
| Graphics | 1x DisplayPort |
| Graphics | Support DisplayPort 1.2, maximum resolution of 4K 60Hz |
| Graphics | Support HDMI™ 1.4, maximum resolution of 4K 30Hz |
| Storage | 2x M.2 |
| Storage | 6x SATA 6G |
| Storage | M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x Power Connector(CPU_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x Com Port (JCOM) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x USB 5Gbps Type A ports |
| Connectors | 6x System Fan |
| Connectors | 2x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 1x Combo Fan (Pump_Sys Fan) |
| Connectors | 1x USB 5Gbps Type C ports |
| USB | 4x USB 2.0 (Front) |
| USB | 2x USB 5Gbps Type A (Front) |
| USB | 2x USB 5Gbps Type A (Rear) |
| USB | 4x USB 2.0 (Rear) |
| USB | 1x USB 5Gbps Type C (Front) |
| USB | 1x USB 10Gbps Type A (Rear) |
| USB | 1x USB 10Gbps Type C (Rear) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM4 |
| Form Factor | ATX |
| Chipset | AMD B550 |
| Memory Type | DDR4 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 6 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
Дънна платка MSI B550 GAMING WIFI6E — производителност за AM4 с Wi-Fi 6E
Сглобете бърза и подготвена за бъдещето AMD система с MSI B550 GAMING WIFI6E. Тя съчетава доказания чипсет AMD B550 с Wi-Fi 6E, 2.5G LAN и поддръжка на PCIe 4.0, за да получите първокласна свързаност без първокласна цена.
Независимо дали играете, стриймвате или работите, тази ATX платка предлага стабилно захранване, богати възможности за съхранение и надеждността, с която MSI е известна.
Ключови Предимства
- Wi-Fi 6E и 2.5G LAN — свръхбърза мрежа с ниска латентност за онлайн игри и трансфер на големи файлове.
- Готовност за PCIe 4.0 — пълна скорост от съвременни NVMe SSD и видеокарти.
- Солидно захранване — стабилно и ефективно захранване за Ryzen процесори с много ядра.
- Гъвкаво съхранение — няколко M.2 слота и SATA порта за бързо и разширяемо съхранение.
- Качество и софтуер на MSI — лесно настройване и мониторинг с MSI Center.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AMD AM4 |
| Форм фактор | ATX |
| Чипсет | AMD B550 |
| Тип памет | DDR4 |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| M.2 слотове | 2 |
| SATA портове | 6 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка MSI B550 GAMING WIFI6E
- Wi-Fi антена
- SATA кабели
- I/O панел
- Ръководство за бърза инсталация
- Диск с драйвери и утилити
