- MSI
Τιμή
€141 66 / 277 06 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.msi.com/Motherboard/PRO-B860M-P-WIFI6E
Model

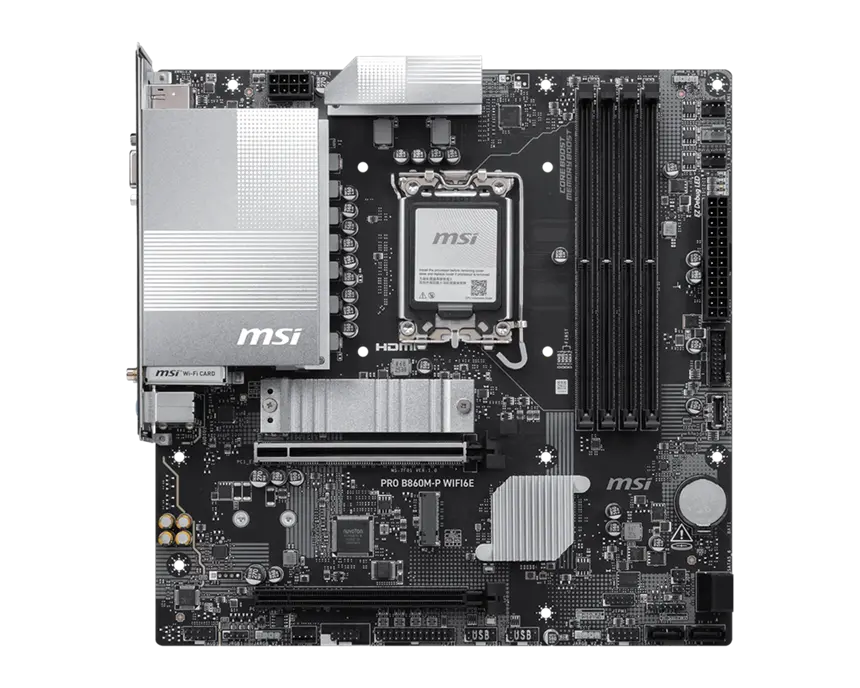

PRO B860M-P WIFI6E
Socket
LGA 1851
Graphics
1x HDMI™
Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
CPU's supported
Supports Intel® Core™ Ultra Processors (Series 2)
Chipset
INTEL B860
Expansion slots
2x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

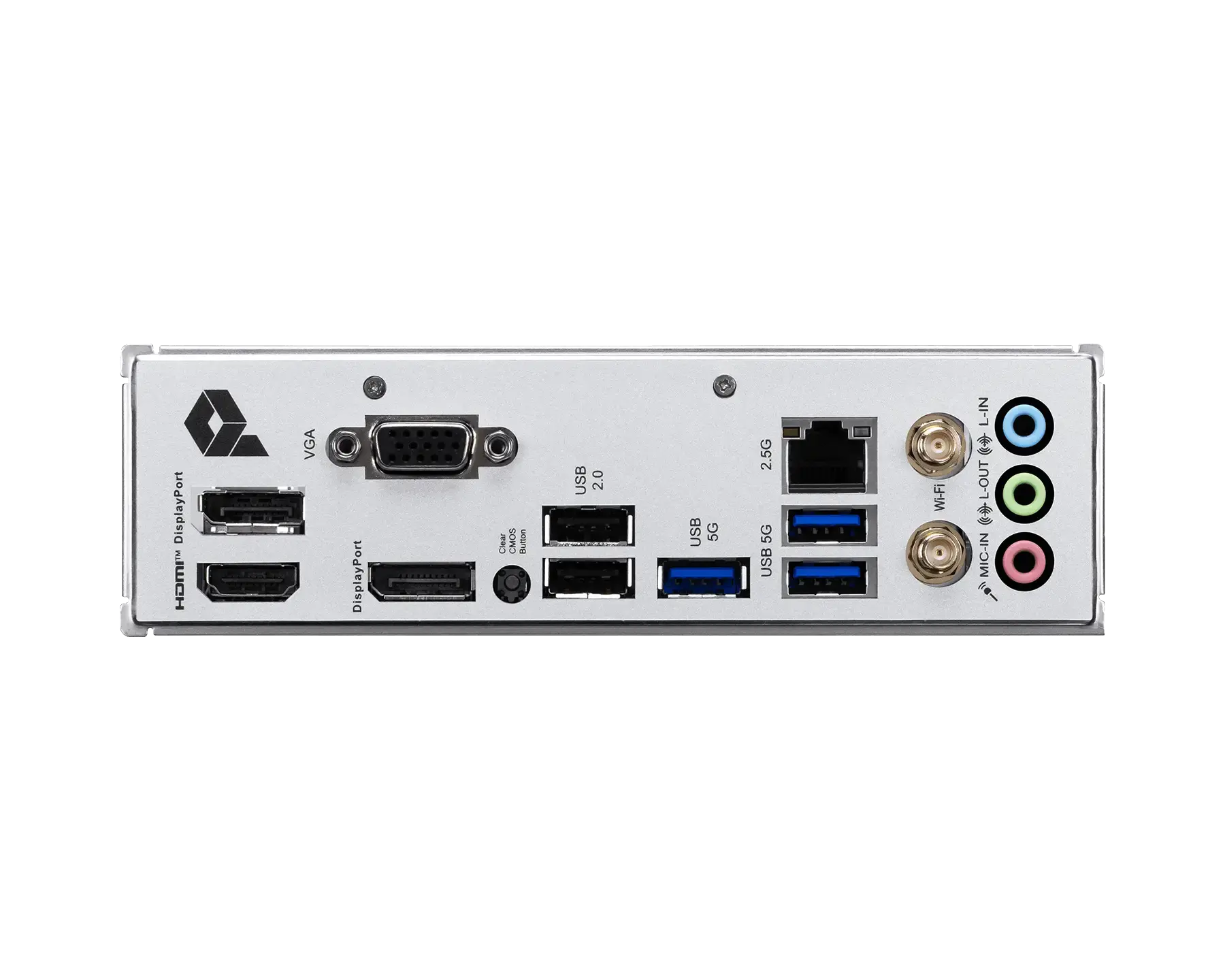

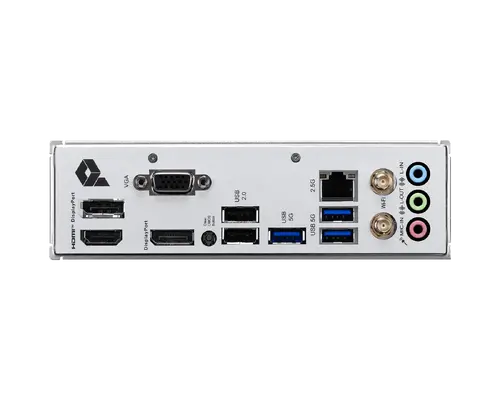

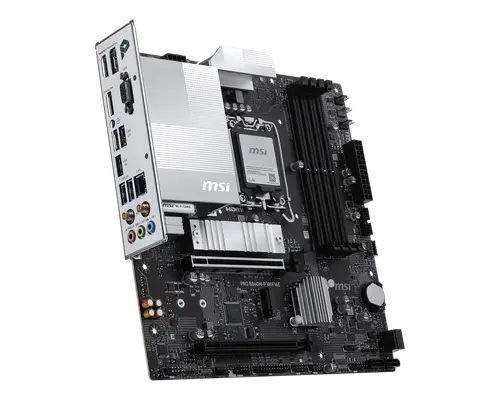

Rear panel I/O
DisplayPort
VGA
USB 2.0
USB 5Gbps Type-A
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
DisplayPort
Clear CMOS Button
USB 5Gbps Type-A
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
Connectors
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Lan
Realtek® 8125 2.5Gbps LAN
Wireless
Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth
Supports Bluetooth® 5.3**, FIPS, FISMA
Form factor
mATX, 243.84mmx243.84mm
OS
Support for Windows® 11 64-bit
Other
4x EZ Debug LED
1x EZ Memory Detection LED
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA 1851 |
| Vendor_url | https://www.msi.com/Motherboard/PRO-B860M-P-WIFI6E |
| Chipset | INTEL B860 |
| OS | Support for Windows® 11 64-bit |
| CPU's supported | Supports Intel® Core™ Ultra Processors (Series 2) |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory type | • 2DPC 1R Max speed up to 6400+ MT/s |
| Memory type | Supports Dual-Controller Dual-Channel mode |
| Memory type | • 1DPC 1R Max speed up to 8800+ MT/s |
| Memory type | • 1DPC 2R Max speed up to 7200+ MT/s |
| Memory type | • 2DPC 2R Max speed up to 5600+ MT/s |
| Memory type | Supports Intel® POR Speed and JEDEC Speed |
| Memory type | Supports Memory Overclocking and Intel® XMP 3.0 |
| Memory type | Supports CUDIMM |
| Memory type | Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Memory type | Max. overclocking: |
| Form Factor | mATX, 243.84mmx243.84mm |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 Codec |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | VGA |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | DisplayPort |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | 2.5G LAN |
| Rear panel I/O | Wi-Fi / Bluetooth |
| Rear panel I/O | Clear CMOS Button |
| Rear panel I/O | USB 5Gbps Type-A |
| LAN | Realtek® 8125 2.5Gbps LAN |
| Model | PRO B860M-P WIFI6E |
| Expansion Slots | 2x PCI-E x16 slot |
| Expansion Slots | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Wireless | Wi-Fi 6E |
| Wireless | Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
| Graphics | 1x HDMI™ |
| Graphics | 1x VGA |
| Graphics | Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Graphics | 2x DisplayPort |
| Graphics | Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz* |
| Graphics | Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz* |
| Other | 4x EZ Debug LED |
| Other | 1x EZ Memory Detection LED |
| Storage | 4x SATA 6G |
| Storage | 2x M.2 |
| Storage | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| Storage | *Please refer to the manual for M.2 SSD heatsink restrictions. |
| Bluetooth | Supports Bluetooth® 5.3**, FIPS, FISMA |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x Power Connector(CPU_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x Com Port (JCOM) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 2x System Fan |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x USB 5Gbps Type A ports |
| Connectors | 3x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 1x Combo Fan (Pump_Sys Fan) |
| Connectors | 1x USB 5Gbps Type C ports |
| Connectors | 1x Printer Port (JLPT) |
| USB | 2x USB 2.0 (Rear) |
| USB | 4x USB 2.0 (Front) |
| USB | 2x USB 5Gbps Type A (Front) |
| USB | 1x USB 5Gbps Type C (Front) |
| USB | 3x USB 5Gbps Type A (Rear) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1851 |
| Form Factor | Micro-ATX |
| Chipset | Intel B860 |
| Memory Type | DDR5 |
| Wi-Fi Built-in | Wi-Fi 6E |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

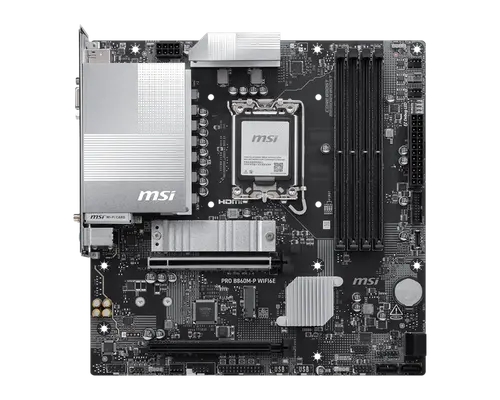

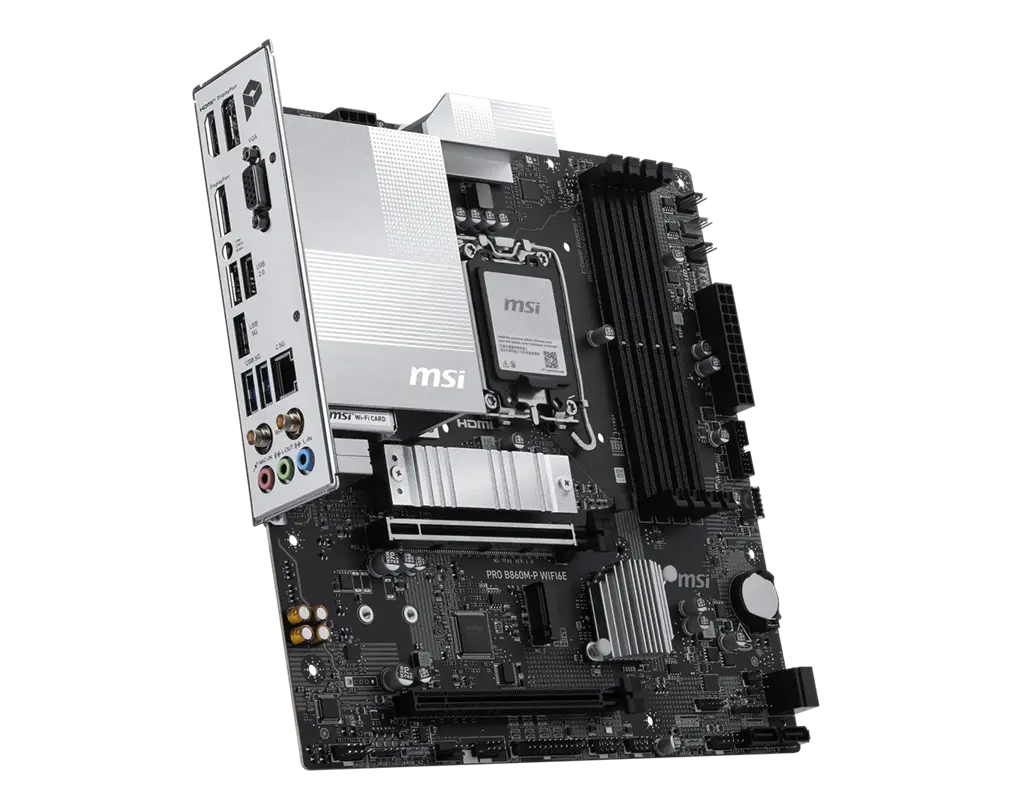

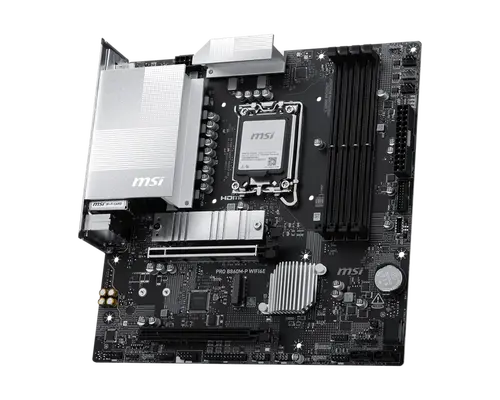

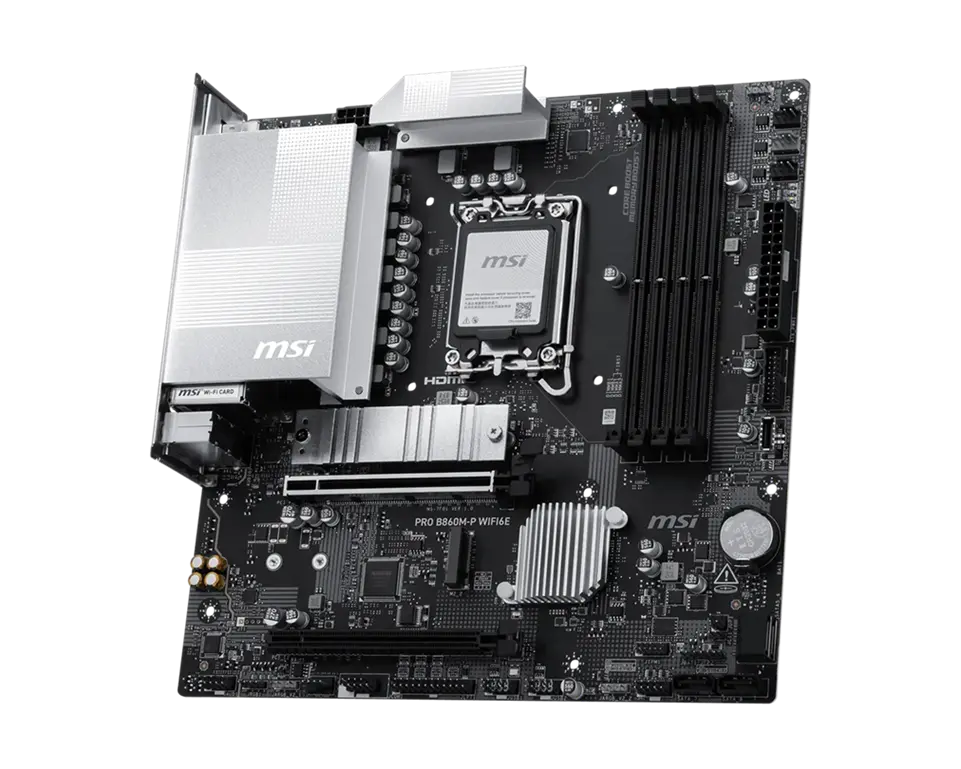

MSI PRO B860M-P WIFI6E – надеждна Micro-ATX основа за Intel Core Ultra 200S
Изградете компактен и модерен компютър с най-новите настолни процесори Intel Core Ultra върху MSI PRO B860M-P WIFI6E. Платката съчетава чипсет Intel B860 и сокет LGA 1851 с поддръжка на DDR5 памет и вграден Wi-Fi 6E. Така тя е практичен избор с поглед към бъдещето за офис, дом и работни системи.
Ключови предимства
- Готова за Intel Core Ultra 200S – сокетът LGA 1851 и чипсетът Intel B860 поддържат най-новото поколение настолни процесори на Intel.
- DDR5 памет – бързата DDR5 RAM осигурява нужната пропускателна способност за многозадачност, работа със съдържание и бърза реакция в ежедневието.
- Вграден Wi-Fi 6E – обхватът 6 GHz дава бърза безжична връзка с ниска латентност и по-малко смущения, без да купувате допълнителен адаптер.
- Компактен Micro-ATX формат – влиза в широка гама mid-tower и компактни кутии и оставя място за разширение.
- Надеждност от серията MSI PRO – линията PRO е създадена за стабилност и дълъг живот, което я прави подходяща за бизнес и домашни системи в ежедневна употреба.
- Лесна настройка – интерфейсът MSI Click BIOS прави конфигурирането и обновяването бързо и интуитивно.
Технически спецификации
| Характеристика | Стойност |
|---|---|
| Производител | MSI |
| Модел | PRO B860M-P WIFI6E |
| Сокет | Intel LGA 1851 |
| Чипсет | Intel B860 |
| Поддържани процесори | Настолни процесори Intel Core Ultra (Series 2) |
| Тип памет | DDR5 |
| Форм фактор | Micro-ATX (mATX) |
| Безжична мрежа | Wi-Fi 6E |
| Серия | MSI PRO |
| Код на производителя | 911-7F01-004 |
| EAN | 4711377432696 |
Какво има в кутията
- Дънна платка MSI PRO B860M-P WIFI6E
- Wi-Fi антена
- SATA кабел(и)
- Кратко ръководство за инсталация
