- GIGABYTE
- Νέο
Τιμή
€103 58 / 202 58 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.gigabyte.com/bg/Motherboard/B550M-GAMING-X-rev-12
Model
B550M GAMING X
Socket
AMD AM4
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Maximum shared memory of 16 GB
CPU's supported
AMD Socket AM4, support for:
AMD Ryzen™ 5000 G-Series Processors/
AMD Ryzen™ 5000 Series Processors/
AMD Ryzen™ 4000 G-Series Processors/
AMD Ryzen™ 3000 G-Series Processors/
AMD Ryzen™ 3000 Series Processors
Chipset
AMD B550
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

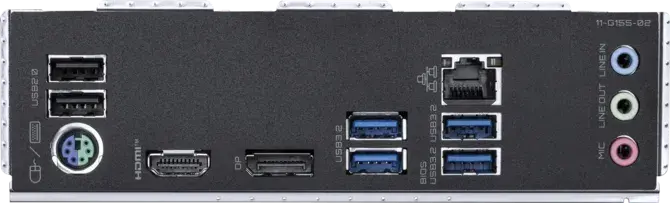

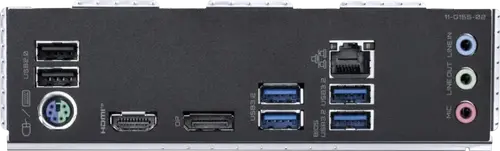

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x HDMI port
1 x DisplayPort
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x antenna connectors
3 x audio jacks
Audio
Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
Lan
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Dimensions
24.4cm x 24.4cm
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AMD AM4 |
| Vendor_url | https://www.gigabyte.com/bg/Motherboard/B550M-GAMING-X-rev-12 |
| Chipset | AMD B550 |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| CPU's supported | AMD Socket AM4, support for: |
| CPU's supported | AMD Ryzen™ 5000 G-Series Processors/ |
| CPU's supported | AMD Ryzen™ 5000 Series Processors/ |
| CPU's supported | AMD Ryzen™ 4000 G-Series Processors/ |
| CPU's supported | AMD Ryzen™ 3000 G-Series Processors/ |
| CPU's supported | AMD Ryzen™ 3000 Series Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules |
| Memory type | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory |
| Memory type | Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules |
| Form Factor | Micro ATX |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | Realtek® ALC1220 CODEC |
| Audio | * The back panel line out jack supports DSD audio. |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Model | B550M GAMING X |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| Expansion Slots | - AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode |
| Expansion Slots | - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | Chipset: |
| Expansion Slots | - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 |
| Expansion Slots | - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 |
| Dimensions | 24.4cm x 24.4cm |
| Graphics | * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Graphics | Maximum shared memory of 16 GB |
| Graphics | * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| Graphics | - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | ** Support for native HDMI 2.1 TMDS compatible ports. |
| Graphics | (Graphics specifications may vary depending on CPU support.) |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| BIOS | 1 x 128 Mbit flash |
| Storage | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| Storage | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Storage | 4 x SATA 6Gb/s connectors |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: |
| Storage | 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs |
| Storage | - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs |
| Storage | - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x system fan/water cooling pump header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 1 x serial port header |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 1 x system fan header |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x RGB LED strip header |
| Connectors | 1 x USB 2.0/1.1 header |
| Connectors | 2 x M.2 Socket 3 connectors |
| Connectors | Back Panel Connectors |
| Connectors | 2 x USB 2.0/1.1 ports |
| Connectors | 1 x PS/2 keyboard/mouse port |
| Connectors | 4 x USB 3.2 Gen 1 ports |
| Connectors | 1 x RJ-45 port |
| Connectors | 2 x antenna connectors |
| Connectors | 3 x audio jacks |
| Connectors | 1 x CPU fan/water cooling pump header |
| Connectors | 3 x addressable RGB Gen2 LED strip headers |
| Connectors | 1 x DisplayPort |
| Connectors | 1 x HDMI port |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) |
| USB | CPU: |
| USB | - 4 x USB 3.2 Gen 1 ports on the back panel |
| USB | Chipset: |
| USB | - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
| USB | - 2 x USB 3.2 Gen 1 ports available through the internal USB header |
| USB | - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM4 |
| Form Factor | Micro-ATX |
| Chipset | AMD B550 |
| Memory Type | DDR4 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
GIGABYTE B550M GAMING X – компактна дънна платка за AM4 с PCIe 4.0
GIGABYTE B550M GAMING X е компактна microATX платка с чипсет AMD B550. Поддържа PCIe 4.0 за съвременни видеокарти и NVMe SSD дискове и работи с процесори AMD Ryzen за сокет AM4. Добър избор за геймърска или домашна конфигурация на разумна цена.
Ключови Предимства
- Поддръжка на PCIe 4.0 — основният x16 слот за видеокарта и първият M.2 слот работят с PCIe 4.0 при съвместим процесор Ryzen. Така видеокартата и NVMe дискът работят по-бързо.
- Два M.2 слота — можете да сложите два NVMe SSD диска, например един за системата и един за игрите.
- До 128 GB DDR4 — четири слота за памет с двуканален режим. Можете да започнете с по-малко памет и да добавите още по-късно.
- Компактен microATX формат — побира се в midi tower и по-малки mATX кутии и има всичко, от което се нуждае един геймър.
- Работи с вградена графика — видеоизходите на задния панел позволяват да ползвате Ryzen APU без отделна видеокарта.
- Надеждна гигабитова мрежа — вграденият 1 Gbps Ethernet дава стабилна кабелна връзка за онлайн игри и стрийминг.
Технически Спецификации
| Характеристика | Стойност |
|---|---|
| Производител | GIGABYTE |
| Модел | B550M GAMING X (rev. 1.2) |
| Сокет | AMD AM4 |
| Чипсет | AMD B550 |
| Форм фактор | microATX (mATX) |
| Тип памет | DDR4, двуканална |
| Слотове за памет | 4 x DIMM |
| Максимална памет | 128 GB |
| M.2 слотове | 2 (основният е PCIe 4.0 x4 от процесора) |
| SATA портове | 4 x SATA 6 Gb/s |
| Слотове за разширение | 1 x PCIe 4.0 x16, 1 x PCIe x16 (работи в режим x4) |
| LAN | 1 Gbps Ethernet |
| Wi-Fi | Не |
| EAN | 4719331870096 |
Какво има в кутията
- Дънна платка GIGABYTE B550M GAMING X
- Ръководство за потребителя
- SATA кабели
- Винт(ове) за M.2
