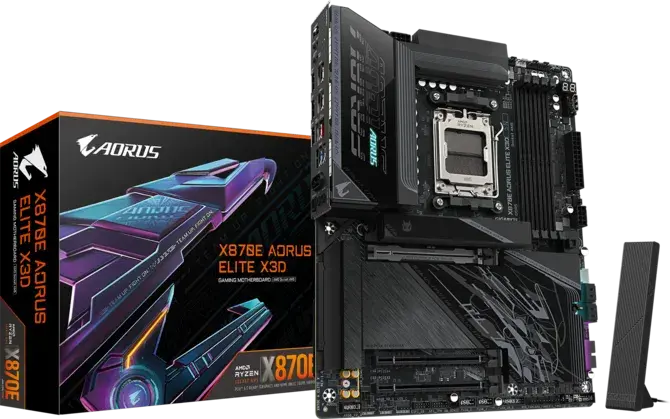

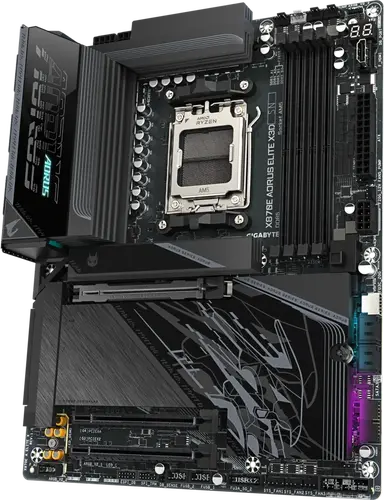

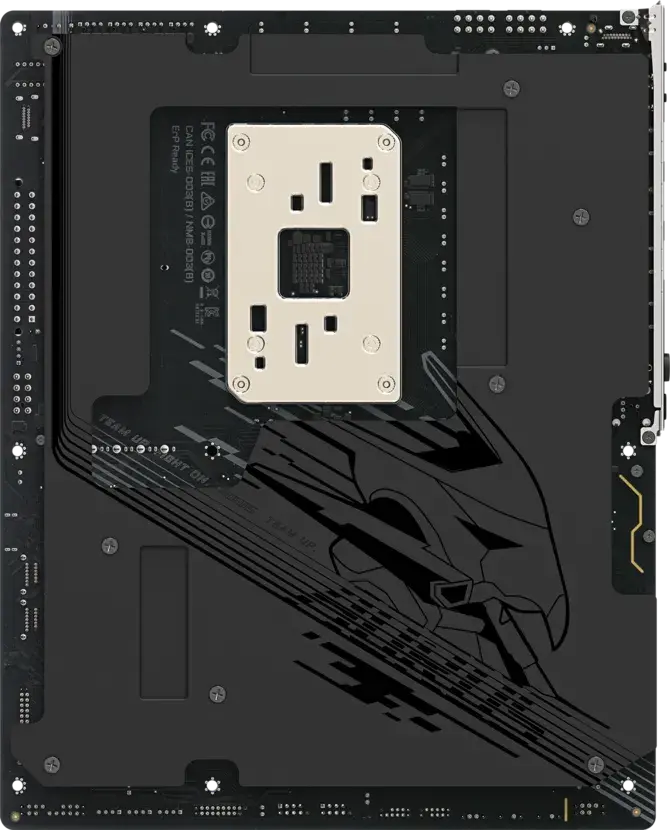

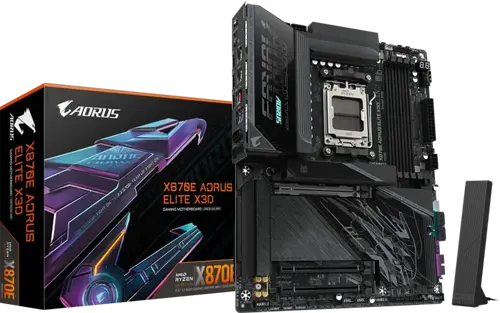

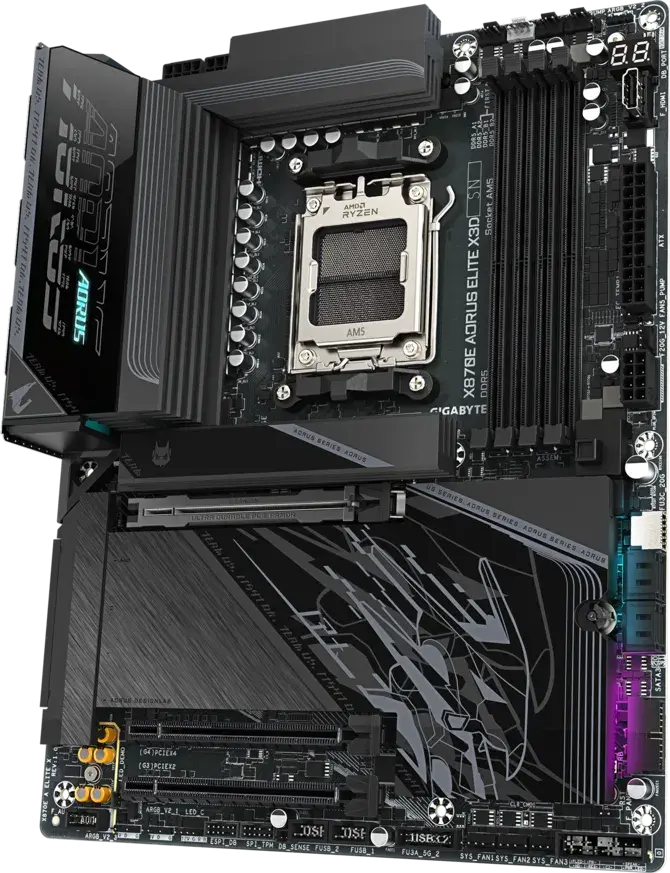

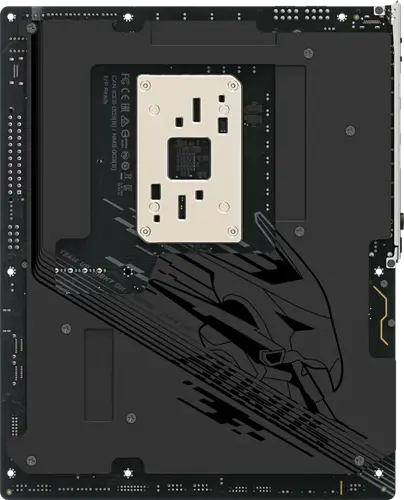

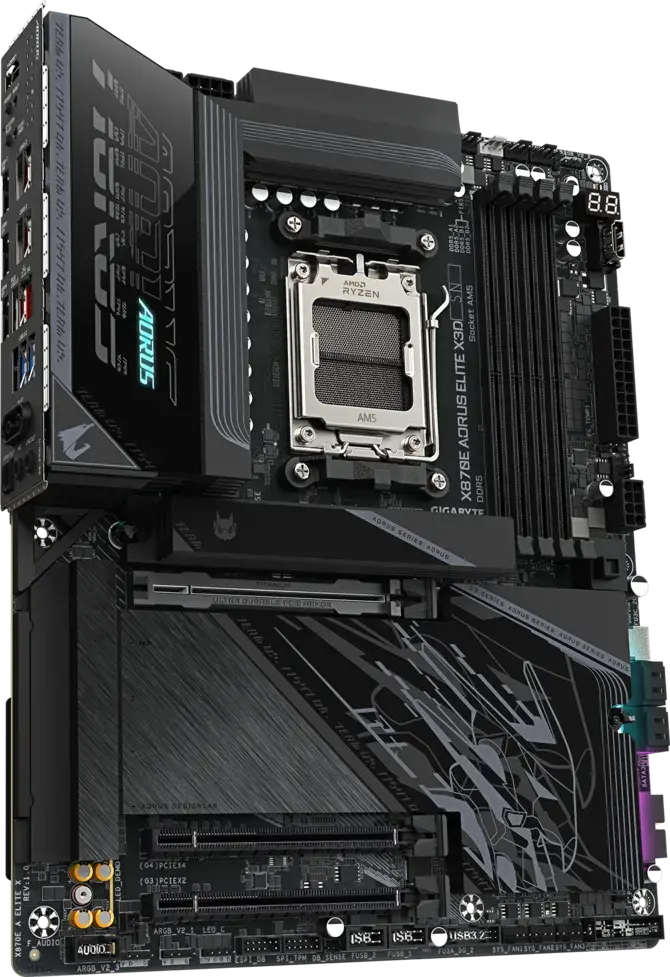

Μητρική πλακέτα, GIGABYTE GB X870E AORU ELITE X3D

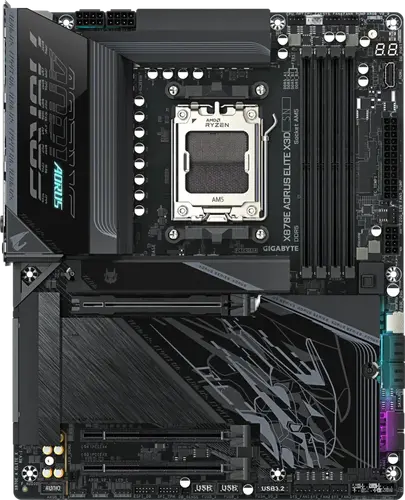

  • Μητρική πλακέτα, GIGABYTE GB X870E AORU ELITE X3D - 1

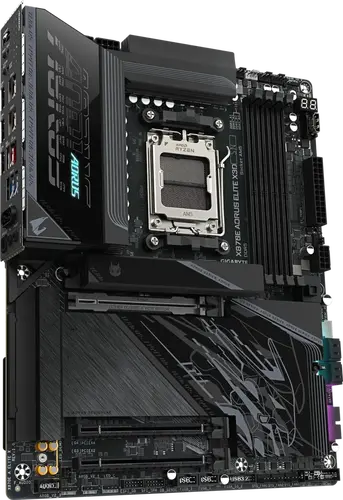

  • Μητρική πλακέτα, GIGABYTE GB X870E AORU ELITE X3D - 2
  • Μητρική πλακέτα, GIGABYTE GB X870E AORU ELITE X3D - 3
  • Μητρική πλακέτα, GIGABYTE GB X870E AORU ELITE X3D - 4
  • Μητρική πλακέτα, GIGABYTE GB X870E AORU ELITE X3D - 5
  • Μητρική πλακέτα, GIGABYTE GB X870E AORU ELITE X3D - 6
  • GIGABYTE
  • Νέο
Μητρική πλακέτα, GIGABYTE GB X870E AORU ELITE X3D
Τιμή
€341 00 / 666 94 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
 Προσθήκη στο καλάθι
Επεκτείνετε την εγγύησή σας
+1 έτος: + 45€
+2 έτη: + 65€
  • : X870E A ELITE X
  • : Μητρικές
  • : 3 έτη
ΑΞΙΟΛΟΓΗΣΗ
Η ΑΞΙΟΛΟΓΗΣΗ ΣΑΣ
Κριτικές
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.gigabyte.com/bg/Motherboard/X870E-AORUS-ELITE-X3D
Model
X870E AORUS ELITE X3D
Socket
AMD AM5
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version
CPU's supported
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
Chipset
AMD X870E
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)
* For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-7, "Internal Connectors."
- 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 3 x USB 3.2 Gen 1 ports on the back panel
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x PCIe power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x noise detection header

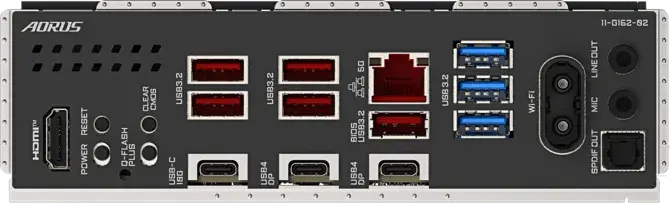

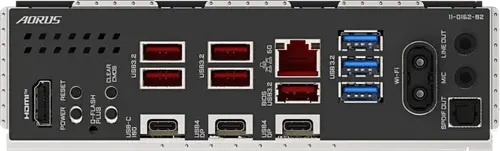

Back Panel Connectors
1 x HDMI port
1 x reset button
1 x power button
1 x Clear CMOS button
1 x Q-Flash Plus button
5 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB4® USB Type-C® ports (DisplayPort)
1 x RJ-45 port
3 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Audio
Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Wireless
Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Bluetooth
BLUETOOTH 5.4
BIOS
1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
OS
Support for Windows 11 64-bit
Dimensions
30.5cm x 24.4cm
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
ΧαρακτηριστικόΤιμή
SocketAMD AM5
Vendor_urlhttps://www.gigabyte.com/bg/Motherboard/X870E-AORUS-ELITE-X3D
ChipsetAMD X870E
OSSupport for Windows 11 64-bit
CPU's supportedAMD Socket AM5, support for:
CPU's supportedAMD Ryzen™ 9000 Series Processors/
CPU's supportedAMD Ryzen™ 8000 Series Processors/
CPU's supportedAMD Ryzen™ 7000 Series Processors
Memory typeDual channel memory architecture
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory typeSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory typeSupport for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.
Form FactorATX
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
Audio* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
AudioSupport for S/PDIF Out
AudioRealtek® ALC1220 CODEC
Audio* The back panel line out jack supports DSD audio.
Rear panel I/OiTE® I/O Controller Chip
ModelX870E AORUS ELITE X3D
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Expansion Slots* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion SlotsChipset:
Expansion SlotsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
Expansion SlotsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Expansion SlotsAMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Dimensions30.5cm x 24.4cm
Wireless(Actual data rate may vary depending on environment and equipment.)
Wireless- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
Wireless- BLUETOOTH 5.4
WirelessQualcomm® Wi-Fi 7 QCNCM865
Wireless- Support for 11be 320MHz wireless standard
Graphics* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support:
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics** Support for native HDMI 2.1 TMDS compatible ports.
Graphics* Support for DisplayPort 1.4 version and HDR.
Graphics* Support for HDMI 1.4 version
Graphics- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Graphics- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS1 x 512 Mbit flash
StorageRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
StorageRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage4 x SATA 6Gb/s connectors
StorageAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
StorageAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
Storage1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
Storage* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
StorageAMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
Storage2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
BluetoothBluetooth 5.4
Connectors1 x 24-pin ATX main power connector
Connectors2 x 8-pin ATX 12V power connectors
Connectors1 x CPU fan header
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors2 x USB 2.0/1.1 headers
Connectors1 x reset button
Connectors1 x Q-Flash Plus button
Connectors1 x reset jumper
Connectors1 x Clear CMOS jumper
Connectors4 x SATA 6Gb/s connectors
Connectors1 x RGB LED strip header
ConnectorsBack Panel Connectors
Connectors1 x HDMI port (Note)
Connectors1 x RJ-45 port
Connectors1 x CPU fan/water cooling pump header
Connectors4 x System fan headers
Connectors3 x addressable RGB Gen2 LED strip headers
Connectors1 x HDMI port
Connectors1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
Connectors2 x antenna connectors (2T2R)
Connectors1 x USB Type-C® port, with USB 3.2 Gen 2 support
Connectors3 x USB 3.2 Gen 1 ports
Connectors1 x optical S/PDIF Out connector
Connectors2 x audio jacks
Connectors4 x M.2 Socket 3 connectors
Connectors2 x USB 3.2 Gen 1 headers
Connectors1 x power button
Connectors1 x Clear CMOS button
Connectors1 x noise detection header
Connectors2 x temperature sensor headers
Connectors2 x system fan/water cooling pump headers
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
Connectors1 x PCIe power connector
Connectors5 x USB 3.2 Gen 2 Type-A ports (red)
Connectors2 x USB4® USB Type-C® ports (DisplayPort)
USBCPU:
USBChipset:
USB- 4 x USB 2.0/1.1 ports available through the internal USB headers
USB- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
USBChipset+USB 3.2 Gen 1 Hub:
USBCPU+ASMedia USB4® controller:
USB- 2 x USB4® USB Type-C® ports on the back panel
USB- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
USB- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)
USB- 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
USB- 3 x USB 3.2 Gen 1 ports on the back panel
USB* For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-7, "Internal Connectors."
Βάρος0.00kg
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
ΧαρακτηριστικόΤιμή
SocketAM5
Form FactorATX
ChipsetAMD X870E
Memory TypeDDR5
Memory Slots (count)4
Max Memory (GB)256
M.2 Slots (count)4
SATA Ports (count)4
Wi-Fi Built-inWi-Fi 7
LAN Speed2.5 Gbps
RGB LightingYes
Βάρος0.00kg
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

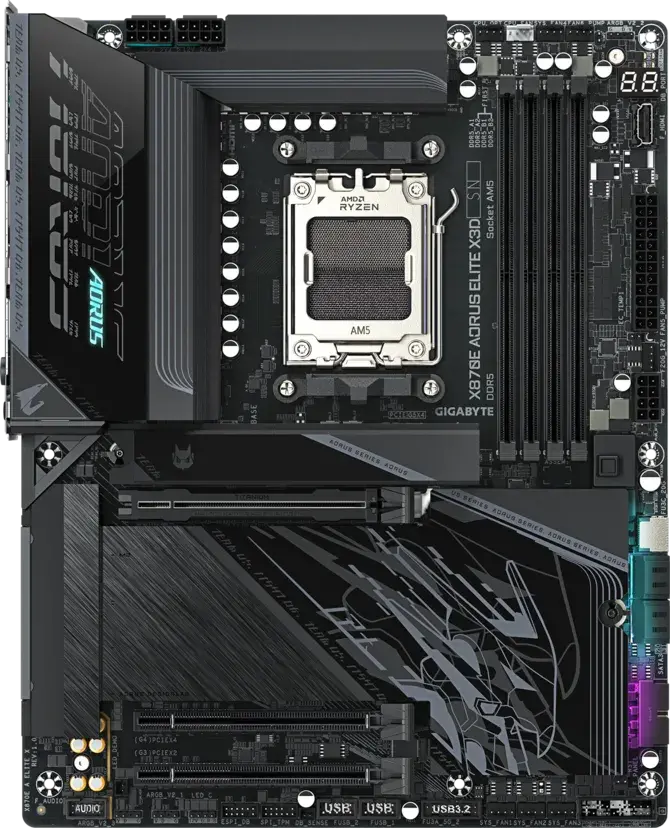

GIGABYTE X870E AORUS ELITE X3D – геймърска AM5 дънна платка, настроена за Ryzen X3D

GIGABYTE X870E AORUS ELITE X3D е създадена за геймъри с процесори AMD Ryzen X3D. Платката е с чипсет AMD X870E и сокет AM5. Поддържа DDR5 памет, PCIe 5.0, USB4 и Wi-Fi 7, така че е стабилна основа за нова геймърска или работна конфигурация.

Ключови Предимства

  • Създадена за Ryzen X3D — Специалните BIOS настройки на GIGABYTE за X3D помагат на процесорите Ryzen с 3D V-Cache да дават повече FPS в игрите.
  • Топ платформа X870E — Флагманският чипсет от AMD серия 800 осигурява PCIe 5.0 за видеокартата и за най-бързите NVMe SSD дискове.
  • Бърза DDR5 памет — Четири DIMM слота за високоскоростни DDR5 модули с поддръжка на AMD EXPO профили.
  • Вграден USB4 — USB4 Type-C портовете на задния панел достигат до 40 Gbps за външни дискове, докинг станции и монитори.
  • Wi-Fi 7 и 2.5 GbE LAN — Безжична връзка с ниска латентност и бърза кабелна мрежа за онлайн игри и големи изтегляния.
  • Лесен монтаж — Решенията AORUS EZ-Latch улесняват поставянето и сваляне на видеокартата и M.2 дисковете.
  • Готова за бъдещи процесори — Платформата AM5 поддържа AMD Ryzen серии 7000, 8000 и 9000 и предлага дълъг път за ъпгрейд.

Технически Спецификации

ХарактеристикаСтойност
ПроизводителGIGABYTE (AORUS)
МоделX870E AORUS ELITE X3D
СокетAMD AM5
ЧипсетAMD X870E
Поддържани процесориAMD Ryzen серии 7000 / 8000 / 9000
Форм факторATX
Тип паметDDR5
Слотове за памет4 x DIMM
Профили за паметAMD EXPO
Слот за видеокартаPCIe 5.0 x16
СъхранениеM.2 NVMe, включително с поддръжка на PCIe 5.0
USBUSB4 Type-C (40 Gbps) на задния панел
Безжична връзкаWi-Fi 7 + Bluetooth
Мрежа (LAN)2.5 Gbps Ethernet
EAN4719331876470

Какво има в кутията

  • Дънна платка GIGABYTE X870E AORUS ELITE X3D
  • Wi-Fi антена
  • SATA кабели
  • Ръководство за инсталиране / документация
SKU: X870E A ELITE X © 2026 Xtreme.bg
Самсунг Т9 Нов
Epson

Εγγραφείτε στο Newsletter μας

Εγγραφείτε στο online newsletter μας και μάθετε πρώτοι για προσφορές και νέα προϊόντα.

Αν έχετε ερωτήσεις, επικοινωνήστε μαζί μας!

info@xtreme.bg

+359 886 177 222
ЕКСТРИЙМ.БГ ООД
ΕΙΚ: 203294915 · Αρ. ΦΠΑ: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2

Πληροφορίες

Χρήστης

Τρόπος πληρωμής

  • Πιστωτική/Χρεωστική κάρτα
    MastercardVisaGoogle PayApple Pay
  • Τραπεζική μεταφορά
Copyright © 2023 Xtreme.bg - Με την επιφύλαξη παντός δικαιώματος. Ηλεκτρονικό κατάστημα με XCore
Κλείσιμο
