- ASROCK
Τιμή
€118 55 / 231 86 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asrock.com/mb/AMD/B550M-ITXac/index.asp#Specification
Graphics
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports Microsoft® PlayReady
Chipset
- AMD B550
Expansion slots
AMD Ryzen series CPUs (Matisse)
- 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*
AMD Ryzen series APUs (Renoir)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)**
Memory type
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- Supports Extreme Memory Profile (XMP) memory modules
- 15? Gold Contact in DIMM Slots

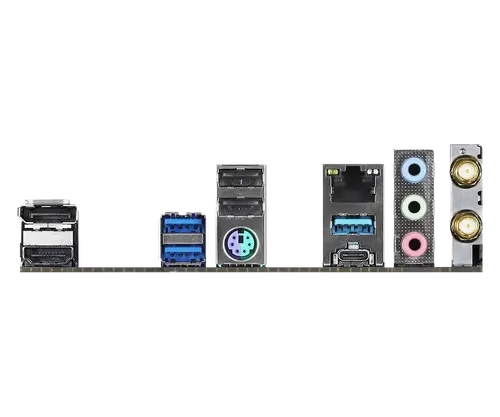

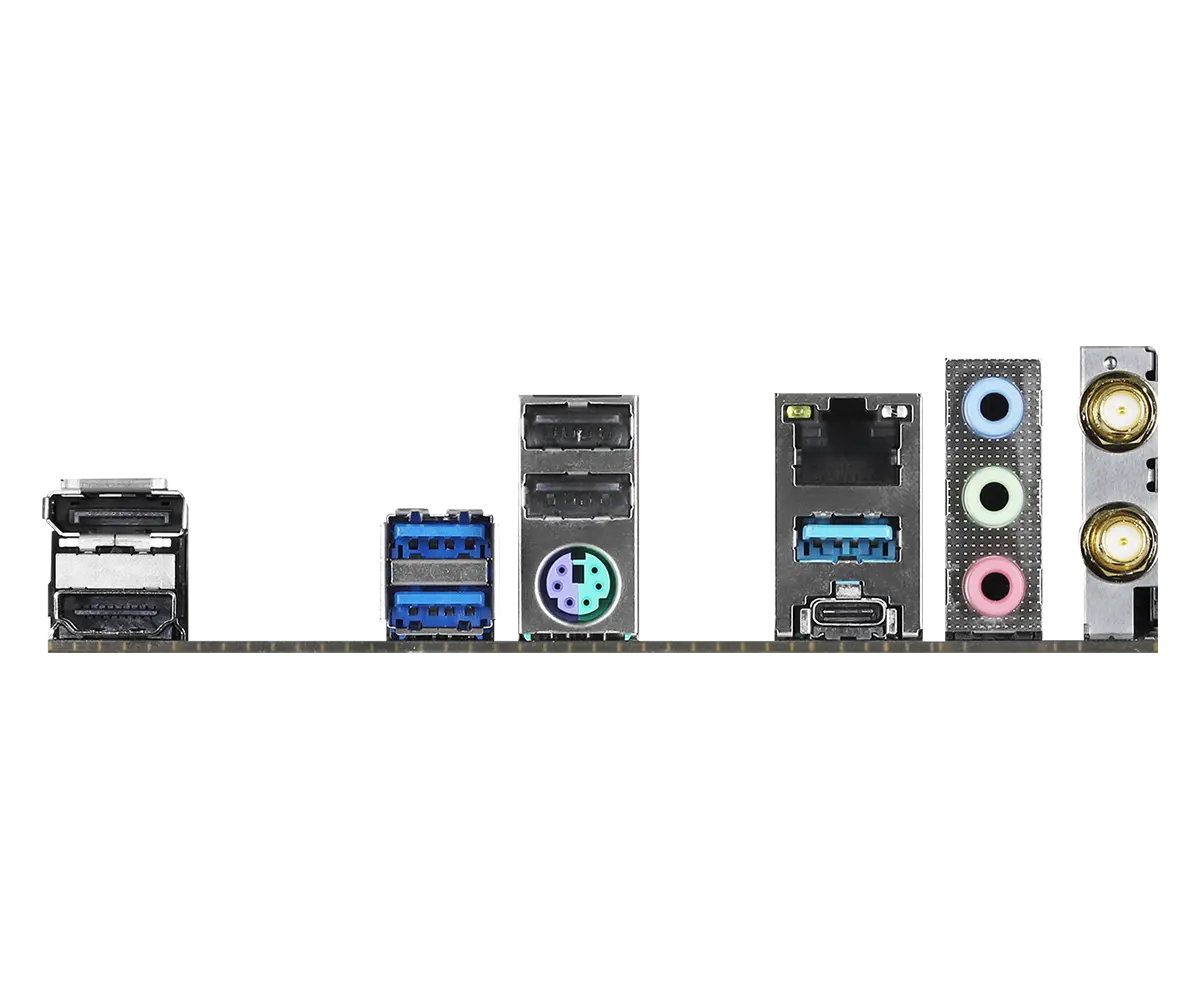

Rear panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x RGB LED Header*
- 1 x Addressable LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Supports Surge Protection
Lan
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment
Form factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor design
OS
- Microsoft® Windows® 10 64-bit
Other
- Intel® 802.11ac WiFi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 4.2 + High speed class II
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asrock.com/mb/AMD/B550M-ITXac/index.asp#Specification |
| Chipset | - AMD B550 |
| OS | - Microsoft® Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | - Digi Power design |
| CPU's supported | - 8 Power Phase design |
| CPU's supported | - Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors* |
| Memory type | - Dual Channel DDR4 Memory Technology |
| Memory type | - 2 x DDR4 DIMM Slots |
| Memory type | - Supports Extreme Memory Profile (XMP) memory modules |
| Memory type | - 15μ Gold Contact in DIMM Slots |
| Memory type | - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non |
| Memory type | - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Memory type | - Max. capacity of system memory: 64GB** |
| Memory type | - 15? Gold Contact in DIMM Slots |
| Form Factor | - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm |
| Form Factor | - Solid Capacitor design |
| Audio | - Supports Surge Protection |
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) |
| Rear panel I/O | - 1 x PS/2 Mouse/Keyboard Port |
| Rear panel I/O | - 1 x HDMI Port |
| Rear panel I/O | - 2 x USB 2.0 Ports (Supports ESD Protection) |
| Rear panel I/O | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Rear panel I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | - 2 x Antenna Ports |
| Rear panel I/O | - 1 x DisplayPort 1.4 |
| Rear panel I/O | - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) |
| Rear panel I/O | - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| LAN | - Realtek RTL8111H |
| LAN | - Supports Wake-On-LAN |
| LAN | - Supports Lightning/ESD Protection |
| LAN | - Supports Energy Efficient Ethernet 802.3az |
| LAN | - Supports PXE |
| Expansion Slots | - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* |
| Expansion Slots | AMD Ryzen series CPUs (Matisse) |
| Expansion Slots | - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)* |
| Expansion Slots | AMD Ryzen series APUs (Renoir) |
| Expansion Slots | - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O) |
| Graphics | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* |
| Graphics | - DirectX 12, Pixel Shader 5.0 |
| Graphics | - Shared memory default 2GB. Max Shared memory supports up to 16GB.** |
| Graphics | - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz |
| Graphics | - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) |
| Graphics | - Supports HDR (High Dynamic Range) with HDMI 2.1 |
| Graphics | - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports |
| Graphics | - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports |
| Graphics | - Supports Microsoft® PlayReady |
| Graphics | - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers |
| Graphics | - Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz |
| Other | - Intel® 802.11ac WiFi Module |
| Other | - Supports IEEE 802.11a/b/g/n/ac |
| Other | - Supports Dual-Band (2.4/5 GHz) |
| Other | - Supports high speed wireless connections up to 433Mbps |
| Other | - Supports Bluetooth 4.2 + High speed class II |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| BIOS | - Supports "Plug and Play" |
| BIOS | - ACPI 5.1 compliance wake up events |
| BIOS | - Supports jumperfree |
| BIOS | - SMBIOS 2.3 support |
| BIOS | - CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment |
| I/O | - 1 x PS/2 Mouse/Keyboard Port |
| I/O | - 1 x HDMI Port |
| I/O | - 2 x USB 2.0 Ports (Supports ESD Protection) |
| I/O | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | - 1 x DisplayPort 1.4 |
| I/O | - 2 x Antenna Ports |
| I/O | - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) |
| I/O | - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| Storage | - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)** |
| Connectors | - 1 x RGB LED Header* |
| Connectors | - 1 x Addressable LED Header** |
| Connectors | - 1 x 24 pin ATX Power Connector |
| Connectors | - 1 x 8 pin 12V Power Connector |
| Connectors | - 1 x Front Panel Audio Connector |
| Connectors | - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Connectors | - 1 x CPU Fan Connector (4-pin)*** |
| Connectors | - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** |
| Connectors | - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM4 |
| Form Factor | Mini-ITX |
| Chipset | AMD B550 |
| Memory Type | DDR4 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | Wi-Fi 5 |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

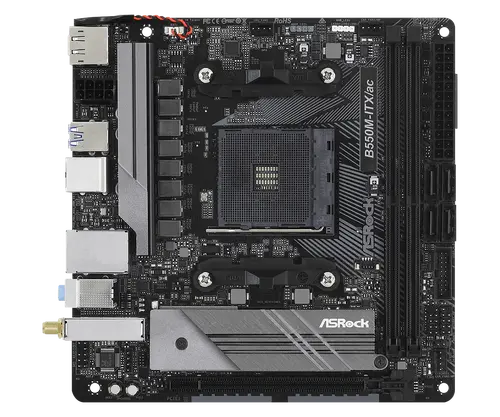

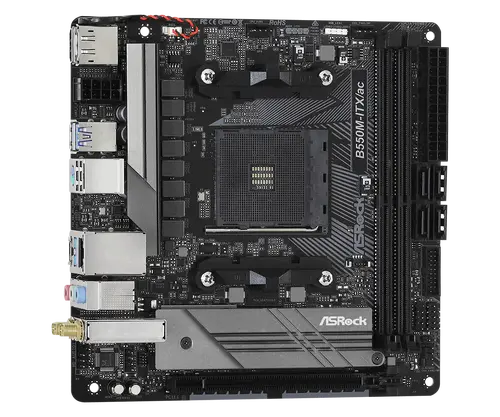

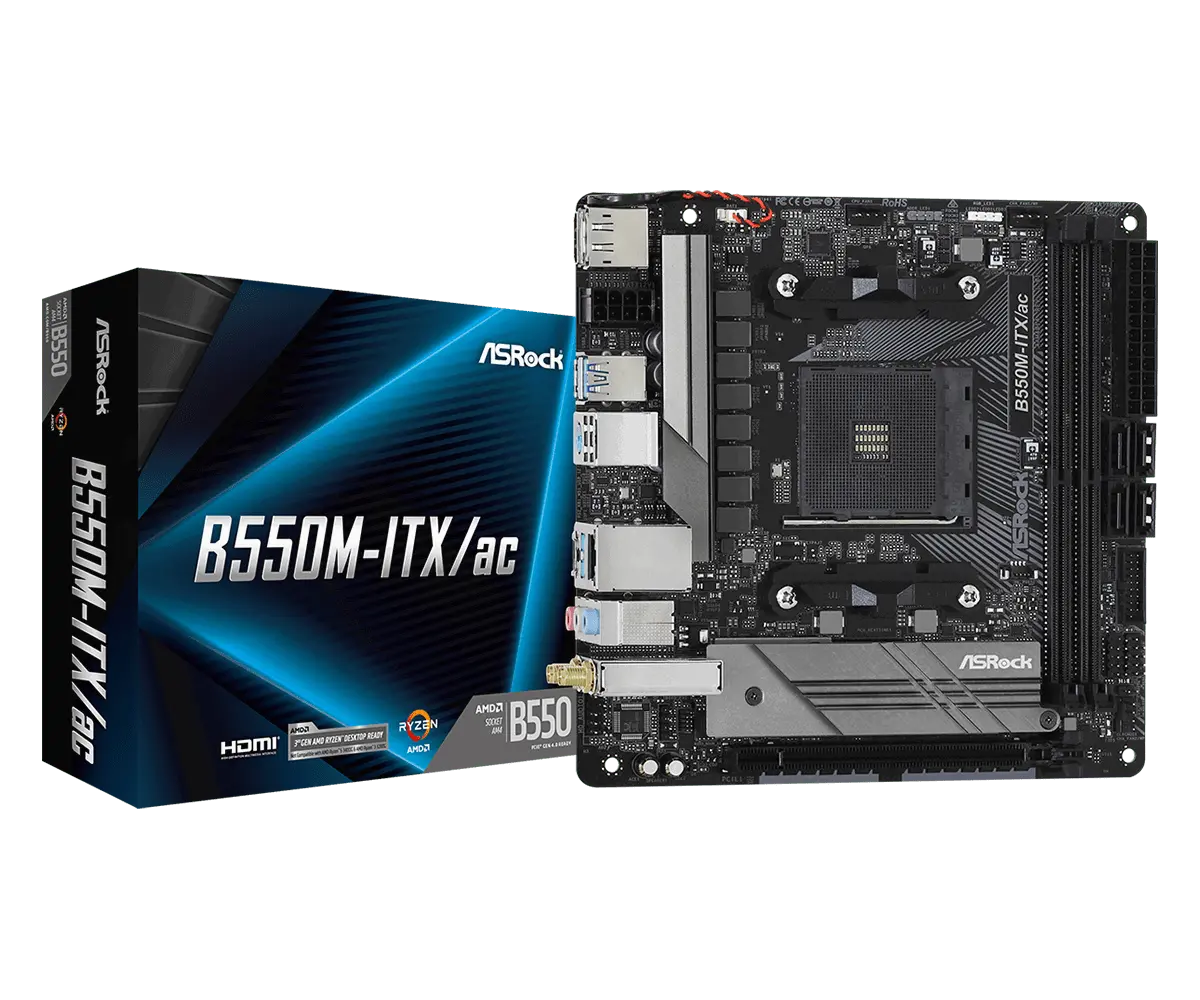

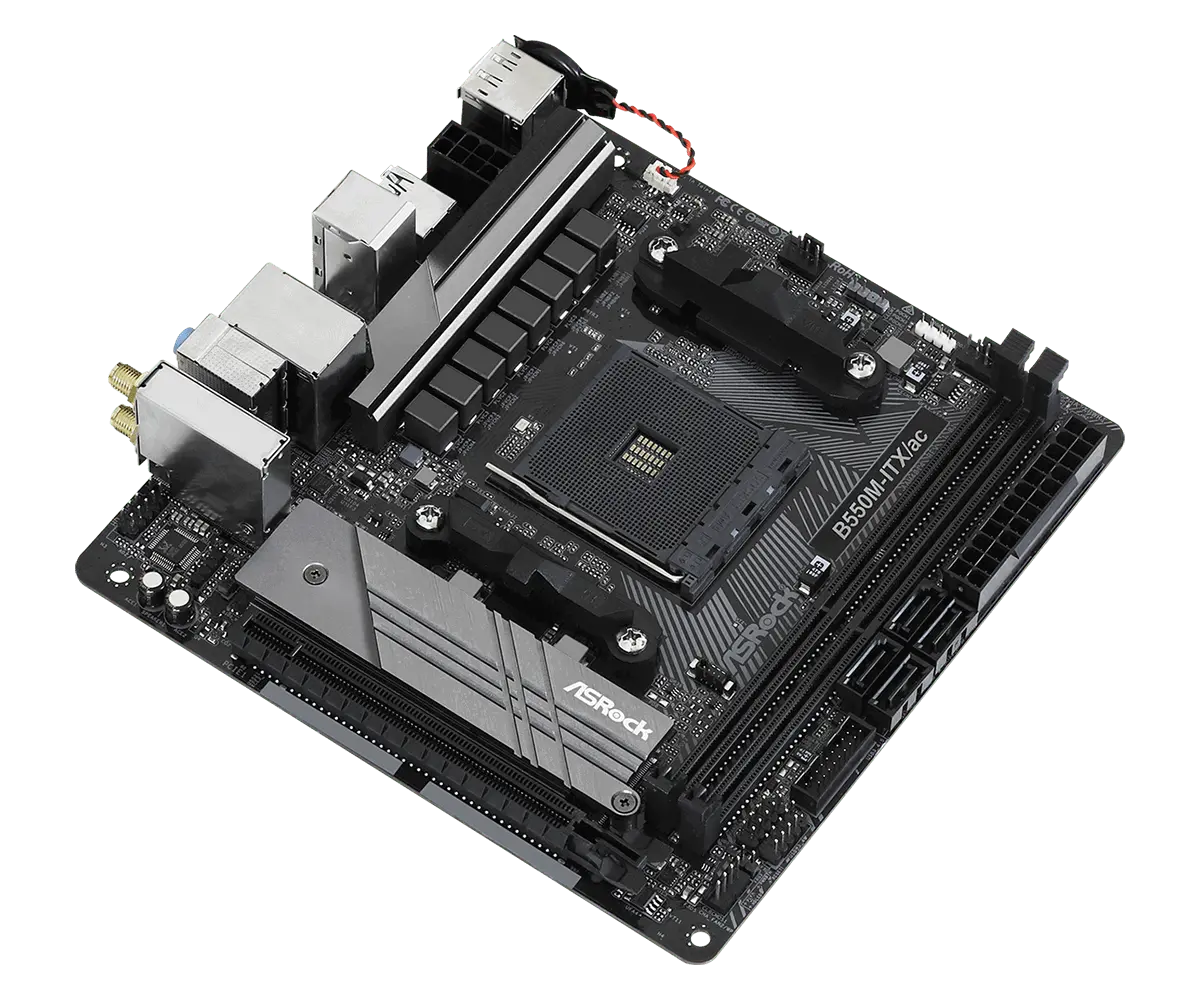

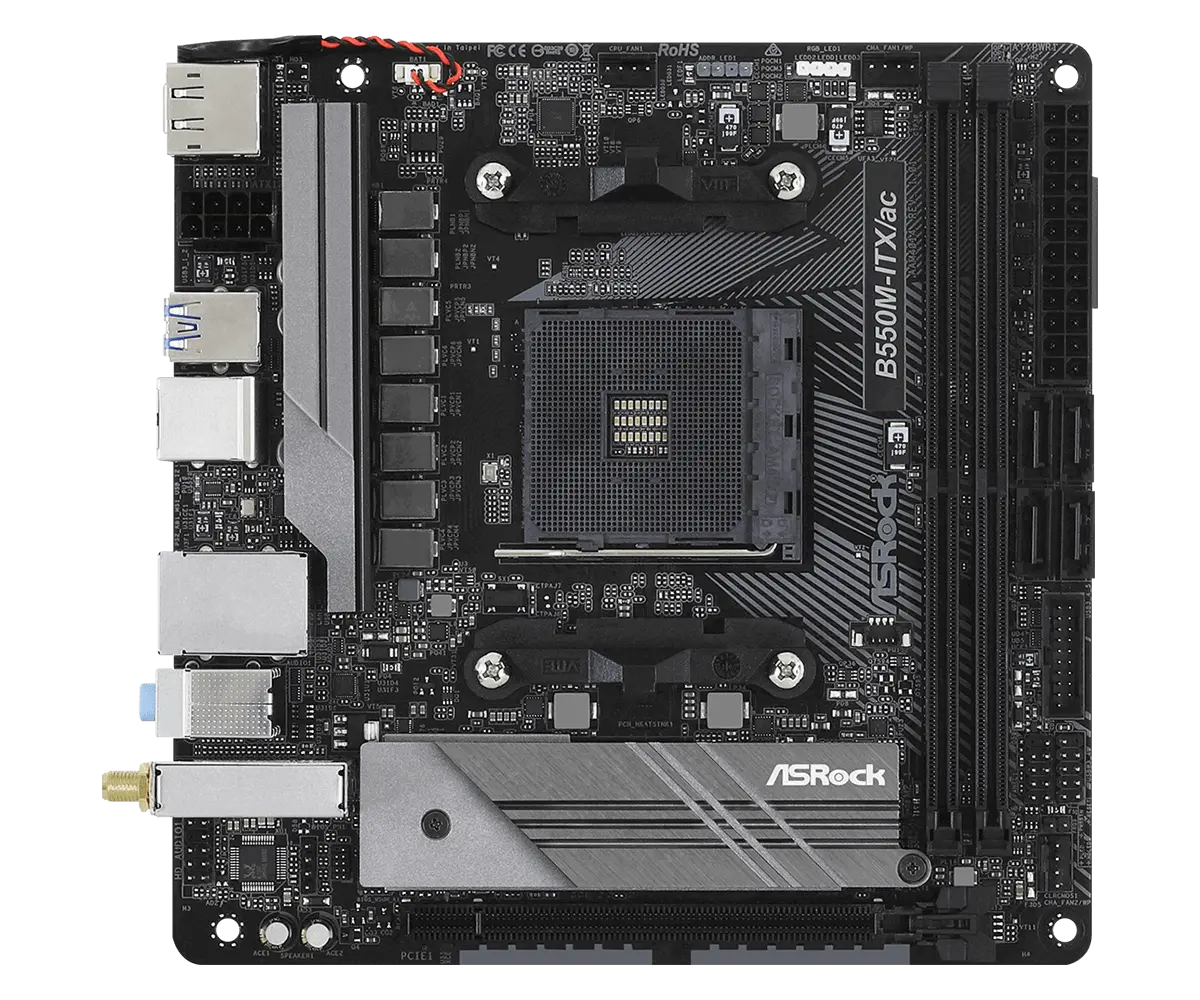

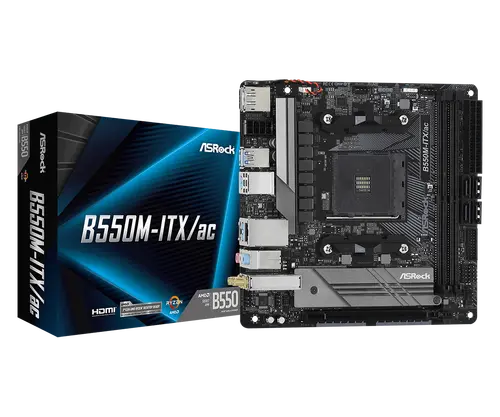

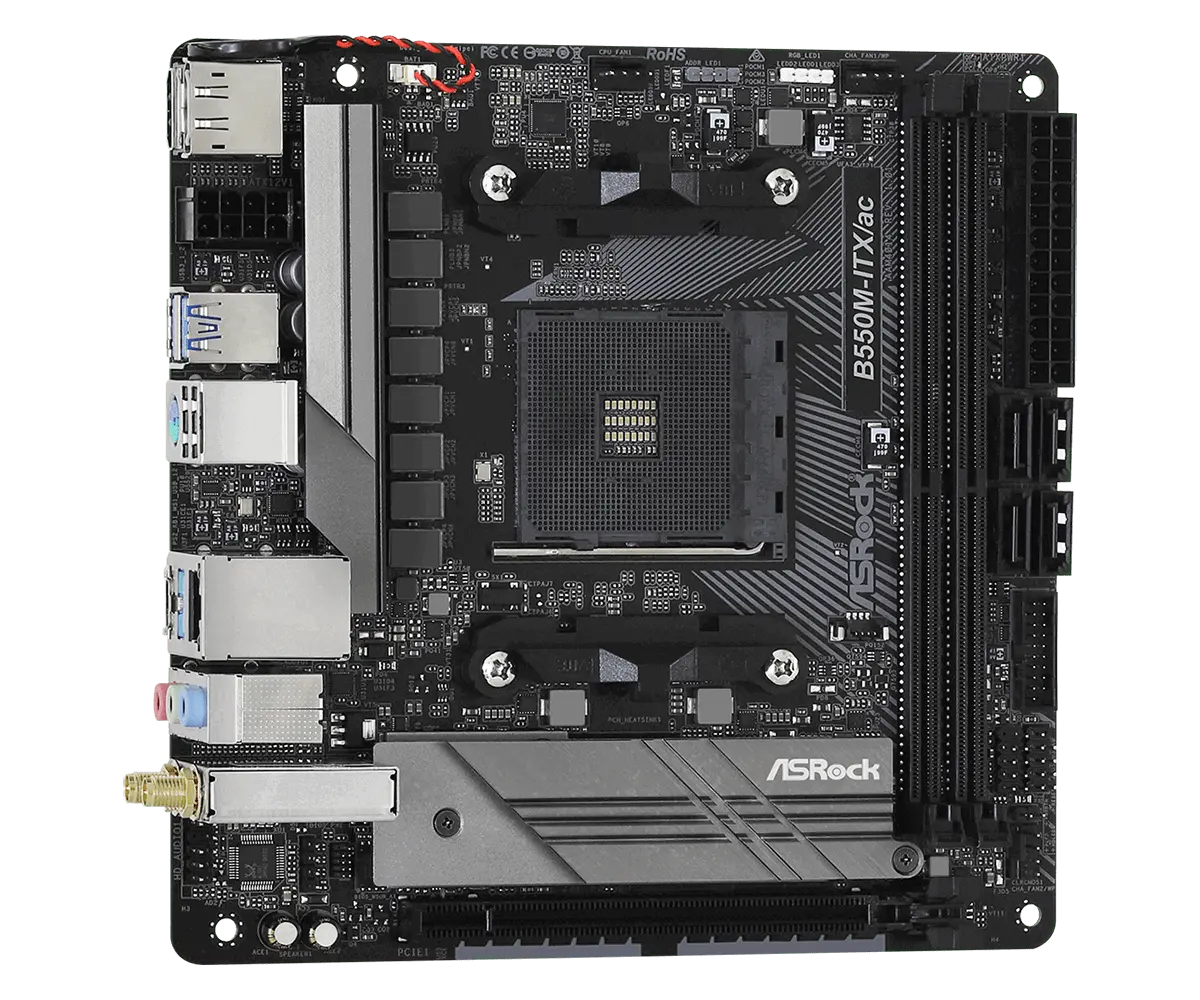

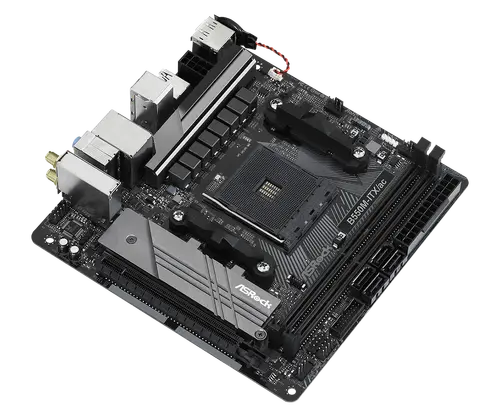

Дънна платка ASRock B550M-ITX/AC Mini-ITX за AMD AM4
Изградете компактен, но мощен компютър с ASRock B550M-ITX/AC. Тази Mini-ITX дънна платка поддържа процесори AMD Ryzen 5000 серия, разполага с PCIe 4.0 за бърза графика и съхранение, както и вграден Wi-Fi 5 и Bluetooth за безпроблемна свързаност. Идеална за малки по размер конфигурации без компромис с производителността.
Ключови Предимства
- Компактен Mini-ITX форм фактор — Подходяща за малки кутии, спестява място на бюрото, като същевременно осигурява пълна производителност.
- PCIe 4.0 поддръжка — Съвместима с най-новите видеокарти и NVMe SSD дискове за светкавично бърз трансфер на данни.
- Вграден Wi-Fi 5 и Bluetooth — Интегрирана безжична връзка елиминира нуждата от допълнителни карти.
- DDR4 памет — До 64GB DDR4 RAM в два слота, с поддръжка на високоскоростен овърклок.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM4 |
| Форм фактор | Mini-ITX |
| Чипсет | AMD B550 |
| Тип памет | DDR4 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 1 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Вграден Wi-Fi | Wi-Fi 5 |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASRock B550M-ITX/AC
- 2 x SATA кабела
- Заден панел I/O
- Wi-Fi антена
- Ръководство за потребителя и DVD с драйвери
