- ASUS
Τιμή
€94 67 / 185 16 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asus.com/Motherboards/PRIME-B550-PLUS/specifications/
Graphics
1 x DisplayPort 1.2 *
1 x HDMI 2.1(4K@60HZ)
Chipset
AMD B550
Expansion slots
3rd Gen AMD Ryzen™ Processors: 1 x PCIe 4.0 x16 (x16 mode)
AMD B550 Chipset: 1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1 *1
Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
6 x SATA 6Gb/s port(s), *2
Support Raid 0, 1, 10
Memory type
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * Next Generation AMD Ryzen PRO Processors
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Dual Channel Memory Architecture

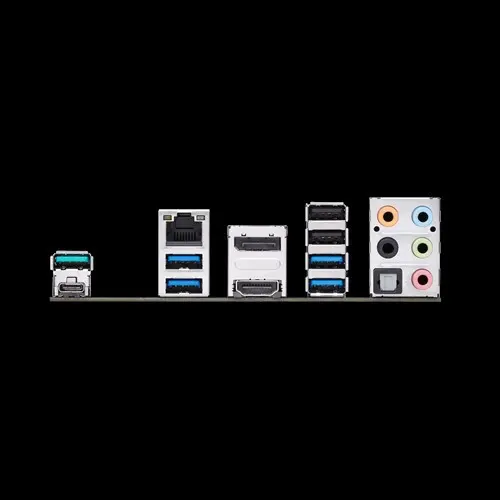

Rear panel I/O
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Connectors
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature : - Optical S/PDIF out port(s) at back panel
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Unique de-pop circuit
Lan
Realtek® RTL8111H
ASUS LANGuard
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
OS
Windows® 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asus.com/Motherboards/PRIME-B550-PLUS/specifications/ |
| Chipset | AMD B550 |
| OS | Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors * |
| Memory type | 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * Next Generation AMD Ryzen PRO Processors |
| Memory type | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Dual Channel Memory Architecture |
| Form Factor | ATX Form Factor |
| Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
| Audio | - Dedicated audio PCB layers |
| Audio | - Audio Shielding |
| Audio | - Premium Japanese audio capacitors |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC |
| Audio | Audio Feature : - Optical S/PDIF out port(s) at back panel |
| Audio | - LED-illuminated design |
| Audio | - Unique de-pop circuit |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 1 x HDMI |
| Rear panel I/O | 1 x LAN (RJ45) port(s) |
| Rear panel I/O | 4 x USB 3.2 Gen 1 (blue) Type-A |
| Rear panel I/O | 2 x USB 2.0 |
| Rear panel I/O | 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) |
| Rear panel I/O | 1 x Optical S/PDIF out |
| Rear panel I/O | 5 x Audio jack(s) |
| LAN | ASUS LANGuard |
| LAN | Realtek® RTL8111H |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors: 1 x PCIe 4.0 x16 (x16 mode) |
| Expansion Slots | AMD B550 Chipset: 1 x PCIe 3.0 x16 (x4 mode) |
| Expansion Slots | 3 x PCIe 3.0 x1 *1 |
| Graphics | 1 x HDMI 2.1(4K@60HZ) |
| Graphics | 1 x DisplayPort 1.2 * |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 1 x DisplayPort |
| I/O | 2 x USB 2.0 |
| I/O | 1 x HDMI |
| I/O | 1 x LAN (RJ45) port(s) |
| I/O | 4 x USB 3.2 Gen 1 (blue) Type-A |
| I/O | 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) |
| I/O | 1 x Optical S/PDIF out |
| I/O | 5 x Audio jack(s) |
| Storage | Support Raid 0, 1, 10 |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports |
| Storage | 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) |
| Storage | AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 |
| Storage | 6 x SATA 6Gb/s port(s), *2 |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x CPU Fan connector(s) |
| Connectors | 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) |
| Connectors | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
| Connectors | 1 x 24-pin EATX Power connector(s) |
| Connectors | 1 x 8-pin EATX 12V Power connectors |
| Connectors | 1 x Front panel audio connector(s) (AAFP) |
| Connectors | 1 x Clear CMOS jumper(s) |
| Connectors | 1 x System panel connector |
| Connectors | 1 x COM port header |
| Connectors | 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
| Connectors | 6 x SATA 6Gb/s connector(s) |
| Connectors | 1 x CPU OPT Fan connector(s) |
| Connectors | 2 x Aura RGB Strip Headers |
| Connectors | 1 x Addressable Gen 2 header(s) |
| Connectors | 3 x Chassis Fan connector(s) |
| Connectors | 1 x AIO_PUMP connector |
| Connectors | 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) |
| Connectors | 1 x Thunderbolt header(s) |
| Connectors | 1 x Thermal sensor connector(s) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM4 |
| Form Factor | ATX |
| Chipset | AMD B550 |
| Memory Type | DDR4 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 6 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

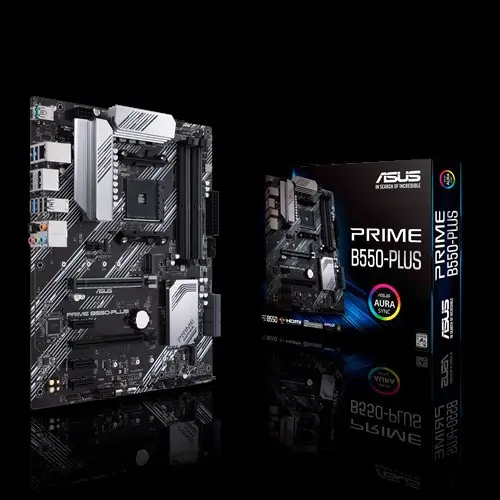

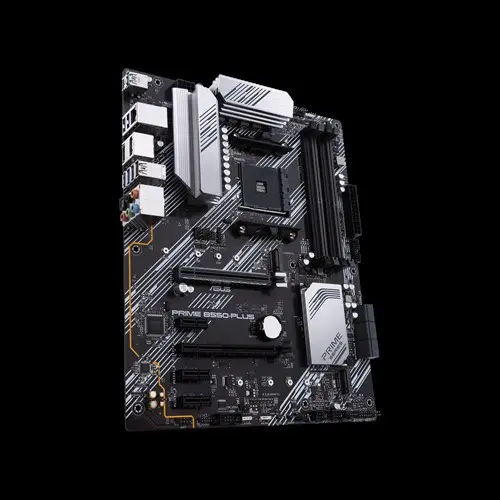

Дънна платка ASUS PRIME B550-PLUS (AM4)
Извлечете максимума от вашия AMD Ryzen процесор с ASUS PRIME B550-PLUS. Тази ATX дънна платка предлага стабилно захранване, поддръжка на PCIe 4.0 и ефективно охлаждане за безупречна работа при игри и продуктивност.
Ключови Предимства
- PCIe 4.0 — Съвместимост с най-новите видеокарти и SSD дискове за изключително бърз трансфер на данни.
- Стабилно захранване — 8+2 фази с ProCool конектори осигуряват надеждно захранване.
- Цялостно охлаждане — Множество вентилаторни глави, радиатор за VRM и радиатор за M.2 поддържат ниски температури.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM4 |
| Форм фактор | ATX |
| Чипсет | AMD B550 |
| Тип памет | DDR4 |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| M.2 слотове | 2 |
| SATA портове | 6 |
| PCIe x16 слотове | 2 |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASUS PRIME B550-PLUS
- Ръководство за потребителя
- Заден панел I/O
- 2 x SATA 6Gb/s кабела
- Комплект винтове за M.2
- Поддържащ DVD диск
