Vendor_url
https://www.asus.com/Motherboards/PRIME-B550M-K/specifications/
Graphics
1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K@60HZ)
Chipset
AMD B550
Expansion slots
3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1
Storage
Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Memory type
3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

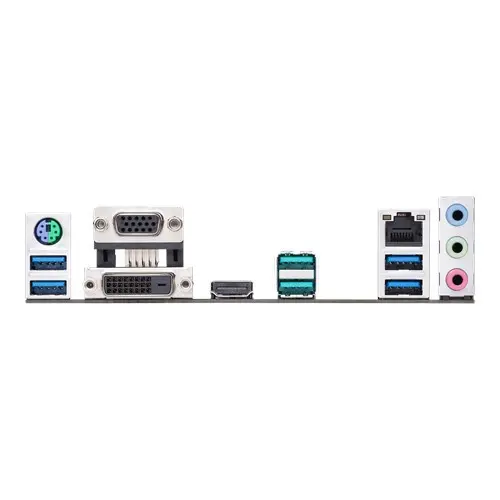

Rear panel I/O
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
Connectors
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
Audio
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature : - LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
Lan
Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
OS
Windows® 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asus.com/Motherboards/PRIME-B550M-K/specifications/ |
| Chipset | AMD B550 |
| OS | Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors * |
| Memory type | Dual channel memory architecture |
| Memory type | ECC Memory (ECC mode) support varies by CPU. |
| Memory type | 3rd Gen AMD Ryzen™ Processors |
| Memory type | 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * |
| Memory type | 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors |
| Memory type | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * |
| Form Factor | mATX Form Factor |
| Form Factor | 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Audio | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC * |
| Audio | - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
| Audio | - Dedicated audio PCB layers |
| Audio | - Audio Shielding |
| Audio | - Premium Japanese audio capacitors |
| Audio | Audio Feature : - LED-illuminated design |
| Rear panel I/O | 1 x PS/2 keyboard/mouse combo port(s) |
| Rear panel I/O | 1 x D-Sub |
| Rear panel I/O | 1 x HDMI |
| Rear panel I/O | 1 x LAN (RJ45) port(s) |
| Rear panel I/O | 4 x USB 3.2 Gen 1 (blue) Type-A |
| Rear panel I/O | 3 x Audio jack(s) |
| Rear panel I/O | 1 x DVI-D |
| Rear panel I/O | 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) |
| LAN | Realtek RTL8111H 1Gb Ethernet |
| LAN | ASUS LANGuard |
| Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode) |
| Expansion Slots | 2 x PCIe 3.0 x1 |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode) |
| Expansion Slots | 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors |
| Expansion Slots | AMD B550 Chipset |
| Graphics | 1 x D-Sub |
| Graphics | 1 x HDMI 2.1(4K@60HZ) |
| Graphics | 1 x DVI-D |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 1 x PS/2 keyboard/mouse combo port(s) |
| I/O | 1 x D-Sub |
| I/O | 1 x HDMI |
| I/O | 1 x LAN (RJ45) port(s) |
| I/O | 4 x USB 3.2 Gen 1 (blue) Type-A |
| I/O | 3 x Audio jack(s) |
| I/O | 1 x DVI-D |
| I/O | 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) |
| Storage | Support Raid 0, 1, 10 |
| Storage | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports |
| Storage | 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support |
| Storage | 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
| Storage | AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support |
| Storage | 4 x SATA 6Gb/s port(s), |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x CPU Fan connector(s) |
| Connectors | 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) |
| Connectors | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
| Connectors | 4 x SATA 6Gb/s connector(s) |
| Connectors | 1 x S/PDIF out header(s) |
| Connectors | 1 x 24-pin EATX Power connector(s) |
| Connectors | 1 x 8-pin EATX 12V Power connectors |
| Connectors | 1 x Front panel audio connector(s) (AAFP) |
| Connectors | 1 x Clear CMOS jumper(s) |
| Connectors | 1 x System panel connector |
| Connectors | 1 x COM port header |
| Connectors | 1 x Speaker connector |
| Connectors | 2 x Chassis Fan connector(s) |
| Connectors | 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) |
| Connectors | 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM4 |
| Form Factor | Micro-ATX |
| Chipset | AMD B550 |
| Memory Type | DDR4 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

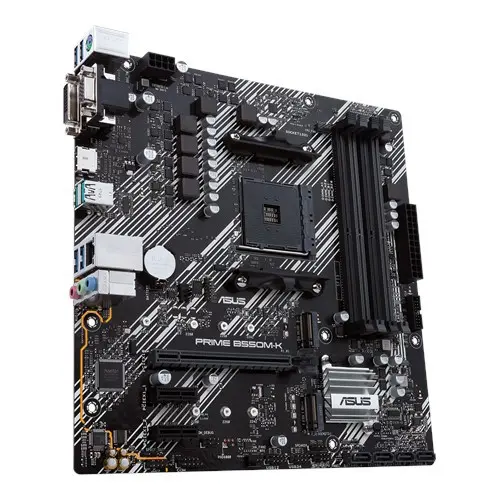

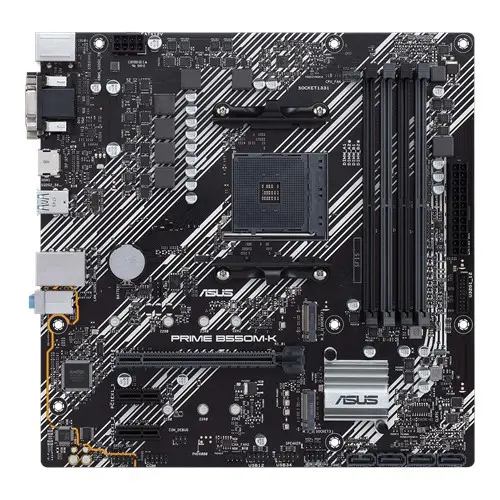

Дънна платка ASUS PRIME B550M-K /AM4 Micro-ATX
Изградете надеждна и ефективна система с процесор AMD Ryzen, използвайки ASUS PRIME B550M-K. Тази micro-ATX дънна платка предлага стабилна производителност, цялостно охлаждане и основни функции за ежедневна работа и игри.
Ключови Предимства
- Платформа AMD AM4 — Поддържа процесори AMD Ryzen 5000/4000/3000 серия за отлична многоядрена производителност.
- Готовност за PCIe 4.0 — Един слот PCIe 4.0 x16 за най-новите видеокарти и SSD дискове.
- Два M.2 слота — Два M.2 слота (един PCIe 4.0 x4, един PCIe 3.0 x4) за изключително бързо съхранение.
- Цялостно охлаждане — Радиатор за VRM, радиатор за PCH и множество конектори за вентилатори за ефективно управление на температурата.
- ASUS 5X Protection III — Хардуерни защити за дълготрайна издръжливост.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM4 |
| Форм фактор | Micro-ATX |
| Чипсет | AMD B550 |
| Тип памет | DDR4 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 0 |
| RGB подсветка | Не |

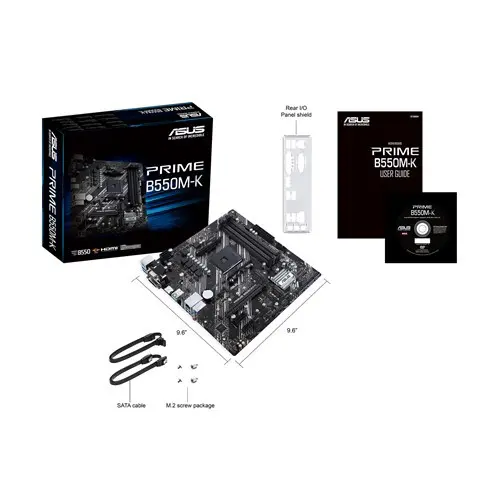

Какво има в кутията
- Дънна платка ASUS PRIME B550M-K
- 2 x SATA 6Gb/s кабела
- Заден панел за I/O
- Комплект винтове за M.2
- Поддържащ DVD диск
- Ръководство за потребителя
