- ASROCK
Τιμή
€85 41 / 167 05 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asrock.com/mb/AMD/B550%20Phantom%20Gaming%204/index.asp#Specification
Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft® PlayReady
Chipset
- AMD B550
Expansion slots
AMD Ryzen series CPUs (Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode
PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs (Renoir)
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode
PCIE3: Gen3 x4 mode)*
- 2 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)**
- 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
Memory type
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 128GB**
- Supports Extreme Memory Profile (XMP) memory modules
- 15? Gold Contact in DIMM Slots
Rear panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
Lan
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
Form factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Solid Capacitor design
- 2oz Copper PCB
OS
- Microsoft® Windows® 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asrock.com/mb/AMD/B550%20Phantom%20Gaming%204/index.asp#Specification |
| Chipset | - AMD B550 |
| OS | - Microsoft® Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | - Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors* - Digi Power design - 8 Power Phase design |
| Memory type | - Dual Channel DDR4 Memory Technology |
| Memory type | - Supports Extreme Memory Profile (XMP) memory modules |
| Memory type | - 15μ Gold Contact in DIMM Slots |
| Memory type | - 4 x DDR4 DIMM Slots |
| Memory type | - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memo |
| Memory type | - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Memory type | - Max. capacity of system memory: 128GB** |
| Memory type | - 15? Gold Contact in DIMM Slots |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Form Factor | - Solid Capacitor design |
| Form Factor | - 2oz Copper PCB |
| Audio | - Supports Surge Protection |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) |
| Audio | - Premium Blu-ray Audio support |
| Audio | - PCB Isolate Shielding |
| Audio | - Individual PCB Layers for R/L Audio Channel |
| Audio | - Nahimic Audio |
| Rear panel I/O | - 1 x PS/2 Mouse/Keyboard Port |
| Rear panel I/O | - 1 x HDMI Port |
| Rear panel I/O | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Rear panel I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | - 2 x Antenna Ports |
| Rear panel I/O | - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| LAN | - Realtek RTL8111H |
| LAN | - Supports Wake-On-LAN |
| LAN | - Supports Lightning/ESD Protection |
| LAN | - Supports Energy Efficient Ethernet 802.3az |
| LAN | - Supports PXE |
| Expansion Slots | - Supports AMD Quad CrossFireX™ and CrossFireX™ |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slots | AMD Ryzen series CPUs (Matisse) |
| Expansion Slots | AMD Ryzen series APUs (Renoir) |
| Expansion Slots | - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode |
| Expansion Slots | PCIE3: Gen3 x4 mode)* |
| Expansion Slots | - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode |
| Expansion Slots | - 2 x PCI Express 3.0 x1 Slots |
| Graphics | - DirectX 12, Pixel Shader 5.0 |
| Graphics | - Shared memory default 2GB. Max Shared memory supports up to 16GB.** |
| Graphics | - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz |
| Graphics | - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) |
| Graphics | - Supports HDR (High Dynamic Range) with HDMI 2.1 |
| Graphics | - Supports Microsoft® PlayReady |
| Graphics | - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port |
| Graphics | - Supports HDCP 2.3 with HDMI 2.1 Port |
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| BIOS | - Supports "Plug and Play" |
| BIOS | - ACPI 5.1 compliance wake up events |
| BIOS | - Supports jumperfree |
| BIOS | - SMBIOS 2.3 support |
| BIOS | - CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment |
| I/O | - 1 x PS/2 Mouse/Keyboard Port |
| I/O | - 1 x HDMI Port |
| I/O | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | - 2 x Antenna Ports |
| I/O | - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* |
| Storage | - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)** |
| Storage | - 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** |
| Connectors | - 1 x COM Port Header |
| Connectors | - 1 x Power LED and Speaker Header |
| Connectors | - 1 x 24 pin ATX Power Connector |
| Connectors | - 1 x 8 pin 12V Power Connector |
| Connectors | - 1 x Front Panel Audio Connector |
| Connectors | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
| Connectors | - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Connectors | - 1 x 4 pin 12V Power Connector |
| Connectors | - 1 x SPI TPM Header |
| Connectors | - 2 x RGB LED Headers* |
| Connectors | - 2 x Addressable LED Headers** |
| Connectors | - 1 x CPU Fan Connector (4-pin)*** |
| Connectors | - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) |
| Connectors | - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** |
| Βάρος | 1.46kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM4 |
| Form Factor | ATX |
| Chipset | AMD B550 |
| Memory Type | DDR4 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 6 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Βάρος | 1.46kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

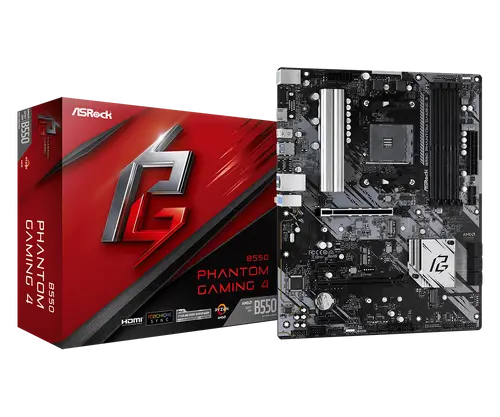

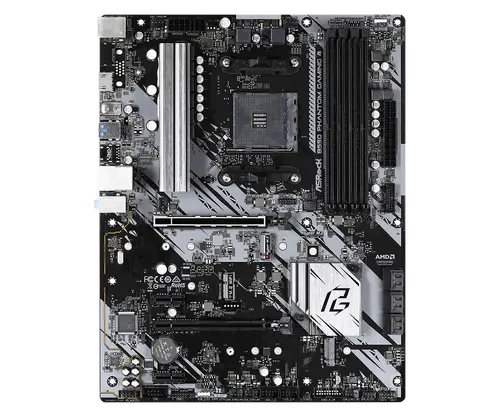

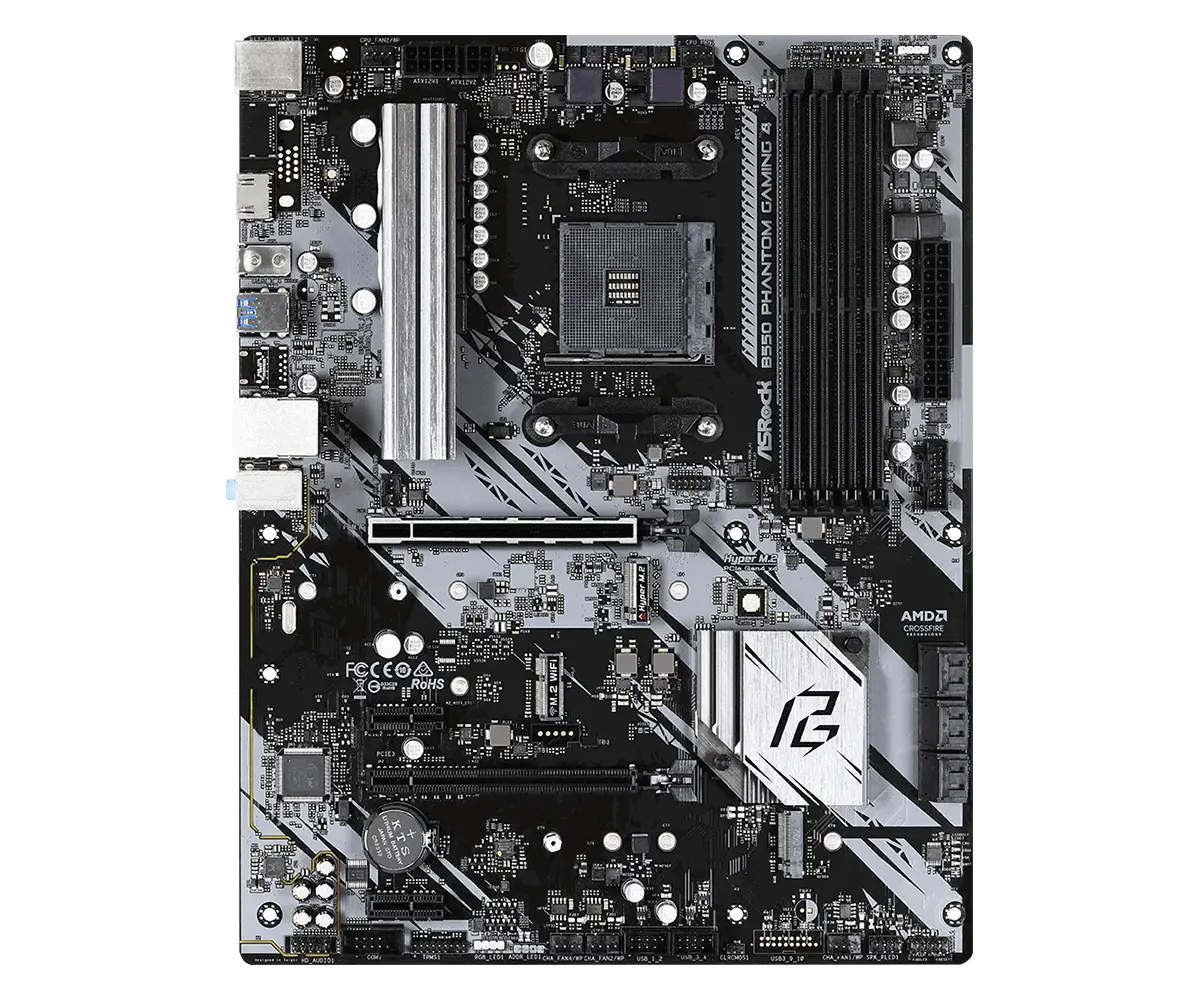

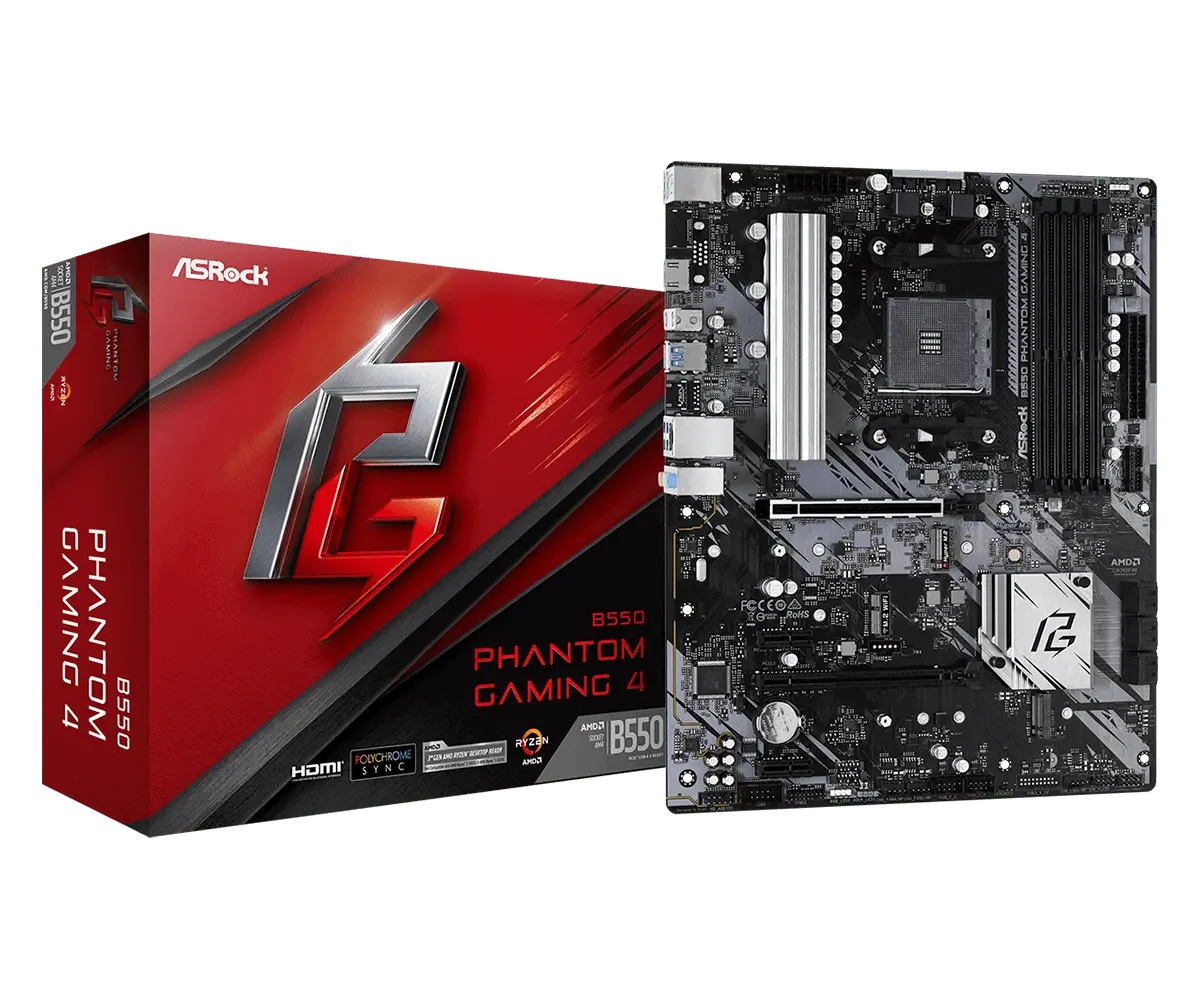

ASRock B550 Phantom Gaming 4 – Солидна основа за вашия AMD проект
Извлечете максимума от вашия AMD Ryzen процесор с дънната платка ASRock B550 Phantom Gaming 4. Създадена за геймъри и ентусиасти, тя предлага стабилна производителност, поддръжка на PCIe 4.0 и богат набор от функции на достъпна цена.
Ключови Предимства
- PCIe 4.0 готовност — Поддържа най-новите графични карти и NVMe SSD за изключително бърз трансфер на данни.
- Издръжливи компоненти — Премиум 60A захранващи дросели и 2oz медна PCB осигуряват стабилно захранване и дълготрайна надеждност.
- Два M.2 слота — Един Hyper M.2 (PCIe Gen4 x4) и един Ultra M.2 (PCIe Gen3 x4 & SATA3) за гъвкави storage конфигурации.
- Гейминг аудио — Realtek ALC1200 аудио кодек с Nahimic Audio Enhancer за потапящ звук.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM4 |
| Форм фактор | ATX |
| Чипсет | AMD B550 |
| Тип памет | DDR4 |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| M.2 слотове | 2 |
| SATA портове | 6 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Не |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASRock B550 Phantom Gaming 4
- Кратко ръководство за инсталиране
- Support CD
- I/O скоба
- 2 x SATA кабела
- Комплект винтове за M.2
