- ASROCK
Τιμή
€79 00 / 154 51 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asrock.com/mb/Intel/B760M-HDVM.2%20D4/index.asp#Specification
Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Chipset
- Intel® B760
Expansion slots
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors**
Memory type
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0

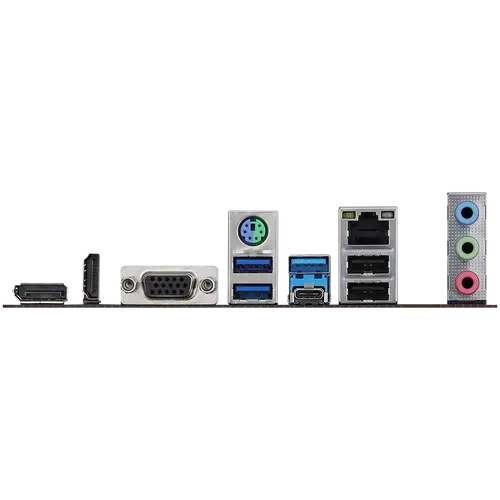

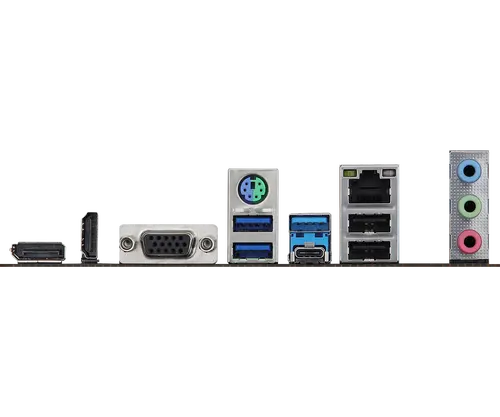

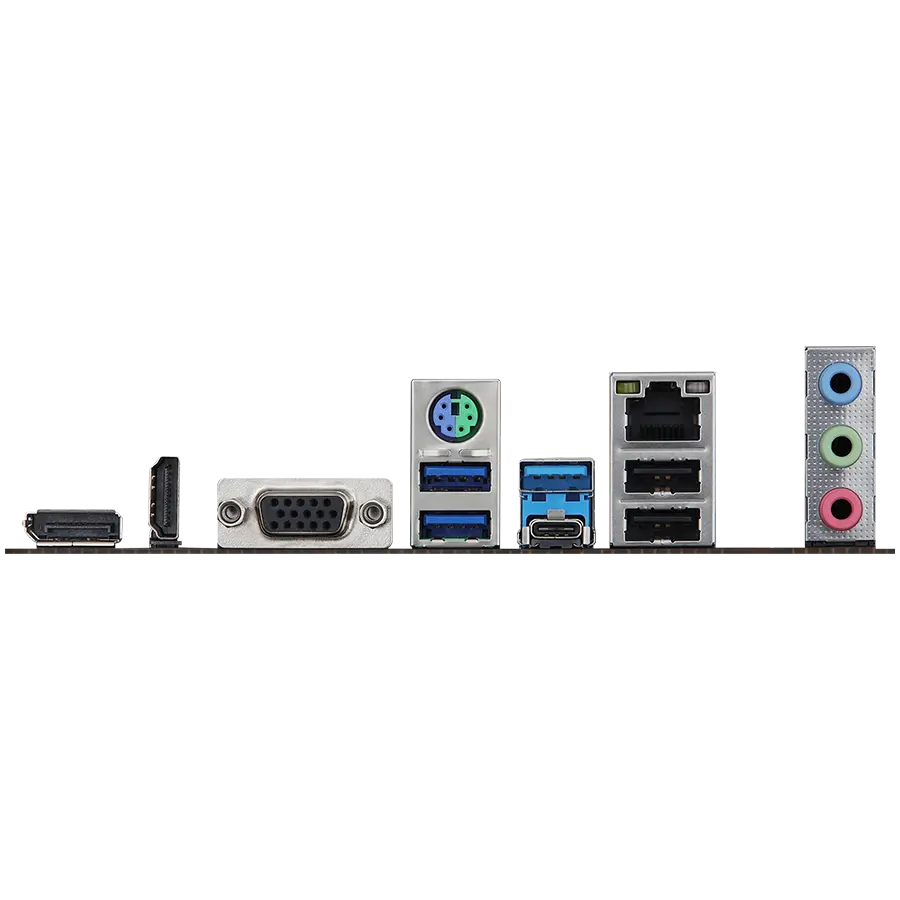

Rear panel I/O
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Audio
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
Lan
- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Form factor
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asrock.com/mb/Intel/B760M-HDVM.2%20D4/index.asp#Specification |
| Chipset | - Intel® B760 |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) |
| CPU's supported | - Supports Intel® Hybrid Technology |
| CPU's supported | - Supports Intel® Turbo Boost Max 3.0 Technology |
| CPU's supported | - Supports Intel® Thermal Velocity Boost (TVB) |
| CPU's supported | - Supports Intel® Adaptive Boost Technology (ABT) |
| Memory type | - Dual Channel DDR4 Memory Technology |
| Memory type | - 2 x DDR4 DIMM Slots |
| Memory type | - Max. capacity of system memory: 64GB* |
| Memory type | - Supports ECC UDIMM memory modules (operate in non-ECC mode) |
| Memory type | - Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Memory type | - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
| Audio | - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) |
| Rear panel I/O | - 1 x PS/2 Mouse/Keyboard Port |
| Rear panel I/O | - 1 x D-Sub Port |
| Rear panel I/O | - 1 x HDMI Port |
| Rear panel I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | - 1 x DisplayPort 1.4 |
| Rear panel I/O | - 2 x Antenna Mounting Points |
| Rear panel I/O | - 1 x USB 3.2 Gen1 Type-C Port |
| Rear panel I/O | - 2 x USB 2.0 Ports |
| Rear panel I/O | - 1 x RJ-45 LAN Port |
| Rear panel I/O | - 3 x USB 3.2 Gen1 Type-A Ports |
| LAN | - Gigabit LAN 10/100/1000 Mb/s |
| LAN | - Realtek 8111H |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* |
| Expansion Slots | Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) |
| Graphics | - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
| Graphics | - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Graphics | - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| I/O | - 1 x PS/2 Mouse/Keyboard Port |
| I/O | - 1 x D-Sub Port |
| I/O | - 1 x HDMI Port |
| I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | - 1 x DisplayPort 1.4 |
| I/O | - 2 x Antenna Mounting Points |
| I/O | - 1 x USB 3.2 Gen1 Type-C Port |
| I/O | - 2 x USB 2.0 Ports |
| I/O | - 1 x RJ-45 LAN Port |
| I/O | - 3 x USB 3.2 Gen1 Type-A Ports |
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Storage | Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors** |
| Connectors | - 1 x 24 pin ATX Power Connector |
| Connectors | - 1 x 8 pin 12V Power Connector |
| Connectors | - 1 x Front Panel Audio Connector |
| Connectors | - 1 x Chassis Intrusion and Speaker Header |
| Connectors | - 1 x CPU Fan Connector (4-pin)* |
| Connectors | - 1 x SPI TPM Header |
| Connectors | - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Connectors | - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) |
| Connectors | - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** |
| Connectors | - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** |
| Βάρος | 0.77kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| Memory Type | DDR4 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Βάρος | 0.77kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

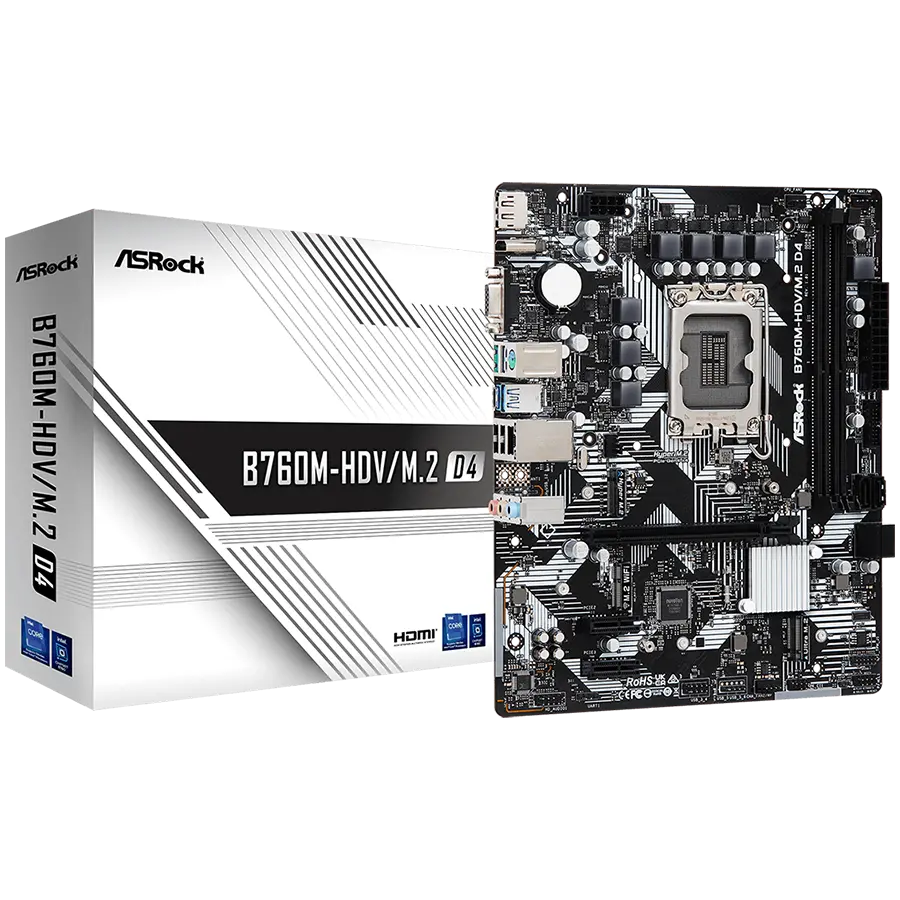

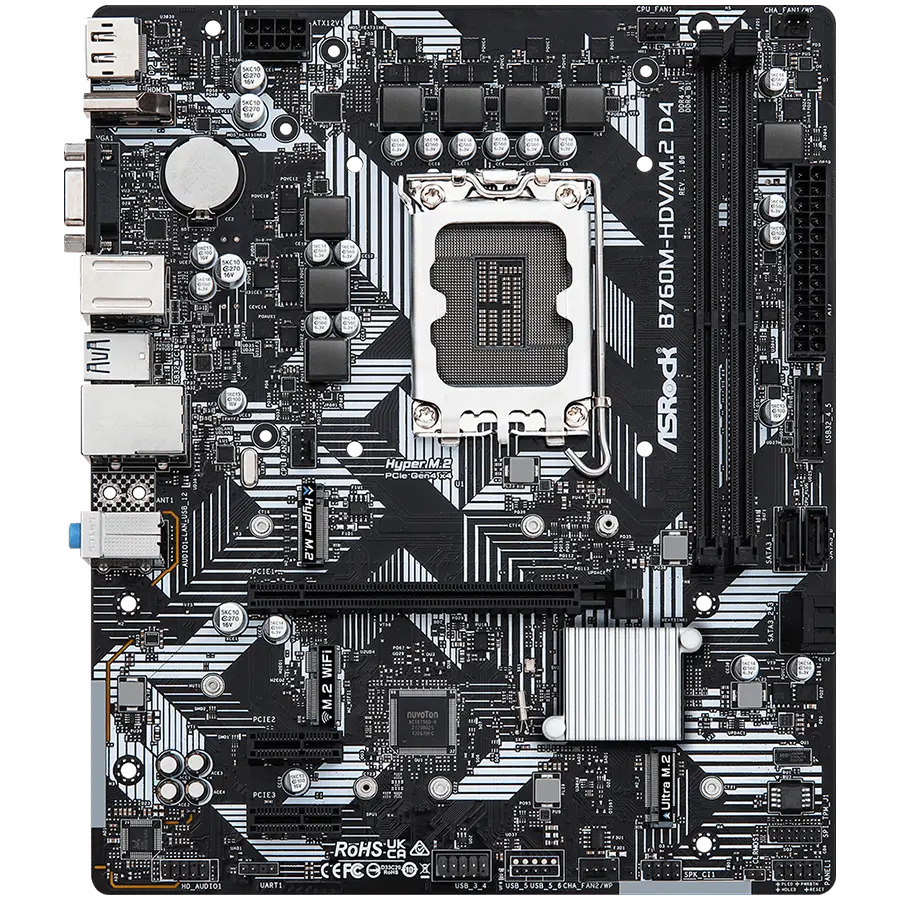

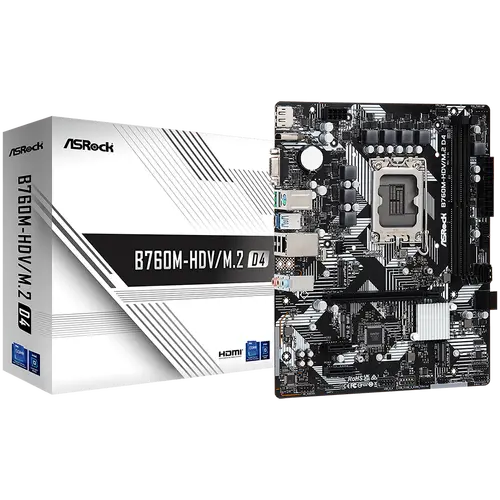

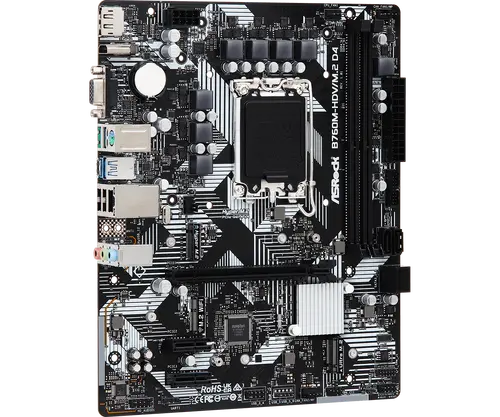

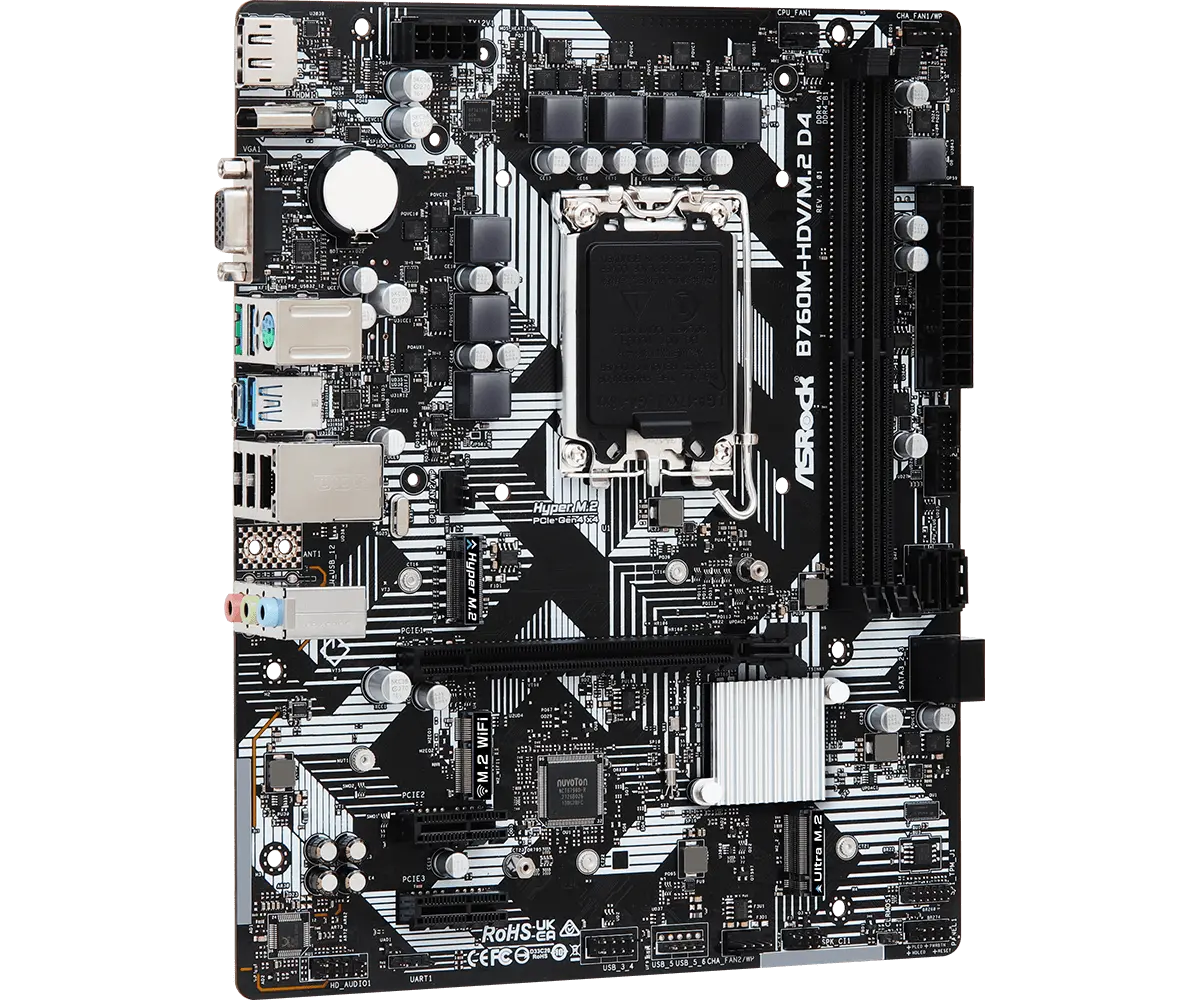

Дънна платка ASRock B760M-HDV/M.2 D4 – Компактна мощ за Intel 12-то, 13-то и 14-то поколение
С чипсет Intel B760 и форм фактор Micro-ATX, ASRock B760M-HDV/M.2 D4 предлага надеждна производителност и модерна свързаност на достъпна цена. Поддръжката на DDR4 памет и два M.2 слота я прави идеална за бюджетен гейминг или работен компютър.
Ключови Предимства
- Поддръжка на DDR4 — Използвайте достъпна DDR4 RAM, за да намалите разходите без компромис с производителността.
- Два M.2 слота — Един PCIe 4.0 x4 и един PCIe 3.0 x4 за бързи NVMe дискове с достатъчно място за съхранение.
- Стабилно захранване — 6+1+1 фазова мощност гарантира стабилна работа при натоварване.
- Пълна свързаност — HDMI, D-Sub, USB 3.2 Gen1 и Gigabit LAN покриват всички основни нужди.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR4 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| LAN скорост | 1 Gbps |
| USB-C портове | 0 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASRock B760M-HDV/M.2 D4
- 2 x SATA кабела
- Заден панел I/O
- Ръководство за потребителя
- Поддържащ DVD диск
