- ASROCK
Τιμή
€115 43 / 225 76 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asrock.com/mb/Intel/B760%20Pro%20RS/index.asp#Specification
Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Chipset
- Intel® B760
Expansion slots
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
- 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*
- 1 x PCIe 3.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
- Supports AMD CrossFire™
Storage
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
Memory type
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 128GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0

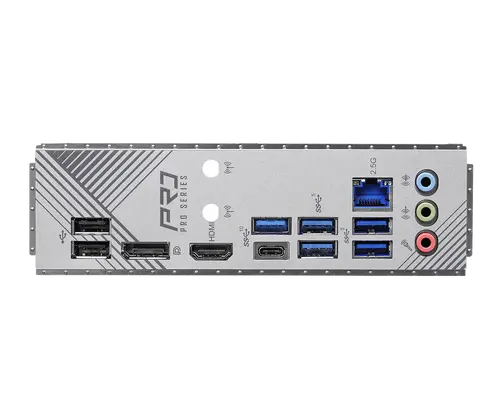

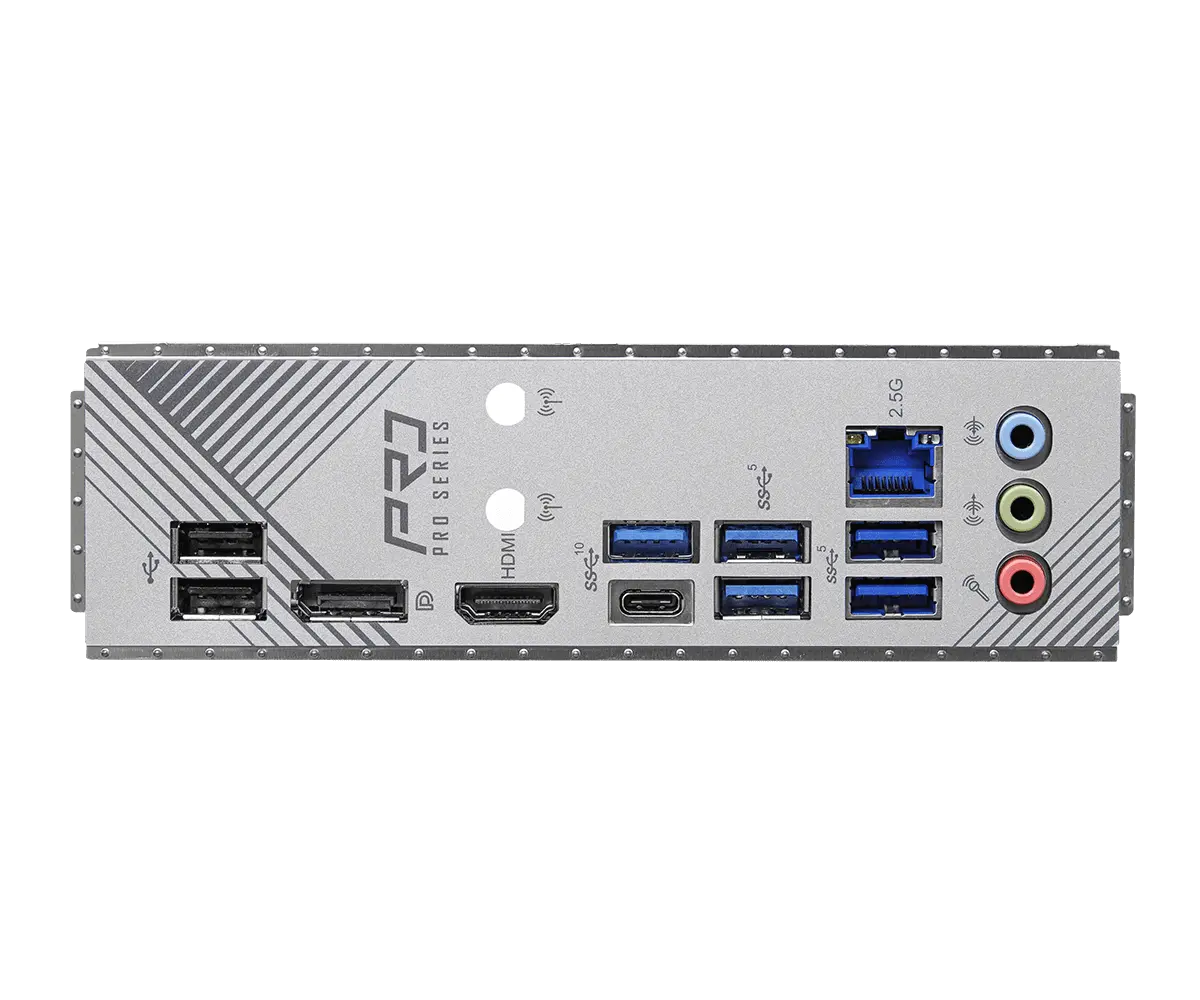

Rear panel I/O
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 4 x USB 3.2 Gen1 Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x eDP Signal Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
Lan
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Form factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asrock.com/mb/Intel/B760%20Pro%20RS/index.asp#Specification |
| Chipset | - Intel® B760 |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) |
| CPU's supported | - Supports Intel® Hybrid Technology |
| CPU's supported | - Supports Intel® Turbo Boost Max 3.0 Technology |
| CPU's supported | - Supports Intel® Thermal Velocity Boost (TVB) |
| CPU's supported | - Supports Intel® Adaptive Boost Technology (ABT) |
| Memory type | - Dual Channel DDR5 Memory Technology |
| Memory type | - Max. capacity of system memory: 128GB |
| Memory type | - 4 x DDR5 DIMM Slots |
| Memory type | - Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| Memory type | - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Audio | - Nahimic Audio |
| Rear panel I/O | - 1 x HDMI Port |
| Rear panel I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | - 1 x DisplayPort 1.4 |
| Rear panel I/O | - 2 x Antenna Mounting Points |
| Rear panel I/O | - 2 x USB 2.0 Ports |
| Rear panel I/O | - 1 x RJ-45 LAN Port |
| Rear panel I/O | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) |
| Rear panel I/O | - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) |
| Rear panel I/O | - 4 x USB 3.2 Gen1 Ports |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | - Dragon RTL8125BG |
| LAN | - Supports Dragon 2.5G LAN Software |
| LAN | - Smart Auto Adjust Bandwidth Control |
| LAN | - Visual User Friendly UI |
| LAN | - Visual Network Usage Statistics |
| LAN | - Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | - User Customized Priority Control |
| Expansion Slots | - Supports AMD CrossFire™ |
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Expansion Slots | Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* |
| Expansion Slots | - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode* |
| Expansion Slots | - 1 x PCIe 3.0 x1 Slot (PCIE2)* |
| Graphics | - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) |
| Graphics | - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
| Graphics | - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| I/O | - 1 x HDMI Port |
| I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | - 1 x DisplayPort 1.4 |
| I/O | - 2 x Antenna Mounting Points |
| I/O | - 2 x USB 2.0 Ports |
| I/O | - 1 x RJ-45 LAN Port |
| I/O | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) |
| I/O | - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) |
| I/O | - 4 x USB 3.2 Gen1 Ports |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Storage | - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Storage | Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* |
| Connectors | - 1 x Power LED and Speaker Header |
| Connectors | - 1 x 24 pin ATX Power Connector |
| Connectors | - 1 x Front Panel Audio Connector |
| Connectors | - 1 x SPI TPM Header |
| Connectors | - 2 x RGB LED Headers* |
| Connectors | - 2 x Addressable LED Headers** |
| Connectors | - 1 x CPU Fan Connector (4-pin)*** |
| Connectors | - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
| Connectors | - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
| Connectors | - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Connectors | - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) |
| Connectors | - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Connectors | - 1 x eDP Signal Connector |
| Connectors | - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) |
| Connectors | - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) |
| Βάρος | 1.20kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 192 |
| M.2 Slots (count) | 3 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Βάρος | 1.20kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

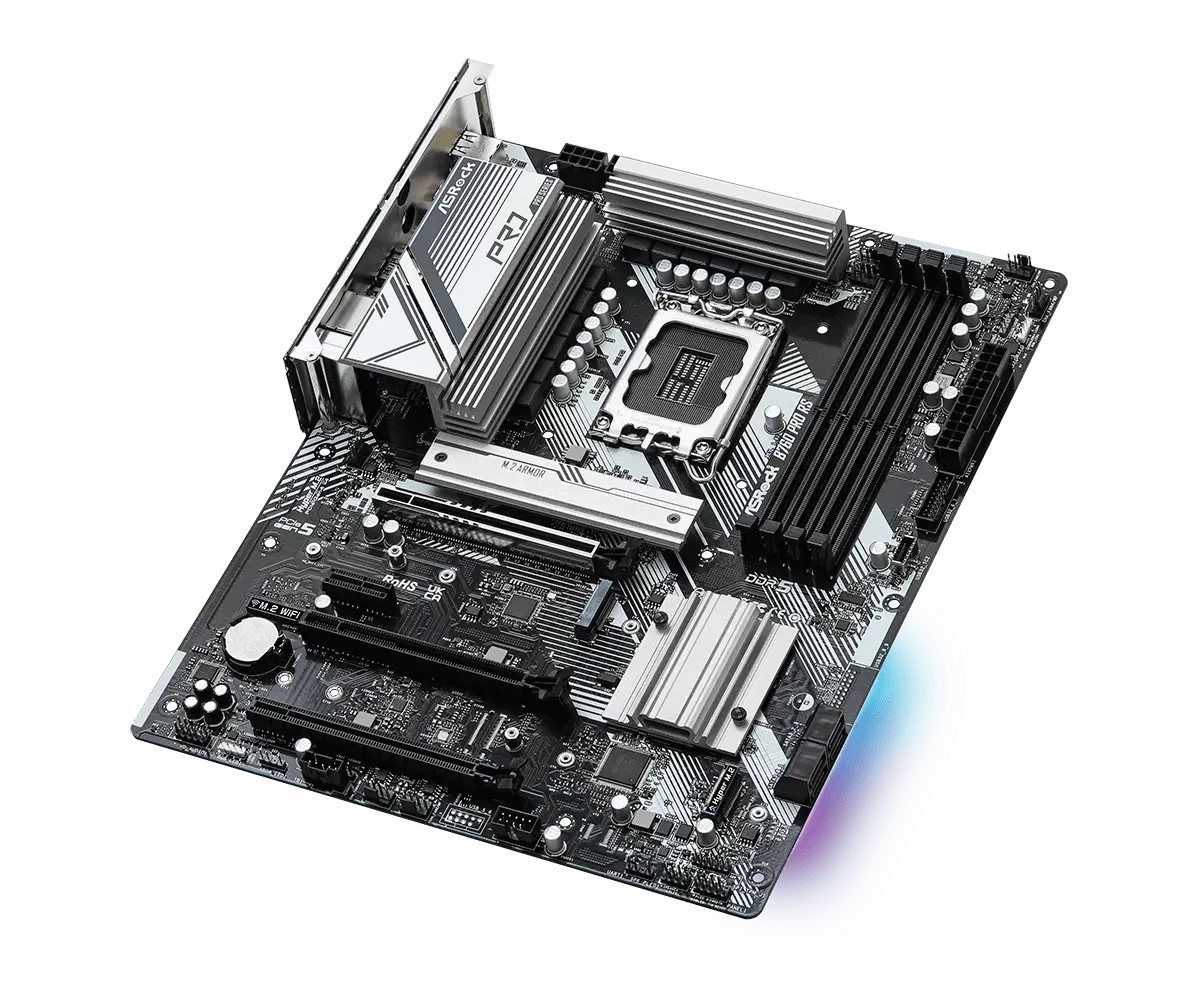

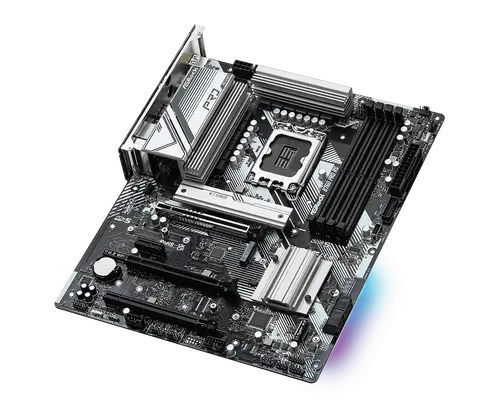

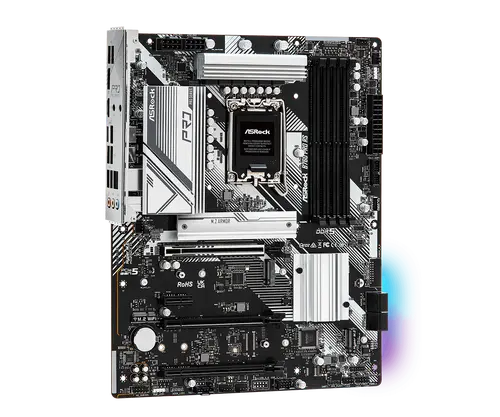

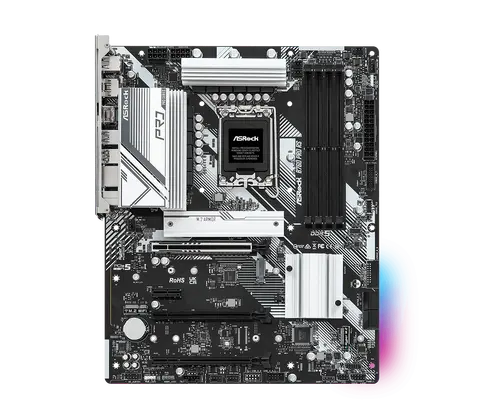

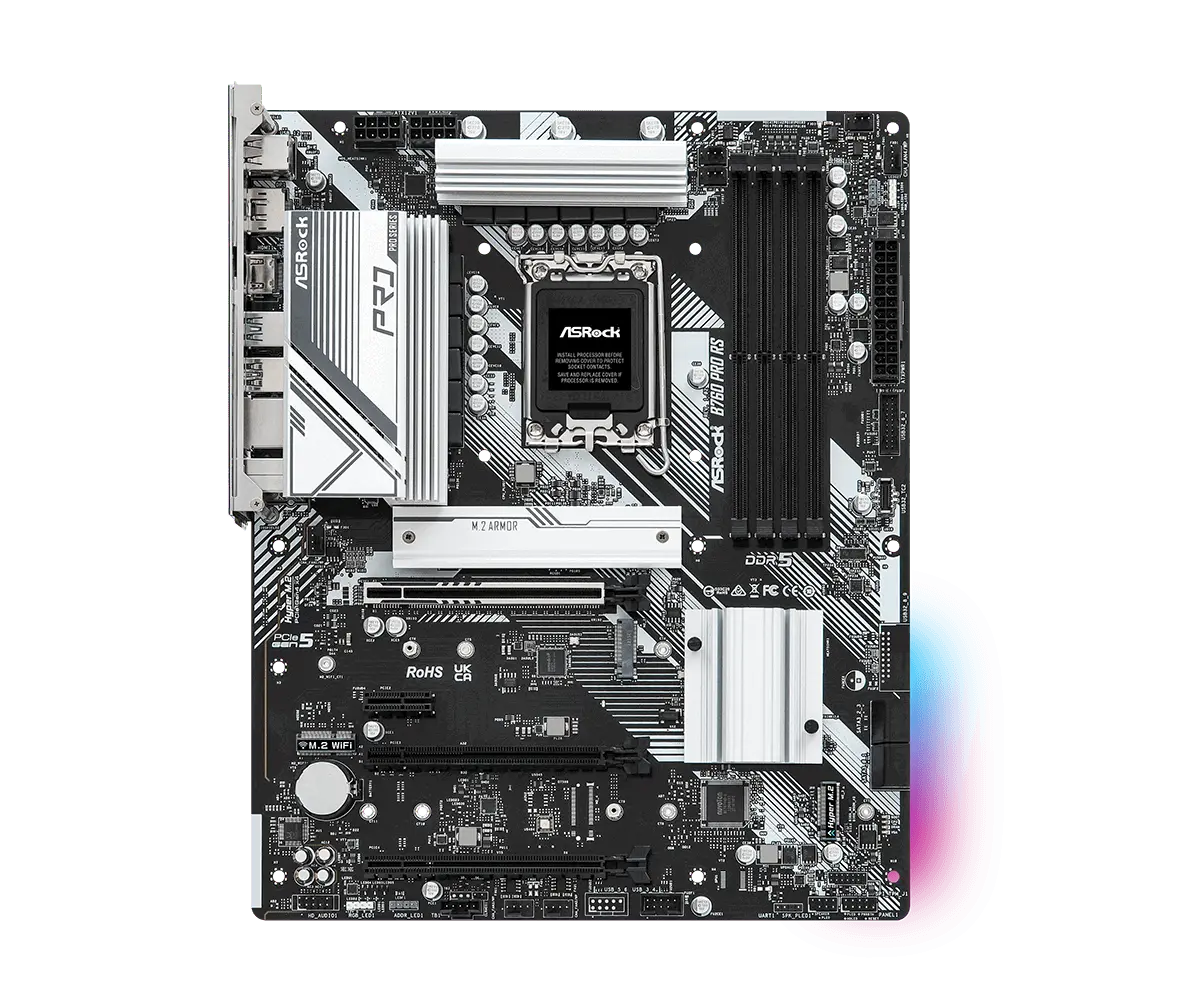

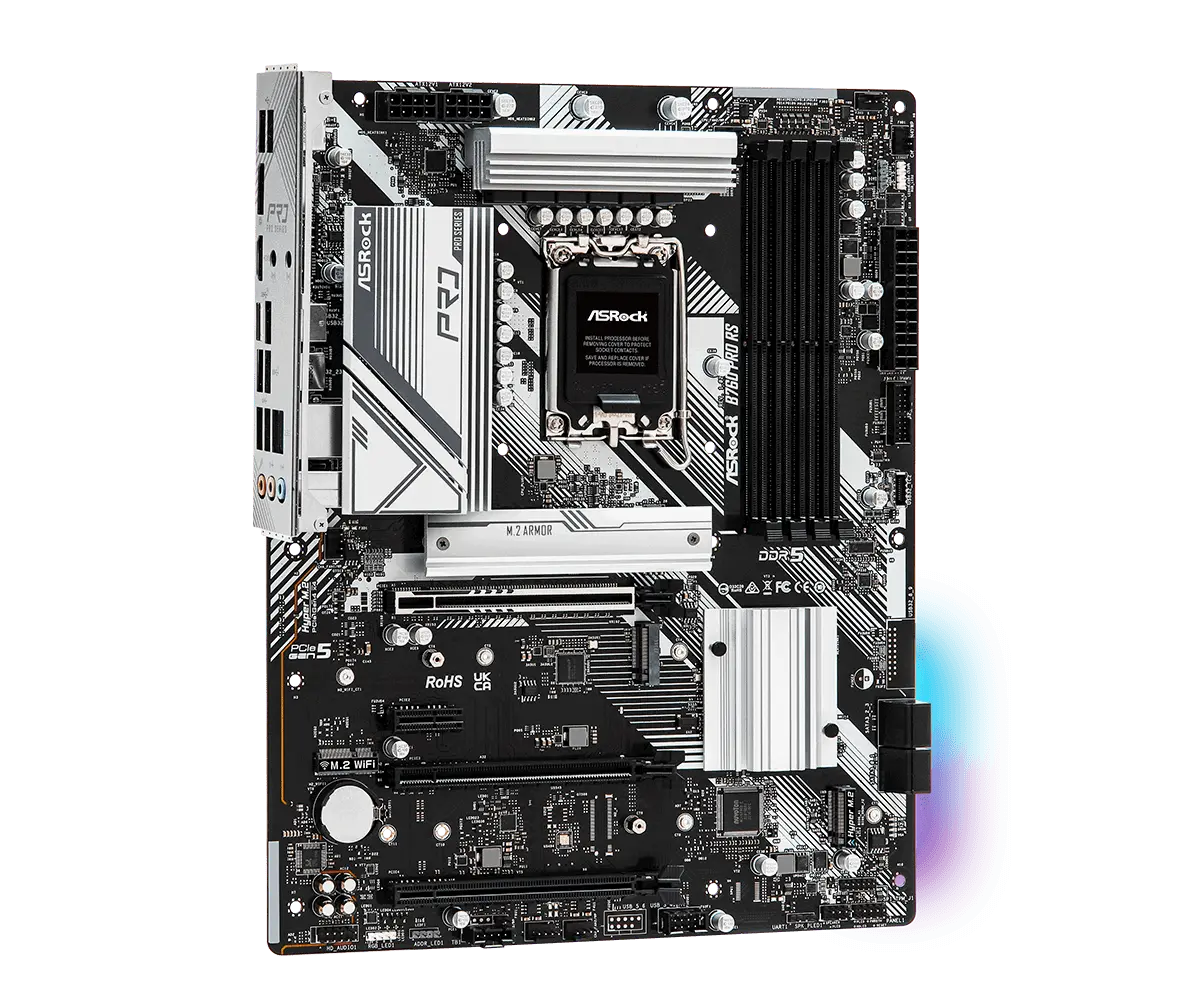

Дънна платка ASRock B760 PRO RS – LGA1700, DDR5, PCIe 5.0
Изградете мощна система с процесори Intel 12-то, 13-то или 14-то поколение върху ASRock B760 PRO RS. Тази ATX дънна платка поддържа DDR5 памет и PCIe 5.0 графики, осигурявайки изключителна производителност за игри и творческа работа. Със солидно захранване и богата свързаност, тя е идеалната основа за вашия следващ компютър.
Ключови Предимства
- Производителност от ново поколение — Поддръжка на Intel LGA1700 процесори и DDR5 памет за по-високи скорости и по-добра ефективност.
- Готовност за PCIe 5.0 — Един PCIe 5.0 x16 слот за най-новите видеокарти и PCIe 5.0 M.2 слот за изключително бързи SSD дискове.
- Надеждно захранване — 12+1+1 фазова мощност гарантира стабилна работа при големи натоварвания.
- Пълна свързаност — Включва 2.5G LAN, USB 3.2 Gen2 Type-C и множество M.2 слотове.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| M.2 слотове | 3 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Не |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |

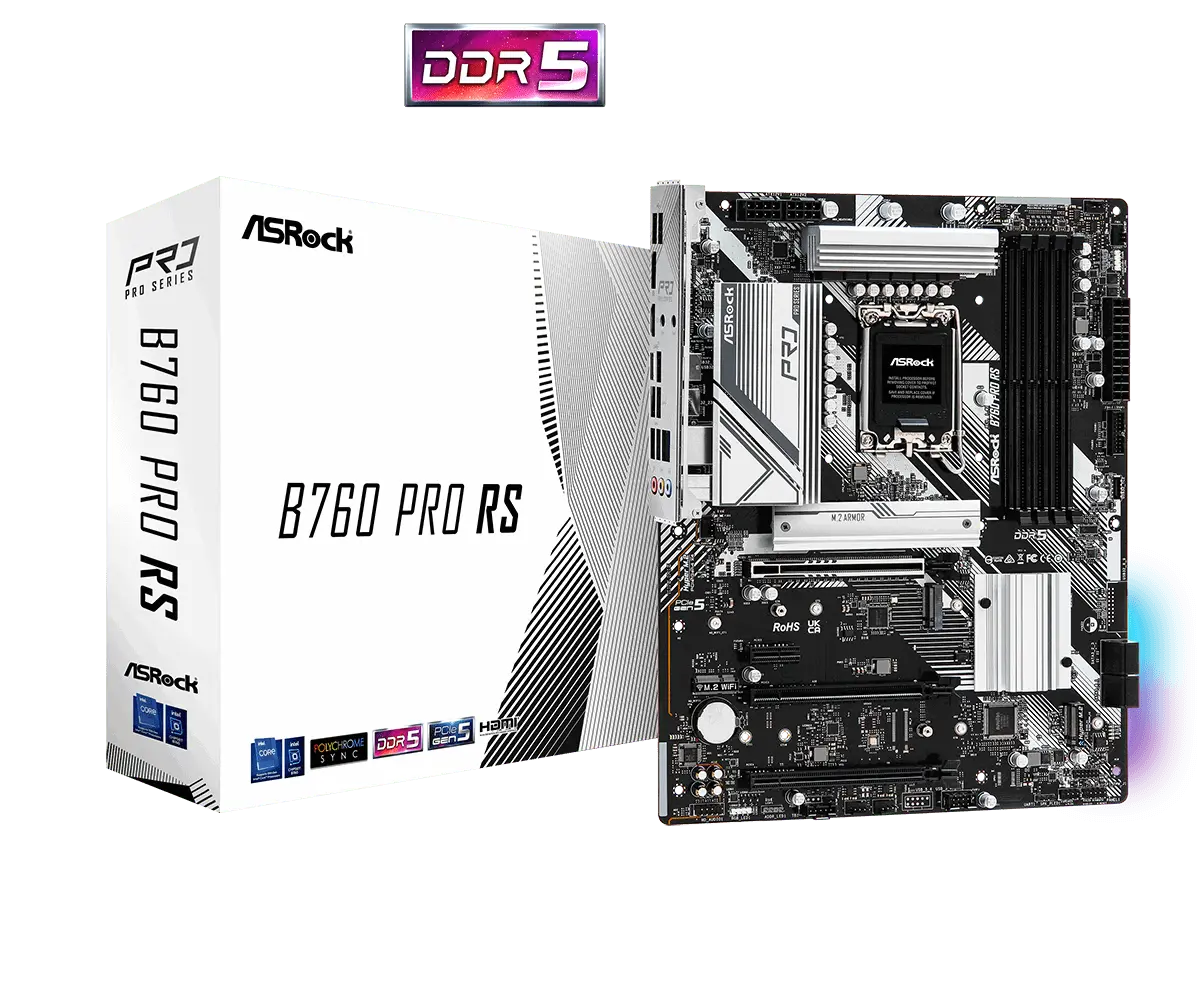

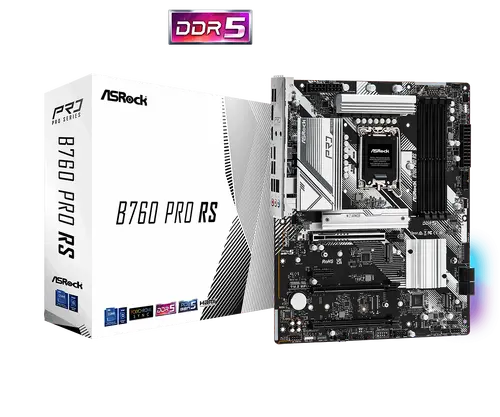

Какво има в кутията
- Дънна платка ASRock B760 PRO RS
- Ръководство за потребителя
- Поддържащ CD
- 2 x SATA кабела
- Заден панел I/O
- M.2 винтове
