- ASROCK
Τιμή
€146 99 / 287 49 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asrock.com/mb/Intel/B760M%20Steel%20Legend%20WiFi/index.asp#Specification
Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Chipset
- Intel® B760
Expansion slots
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
- 15? Gold Contact in VGA PCIe Slot (PCIE1)
Storage
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
Memory type
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 128GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0

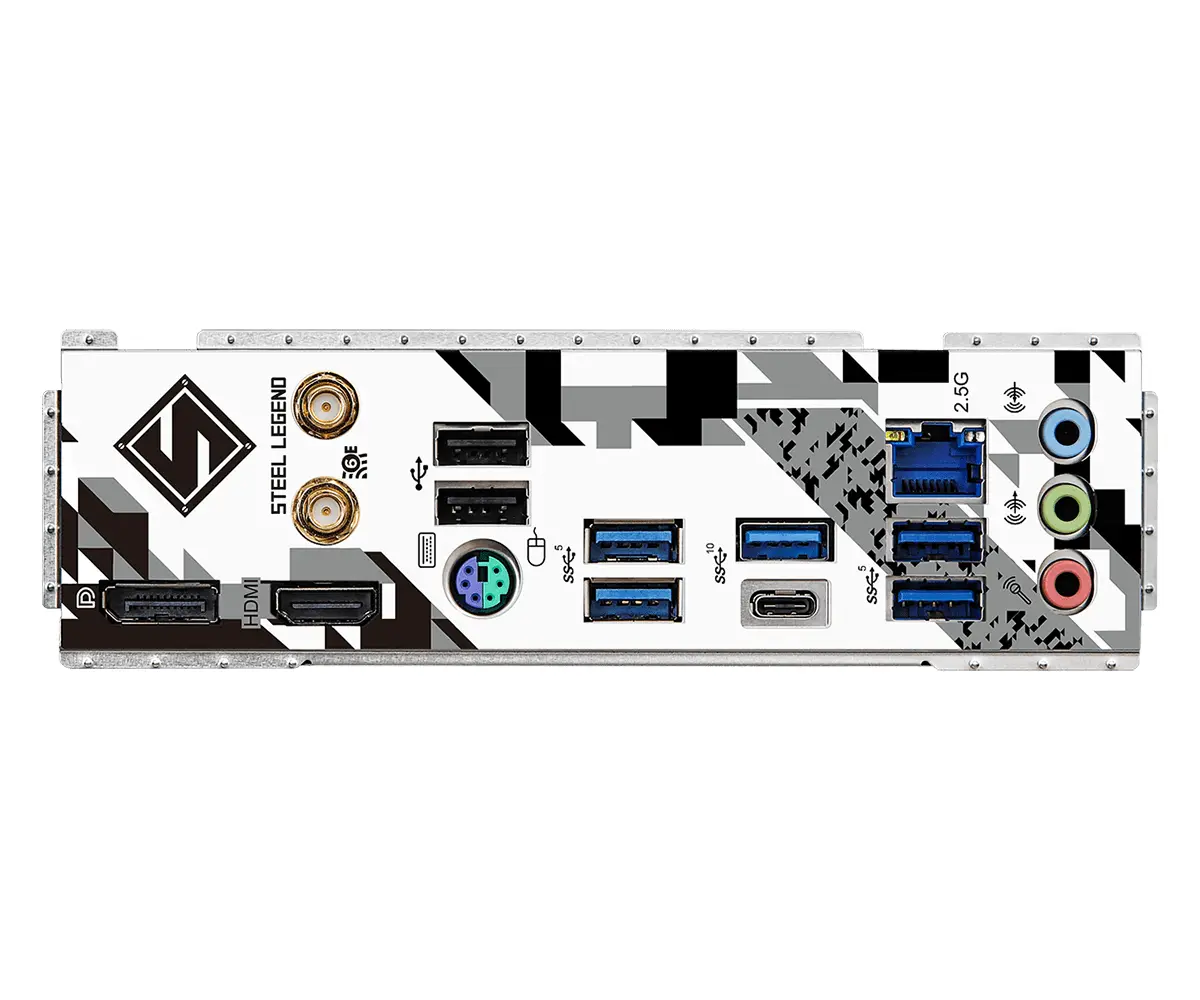

Rear panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 4 x USB 3.2 Gen1 Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x eDP Signal Connector
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
Lan
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Form factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- 2oz Copper PCB
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
Other
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3 + High speed class II
- Supports MU-MIMO
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asrock.com/mb/Intel/B760M%20Steel%20Legend%20WiFi/index.asp#Specification |
| Chipset | - Intel® B760 |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) |
| CPU's supported | - Supports Intel® Hybrid Technology |
| CPU's supported | - Supports Intel® Turbo Boost Max 3.0 Technology |
| CPU's supported | - Supports Intel® Thermal Velocity Boost (TVB) |
| CPU's supported | - Supports Intel® Adaptive Boost Technology (ABT) |
| Memory type | - Dual Channel DDR5 Memory Technology |
| Memory type | - Max. capacity of system memory: 128GB |
| Memory type | - 4 x DDR5 DIMM Slots |
| Memory type | - Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| Memory type | - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Form Factor | - 2oz Copper PCB |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Audio | - Nahimic Audio |
| Rear panel I/O | - 1 x PS/2 Mouse/Keyboard Port |
| Rear panel I/O | - 1 x HDMI Port |
| Rear panel I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | - 2 x Antenna Ports |
| Rear panel I/O | - 1 x DisplayPort 1.4 |
| Rear panel I/O | - 2 x USB 2.0 Ports |
| Rear panel I/O | - 1 x RJ-45 LAN Port |
| Rear panel I/O | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) |
| Rear panel I/O | - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) |
| Rear panel I/O | - 4 x USB 3.2 Gen1 Ports |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | - Dragon RTL8125BG |
| LAN | - Supports Dragon 2.5G LAN Software |
| LAN | - Smart Auto Adjust Bandwidth Control |
| LAN | - Visual User Friendly UI |
| LAN | - Visual Network Usage Statistics |
| LAN | - Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | - User Customized Priority Control |
| Expansion Slots | - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Expansion Slots | Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)* |
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Expansion Slots | - 15? Gold Contact in VGA PCIe Slot (PCIE1) |
| Graphics | - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) |
| Graphics | - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
| Graphics | - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Other | - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology |
| Other | - Supports MU-MIMO |
| Other | - 802.11ax Wi-Fi 6E Module |
| Other | - Supports IEEE 802.11a/b/g/n/ac/ax |
| Other | - Supports Bluetooth 5.3 + High speed class II |
| Other | - Supports Dual-Band 2x2 with extended 6GHz band support* |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| I/O | - 1 x PS/2 Mouse/Keyboard Port |
| I/O | - 1 x HDMI Port |
| I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | - 1 x DisplayPort 1.4 |
| I/O | - 2 x Antenna Ports |
| I/O | - 2 x USB 2.0 Ports |
| I/O | - 1 x RJ-45 LAN Port |
| I/O | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) |
| I/O | - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) |
| I/O | - 4 x USB 3.2 Gen1 Ports |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Storage | - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Storage | Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Connectors | - 1 x RGB LED Header* |
| Connectors | - 1 x Front Panel Audio Connector |
| Connectors | - 1 x Chassis Intrusion and Speaker Header |
| Connectors | - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
| Connectors | - 1 x SPI TPM Header |
| Connectors | - 1 x CPU Fan Connector (4-pin)*** |
| Connectors | - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
| Connectors | - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| Connectors | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Connectors | - 3 x Addressable LED Headers** |
| Connectors | - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Connectors | - 1 x eDP Signal Connector |
| Connectors | - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) |
| Βάρος | 1.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Βάρος | 1.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

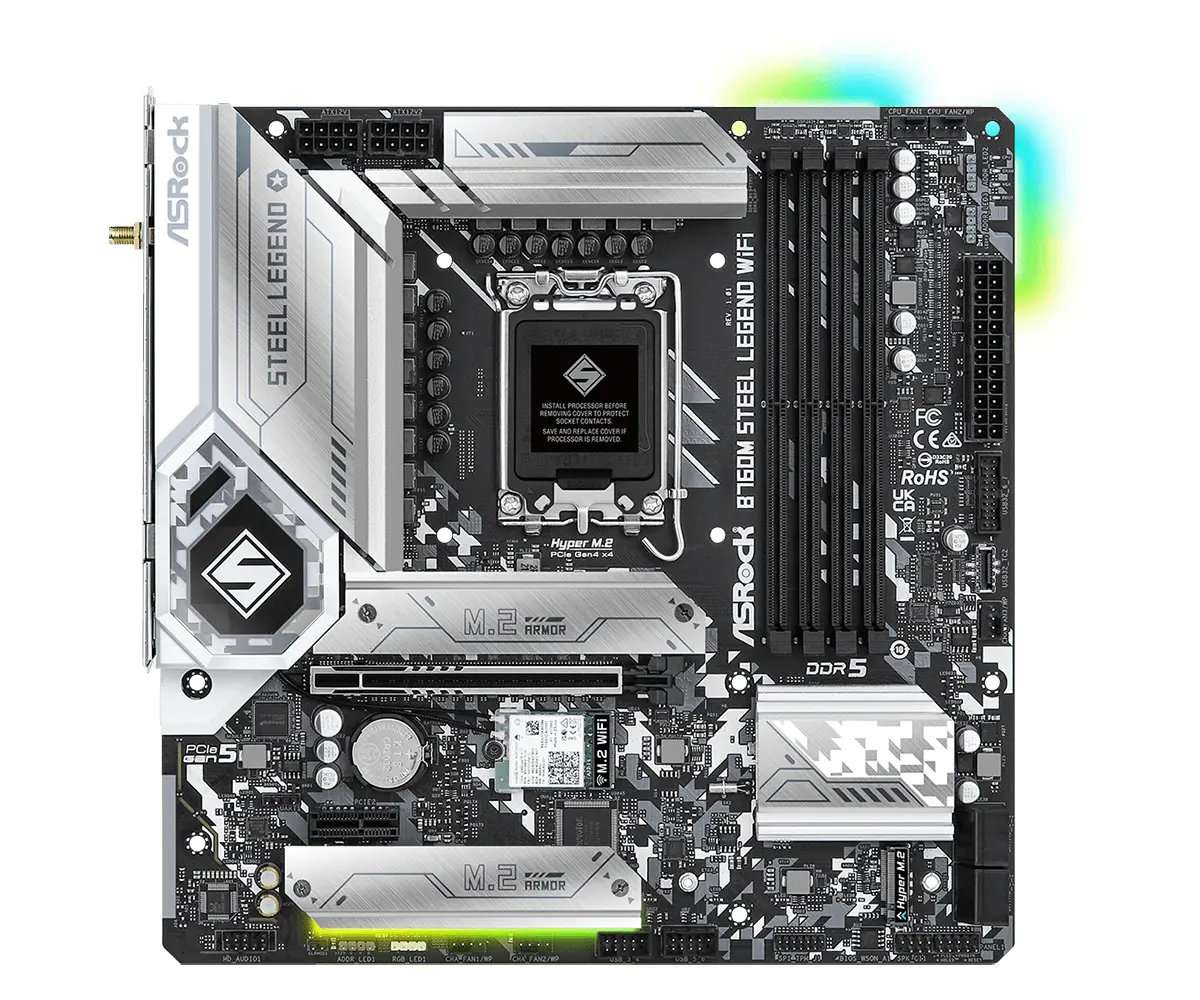

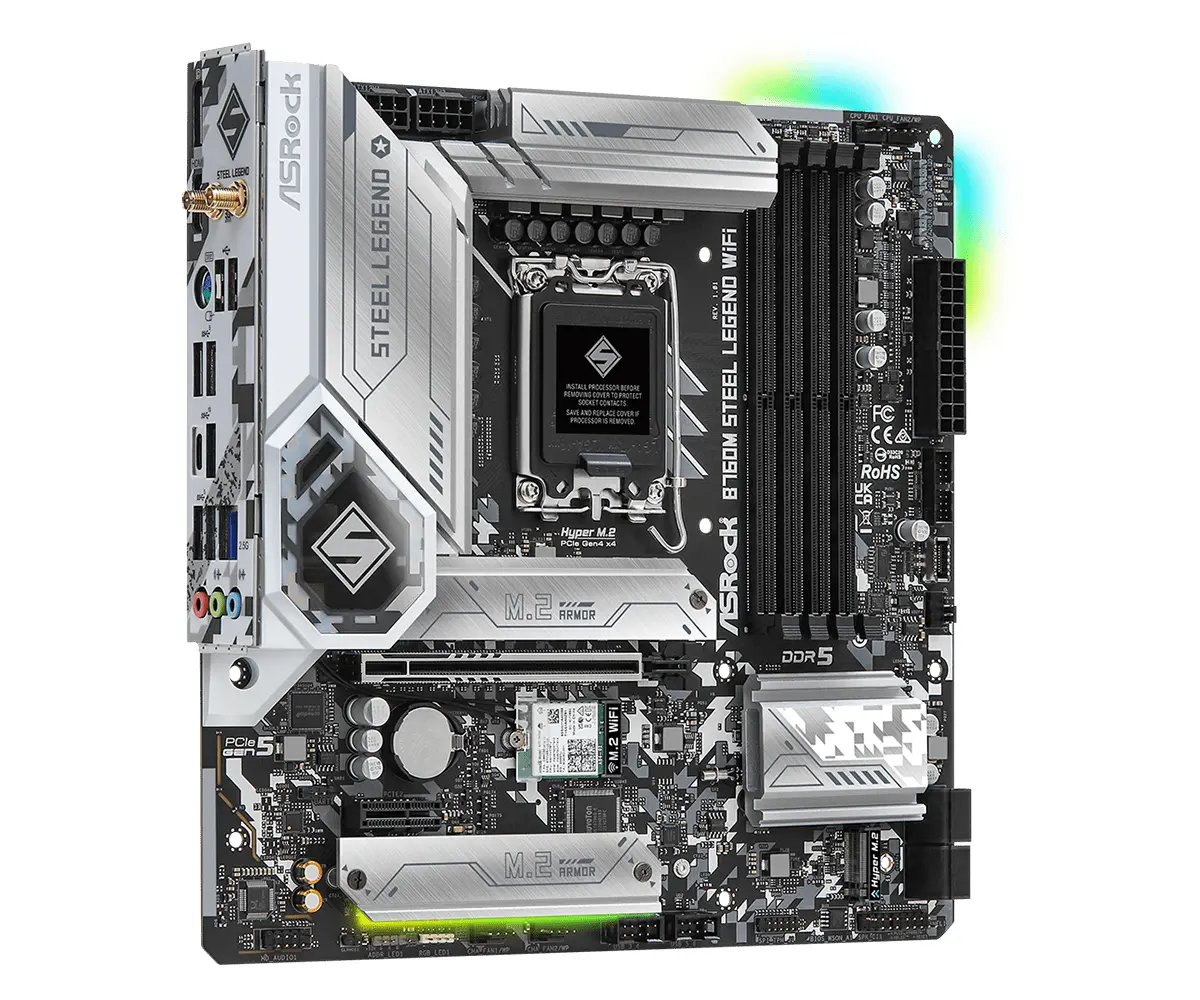

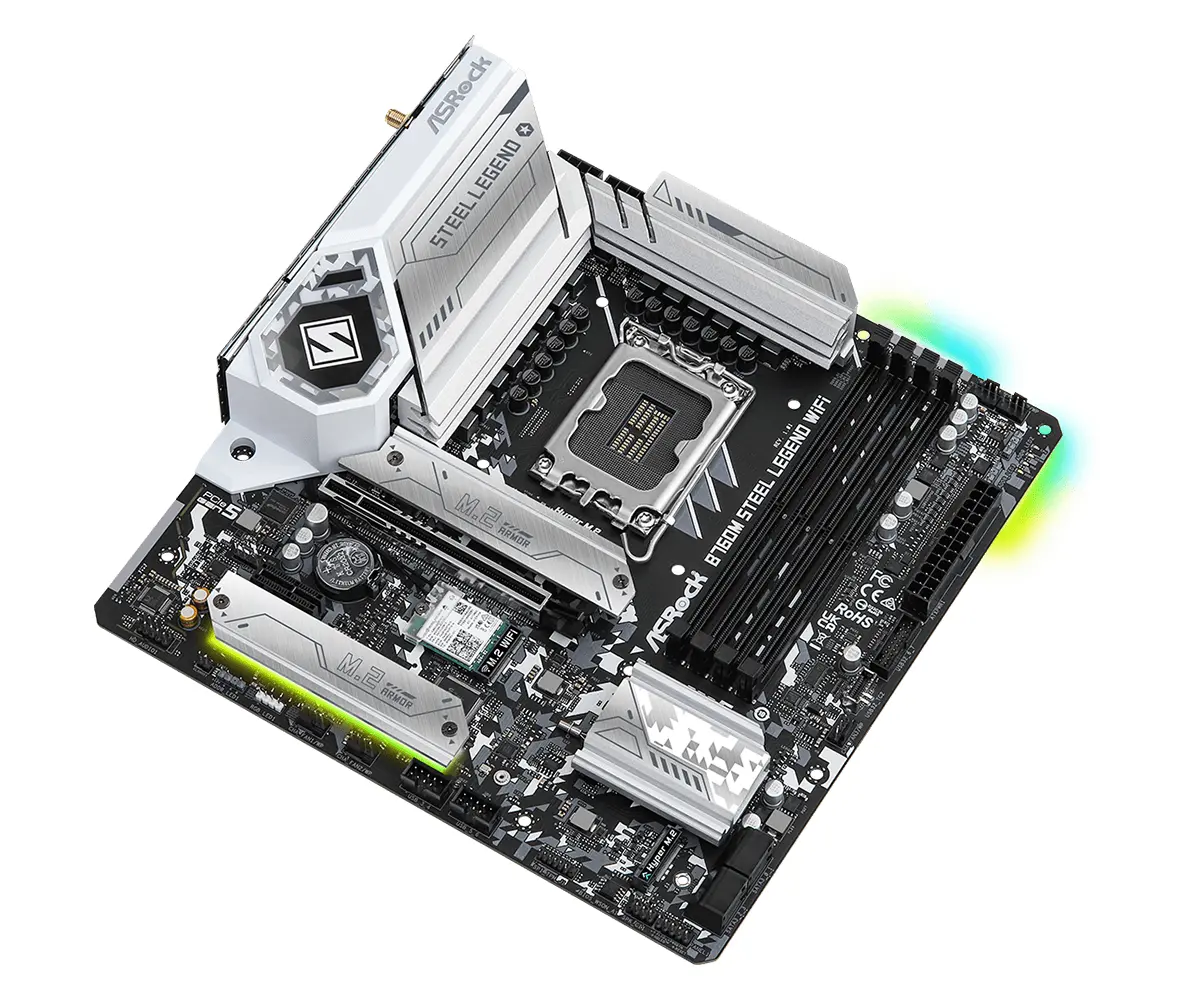

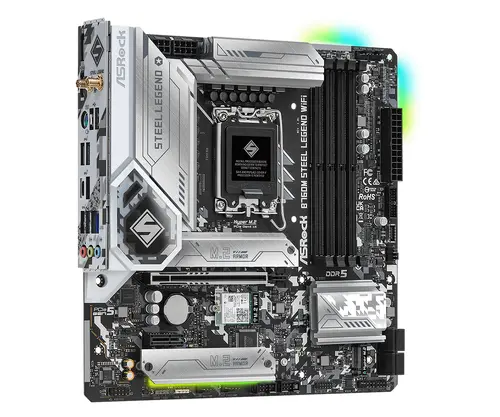

Дънна платка ASRock B760M Steel Legend WiFi
Съчетайте стабилна производителност и атрактивен дизайн с дънната платка ASRock B760M Steel Legend WiFi. Базирана на чипсет Intel B760, тя поддържа процесори Intel Core от 12-то и 13-то поколение, осигурявайки отлични възможности за игри и работа. С поддръжка на PCIe 5.0, DDR5 памет и вграден Wi-Fi 6E, това е идеалната основа за високопроизводителна система.
Ключови Предимства
- PCIe 5.0 — Бъдещето на свързаността с най-новите видеокарти и SSD дискове.
- DDR5 памет — Изключително бързи скорости и подобрена многозадачност.
- Вграден Wi-Fi 6E — Безжична връзка с ниско закъснение и висока скорост.
- Дизайн Steel Legend — Премиум визия с черно-бяла цветова схема и RGB осветление.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |

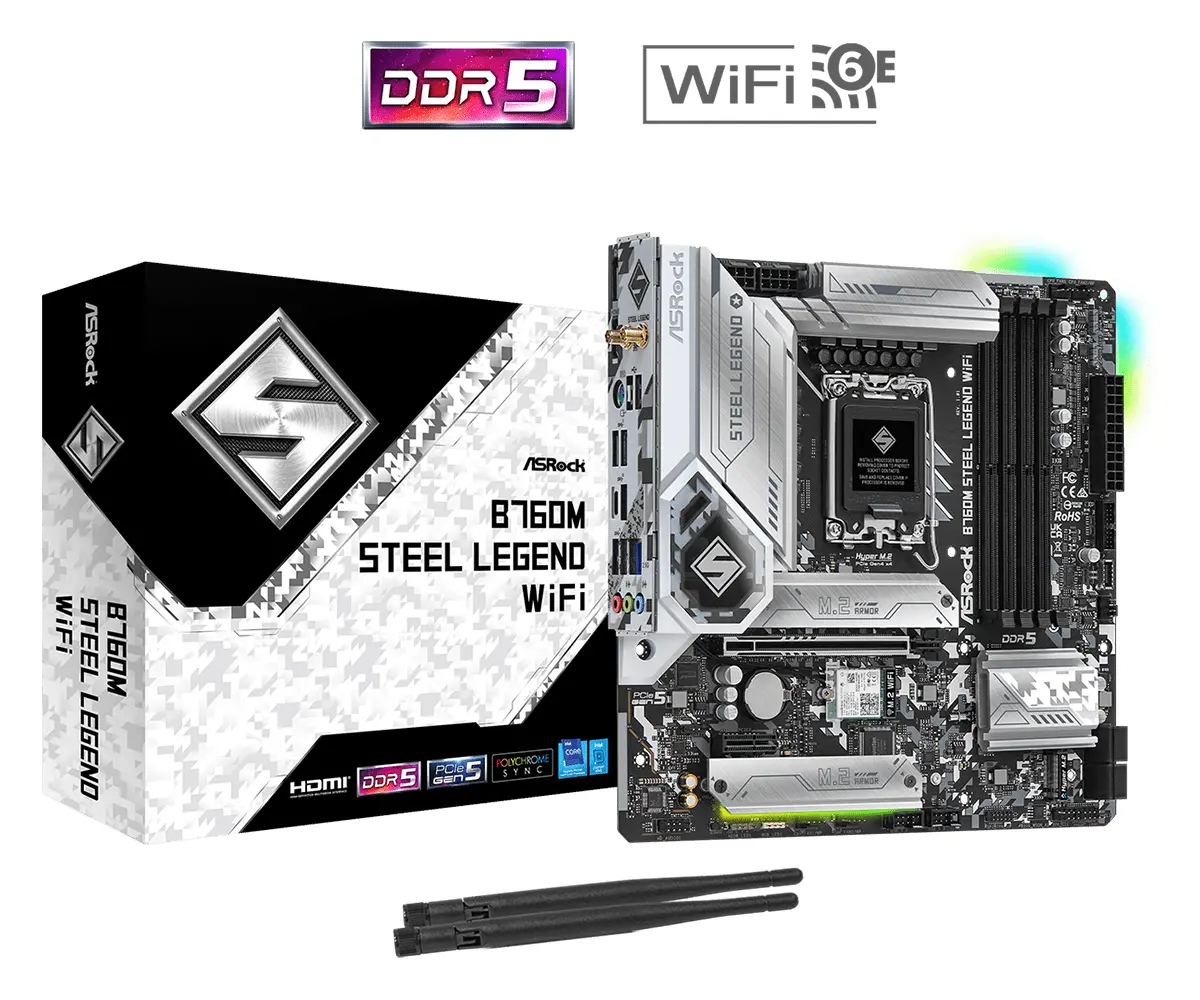

Какво има в кутията
- Дънна платка ASRock B760M Steel Legend WiFi
- Ръководство за потребителя
- Поддържащ CD
- 2 x SATA кабела за данни
- 1 x Комплект винтове за M.2
- 1 x I/O скоба
- Wi-Fi антена
