- GIGABYTE
Τιμή
€116 74 / 228 32 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.gigabyte.com/Motherboard/B760-DS3H-DDR4-rev-10/sp#sp
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Chipset
Intel® B760 Express Chipset
Expansion slots
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
(PCIEX1_1, PCIEX1_3~PCIEX1_5)
Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Lan
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/B760-DS3H-DDR4-rev-10/sp#sp |
| Chipset | Intel® B760 Express Chipset |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| CPU's supported | L3 cache varies with CPU |
| Memory type | 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Memory type | Dual channel memory architecture |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.) |
| Form Factor | 30.5cm x 24.4cm |
| Form Factor | ATX Form Factor |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Rear panel I/O | 1 x PS/2 keyboard/mouse port |
| Rear panel I/O | 1 x HDMI port |
| Rear panel I/O | 1 x RJ-45 port |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 4 x USB 2.0/1.1 ports |
| Rear panel I/O | 1 x USB 3.2 Gen 2 Type-A port (red) |
| Rear panel I/O | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
| Expansion Slots | Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 |
| Expansion Slots | (PCIEX1_1, PCIEX1_3~PCIEX1_5) |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Graphics | * Support for HDMI 2.0 version and HDCP 2.3. |
| Graphics | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| BIOS | 1 x 128 Mbit flash |
| I/O | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
| I/O | 1 x USB 3.2 Gen 2 Type-A port (red) |
| I/O | 4 x USB 2.0/1.1 ports |
| I/O | 1 x DisplayPort |
| I/O | 1 x RJ-45 port |
| I/O | 3 x audio jacks |
| I/O | 1 x HDMI Port |
| I/O | 1 x PS/2 keyboard/mouse port |
| Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Storage | 4 x SATA 6Gb/s connectors |
| Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 3 x system fan headers |
| Connectors | 1 x system fan/water cooling pump header |
| Connectors | 2 x addressable LED strip headers |
| Connectors | 2 x RGB LED strip headers |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x S/PDIF Out header |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x serial port header |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Connectors | 1 x reset button |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x reset jumper |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 2 x M.2 Socket 3 connectors |
| Connectors | 1 x CPU fan/water cooling pump header |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | ATX |
| Chipset | Intel B760 |
| Memory Type | DDR4 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

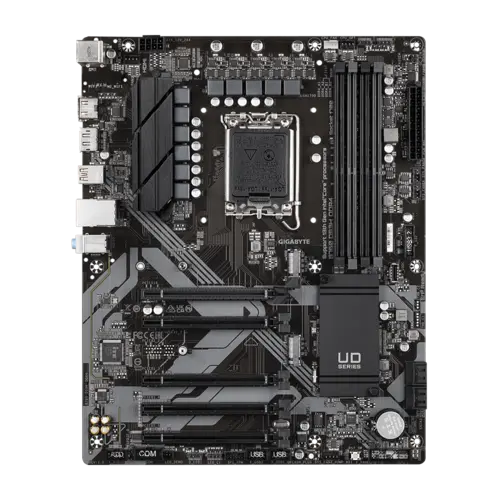

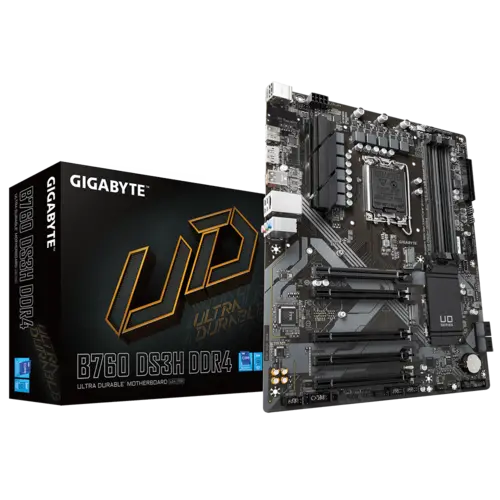

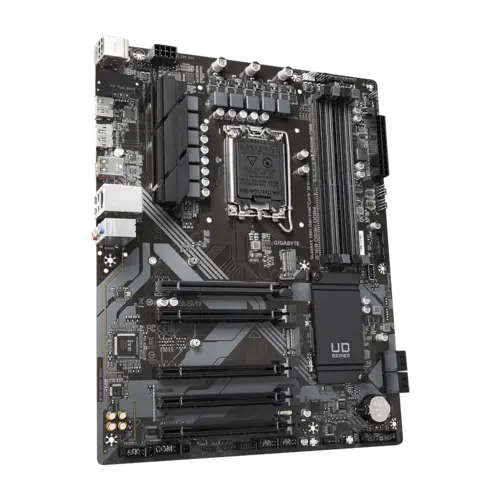

GIGABYTE B760 DS3H DDR4 – надеждна ATX основа за Intel Core 12-о, 13-о и 14-о поколение
GIGABYTE B760 DS3H DDR4 е надеждна ATX дънна платка без излишни екстри, подходяща за всяка Intel конфигурация. Тя е със сокет LGA1700 и чипсет Intel B760, работи с достъпна DDR4 памет и предлага PCIe 4.0 за видеокартата и SSD дисковете, както и 2.5-гигабитова мрежа. Подходяща е за домашен компютър, офис станция или бюджетна геймърска машина.
Ключови Предимства
- Широка поддръжка на Intel процесори — Сокетът LGA1700 поема процесори Intel Core от 12-о, 13-о и 14-о поколение, така че имате голям избор сега и възможност за ъпгрейд по-късно.
- Спестявате от памет — Четирите DDR4 слота поемат до 128 GB. Можете да използвате модулите, които вече имате, или да купите нови на по-ниска цена от DDR5.
- Бърза PCIe 4.0 памет за съхранение — Двата M.2 слота поддържат NVMe SSD дискове с PCIe 4.0 x4. Системата стартира бързо, а игрите и файловете се зареждат и копират без чакане.
- PCIe 4.0 слот за видеокарта — Основният PCIe x16 слот е свързан директно с процесора и осигурява пълна пропускателна способност за съвременните видеокарти.
- 2.5-гигабитова мрежа — Кабелната връзка е по-бърза от стандартния гигабитов LAN, което помага при големи изтегляния и онлайн игри.
- Вградени видеоизходи — С HDMI и DisplayPort можете да използвате вградената графика на поддържаните Intel процесори без отделна видеокарта.
- Лесен монтаж и разширяване — Стандартният ATX формат, четирите SATA порта и допълнителните PCIe слотове оставят място за още дискове и карти за разширение.
Технически Спецификации
| Характеристика | Стойност |
|---|---|
| Производител | GIGABYTE |
| Модел | B760 DS3H DDR4 (rev. 1.0) |
| Сокет | Intel LGA 1700 |
| Чипсет | Intel B760 |
| Поддържани процесори | Intel Core 12-о / 13-о / 14-о поколение, Pentium Gold, Celeron |
| Форм фактор | ATX |
| Тип памет | DDR4 |
| Слотове за памет | 4 x DIMM, двуканален режим |
| Максимална памет | 128 GB |
| M.2 слотове | 2 x M.2 (PCIe 4.0 x4 NVMe) |
| SATA портове | 4 x SATA 6Gb/s |
| Слотове за разширение | 1 x PCIe 4.0 x16 (режим x16), 1 x PCIe 3.0 x16 (режим x4), 2 x PCIe 3.0 x1 |
| Мрежа (LAN) | 2.5 Gbps Ethernet |
| Wi-Fi | Не |
| Видеоизходи | HDMI, DisplayPort |
| EAN | 4719331850999 |
Какво има в кутията
- Дънна платка GIGABYTE B760 DS3H DDR4
- SATA кабели
- Винт(ове) за M.2
- Документация
