- ASROCK
Τιμή
€51 40 / 100 53 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asrock.com/mb/AMD/A520M-HDV/#Specification
Graphics
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft® PlayReady
Chipset
- AMD A520
Expansion slots
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
- 1 x PCI Express 3.0 x1 Slot
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
Memory type
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB*
- Supports Extreme Memory Profile (XMP) memory modules
- 15? Gold Contact in DIMM Slots
Rear panel I/O
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x SPI TPM Header
- 1 x COM Port Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection
Lan
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Form factor
- Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
- Solid Capacitor design
OS
- Microsoft® Windows® 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asrock.com/mb/AMD/A520M-HDV/#Specification |
| Chipset | - AMD A520 |
| OS | - Microsoft® Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | - Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors* - 6 Power Phase design |
| Memory type | - Dual Channel DDR4 Memory Technology |
| Memory type | - 2 x DDR4 DIMM Slots |
| Memory type | - Supports Extreme Memory Profile (XMP) memory modules |
| Memory type | - 15μ Gold Contact in DIMM Slots |
| Memory type | - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non |
| Memory type | - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Memory type | - Max. capacity of system memory: 64GB* |
| Memory type | - 15? Gold Contact in DIMM Slots |
| Form Factor | - Solid Capacitor design |
| Form Factor | - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm |
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection |
| Rear panel I/O | - 1 x PS/2 Mouse/Keyboard Port |
| Rear panel I/O | - 1 x D-Sub Port |
| Rear panel I/O | - 1 x DVI-D Port |
| Rear panel I/O | - 1 x HDMI Port |
| Rear panel I/O | - 2 x USB 2.0 Ports (Supports ESD Protection) |
| Rear panel I/O | - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| Rear panel I/O | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Rear panel I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| LAN | - Realtek RTL8111H |
| LAN | - Supports Wake-On-LAN |
| LAN | - Supports Lightning/ESD Protection |
| LAN | - Supports Energy Efficient Ethernet 802.3az |
| LAN | - Supports PXE |
| Expansion Slots | - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* |
| Expansion Slots | - 1 x PCI Express 3.0 x1 Slot |
| Graphics | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* |
| Graphics | - DirectX 12, Pixel Shader 5.0 |
| Graphics | - Shared memory default 2GB. Max Shared memory supports up to 16GB.** |
| Graphics | - Three graphics output options: D-Sub, DVI-D and HDMI |
| Graphics | - Supports Triple Monitor |
| Graphics | - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz |
| Graphics | - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
| Graphics | - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz |
| Graphics | - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) |
| Graphics | - Supports HDR (High Dynamic Range) with HDMI 2.1 |
| Graphics | - Supports Microsoft® PlayReady |
| Graphics | - Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports |
| Graphics | - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| BIOS | - Supports "Plug and Play" |
| BIOS | - ACPI 5.1 compliance wake up events |
| BIOS | - Supports jumperfree |
| BIOS | - SMBIOS 2.3 support |
| BIOS | - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
| I/O | - 1 x PS/2 Mouse/Keyboard Port |
| I/O | - 1 x D-Sub Port |
| I/O | - 1 x DVI-D Port |
| I/O | - 1 x HDMI Port |
| I/O | - 2 x USB 2.0 Ports (Supports ESD Protection) |
| I/O | - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| I/O | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| Storage | - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* |
| Connectors | - 1 x COM Port Header |
| Connectors | - 1 x 24 pin ATX Power Connector |
| Connectors | - 1 x Front Panel Audio Connector |
| Connectors | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
| Connectors | - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Connectors | - 1 x Chassis Intrusion and Speaker Header |
| Connectors | - 1 x CPU Fan Connector (4-pin)* |
| Connectors | - 1 x 4 pin 12V Power Connector |
| Connectors | - 1 x SPI TPM Header |
| Connectors | - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** |
| Βάρος | 0.40kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM4 |
| Form Factor | Micro-ATX |
| Chipset | AMD A520 |
| Memory Type | DDR4 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Βάρος | 0.40kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

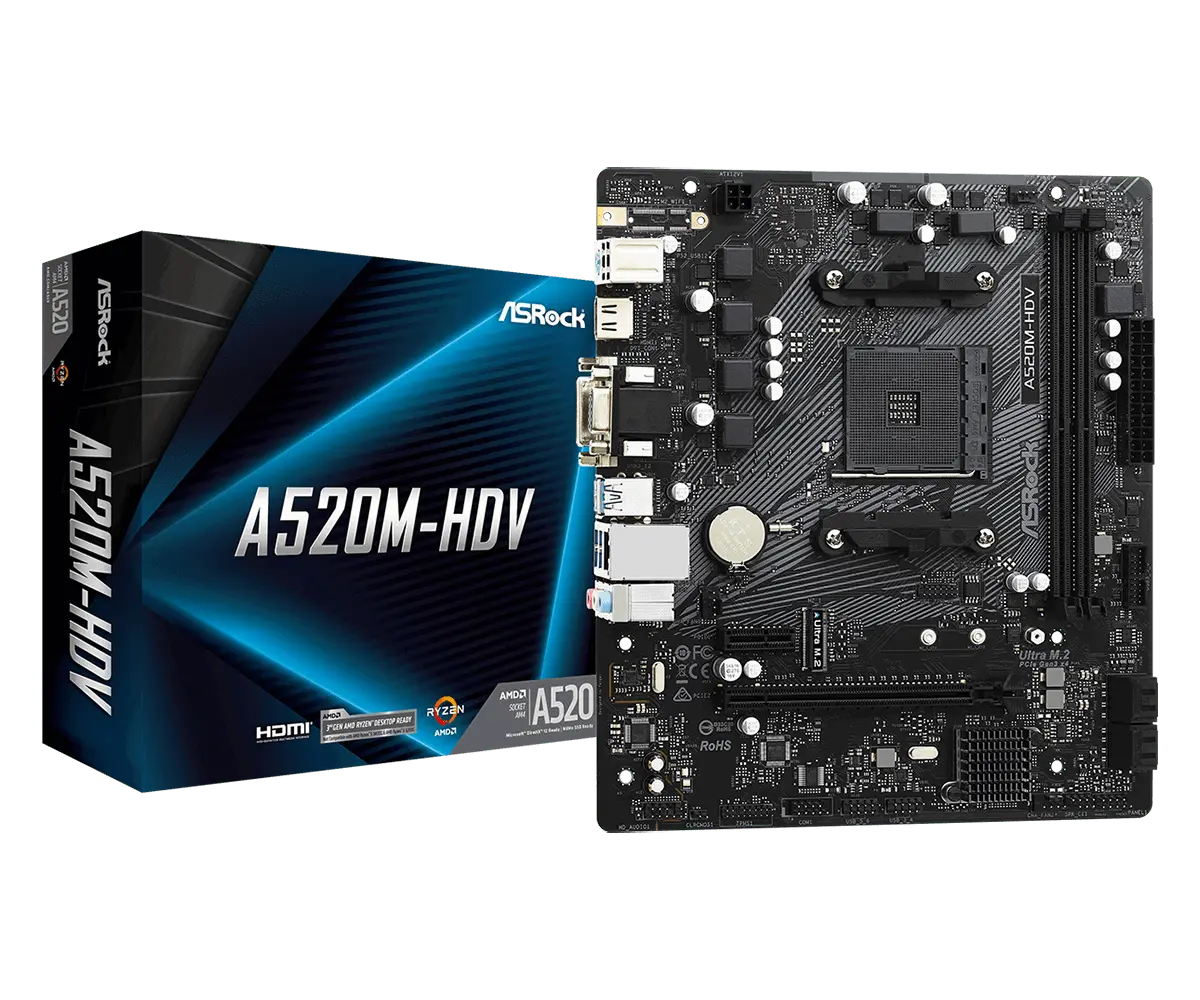

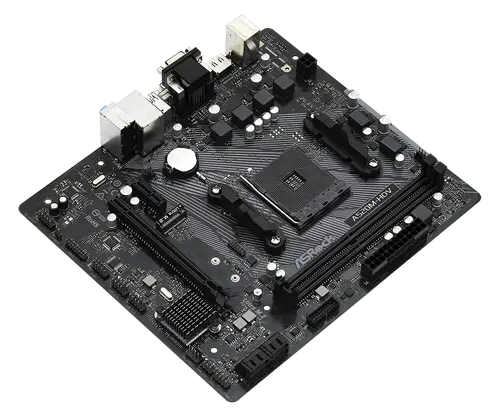

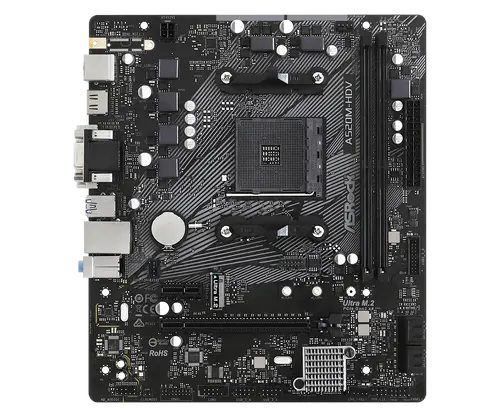

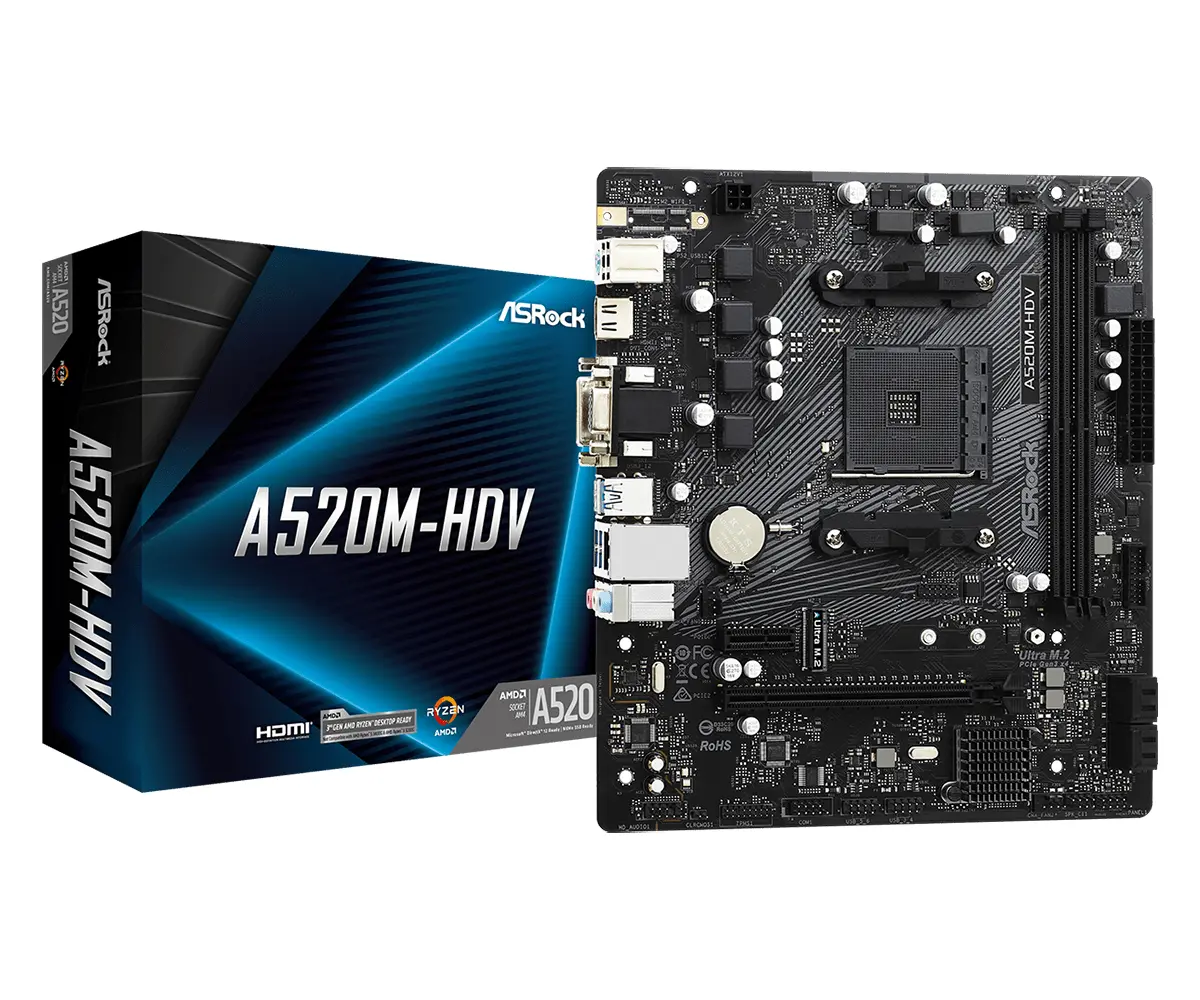

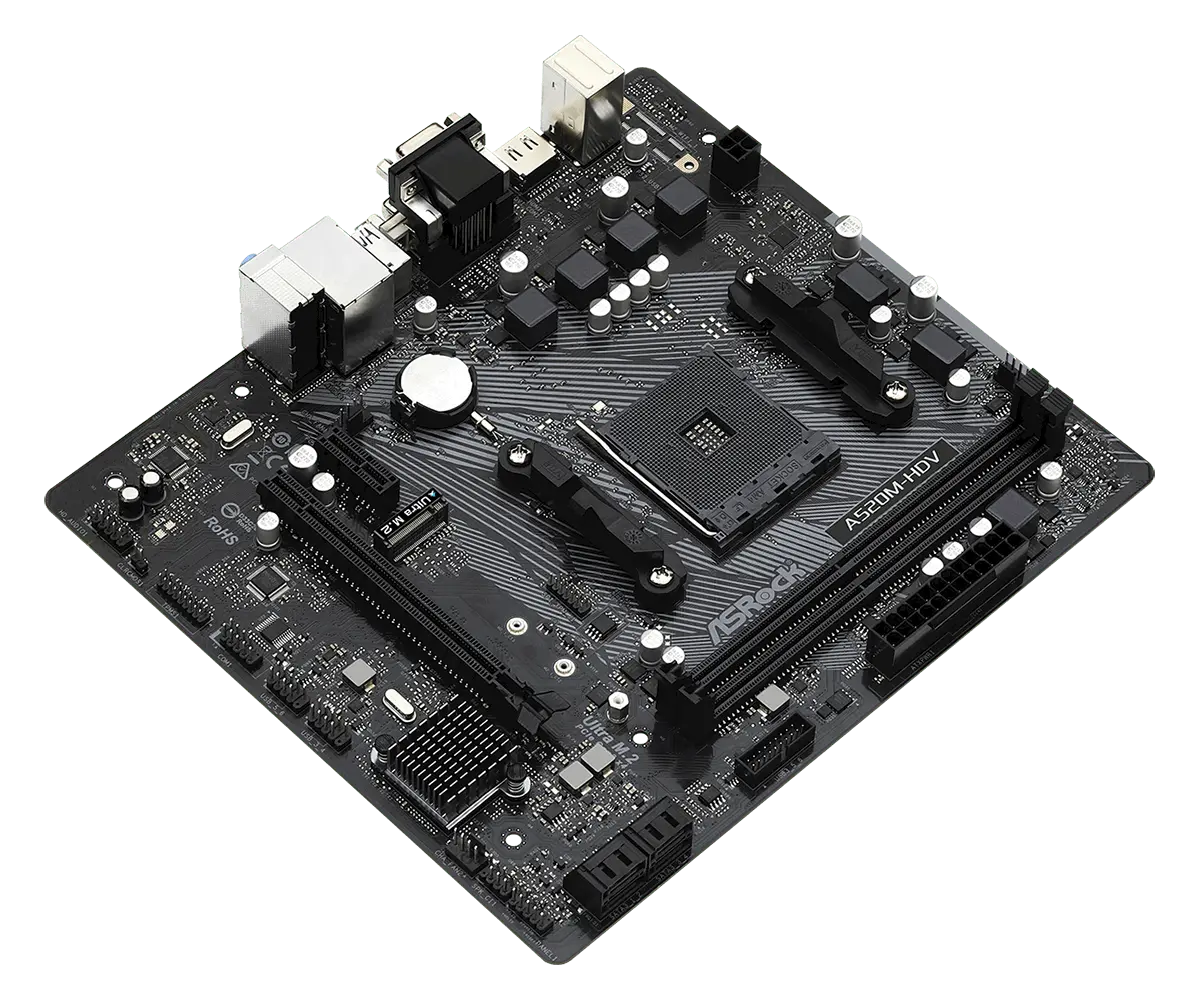

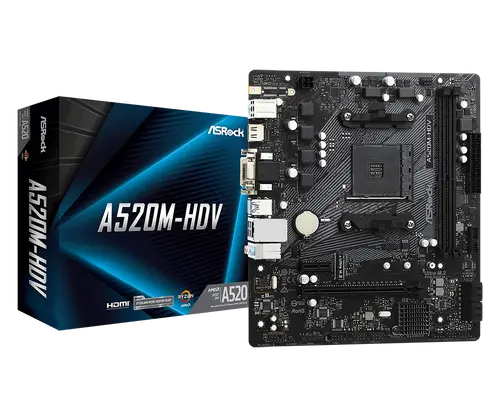

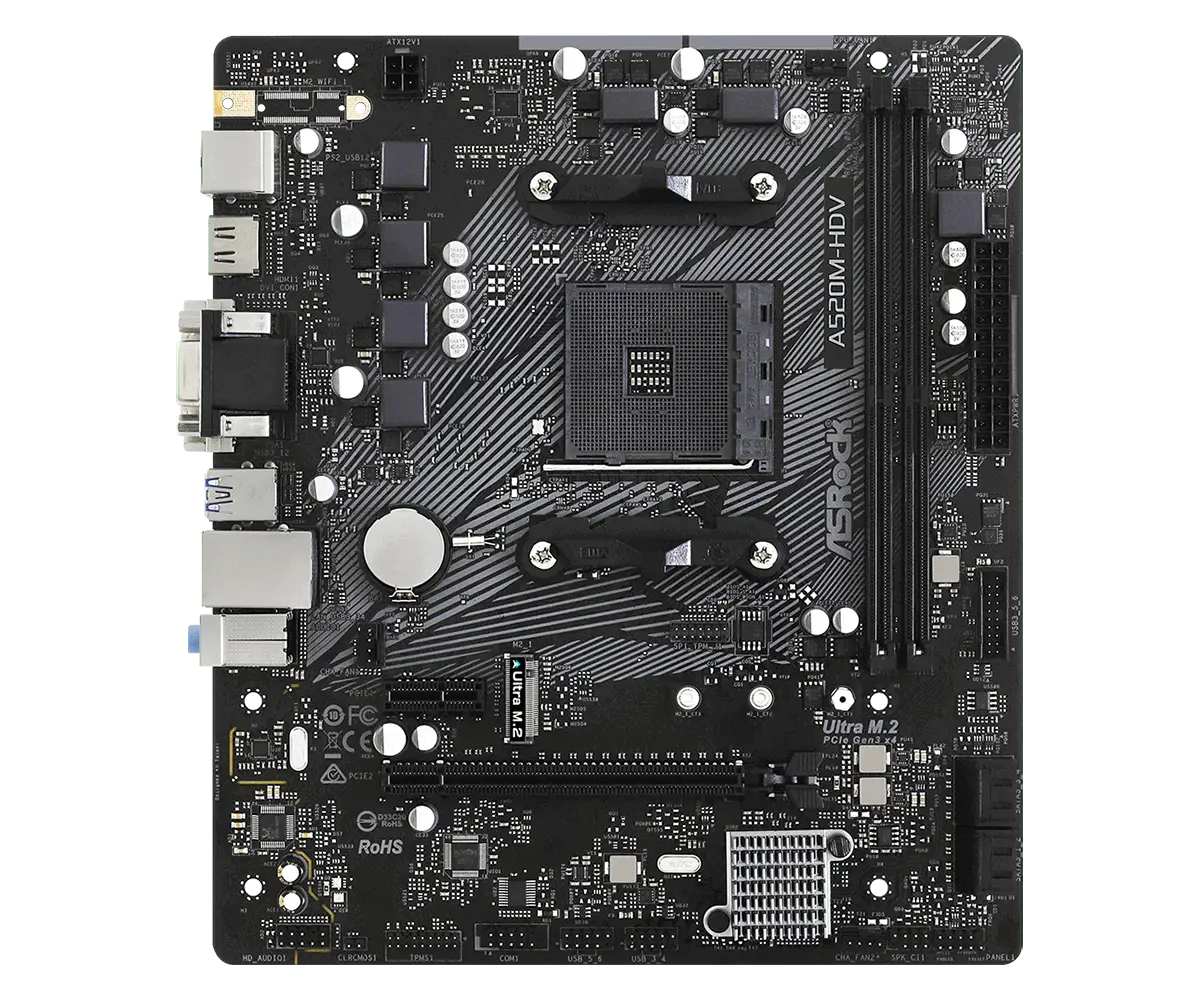

Дънна платка ASRock A520M-HDV /AM4
Изградете надежден и икономичен компютър с ASRock A520M-HDV, Micro-ATX дънна платка за AMD AM4 процесори. Тя поддържа DDR4 памет, PCIe 3.0 и основни връзки за ежедневна работа и леки игри.
Ключови Предимства
- AMD AM4 платформа — Съвместимост с широк набор от Ryzen процесори за гъвкаво надграждане.
- DDR4 памет — Двуканална DDR4 до 4733+ MHz (OC) за плавна многозадачност.
- M.2 слот — Изключително бързо съхранение чрез PCIe Gen3 x4 M.2 слот.
- Надеждна свързаност — Gigabit LAN, USB 3.2 Gen1 и HDMI/DVI-D изходи.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM4 |
| Форм фактор | Micro-ATX |
| Чипсет | AMD A520 |
| Тип памет | DDR4 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 1 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 0 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASRock A520M-HDV
- Заден панел за I/O
- 2x SATA кабела
- Ръководство за потребителя
- Диск с драйвери
