- ASROCK
Τιμή
€84 61 / 165 48 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asrock.com/MB/AMD/B550M%20Phantom%20Gaming%204/index.asp#Specification
Graphics
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports Microsoft® PlayReady
Chipset
- AMD B550
Expansion slots
AMD Ryzen series CPUs (Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode
PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs (Renoir)
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode
PCIE3: Gen3 x4 mode)*
- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX™ and CrossFireX™
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)*
- 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)*
Memory type
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 128GB**
- Supports Extreme Memory Profile (XMP) memory modules
- 15? Gold Contact in DIMM Slots

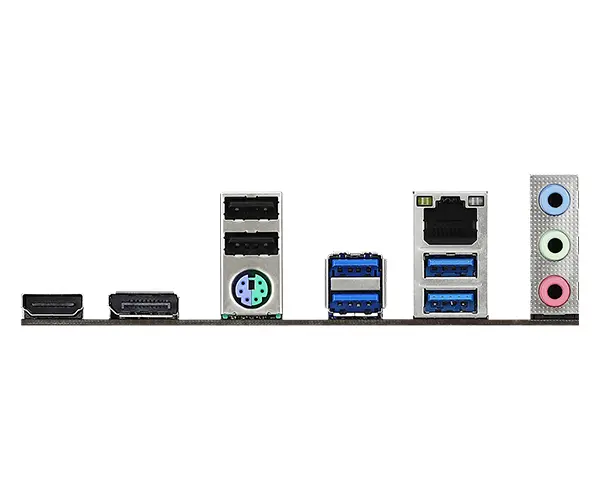

Rear panel I/O
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- Supports Surge Protection
Lan
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, Voltage Multi-adjustment
Form factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- Solid Capacitor design
- 2oz Copper PCB
OS
- Microsoft® Windows® 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asrock.com/MB/AMD/B550M%20Phantom%20Gaming%204/index.asp#Specification |
| Chipset | - AMD B550 |
| OS | - Microsoft® Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | - Digi Power design |
| CPU's supported | - 8 Power Phase design |
| CPU's supported | - Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors* |
| Memory type | - Dual Channel DDR4 Memory Technology |
| Memory type | - Supports Extreme Memory Profile (XMP) memory modules |
| Memory type | - 15μ Gold Contact in DIMM Slots |
| Memory type | - 4 x DDR4 DIMM Slots |
| Memory type | - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memo |
| Memory type | - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Memory type | - Max. capacity of system memory: 128GB** |
| Memory type | - 15? Gold Contact in DIMM Slots |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Form Factor | - Solid Capacitor design |
| Form Factor | - 2oz Copper PCB |
| Audio | - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) |
| Audio | - Supports Surge Protection |
| Rear panel I/O | - 1 x PS/2 Mouse/Keyboard Port |
| Rear panel I/O | - 1 x HDMI Port |
| Rear panel I/O | - 2 x USB 2.0 Ports (Supports ESD Protection) |
| Rear panel I/O | - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| Rear panel I/O | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Rear panel I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | - 1 x DisplayPort 1.4 |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| LAN | - Realtek RTL8111H |
| LAN | - Supports Wake-On-LAN |
| LAN | - Supports Lightning/ESD Protection |
| LAN | - Supports Energy Efficient Ethernet 802.3az |
| LAN | - Supports PXE |
| Expansion Slots | - Supports AMD Quad CrossFireX™ and CrossFireX™ |
| Expansion Slots | - 1 x PCI Express 3.0 x1 Slot |
| Expansion Slots | AMD Ryzen series CPUs (Matisse) |
| Expansion Slots | AMD Ryzen series APUs (Renoir) |
| Expansion Slots | - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode |
| Expansion Slots | PCIE3: Gen3 x4 mode)* |
| Expansion Slots | - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode |
| Graphics | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* |
| Graphics | - DirectX 12, Pixel Shader 5.0 |
| Graphics | - Shared memory default 2GB. Max Shared memory supports up to 16GB.** |
| Graphics | - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz |
| Graphics | - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz |
| Graphics | - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) |
| Graphics | - Supports HDR (High Dynamic Range) with HDMI 2.1 |
| Graphics | - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports |
| Graphics | - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports |
| Graphics | - Supports Microsoft® PlayReady |
| Graphics | - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| BIOS | - Supports "Plug and Play" |
| BIOS | - ACPI 5.1 compliance wake up events |
| BIOS | - Supports jumperfree |
| BIOS | - SMBIOS 2.3 support |
| BIOS | - CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, Voltage Multi-adjustment |
| I/O | - 1 x PS/2 Mouse/Keyboard Port |
| I/O | - 1 x HDMI Port |
| I/O | - 2 x USB 2.0 Ports (Supports ESD Protection) |
| I/O | - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| I/O | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | - 1 x DisplayPort 1.4 |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| Storage | - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)* |
| Storage | - 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)* |
| Connectors | - 1 x Power LED and Speaker Header |
| Connectors | - 1 x 24 pin ATX Power Connector |
| Connectors | - 1 x 8 pin 12V Power Connector |
| Connectors | - 1 x Front Panel Audio Connector |
| Connectors | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
| Connectors | - 1 x SPI TPM Header |
| Connectors | - 2 x RGB LED Headers* |
| Connectors | - 2 x Addressable LED Headers** |
| Connectors | - 1 x CPU Fan Connector (4-pin)*** |
| Connectors | - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** |
| Connectors | - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Βάρος | 1.19kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM4 |
| Form Factor | Micro-ATX |
| Chipset | AMD B550 |
| Memory Type | DDR4 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 6 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Βάρος | 1.19kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

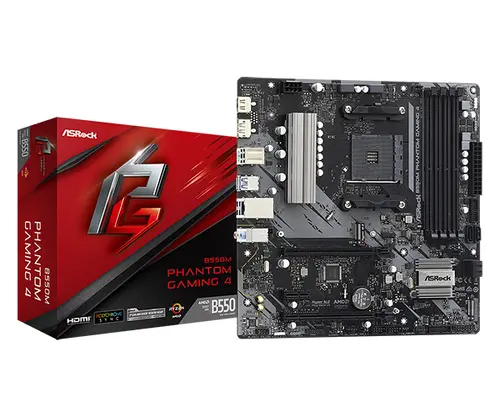

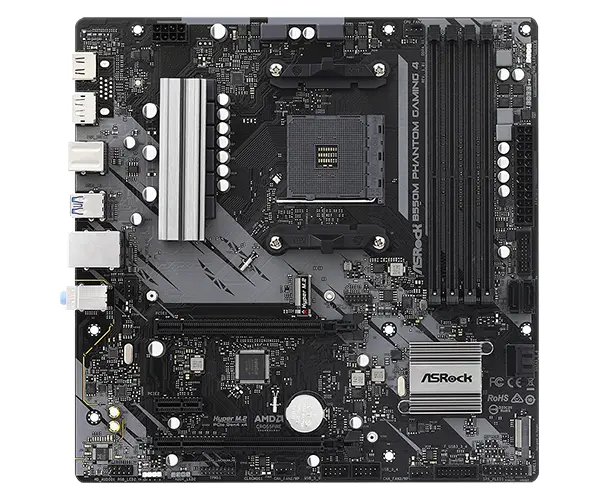

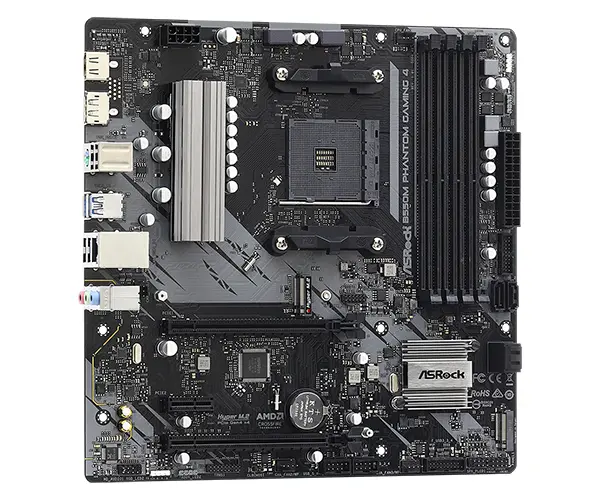

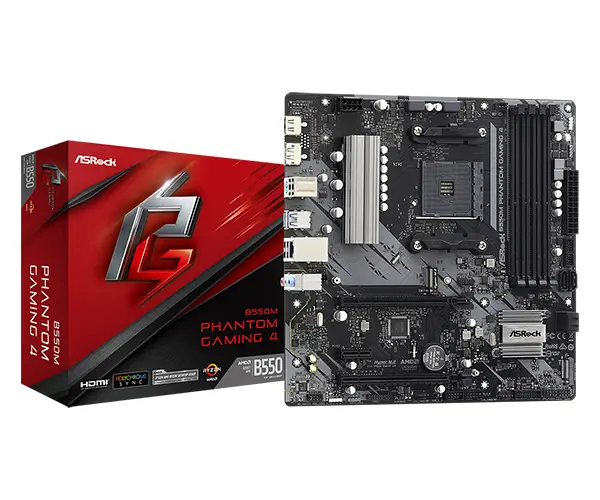

Дънна платка ASRock B550M Phantom Gaming 4
Извлечете максималната производителност от вашия AMD Ryzen процесор с ASRock B550M Phantom Gaming 4. Тази Micro-ATX дънна платка предлага стабилна работа, поддръжка на PCIe 4.0 и богат набор от функции за геймъри и ентусиасти.
Ключови Предимства
- Готовност за PCIe 4.0 — Поддържа най-новите видеокарти и NVMe SSD дискове за изключително бърз трансфер на данни.
- Издръжливи компоненти — Премиум 60A захранващи дросели и 2oz медна PCB осигуряват стабилно захранване и дълготрайна надеждност.
- Два M.2 слота — Един Hyper M.2 (PCIe Gen4 x4) и един Ultra M.2 (PCIe Gen3 x4) за високоскоростно съхранение.
- Пълна свързаност — Включва USB 3.2 Gen2 Type-C, HDMI, DisplayPort и 7.1 CH HD Audio.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM4 |
| Форм фактор | Micro-ATX |
| Чипсет | AMD B550 |
| Тип памет | DDR4 |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| M.2 слотове | 2 |
| SATA портове | 6 |
| PCIe x16 слотове | 2 |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASRock B550M Phantom Gaming 4
- 2 x SATA кабела за данни
- Заден панел I/O
- M.2 винтове
- Поддържащ DVD диск
- Ръководство за потребителя
