- ASROCK
Τιμή
€57 11 / 111 70 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asrock.com/MB/Intel/H610M-HVSM.2%20R2.0/index.asp#Specification
Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- Dual graphics output: support HDMI and D-Sub ports by independent display controllers
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
Chipset
- Intel® H610
Expansion slots
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*
Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1)
Storage
Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
Memory type
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0

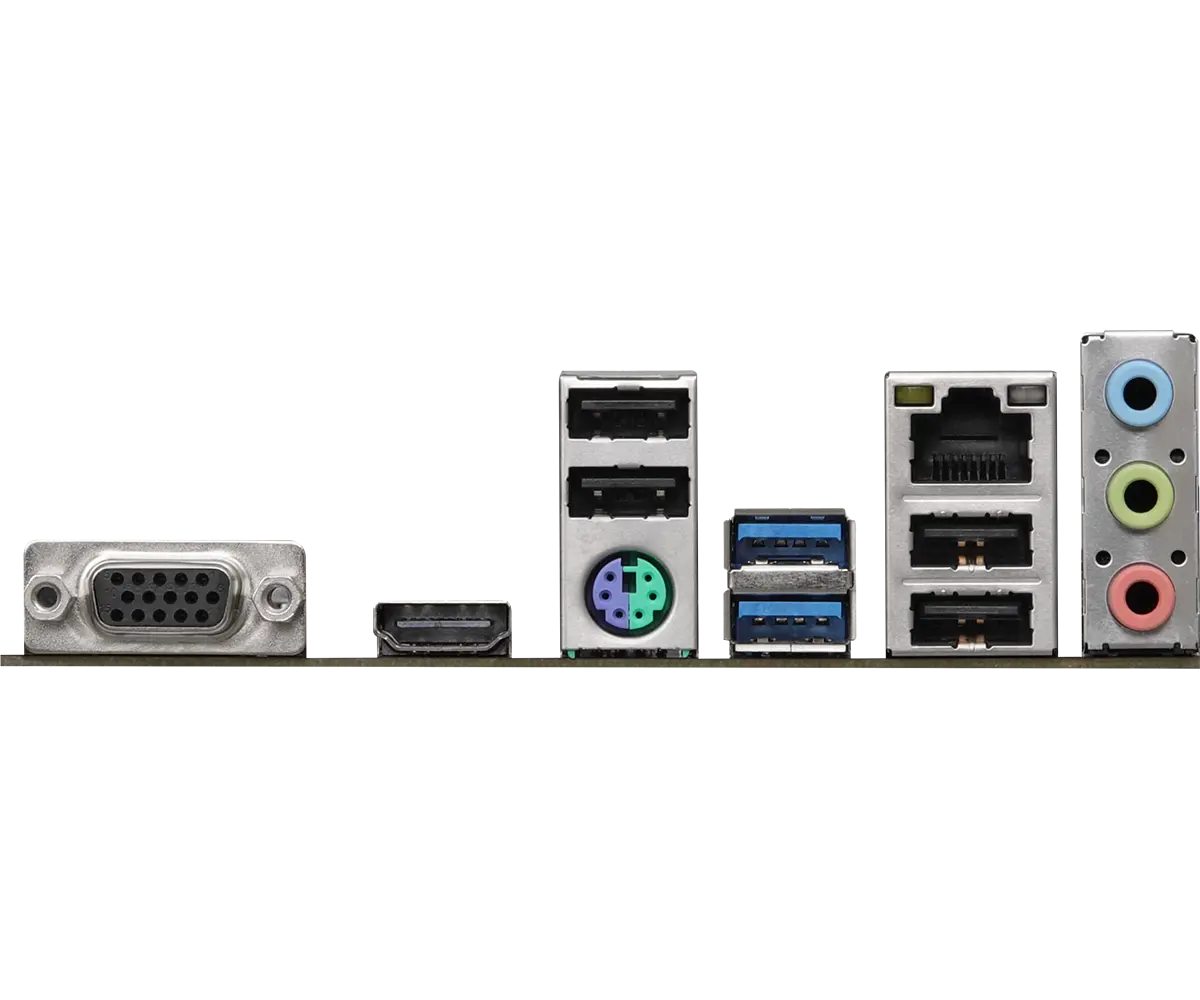

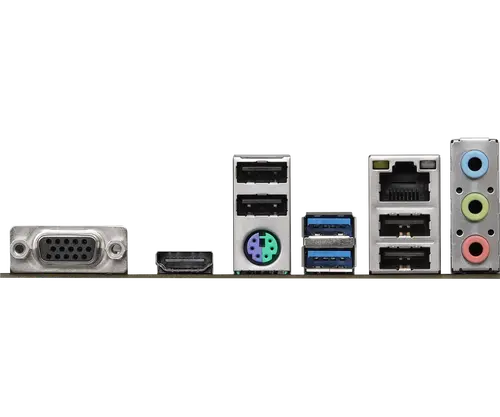

Rear panel I/O
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio
- 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
- Supports Surge Protection
Lan
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- 1 x Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
Form factor
- Micro ATX Form Factor: 8.76-in x 7.4-in, 22.3 cm x 18.8 cm
- Solid Capacitor design
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asrock.com/MB/Intel/H610M-HVSM.2%20R2.0/index.asp#Specification |
| Chipset | - Intel® H610 |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) |
| CPU's supported | - 7 Power Phase design |
| CPU's supported | - Supports Intel® Hybrid Technology |
| CPU's supported | - Supports Intel® Turbo Boost Max 3.0 Technology |
| Memory type | - Dual Channel DDR4 Memory Technology |
| Memory type | - 2 x DDR4 DIMM Slots |
| Memory type | - Max. capacity of system memory: 64GB |
| Memory type | - Supports DDR4 non-ECC, un-buffered memory up to 3200 |
| Memory type | - Supports ECC UDIMM memory modules (operate in non-ECC mode) |
| Memory type | - Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Form Factor | - Solid Capacitor design |
| Form Factor | - Micro ATX Form Factor: 8.76-in x 7.4-in, 22.3 cm x 18.8 cm |
| Audio | - Supports Surge Protection |
| Audio | - 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) |
| Rear panel I/O | - 1 x PS/2 Mouse/Keyboard Port |
| Rear panel I/O | - 1 x D-Sub Port |
| Rear panel I/O | - 1 x HDMI Port |
| Rear panel I/O | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Rear panel I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| Rear panel I/O | - 4 x USB 2.0 Ports (Supports ESD Protection) |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| LAN | - Supports Wake-On-LAN |
| LAN | - Supports Lightning/ESD Protection |
| LAN | - Supports Energy Efficient Ethernet 802.3az |
| LAN | - Supports PXE |
| LAN | - 1 x Realtek RTL8111H |
| Expansion Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* |
| Expansion Slots | Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1) |
| Graphics | - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
| Graphics | - Dual graphics output: support HDMI and D-Sub ports by independent display controllers |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) |
| Graphics | - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz |
| Graphics | - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support |
| BIOS | - ACPI 6.0 Compliant wake up events |
| BIOS | - SMBIOS 2.7 Support |
| BIOS | - CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment |
| I/O | - 1 x PS/2 Mouse/Keyboard Port |
| I/O | - 1 x D-Sub Port |
| I/O | - 1 x HDMI Port |
| I/O | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| I/O | - 4 x USB 2.0 Ports (Supports ESD Protection) |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* |
| Connectors | - 1 x 24 pin ATX Power Connector |
| Connectors | - 1 x 8 pin 12V Power Connector |
| Connectors | - 1 x Front Panel Audio Connector |
| Connectors | - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Connectors | - 1 x Chassis Intrusion and Speaker Header |
| Connectors | - 1 x CPU Fan Connector (4-pin)* |
| Connectors | - 1 x SPI TPM Header |
| Connectors | - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) |
| Connectors | - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** |
| Βάρος | 0.70kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel H610 |
| Memory Type | DDR4 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Βάρος | 0.70kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

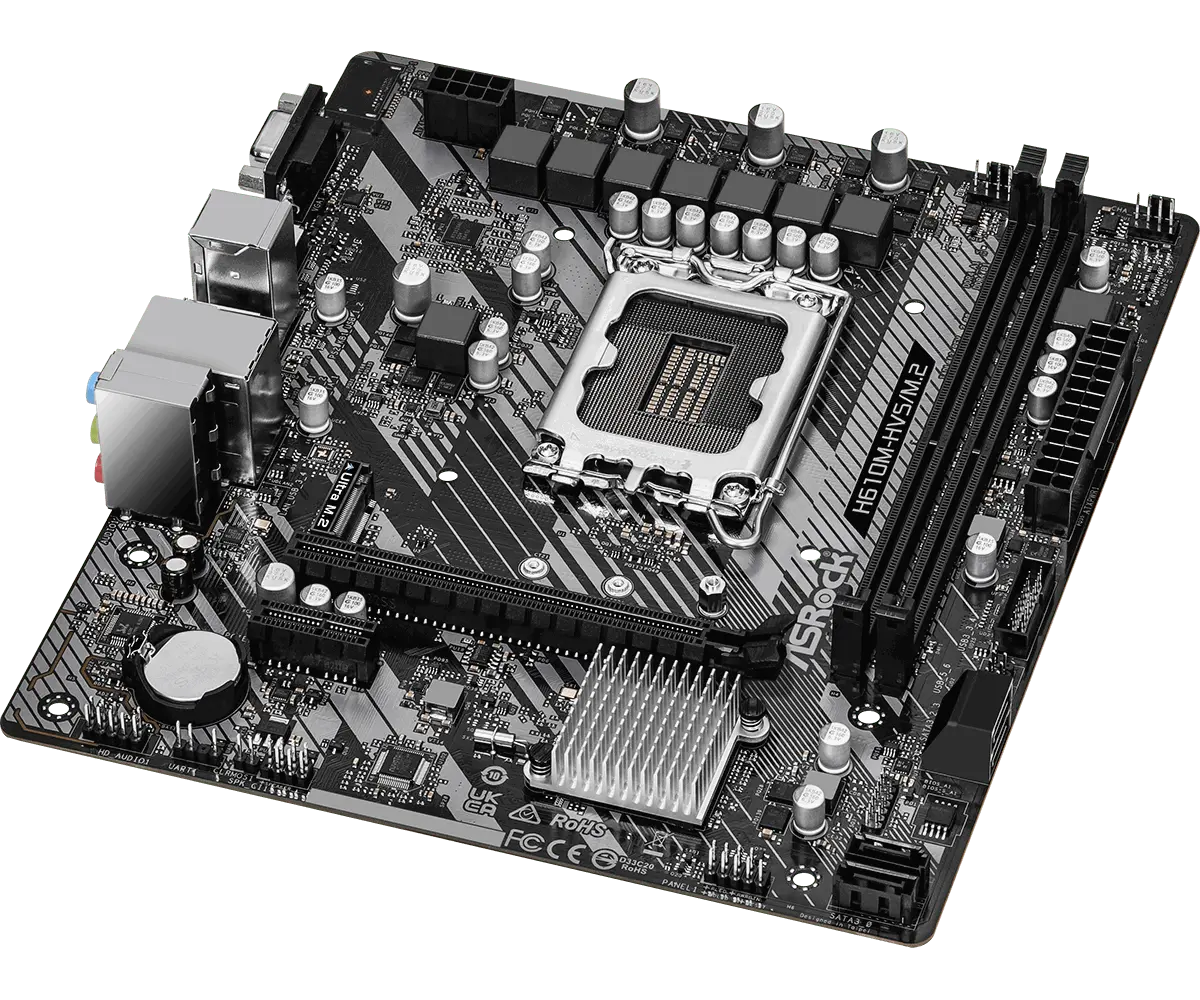

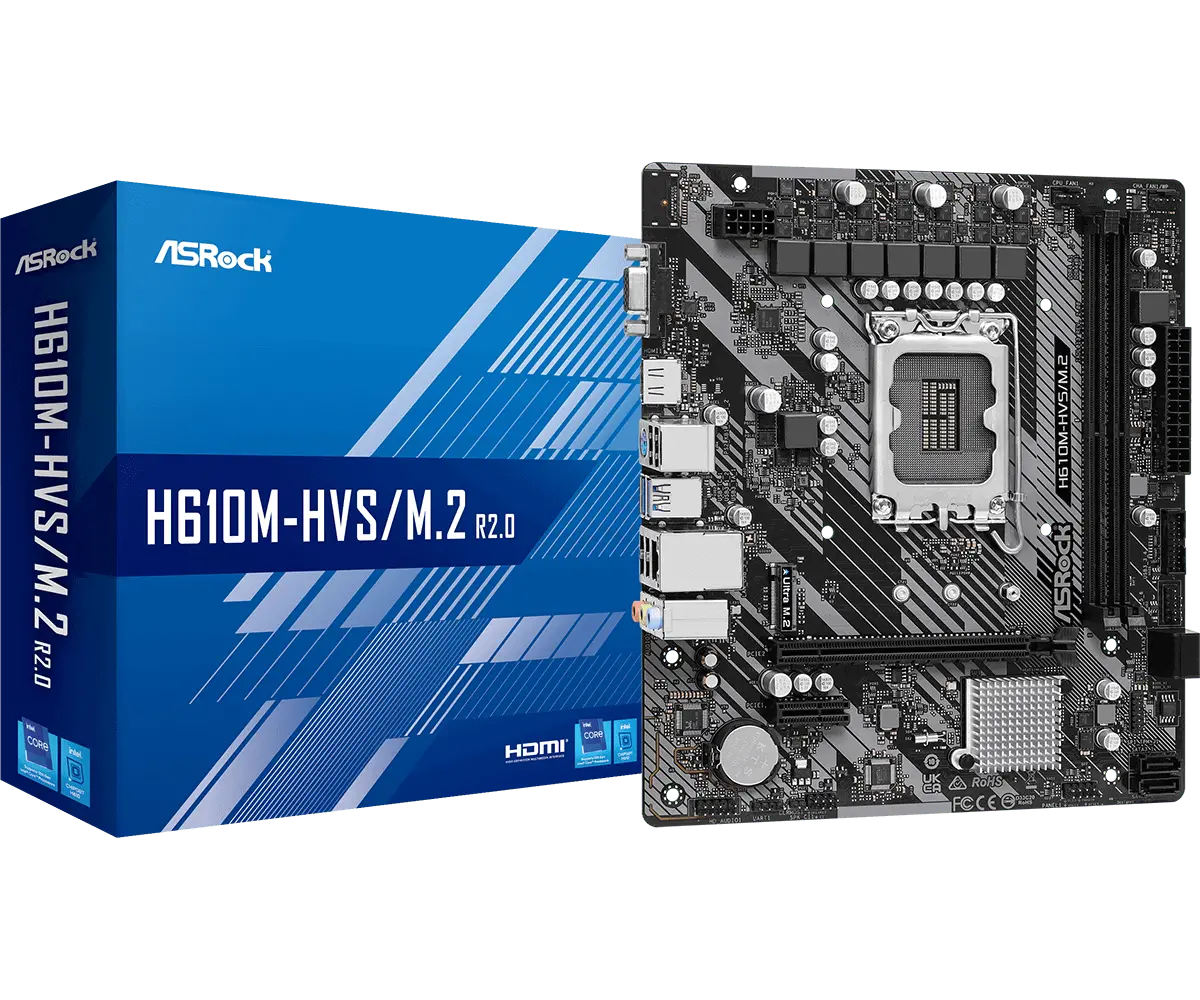

Дънна платка ASRock H610M-HVS/M.2 R2.0 DDR4 – Надеждна производителност за ежедневни задачи
Базирана на чипсет Intel H610, ASRock H610M-HVS/M.2 R2.0 осигурява стабилна работа за офис приложения, сърфиране и леки игри. Поддържа процесори Intel Core от 12-то, 13-то и 14-то поколение, а Micro-ATX форм факторът я прави подходяща за компактни системи.
Ключови Предимства
- Intel LGA1700 — Съвместимост с широк набор от процесори за гъвкаво надграждане.
- DDR4 памет — Два слота за DDR4 до 64 GB – икономично решение за памет.
- Бързо съхранение — Един Hyper M.2 слот (PCIe Gen4 x4) за високоскоростен достъп до данни и четири SATA3 порта.
- Основна свързаност — Gigabit LAN, HDMI, D-Sub и USB 3.2 Gen1 покриват всички базови нужди.
- Надеждна конструкция — Премиум компоненти и 5X Protection гарантират дълготрайна стабилност.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel H610 |
| Тип памет | DDR4 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 1 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 0 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASRock H610M-HVS/M.2 R2.0
- 2 x SATA кабела за данни
- Заден панел за I/O
- Ръководство за потребителя
- Поддържащ CD
