- ASROCK
Τιμή
€85 49 / 167 20 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asrock.com/mb/Intel/B760M-HDVM.2/index.asp#Specification
Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Chipset
- Intel® B760
Expansion slots
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes**
- 4 x SATA3 6.0 Gb/s Connectors
Memory type
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 96GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0
Rear panel I/O
- 2 x Antenna Mounting Points
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Lan
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Form factor
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
OS
- Microsoft Windows® 10 64-bit / 11 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asrock.com/mb/Intel/B760M-HDVM.2/index.asp#Specification |
| Chipset | - Intel® B760 |
| OS | - Microsoft Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | - Supports Intel® Hybrid Technology |
| CPU's supported | - Supports Intel® Turbo Boost Max 3.0 Technology |
| CPU's supported | - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) |
| CPU's supported | - Supports Intel® Thermal Velocity Boost (TVB) |
| CPU's supported | - Supports Intel® Adaptive Boost Technology (ABT) |
| Memory type | - Dual Channel DDR5 Memory Technology |
| Memory type | - 2 x DDR5 DIMM Slots |
| Memory type | - Max. capacity of system memory: 96GB |
| Memory type | - Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| Memory type | - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Rear panel I/O | - 1 x D-Sub Port |
| Rear panel I/O | - 1 x HDMI Port |
| Rear panel I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | - 1 x DisplayPort 1.4 |
| Rear panel I/O | - 2 x Antenna Mounting Points |
| Rear panel I/O | - 1 x USB 3.2 Gen1 Type-C Port |
| Rear panel I/O | - 2 x USB 2.0 Ports |
| Rear panel I/O | - 1 x RJ-45 LAN Port |
| Rear panel I/O | - 3 x USB 3.2 Gen1 Type-A Ports |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | - Dragon RTL8125BG |
| LAN | - Supports Dragon 2.5G LAN Software |
| LAN | - Smart Auto Adjust Bandwidth Control |
| LAN | - Visual User Friendly UI |
| LAN | - Visual Network Usage Statistics |
| LAN | - Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | - User Customized Priority Control |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* |
| Expansion Slots | Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) |
| Graphics | - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
| Graphics | - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Graphics | - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| I/O | - 1 x D-Sub Port |
| I/O | - 1 x HDMI Port |
| I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | - 1 x DisplayPort 1.4 |
| I/O | - 2 x Antenna Mounting Points |
| I/O | - 1 x USB 3.2 Gen1 Type-C Port |
| I/O | - 2 x USB 2.0 Ports |
| I/O | - 1 x RJ-45 LAN Port |
| I/O | - 3 x USB 3.2 Gen1 Type-A Ports |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Storage | - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes** |
| Connectors | - 1 x RGB LED Header* |
| Connectors | - 1 x 24 pin ATX Power Connector |
| Connectors | - 1 x 8 pin 12V Power Connector |
| Connectors | - 1 x Front Panel Audio Connector |
| Connectors | - 1 x Chassis Intrusion and Speaker Header |
| Connectors | - 1 x SPI TPM Header |
| Connectors | - 1 x CPU Fan Connector (4-pin)*** |
| Connectors | - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
| Connectors | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Connectors | - 3 x Addressable LED Headers** |
| Connectors | - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
| Βάρος | 0.77kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Βάρος | 0.77kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

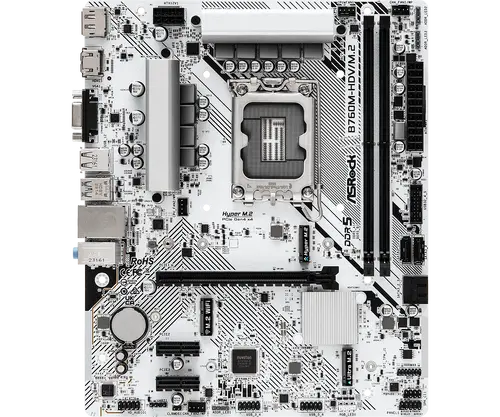

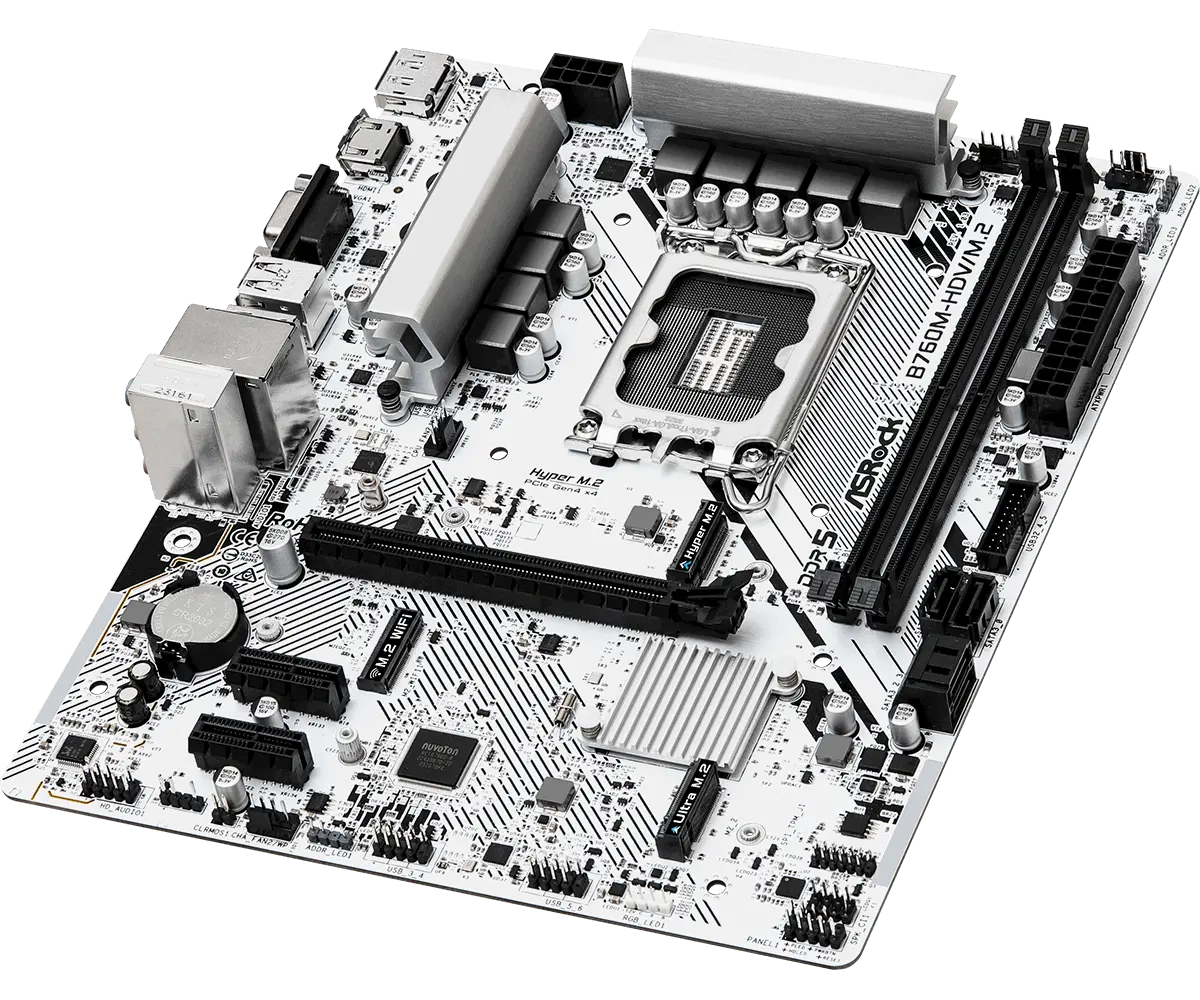

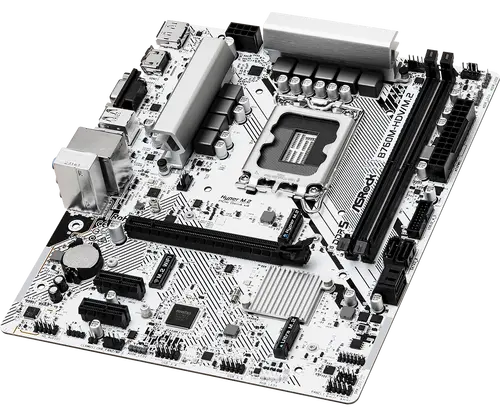

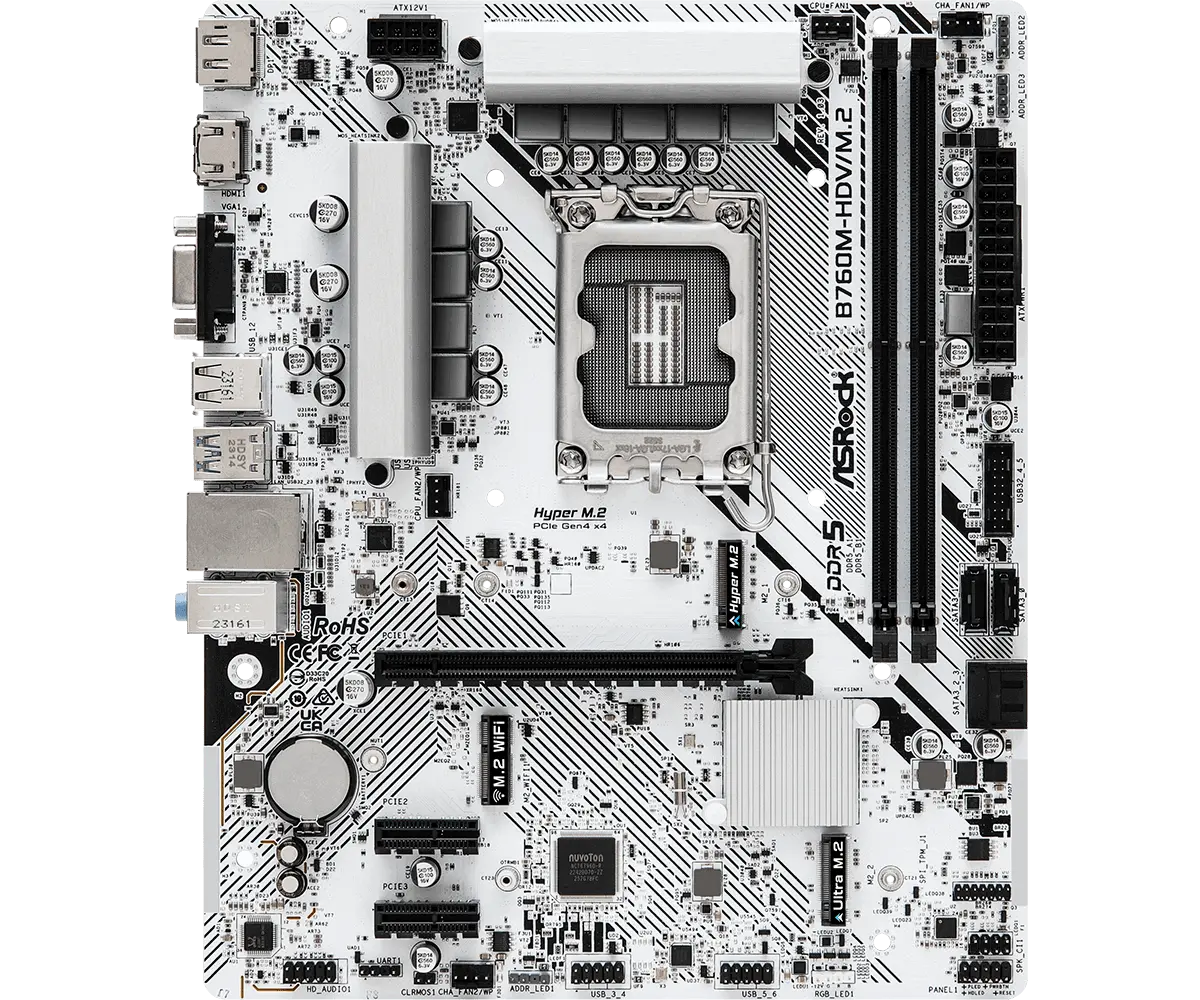

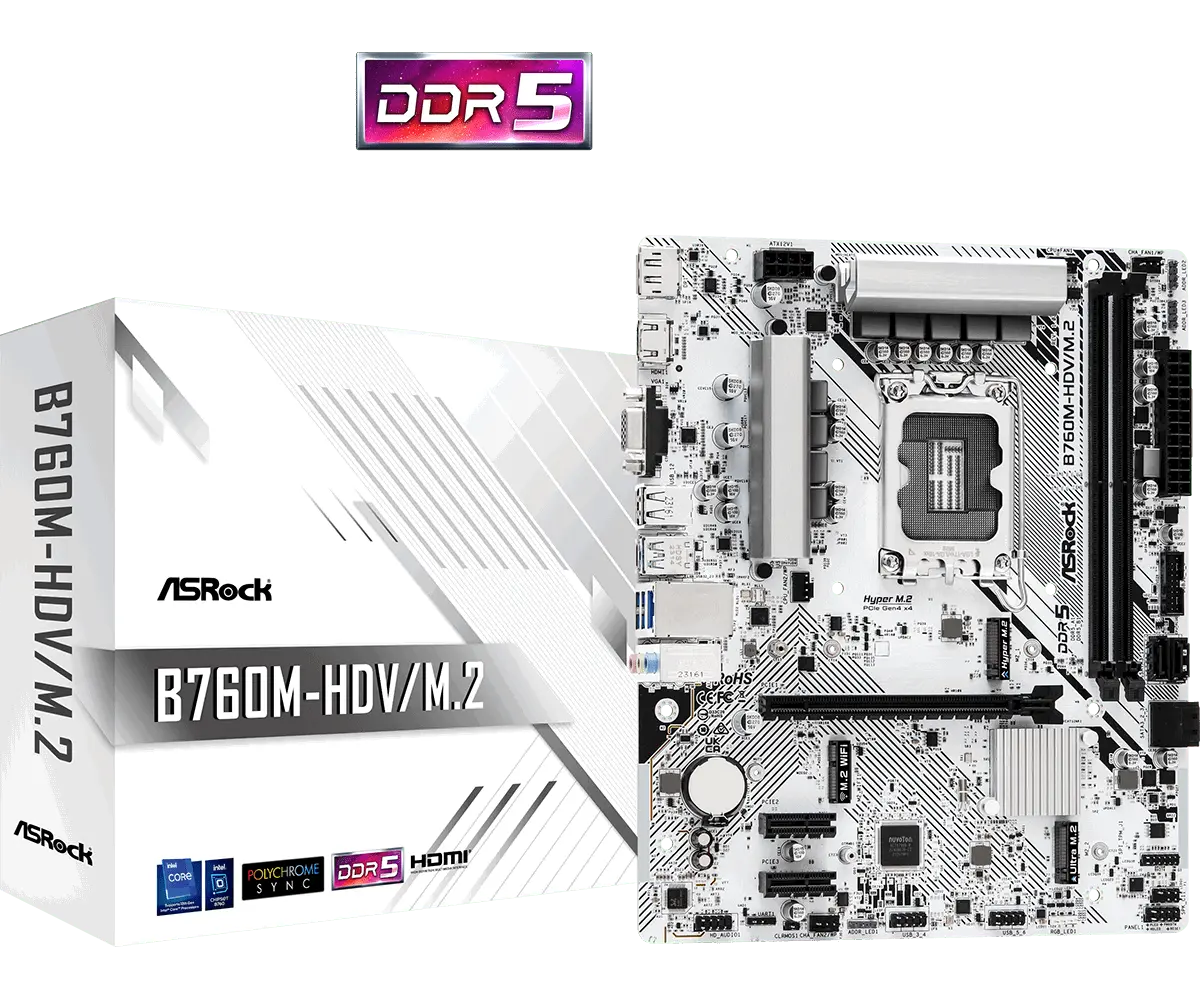

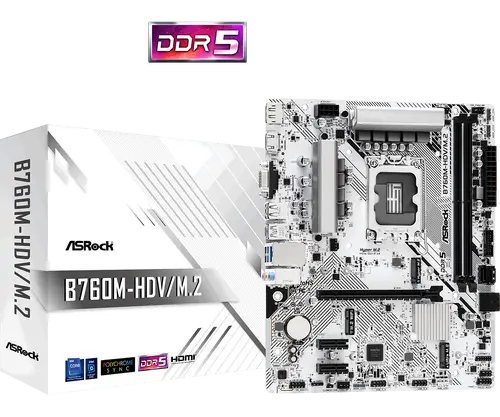

Дънна платка ASRock B760M-HDV/M.2 – LGA1700, DDR5, Micro-ATX
Изградете мощен, но компактен компютър с дънната платка ASRock B760M-HDV/M.2. Проектирана за Intel процесори от 12-то, 13-то и 14-то поколение, тя поддържа бърза DDR5 памет и разполага с PCIe 4.0 x16 слот за модерни видеокарти. Идеален избор за бюджетно ориентирани геймъри и потребители, които искат надеждна производителност без излишни разходи.
Ключови Предимства
- Поддръжка на DDR5 памет — Два слота за DDR5 осигуряват по-висока честотна лента и подобрена отзивчивост при игри и многозадачна работа.
- Бързо съхранение — Един Hyper M.2 слот (PCIe Gen4 x4) за NVMe SSD, плюс 4 SATA3 порта за допълнителни дискове.
- Стабилна свързаност — Gigabit LAN гарантира плавно онлайн игри и стрийминг, а HDMI и DVI-D изходите поддържат множество дисплеи.
- Компактен Micro-ATX форм фактор — Побира се в по-малки кутии, без да жертва основни функции.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 1 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 0 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASRock B760M-HDV/M.2
- Заден панел за I/O
- 2 x SATA кабела
- Ръководство за потребителя
- Поддържащ DVD диск
