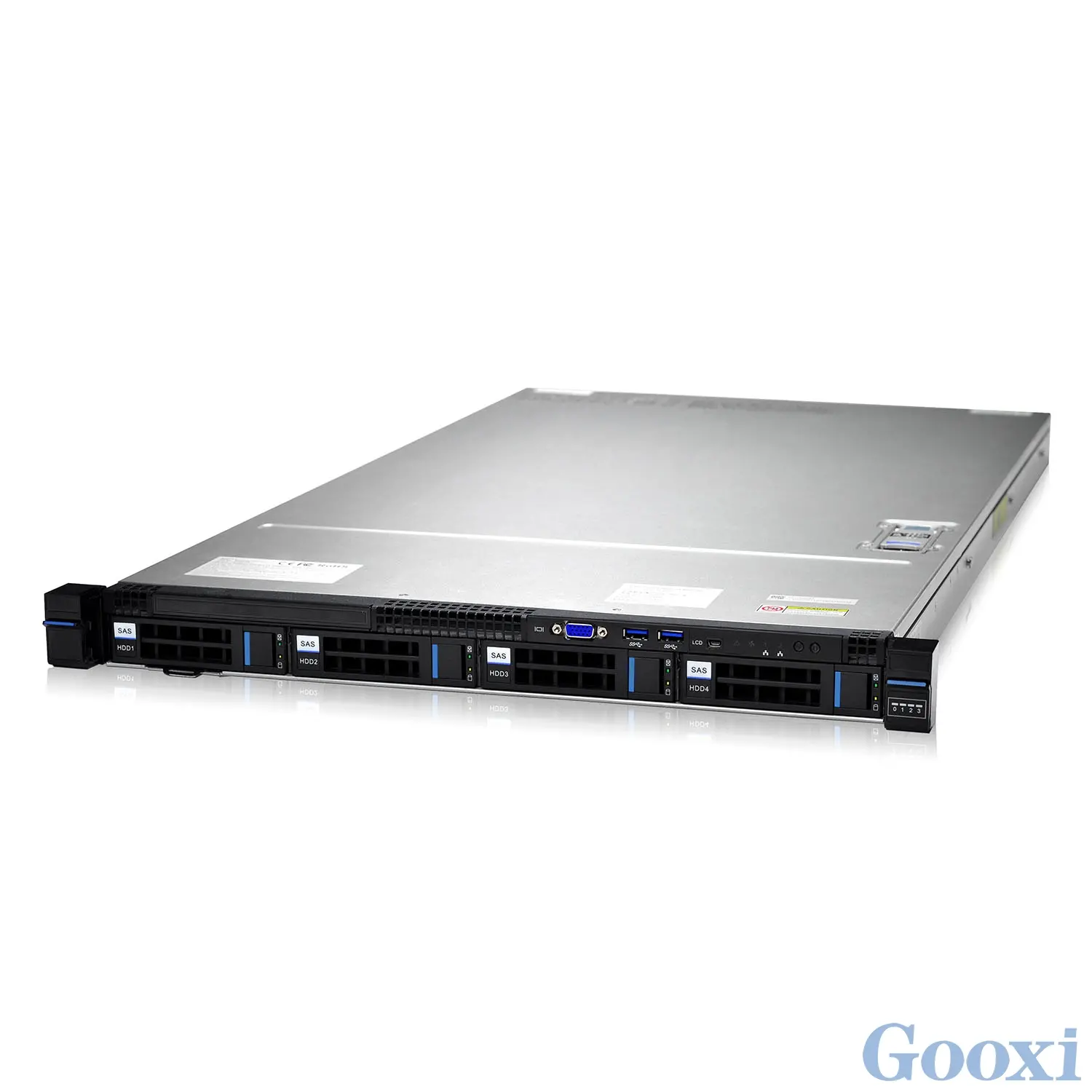

Barebone 1U, 2x LGA3647, 24x θύρες DDR4 DIMM, έως 3TB συνολική RAM, 4x θέσεις HDD 3.5/2.5"

SL101-D04R

Storage Drives

Support 4x 3.5"SATA3.0 HDDs

Dimension

31.8 "*17.1"*1.71" (D*W*H)

Processor

Up to 1 or 2 Intel Skylake LGA3647 Xeon processor with OPA (Omni-Path Architecture) support Maximum TDP 165W as standard and conditional up to 205W

Chipset

Intel® PCH server C621 series chipset

CPU

1 or 2 Intel® Xeon® Scalable Processors with LGA3647 socket, support OPA CPU (Up to TDP 165W, optional TDP 205W)

Memory

DDR4 ECC RDIMMs/LRDIMMs server memory, Memory Frequency 1866/2133/2400/2666MHz
12x DDR4 Channel, each Channel has 2x DIMM, 24x DDR4 slot totally Support 8GB, 16GB, 32GB, 64GB, 128GB, up to 3.0TB (M processors)

Controller

Internal storage controller：PCH support RAID 0/1/10&5, optional 12 Gb RAID 0/1/5/6/10/50/60 (1G/2G/4G cache)
External storage HBA(not RAID)：12 Gb SAS HBA
On-board SSD/SATADOM：1x PCI-e 3.0 x4 M.2 slot、2x Mini SSD Slot(SATA DOM)

HDD Drive

Front：up to 4x hot-swap 3.5/2.5 SAS/SATA (HDD/SSD)
NVMe：up to 4x hot-swap 2.5"NVMe/SAS/SATA(SSD/HDD)

PCI-e

Max 2x PCI-e 3.0 slot x16;
1x non-standard PCI-e x8 SAS/RAID mezzaninecard + 1x non-standard PCI-ex8 NIC mezzanine car

System Fans

N+1 Hot-swap redundant fan system

Network

Embedded 2x 1GbE port, optional 2x 1Gb/4x
1Gb/ 2x 10Gb/ 4x 10Gb/2x 40Gb NIC card

Security

TPM/TCM(optional)；
Chassis Open Intrusion detection；
Locked Front Panel；
Locked Front Cover Plate；

System
Management
Interface

Embedded iBMC Management Module, support
IPMI、SOL、KVM Over IP、Virtualmedia and etc.
Optional LCD Management Module

OS

Microsoft Windows Server、Red Hat Enterprise
Linux、SUSE Linux Enterprise
Server、CentOS、Citrix Xen Server、Vmware
ESXi、Linux KVM、Ubuntu

Virtualization

VMWare ESXi 6.0

Temperature

Standard Operating Temp：5ºC - 35ºC
( w/o direct sunshine)
Expander Operation Temp：5ºC - 40ºC
(Configuration Match Limited)
Transmit Store Temp：-40ºC - 65ºC

Humidity

Operating Temp 30% - 80%(none-condensation)
Store Temp：5% - 95%( none-condensation)
