- ASUS
Τιμή
€195 36 / 382 09 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-wifi-ii/techspec/
Graphics
1 x DisplayPort**
1 x HDMI™port***
Chipset
Intel® B760 Chipset
Expansion slots
Intel® CoreTM Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot
Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Memory type
4 x DIMM slots, Max. 192GB, DDR5 7800+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

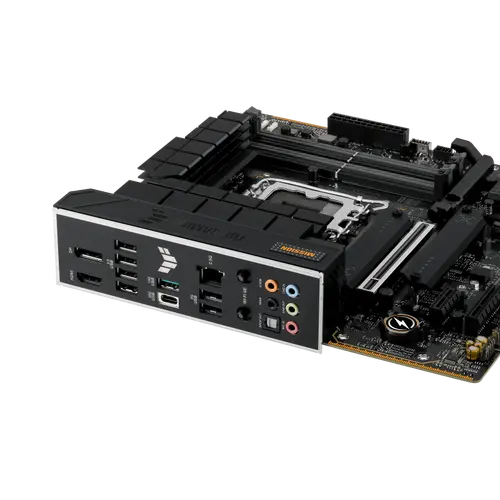

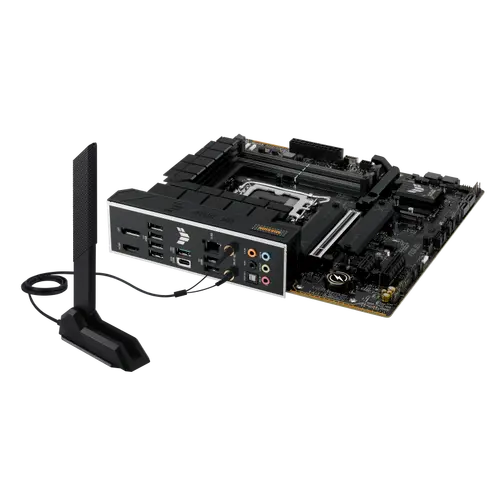

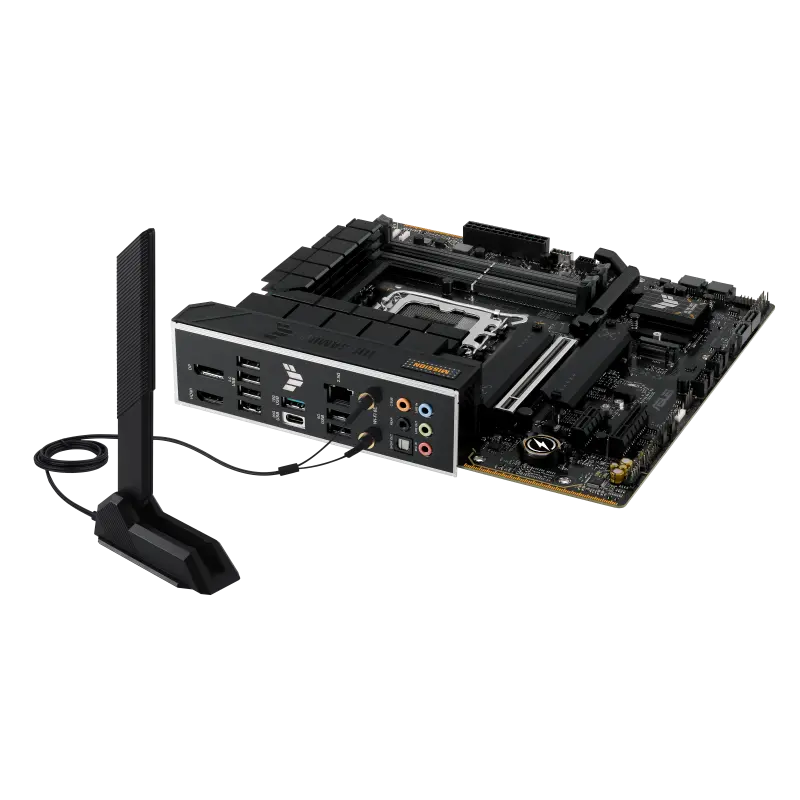

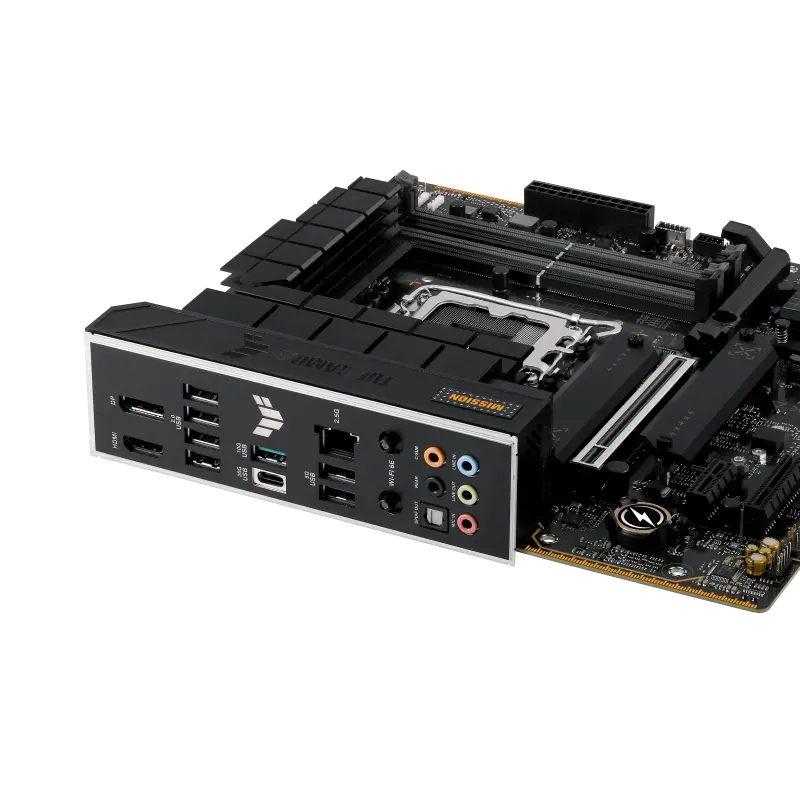

Rear panel I/O
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Connectors
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
Lan
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form factor
mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
OS
Windows® 11, Windows® 10 64-bit
Other
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-wifi-ii/techspec/ |
| Chipset | Intel® B760 Chipset |
| OS | Windows® 11, Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| CPU's supported | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* |
| Memory type | Dual channel memory architecture |
| Memory type | OptiMem II |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) |
| Memory type | 4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* |
| Form Factor | mATX Form Factor |
| Form Factor | 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | - Supports up to 24-Bit/192 kHz playback |
| Audio | - Premium audio capacitors |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio | - Rear optical S/PDIF out port |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x Realtek 2.5Gb Ethernet port |
| Rear panel I/O | 5 x Audio jacks |
| Rear panel I/O | 1 x Optical S/PDIF out port |
| Rear panel I/O | 4 x USB 2.0 ports (4 x Type-A) |
| Rear panel I/O | 1 x Wi-Fi Module |
| Rear panel I/O | 2 x USB 5Gbps ports (2 x Type-A) |
| Rear panel I/O | 1 x USB 20Gbps port (1 x USB Type-C®) |
| Rear panel I/O | 1 x USB 10Gbps port (1 x Type-A) |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| LAN | TUF LANGuard |
| Expansion Slots | 1 x PCIe 3.0 x1 slot |
| Expansion Slots | 1 x PCIe 5.0 x16 slot |
| Expansion Slots | Intel® B760 Chipset |
| Expansion Slots | Intel® CoreTM Processors (14th & 13th & 12th Gen)* |
| Expansion Slots | 1 x PCIe 4.0 x4 slot |
| Graphics | 1 x DisplayPort** |
| Graphics | 1 x HDMI™port*** |
| Other | Wi-Fi 6E |
| Other | Supports 2.4/5/6GHz frequency band* |
| Other | 2x2 Wi-Fi 6E (802.11ax) |
| Other | Bluetooth® v5.3** |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 1 x DisplayPort |
| I/O | 5 x audio jacks |
| I/O | 1 x HDMI™ port |
| I/O | 1 x Realtek 2.5Gb Ethernet port |
| I/O | 1 x Optical S/PDIF out port |
| I/O | 4 x USB 2.0 ports (4 x Type-A) |
| I/O | 1 x Wi-Fi Module |
| I/O | 2 x USB 5Gbps ports (2 x Type-A) |
| I/O | 1 x USB 20Gbps port (1 x USB Type-C®) |
| I/O | 1 x USB 10Gbps port (1 x Type-A) |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) |
| Storage | Intel® CoreTM Processors (14th & 13th & 12th Gen) |
| Storage | Intel® B760 Chipset |
| Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | 1 x Clear CMOS header |
| Connectors | 1 x Front Panel Audio header (AAFP) |
| Connectors | 3 x Addressable Gen 2 headers |
| Connectors | 1 x 4-pin CPU OPT Fan header |
| Connectors | 1 x 4-pin AIO Pump header |
| Connectors | 3 x 4-pin Chassis Fan headers |
| Connectors | 1 x 20-3 pin System Panel header with Chassis intrude function |
| Connectors | 1 x Thunderbolt™ (USB4®) header |
| Connectors | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Connectors | 3 x M.2 slots (Key M) |
| Connectors | 1 x USB 10Gbps connector (supports USB Type-C® ) |
| Connectors | 2 x 8-pin +12V Power connectors |
| Connectors | 3 x USB 2.0 headers support 5 additional USB 2.0 ports |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 96 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 2 |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

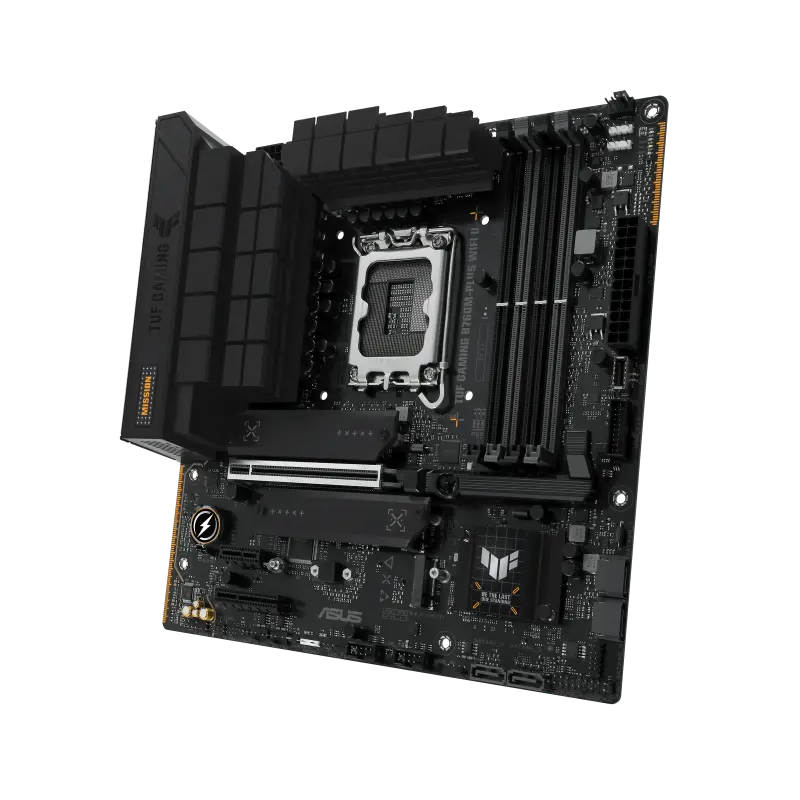

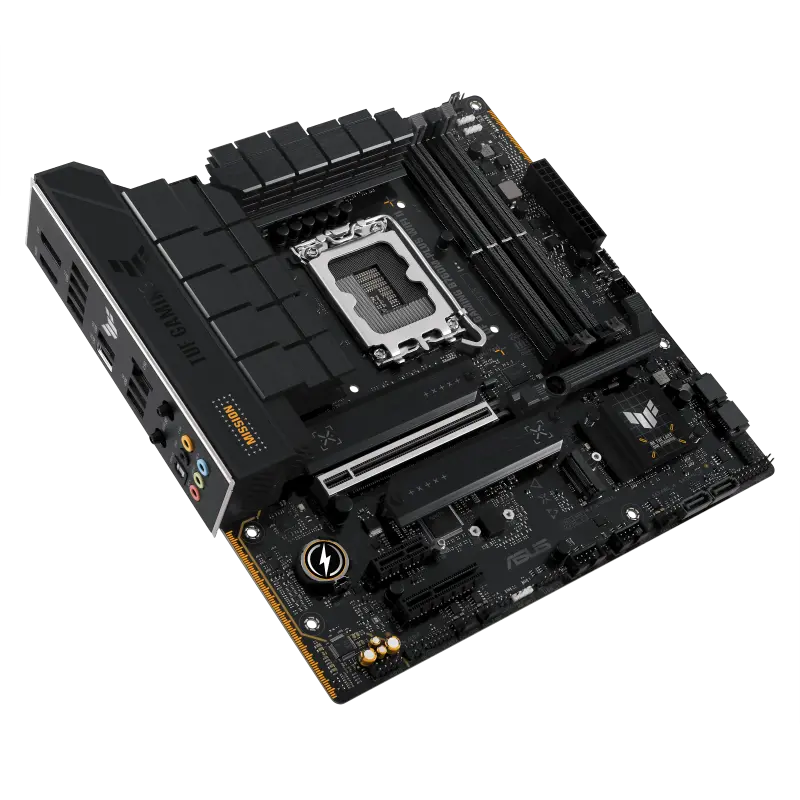

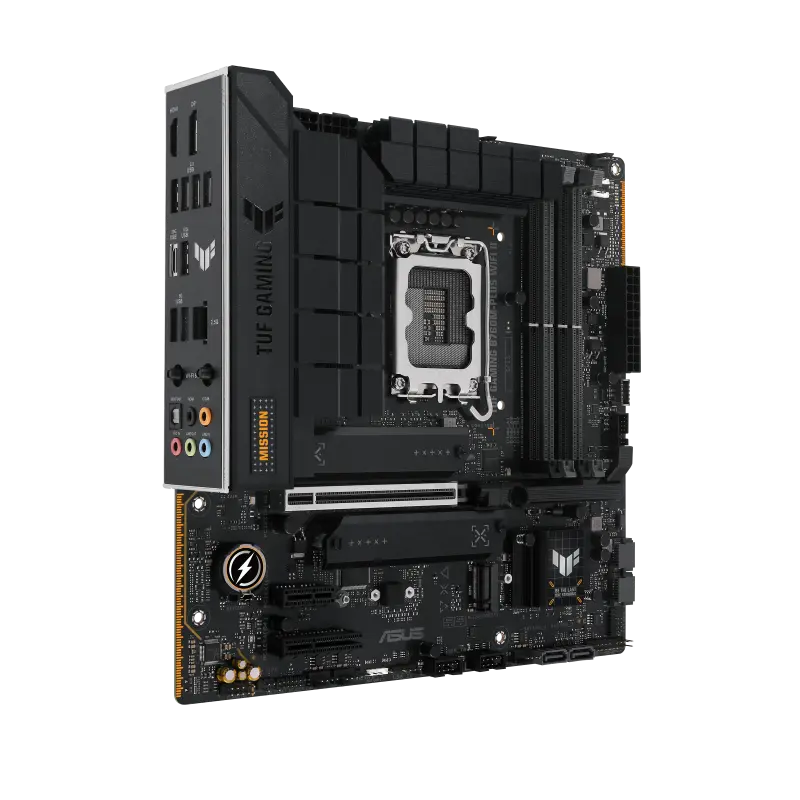

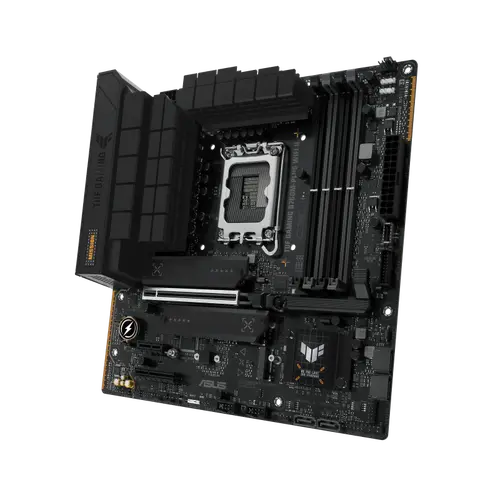

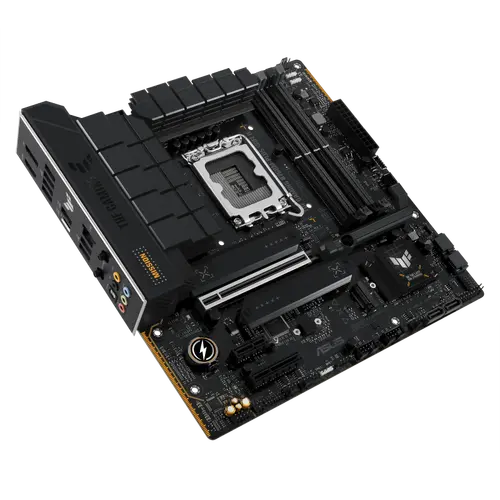

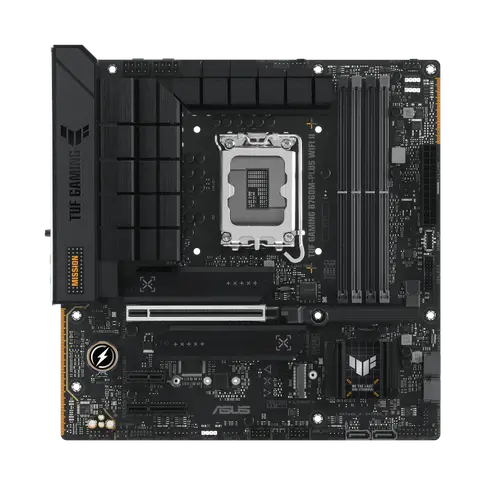

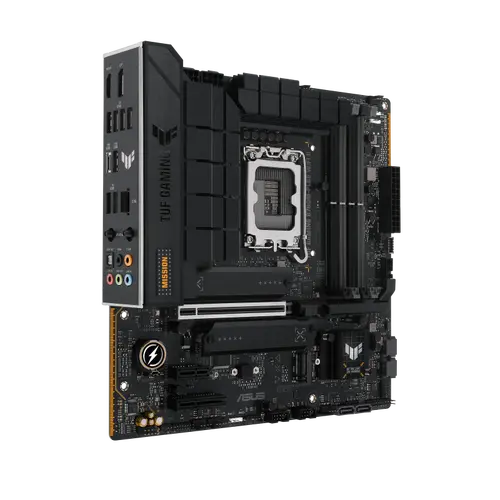

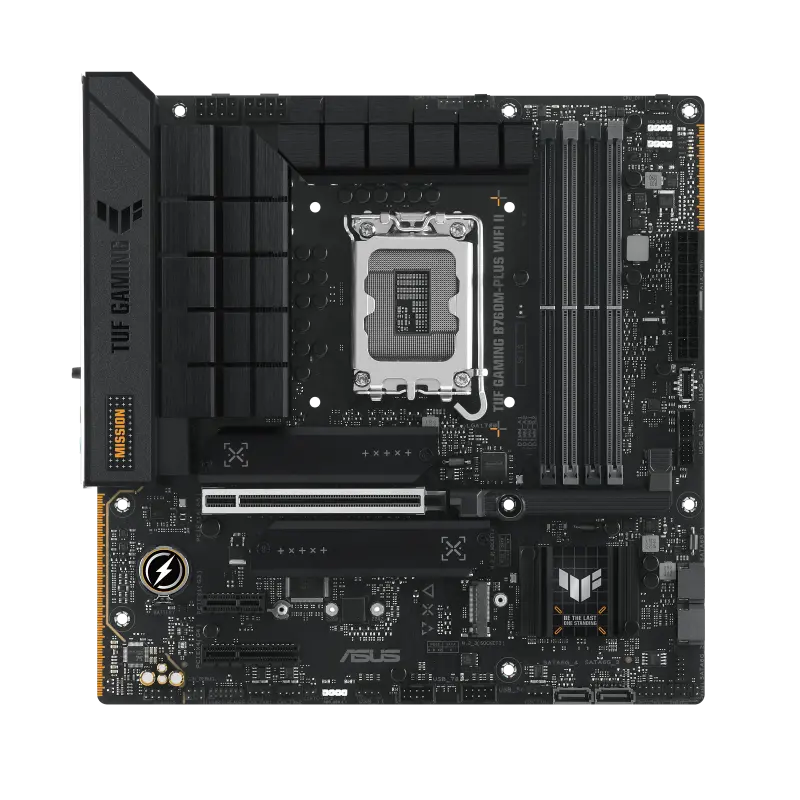

ASUS TUF GAMING B760M-PLUS WIFI II – Издръжлива Micro-ATX дънна платка с DDR5 и Wi-Fi 6E
Създадена за геймъри и строители на компютри, които изискват безупречна стабилност, ASUS TUF GAMING B760M-PLUS WIFI II предлага военна издръжливост, поддръжка на DDR5 памет и вграден Wi-Fi 6E. Компактният Micro-ATX форм фактор позволява изграждане на мощни системи в малки корпуси без компромис с производителността.
Ключови Предимства
- Военна Издръжливост — TUF компоненти, усилени PCIe и слотове за памет и цялостно охлаждане гарантират дълготрайна надеждност при натоварване.
- Поддръжка на DDR5 — Отключете по-високи скорости на трансфер и подобрена многозадачност с най-новата DDR5 технология.
- Вграден Wi-Fi 6E — Насладете се на изключително ниска латентност и високоскоростна безжична връзка с Wi-Fi 6E и Bluetooth 5.3.
- Стабилно Захранване — 12+1 DrMOS фази и 6-слойна PCB осигуряват стабилна мощност за Intel процесори от 12-то, 13-то и 14-то поколение.
- Пълна Свързаност — Два M.2 слота (един PCIe 4.0 x4), 2.5 Gb Ethernet, USB-C 20Gbps преден панел и HDMI 2.1/DisplayPort 1.4 изходи.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 2 (Dual Channel) |
| Максимална памет | 96 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 (PCIe 5.0 x16) |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 (отзад) + 1 (преден панел) |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASUS TUF GAMING B760M-PLUS WIFI II
- 2 x SATA 6Gb/s кабела
- Wi-Fi антена
- Заден панел I/O
- Ръководство за потребителя
