- GIGABYTE
Τιμή
€211 91 / 414 46 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.gigabyte.com/Motherboard/X870-GAMING-WIFI6#kf
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon™ Graphics support
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
CPU's supported
AMD Socket AM5, support for
-AMD Ryzen™ 9000 Series Processors/
-AMD Ryzen™ 8000 Series Processors/
-AMD Ryzen™ 7000 Series Processors
Chipset
AMD X870
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs
-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector.
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5
8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200/ 4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Rear panel I/O
iTE® I/O Controller Chip
Connectors
Internal I/O Connectors
-1 x 24-pin ATX main power connector
-1 x 8-pin ATX 12V power connector
-1 x 4-pin ATX 12V power connector
-1 x CPU fan header
-1 x CPU fan/water cooling pump header
-4 x system fan headers
-3 x addressable RGB Gen2 LED strip headers
-1 x RGB LED strip header
-4 x SATA 6Gb/s connectors
-3 x M.2 Socket 3 connectors
-1 x front panel header
-1 x front panel audio header
-1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
-1 x USB 3.2 Gen 1 header
-4 x USB 2.0/1.1 headers
-1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
-1 x reset jumper
-1 x Clear CMOS jumper

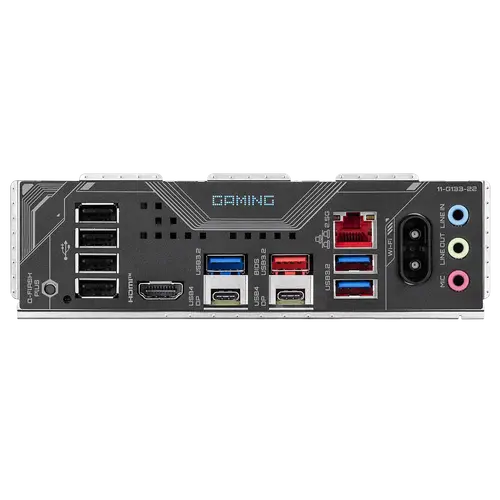

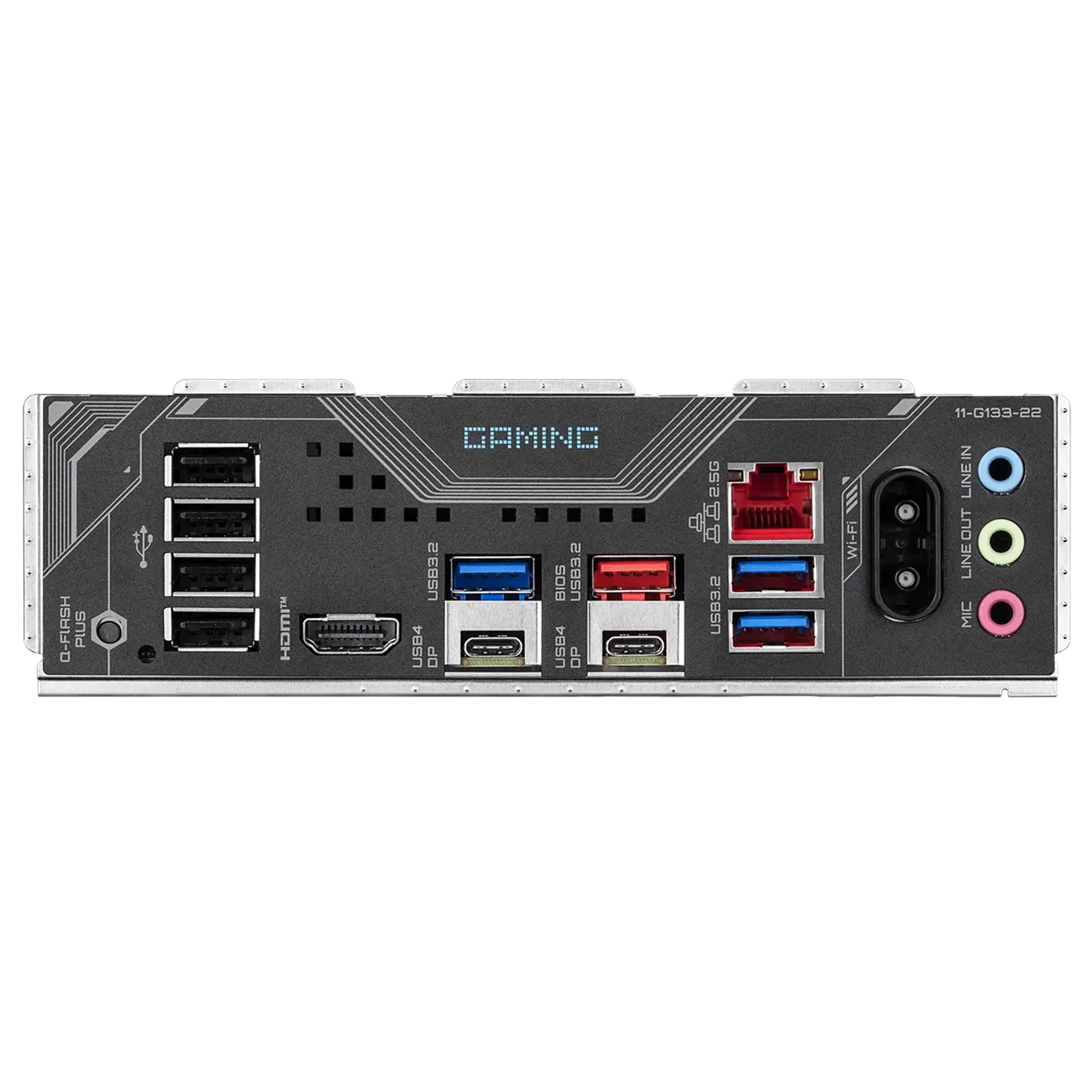

Back Panel Connectors
-1 x Q-Flash Plus button
-2 x SMA antenna connectors (2T2R)
-1 x HDMI port (Note)
-2 x USB4® USB Type-C® ports (DisplayPort (Note))
-1 x USB 3.2 Gen 2 Type-A port (red)
-3 x USB 3.2 Gen 1 ports
-4 x USB 2.0/1.1 ports
-1 x RJ-45 port
-3 x audio jacks
(Note) Actual support may vary by CPU.
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Realtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/X870-GAMING-WIFI6#kf |
| Chipset | AMD X870 |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5, support for |
| CPU's supported | -AMD Ryzen™ 9000 Series Processors/ |
| CPU's supported | -AMD Ryzen™ 8000 Series Processors/ |
| CPU's supported | -AMD Ryzen™ 7000 Series Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory type | (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Memory type | Support for DDR5 |
| Memory type | 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules |
| Form Factor | 30.5cm x 24.4cm |
| Form Factor | ATX Form Factor |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | Chipset |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU |
| Expansion Slots | - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Expansion Slots | -AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| Expansion Slots | -AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Expansion Slots | -AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
| Wireless | - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands |
| Wireless | - BLUETOOTH 5.3 |
| Wireless | - Support for 11ax 80MHz wireless standard |
| Wireless | (Actual data rate may vary depending on environment and equipment.) |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0) |
| Graphics | * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | (Graphics specifications may vary depending on CPU support.) |
| Graphics | * Support for DisplayPort 1.4 version and HDR. |
| Graphics | ** Support native HDMI 2.1 TMDS compatible ports. |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller |
| Graphics | - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz |
| Features | Support for Q-Flash Plus |
| Features | Support for Q-Flash |
| Features | Support for GIGABYTE Control Center (GCC) |
| Features | * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Features | Support for Smart Backup |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | iTE® I/O Controller Chip |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| Storage | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Storage | 4 x SATA 6Gb/s connectors |
| Storage | * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs |
| Storage | -AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| Storage | -AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | -AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs |
| Storage | 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs |
| Storage | * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector. |
| Connectors | Back Panel Connectors |
| Connectors | Internal I/O Connectors |
| Connectors | (Note) Actual support may vary by CPU. |
| Connectors | -1 x 24-pin ATX main power connector |
| Connectors | -1 x 8-pin ATX 12V power connector |
| Connectors | -1 x 4-pin ATX 12V power connector |
| Connectors | -1 x CPU fan header |
| Connectors | -1 x CPU fan/water cooling pump header |
| Connectors | -4 x system fan headers |
| Connectors | -3 x addressable RGB Gen2 LED strip headers |
| Connectors | -1 x RGB LED strip header |
| Connectors | -4 x SATA 6Gb/s connectors |
| Connectors | -3 x M.2 Socket 3 connectors |
| Connectors | -1 x front panel header |
| Connectors | -1 x front panel audio header |
| Connectors | -1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
| Connectors | -1 x USB 3.2 Gen 1 header |
| Connectors | -4 x USB 2.0/1.1 headers |
| Connectors | -1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Connectors | -1 x reset jumper |
| Connectors | -1 x Clear CMOS jumper |
| Connectors | -1 x Q-Flash Plus button |
| Connectors | -2 x SMA antenna connectors (2T2R) |
| Connectors | -1 x HDMI port (Note) |
| Connectors | -2 x USB4® USB Type-C® ports (DisplayPort (Note)) |
| Connectors | -1 x USB 3.2 Gen 2 Type-A port (red) |
| Connectors | -3 x USB 3.2 Gen 1 ports |
| Connectors | -4 x USB 2.0/1.1 ports |
| Connectors | -1 x RJ-45 port |
| Connectors | -3 x audio jacks |
| Interface | CPU+ASMedia USB4® controller |
| Interface | - 2 x USB4® USB Type-C® ports on the back panel CPU |
| Interface | - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| Interface | - 1 x USB 3.2 Gen 1 port on the back panel Chipset+2 USB 2.0 Hubs |
| Interface | - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Interface | Chipset |
| Interface | - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header |
| Interface | - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Interface | - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM5 |
| Form Factor | ATX |
| Chipset | AMD X870 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 192 |
| M.2 Slots (count) | 4 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 7 |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 2 |
| RGB Lighting | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
Дънна платка GIGABYTE X870 GAMING WF6 за AM5
Извлечете максимума от процесорите AMD Ryzen 7000/8000/9000 с дънната платка GIGABYTE X870 GAMING WF6. Базирана на чипсет AMD X870, тази ATX платка предлага изключителна производителност за игри с поддръжка на PCIe 5.0, ултра-бърза DDR5 памет и свързаност от ново поколение, включително Wi-Fi 7 и 2.5GbE LAN.
Ключови Предимства
- Платформа AMD AM5 — Поддържа най-новите AMD Ryzen процесори с PCIe 5.0 за графики и съхранение.
- DDR5 памет — Четири слота DDR5 с поддръжка на овърклок за светкавични скорости.
- Wi-Fi 7 и 2.5GbE LAN — Най-съвременна безжична и жична мрежа за игри без забавяне.
- Разширено охлаждане — Удължени радиатори и термични предпазители за M.2 поддържат компонентите хладни при натоварване.
- RGB Fusion — Персонализируемо RGB осветление с вградени конектори за адресируеми LED.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | ATX |
| Чипсет | AMD X870 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| M.2 слотове | 4 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 2 |
| RGB подсветка | Да |
Какво има в кутията

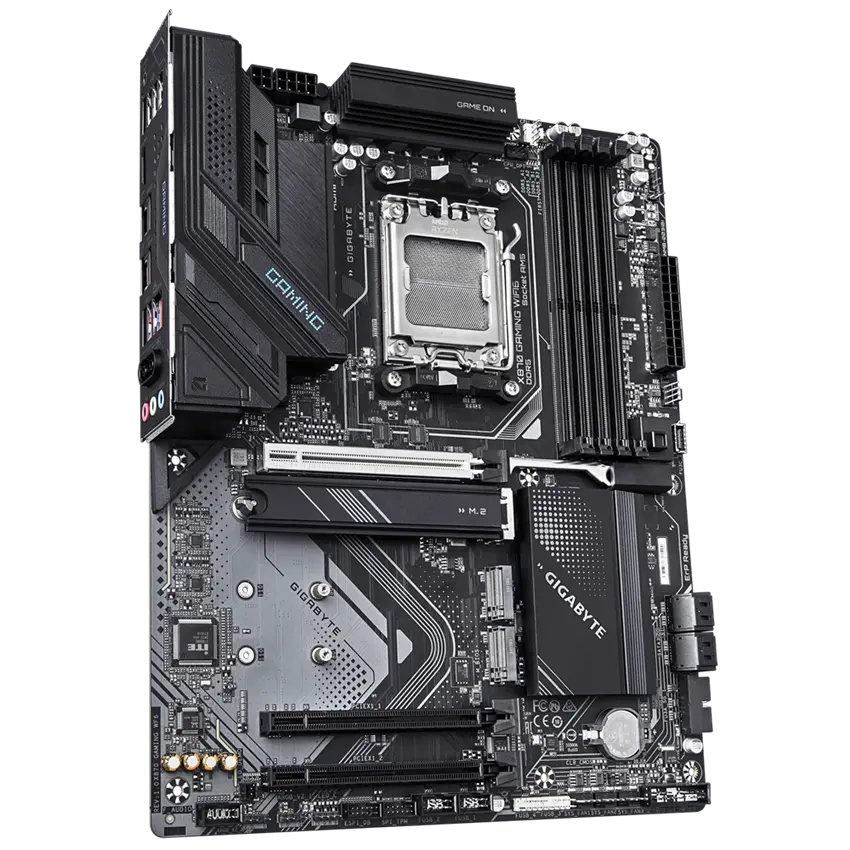

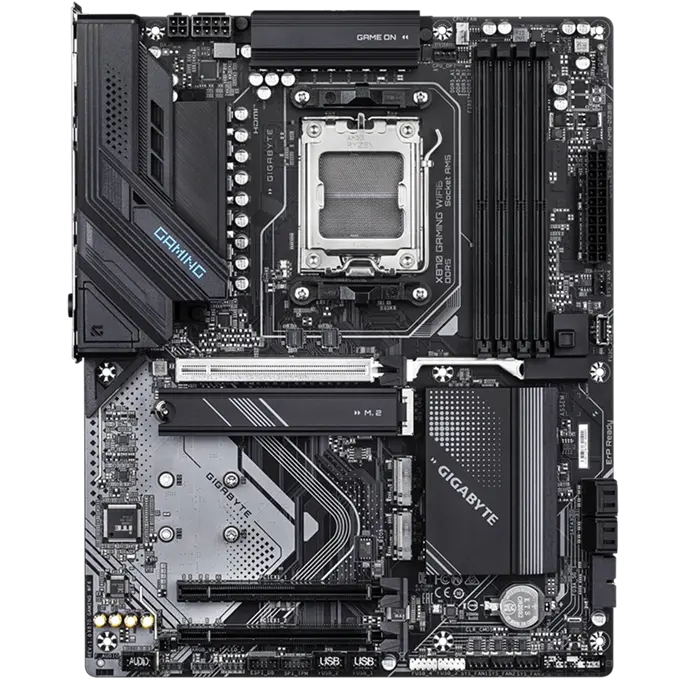

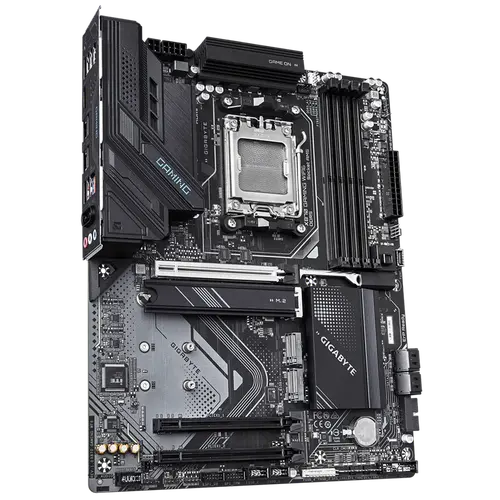

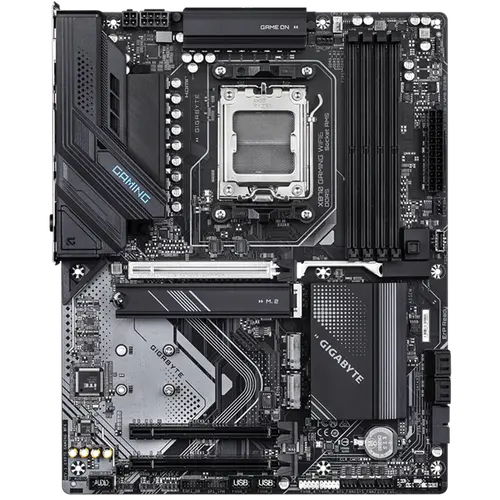

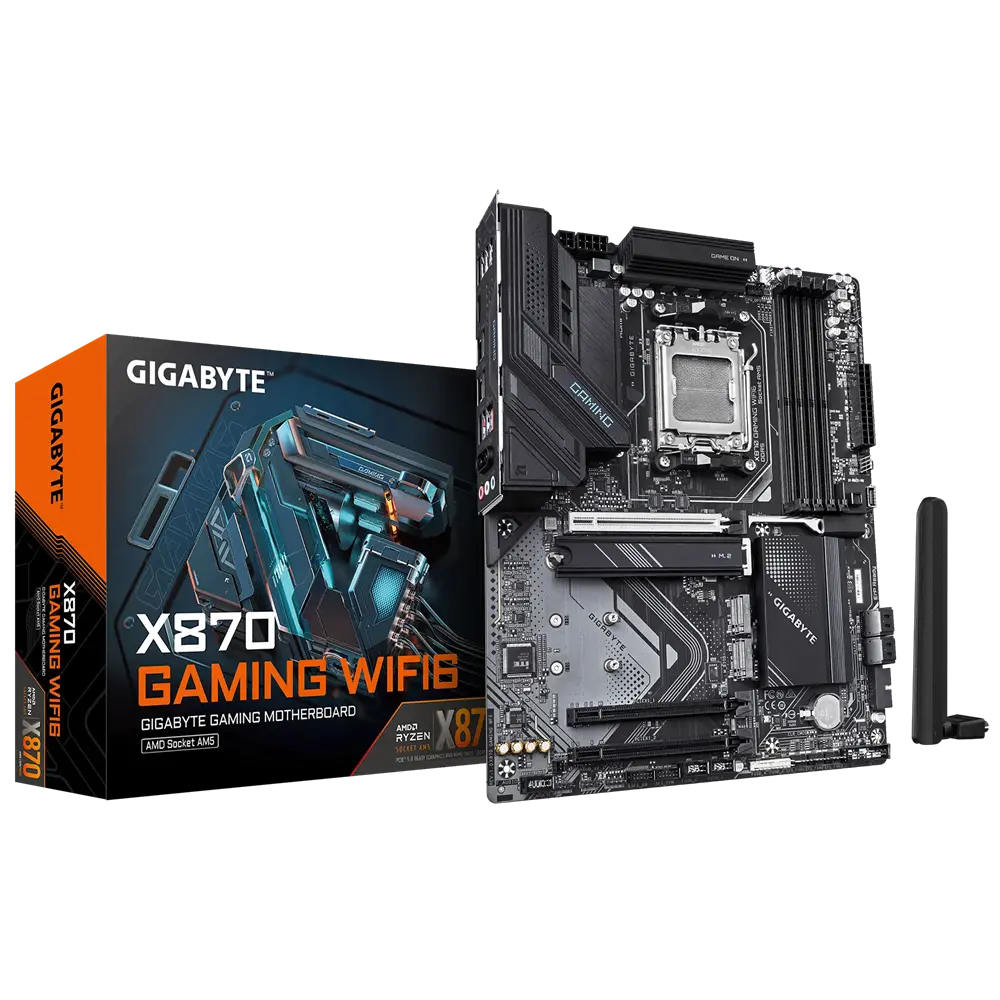

- Дънна платка GIGABYTE X870 GAMING WF6
- Ръководство за потребителя
- DVD с драйвери
- 2 x SATA кабела
- I/O панел
- Wi-Fi антена
- M.2 винтове
Εγγραφείτε στο Newsletter μας
Εγγραφείτε στο online newsletter μας και μάθετε πρώτοι για προσφορές και νέα προϊόντα.
ΕΙΚ: 203294915 · Αρ. ΦΠΑ: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Τρόπος πληρωμής
- Αντικαταβολή
- Πιστωτική/Χρεωστική κάρτα
- Τραπεζική μεταφορά
- Με δόσεις ΠΒ Προσωπικά Οικονομικά
