- MSI
Τιμή
€127 00 / 248 39 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.msi.com/Motherboard/B840-GAMING-PLUS-WIFI/Overview
Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz
CPU's supported
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B840
Expansion slots
5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
* PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot.
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
4x SATA 6G
M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor)
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only

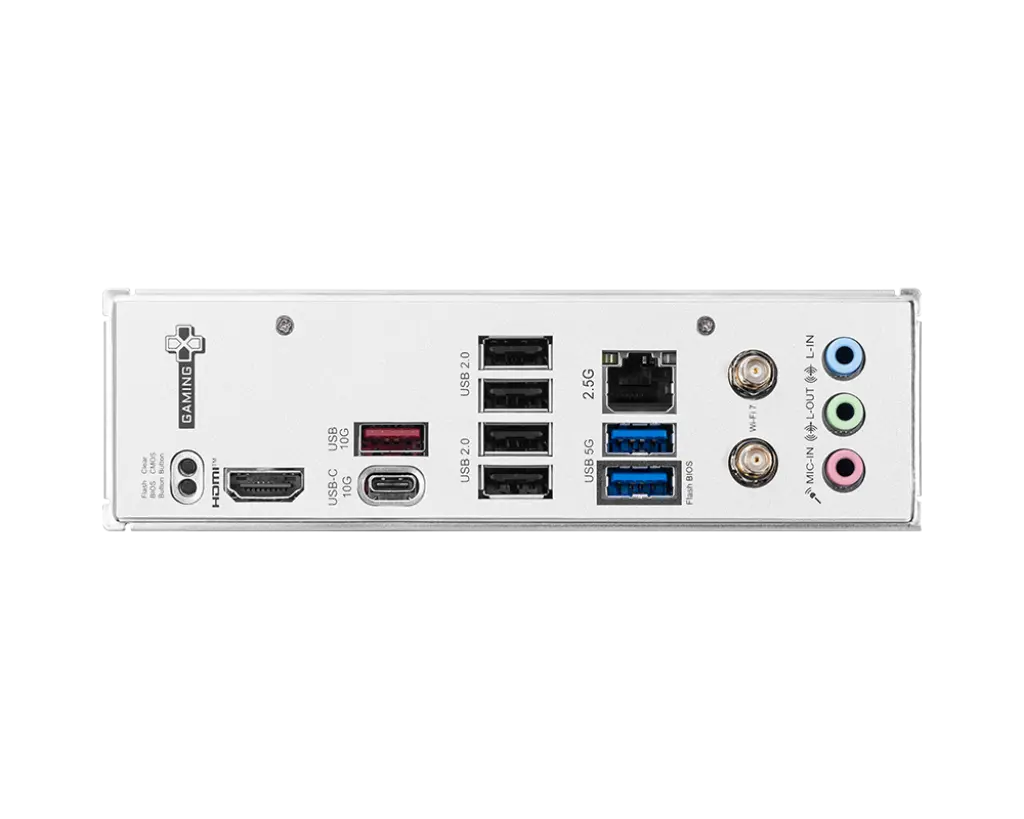

Rear panel I/O
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
*Please refer to the manual for M.2 SSD heatsink restrictions.
Connectors
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Audio
Realtek® ALC897
7.1-Channel High Definition Audio
Lan
Realtek® 8125BG 2.5G LAN
Wireless
Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Bluetooth
Supports Bluetooth® 5.4**, MLO, 4KQAM
Form factor
ATX
243.84mmx304.8mm
OS
Support for Windows® 11 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.msi.com/Motherboard/B840-GAMING-PLUS-WIFI/Overview |
| Chipset | AMD B840 |
| OS | Support for Windows® 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory type | Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Memory type | Ryzen™ 9000 Series Processors max. overclocking frequency |
| Memory type | • 1DPC 1R Max speed up to 8000+ MT/s |
| Memory type | • 1DPC 2R Max speed up to 6400+ MT/s |
| Memory type | • 2DPC 1R Max speed up to 6400+ MT/s |
| Memory type | • 2DPC 2R Max speed up to 4800+ MT/s |
| Memory type | Supports AMD POR Speed and JEDEC Speed |
| Memory type | Supports Memory Overclocking and AMD EXPOTM |
| Memory type | Supports CUDIMM, Clock Driver bypass mode only |
| Form Factor | ATX |
| Form Factor | 243.84mmx304.8mm |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 |
| Rear panel I/O | 2x USB 5Gbps Type A (Rear) |
| Rear panel I/O | 2x USB 5Gbps Type A (Front) |
| Rear panel I/O | 4x USB 2.0 (Rear) |
| Rear panel I/O | 4x USB 2.0 (Front) |
| Rear panel I/O | 1x USB 5Gbps Type C (Front) |
| Rear panel I/O | 1x USB 10Gbps Type A (Rear) |
| Rear panel I/O | 1x USB 10Gbps Type C (Rear) |
| Rear panel I/O | *Please refer to the manual for M.2 SSD heatsink restrictions. |
| LAN | Realtek® 8125BG 2.5G LAN |
| Expansion Slots | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | 5x PCI-E x16 slot |
| Expansion Slots | PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset) |
| Expansion Slots | PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E1 slot |
| Expansion Slots | • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) |
| Expansion Slots | • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Expansion Slots | • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Expansion Slots | * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot. |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Wi-Fi 7 Solution |
| Wireless | Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Graphics | 1x HDMI™ |
| Graphics | Support HDMITM 2.1, maximum resolution of 4K 60Hz |
| Graphics | Support HDMI™ 2.1, maximum resolution of 4K 60Hz |
| Features | 4x EZ Debug LED |
| I/O | 2x USB 5Gbps Type A (Rear) |
| I/O | 2x USB 5Gbps Type A (Front) |
| I/O | 4x USB 2.0 (Rear) |
| I/O | 4x USB 2.0 (Front) |
| I/O | 1x USB 5Gbps Type C (Front) |
| I/O | 1x USB 10Gbps Type A (Rear) |
| I/O | 1x USB 10Gbps Type C (Rear) |
| I/O | *Please refer to the manual for M.2 SSD heatsink restrictions. |
| Storage | 4x SATA 6G |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | 2x M.2 |
| Storage | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Storage | M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices |
| Storage | M2_2 slot |
| Storage | • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) |
| Storage | • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Storage | • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor) |
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x Power Connector(CPU_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x Com Port (JCOM) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x USB 5Gbps Type A ports |
| Connectors | 1x Tuning Controller connector(JDASH) |
| Connectors | 2x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 4x System Fan |
| Connectors | 1x Combo Fan (Pump_Sys Fan) |
| Connectors | 1x EZ Conn-header (JAF_1) |
| Connectors | 1x USB 5Gbps Type C ports |
| Interface | Clear CMOS Button |
| Interface | USB 10Gbps (Type-A) |
| Interface | USB 2.0 |
| Interface | 2.5G LAN |
| Interface | Wi-Fi / Bluetooth |
| Interface | Audio connectors |
| Interface | Flash BIOS Button |
| Interface | HDMI™ 2.1 Port |
| Interface | USB 10Gbps (Type-C) |
| Interface | USB 5Gbps (Type-A) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM5 |
| Form Factor | ATX |
| Chipset | AMD B840 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 192 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

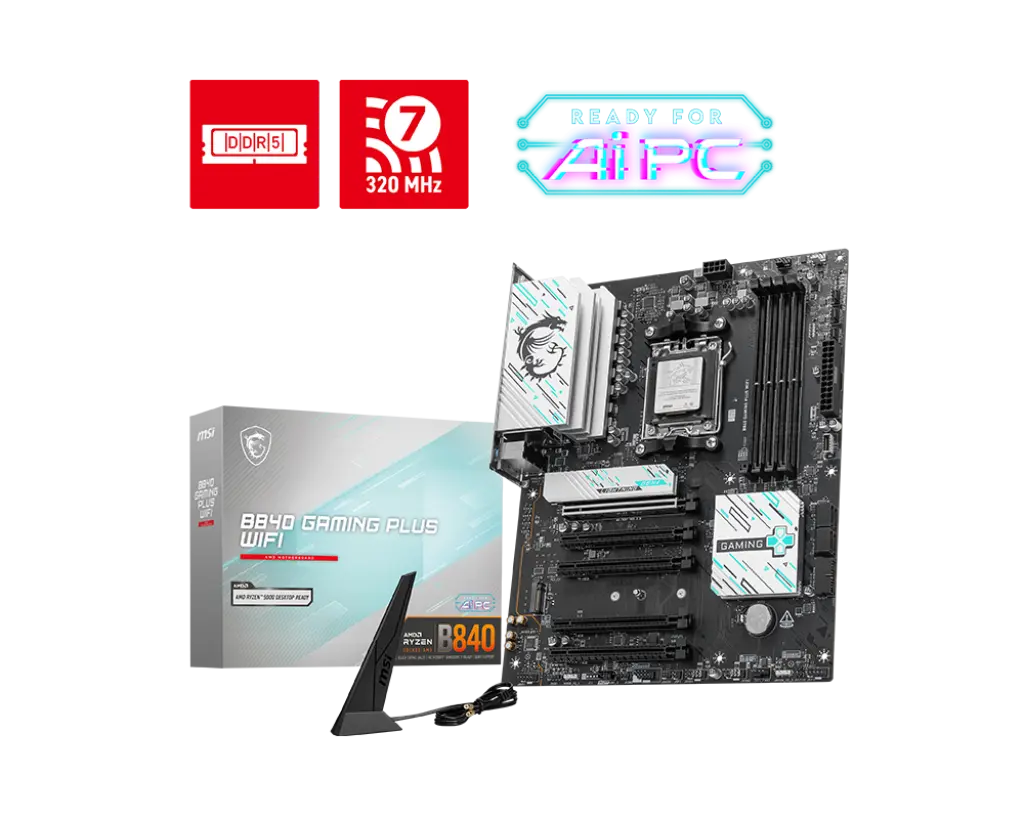

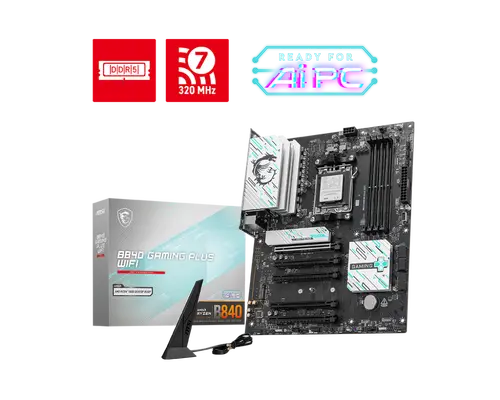

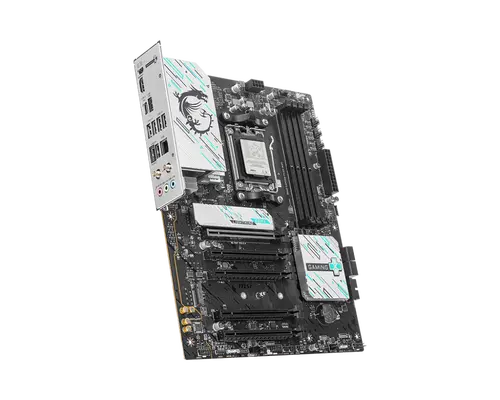

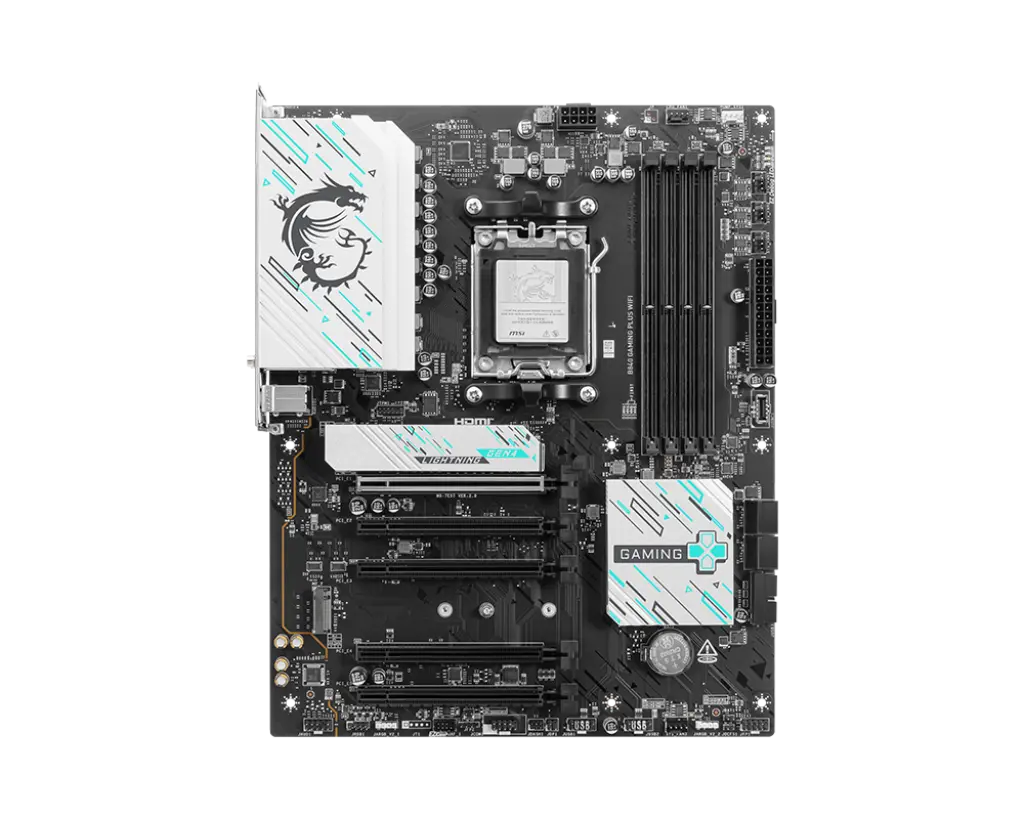

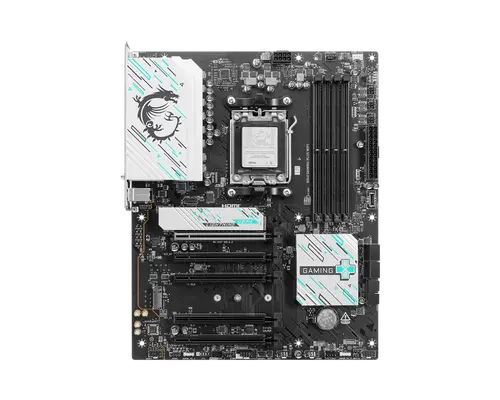

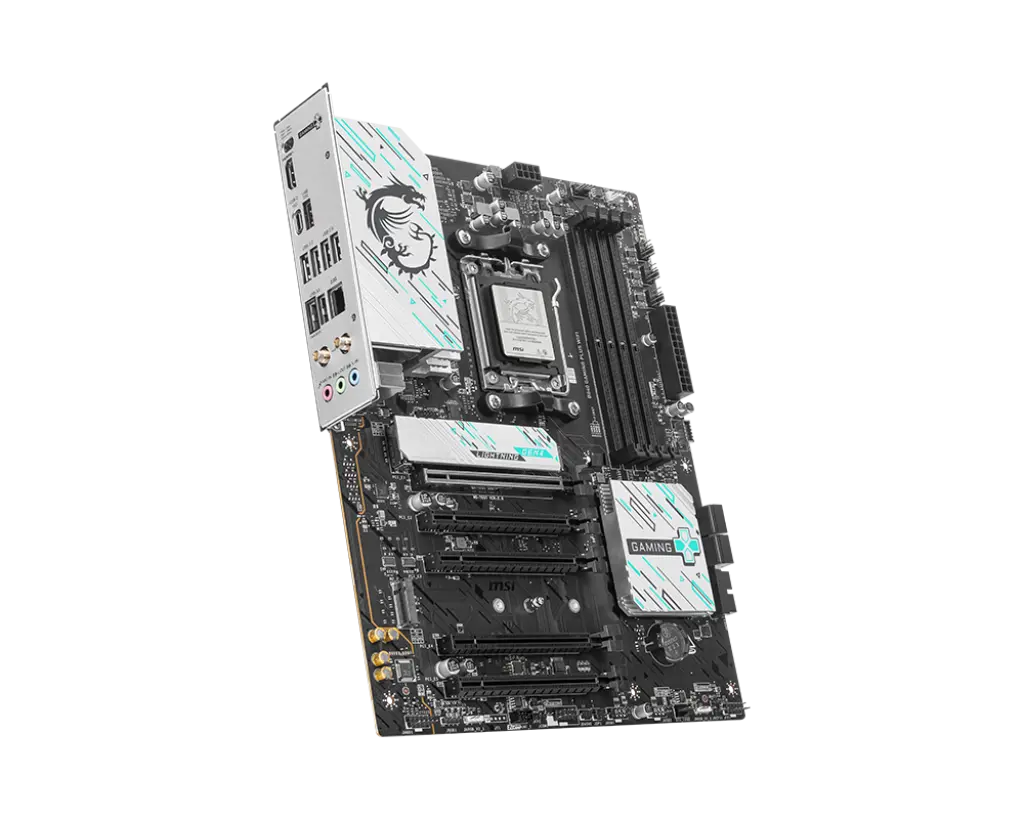

Дънна платка MSI B840 GAMING PLUS WIFI (AM5)
Освободете пълния потенциал на вашия AMD Ryzen процесор с MSI B840 GAMING PLUS WIFI – създадена за геймъри и потребители, които изискват надеждна производителност и безпроблемна свързаност. С поддръжка на DDR5 памет, PCIe 4.0 и вграден Wi-Fi, тази ATX дънна платка осигурява солидна основа за високопроизводителна гейминг система.
Ключови Предимства
- AMD AM5 сокет — Поддържа най-новите AMD Ryzen 7000/8000/9000 серии процесори за авангардна производителност.
- DDR5 памет — Двуканална DDR5 с възможност за овърклок осигурява бърз достъп до данни и бъдеща устойчивост.
- Вграден Wi-Fi 6E — Интегриран Wi-Fi 6E и Bluetooth 5.3 осигуряват ниска латентност за онлайн игри и стрийминг.
- Стабилно захранване — 8+2+1 фази VRM с удължен радиатор поддържат системата стабилна при натоварване.
- Lightning Gen4 M.2 — Два M.2 слота с PCIe 4.0 x4 за ултрабързи NVMe SSD дискове.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | ATX |
| Чипсет | AMD B840 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка MSI B840 GAMING PLUS WIFI
- Ръководство за потребителя
- I/O скоба
- SATA кабели (2)
- M.2 винтове и дистанционери
- Wi-Fi антена
- DVD с драйвери
