- MSI
Τιμή
€180 00 / 352 05 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.msi.com/Motherboard/B860-GAMING-PLUS-WIFI
Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
CPU's supported
Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Chipset
INTEL B860
Expansion slots
4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency
• 1DPC 1R Max speed up to 8600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

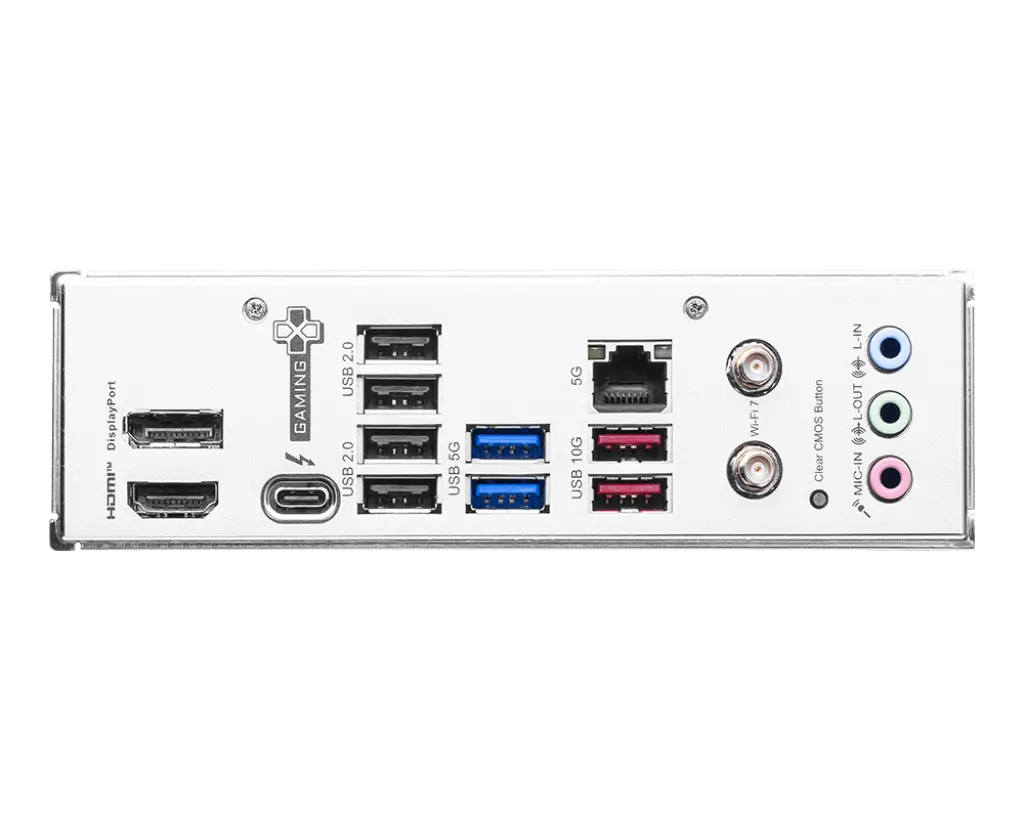

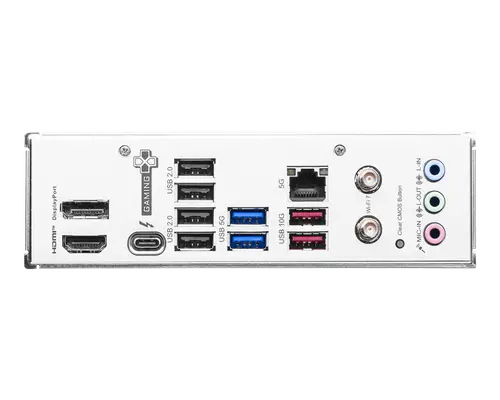

Rear panel I/O
Thunderbolt
1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 40Gbps Type C (Rear)
• Display Port
• USB 2.0
• 5G LAN
• Wi-Fi / Bluetooth
• Audio Connectors
• HDMI™
• Thunderbolt™ 4 40Gbps (Type-C)
• USB 5Gbps (Type-A)
• USB 10Gbps (Type-A)
• Clear CMOS Button
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Lan
Intel® Killer™ E5000 5Gbps LAN
Wireless
Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Bluetooth
Supports Bluetooth® 5.4**, MLO, 4KQAM
Form factor
ATX 243.84mmx304.8mm
OS
Support for Windows® 11 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.msi.com/Motherboard/B860-GAMING-PLUS-WIFI |
| Chipset | INTEL B860 |
| OS | Support for Windows® 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory type | Max. overclocking frequency |
| Memory type | • 2DPC 2R Max speed up to 4800+ MT/s |
| Memory type | Supports Dual-Controller Dual-Channel mode |
| Memory type | • 1DPC 2R Max speed up to 7200+ MT/s |
| Memory type | Supports Intel® POR Speed and JEDEC Speed |
| Memory type | Supports Memory Overclocking and Intel® XMP 3.0 |
| Memory type | Supports CUDIMM |
| Memory type | Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Memory type | • 1DPC 1R Max speed up to 8600+ MT/s |
| Memory type | • 2DPC 1R Max speed up to 4800+ MT/s |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 Codec |
| Rear panel I/O | 2x USB 5Gbps Type A (Rear) |
| Rear panel I/O | 1x USB 10Gbps Type C (Front) |
| Rear panel I/O | 4x USB 2.0 (Rear) |
| Rear panel I/O | 4x USB 2.0 (Front) |
| Rear panel I/O | • Clear CMOS Button |
| Rear panel I/O | • USB 2.0 |
| Rear panel I/O | • Wi-Fi / Bluetooth |
| Rear panel I/O | • Audio connectors |
| Rear panel I/O | • HDMI™ |
| Rear panel I/O | 4x USB 5Gbps Type A (Front) |
| Rear panel I/O | 2x USB 10Gbps Type A (Rear) |
| Rear panel I/O | 1x Thunderbolt4 ports (Rear) |
| Rear panel I/O | Supports up to 40Gbps transfer rate with Thunderbolt devices |
| Rear panel I/O | Supports up to 20Gbps transfer rate with USB4 devices |
| Rear panel I/O | Supports up to 10Gbps transfer rate with USB 3.2 devices |
| Rear panel I/O | Supports up to 5V/3A,15W power charging |
| Rear panel I/O | Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices |
| Rear panel I/O | Supports up to 8K display |
| Rear panel I/O | • 5G LAN |
| Rear panel I/O | • Thunderbolt™ 4 40Gbps (Type-C) |
| Rear panel I/O | • Display Port |
| Rear panel I/O | • USB 5Gbps (Type-A) |
| Rear panel I/O | • USB 10Gbps (Type-A) |
| Rear panel I/O | Thunderbolt |
| Rear panel I/O | 1x USB 40Gbps Type C (Rear) |
| LAN | Intel® Killer™ E5000 5Gbps LAN |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Expansion Slots | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Expansion Slots | 4x PCI-E x16 slot |
| Expansion Slots | PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Wireless | Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps |
| Wireless | Intel® Killer™ BE1750x Wi-Fi 7 |
| Graphics | 1x HDMI™ |
| Graphics | Support HDMITM 2.1, maximum resolution of 4K 60Hz* |
| Graphics | 1x DisplayPort |
| Graphics | Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| Graphics | 1x Type-C DisplayPort |
| Graphics | Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| Graphics | Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Graphics | *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Features | 4x EZ Debug LED |
| I/O | 2x USB 5Gbps Type A (Rear) |
| I/O | 1x USB 10Gbps Type C (Front) |
| I/O | 4x USB 2.0 (Rear) |
| I/O | 4x USB 2.0 (Front) |
| I/O | • Clear CMOS Button |
| I/O | • USB 2.0 |
| I/O | • Wi-Fi / Bluetooth |
| I/O | • Audio connectors |
| I/O | • HDMI™ |
| I/O | 4x USB 5Gbps Type A (Front) |
| I/O | 2x USB 10Gbps Type A (Rear) |
| I/O | 1x USB 40Gbps Type C (Rear) |
| I/O | 1x Thunderbolt4 ports (Rear) |
| I/O | Supports up to 40Gbps transfer rate with Thunderbolt devices |
| I/O | Supports up to 20Gbps transfer rate with USB4 devices |
| I/O | Supports up to 10Gbps transfer rate with USB 3.2 devices |
| I/O | Supports up to 5V/3A,15W power charging |
| I/O | Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices |
| I/O | Supports up to 8K display |
| I/O | • 5G LAN |
| I/O | • Thunderbolt™ 4 40Gbps (Type-C) |
| I/O | • Display Port |
| I/O | • USB 5Gbps (Type-A) |
| I/O | • USB 10Gbps (Type-A) |
| I/O | Thunderbolt |
| Storage | 4x SATA 6G |
| Storage | 3x M.2 |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| Storage | M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices |
| Storage | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| Storage | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Storage | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x Com Port (JCOM) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 1x Tuning Controller connector(JDASH) |
| Connectors | 2x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 1x USB 10Gbps Type C ports |
| Connectors | 4x System Fan |
| Connectors | 1x Combo Fan (Pump_Sys Fan) |
| Connectors | 1x EZ Conn-header (JAF_1) |
| Connectors | 1x Power Connector(PCIE_PWR 8pin) |
| Connectors | 4x USB 5Gbps Type A ports |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1851 |
| Form Factor | ATX |
| Chipset | Intel B860 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 256 |
| M.2 Slots (count) | 3 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
Дънна платка MSI B860 GAMING PLUS WIFI
Освободете пълния потенциал на вашия Intel Core Ultra процесор с дънната платка MSI B860 GAMING PLUS WIFI. Създадена за геймъри и напреднали потребители, тя предлага висока производителност, свързаност от ново поколение и атрактивен дизайн на достъпна цена.
Ключови Предимства
- Производителност от ново поколение — Поддържа Intel Core Ultra (Series 2) процесори на сокет LGA1851, DDR5 памет и PCIe 5.0 за светкавично бърз трансфер на данни.
- Разширена свързаност — Вграден Wi-Fi 6E и 2.5G LAN осигуряват ниска латентност за онлайн игри и стрийминг.
- Разширяемо съхранение — Три M.2 слота (включително един PCIe 5.0) и четири SATA порта предоставят достатъчно място за бързи SSD и HDD дискове.
- RGB персонализация — Mystic Light RGB осветление с onboard RGB конектори ви позволява да синхронизирате цялата си система.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1851 |
| Форм фактор | ATX |
| Чипсет | Intel B860 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 3 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка MSI B860 GAMING PLUS WIFI
- Ръководство за потребителя
- I/O скоба
- SATA кабели (2)
- M.2 винтове и дистанционери
- Wi-Fi антена
- DVD с драйвери
