- MSI
Τιμή
€199 99 / 391 15 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.msi.com/Motherboard/MAG-B860-TOMAHAWK-WIFI/Overview
Graphics
1x HDMI™
Support HDMI™ 2.1 with FRL, maximum resolution of 8K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
1x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Chipset
INTEL B860
Expansion slots
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

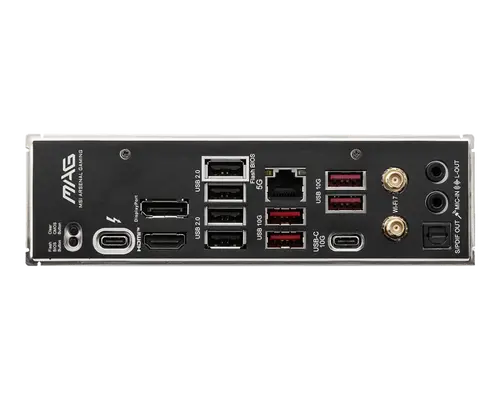

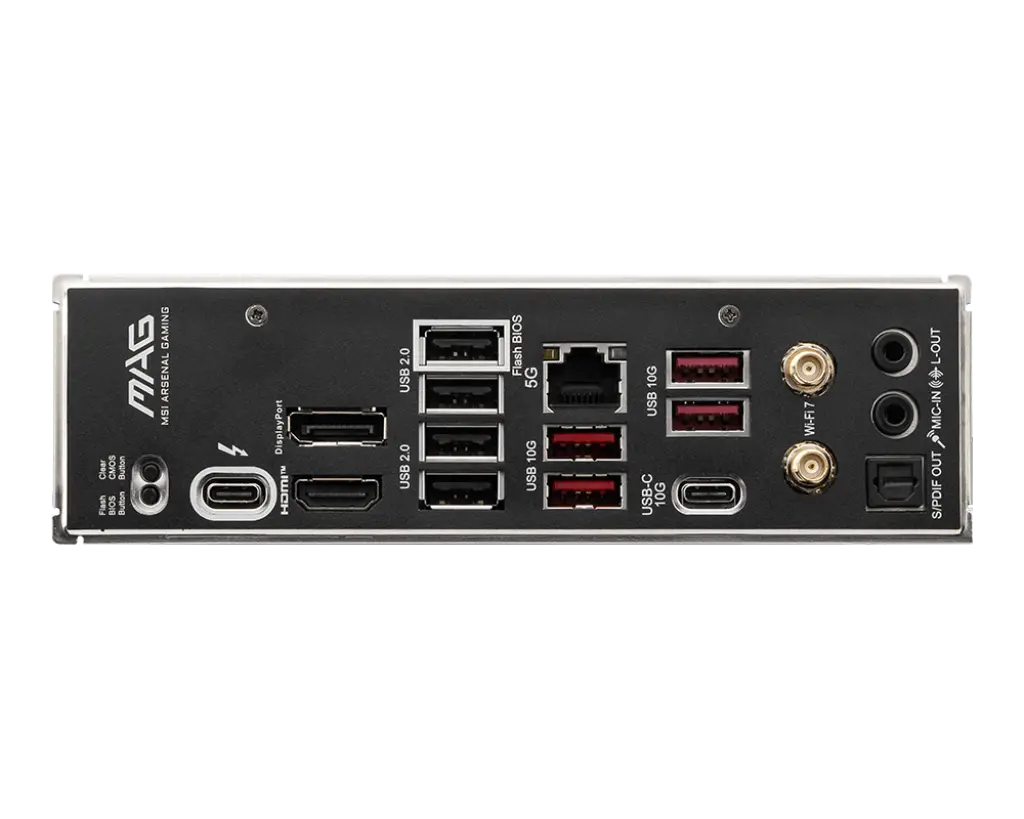

Rear panel I/O
Thunderbolt Resource CPU
1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 40Gbps Type C (Rear)
• Clear CMOS Button
• DisplayPort
• USB 2.0 (Flash BIOS Port)
• 5G LAN
• USB 10Gbps Type-A
• Audio Connectors
• Flash BIOS Button
• Thunderbolt™ 4 40Gbps (Type-C)
• HDMI™
• USB 2.0
• USB 10Gbps Type-A
• USB 10Gbps Type-C
• Wi-Fi / Bluetooth
• S/PDIF-OUT
Connectors
1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x OC dashboard connector(JDASH1)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Lan
Intel® Killer™ E5000 5Gbps LAN
Wireless
Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Bluetooth
Supports Bluetooth® 5.4**, MLO, 4KQAM
Form factor
ATX, 243.84mmx304.8mm
OS
Support for Windows® 11 64-bit
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.msi.com/Motherboard/MAG-B860-TOMAHAWK-WIFI/Overview |
| Chipset | INTEL B860 |
| OS | Support for Windows® 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | Supports Intel® Core™ Ultra Processors (Series 2) |
| CPU's supported | LGA 1851 |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | Max. overclocking frequency: |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory type | • 2DPC 1R Max speed up to 6400+ MT/s |
| Memory type | Supports Dual-Controller Dual-Channel mode |
| Memory type | • 1DPC 2R Max speed up to 7200+ MT/s |
| Memory type | • 2DPC 2R Max speed up to 5600+ MT/s |
| Memory type | Supports Intel® POR Speed and JEDEC Speed |
| Memory type | Supports Memory Overclocking and Intel® XMP 3.0 |
| Memory type | Supports CUDIMM |
| Memory type | Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Memory type | • 1DPC 1R Max speed up to 9200+ MT/s |
| Form Factor | ATX, 243.84mmx304.8mm |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 Codec |
| Audio | Supports S/PDIF output |
| Rear panel I/O | 2x USB 5Gbps Type A (Front) |
| Rear panel I/O | 1x USB 10Gbps Type C (Front) |
| Rear panel I/O | 4x USB 2.0 (Rear) |
| Rear panel I/O | 4x USB 2.0 (Front) |
| Rear panel I/O | 1x USB 10Gbps Type C (Rear) |
| Rear panel I/O | • Clear CMOS Button |
| Rear panel I/O | • USB 10Gbps Type-A |
| Rear panel I/O | • USB 2.0 |
| Rear panel I/O | • Wi-Fi / Bluetooth |
| Rear panel I/O | • Audio connectors |
| Rear panel I/O | • Flash BIOS Button |
| Rear panel I/O | • HDMI™ |
| Rear panel I/O | • USB 10Gbps Type-C |
| Rear panel I/O | 1x Thunderbolt4 ports (Rear) |
| Rear panel I/O | Supports up to 40Gbps transfer rate with Thunderbolt devices |
| Rear panel I/O | Supports up to 20Gbps transfer rate with USB4 devices |
| Rear panel I/O | Supports up to 10Gbps transfer rate with USB 3.2 devices |
| Rear panel I/O | Supports up to 5V/3A,15W power charging |
| Rear panel I/O | Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices |
| Rear panel I/O | Supports up to 8K display |
| Rear panel I/O | • DisplayPort |
| Rear panel I/O | • 5G LAN |
| Rear panel I/O | • Thunderbolt™ 4 40Gbps (Type-C) |
| Rear panel I/O | 1x USB 40Gbps Type C (Rear) |
| Rear panel I/O | Thunderbolt Resource CPU |
| Rear panel I/O | 4x USB 10Gbps Type A (Rear) |
| Rear panel I/O | • USB 2.0 (Flash BIOS Port) |
| Rear panel I/O | • S/PDIF-OUT |
| LAN | Intel® Killer™ E5000 5Gbps LAN |
| Expansion Slots | 1x PCI-E x1 slot |
| Expansion Slots | 2x PCI-E x16 slot |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Expansion Slots | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Wireless | Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps |
| Wireless | Intel® Killer™ BE1750x Wi-Fi 7 |
| Graphics | 1x HDMI™ |
| Graphics | 1x DisplayPort |
| Graphics | 1x Type-C DisplayPort |
| Graphics | Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
| Graphics | Support HDMI™ 2.1 with FRL, maximum resolution of 8K 60Hz |
| Graphics | Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz |
| Features | 4x EZ Debug LED |
| Features | 1x EZ Memory Detection LED |
| I/O | 2x USB 5Gbps Type A (Front) |
| I/O | 1x USB 10Gbps Type C (Front) |
| I/O | 4x USB 2.0 (Rear) |
| I/O | 4x USB 2.0 (Front) |
| I/O | 1x USB 10Gbps Type C (Rear) |
| I/O | • Clear CMOS Button |
| I/O | • USB 10Gbps Type-A |
| I/O | • USB 2.0 |
| I/O | • Wi-Fi / Bluetooth |
| I/O | • Audio connectors |
| I/O | • Flash BIOS Button |
| I/O | • HDMI™ |
| I/O | • USB 10Gbps Type-C |
| I/O | 1x USB 40Gbps Type C (Rear) |
| I/O | 4x USB 10Gbps Type A (Rear) |
| I/O | 1x Thunderbolt4 ports (Rear) |
| I/O | Supports up to 40Gbps transfer rate with Thunderbolt devices |
| I/O | Supports up to 20Gbps transfer rate with USB4 devices |
| I/O | Supports up to 10Gbps transfer rate with USB 3.2 devices |
| I/O | Supports up to 5V/3A,15W power charging |
| I/O | Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices |
| I/O | Supports up to 8K display |
| I/O | • DisplayPort |
| I/O | • 5G LAN |
| I/O | • Thunderbolt™ 4 40Gbps (Type-C) |
| I/O | Thunderbolt Resource CPU |
| I/O | • USB 2.0 (Flash BIOS Port) |
| I/O | • S/PDIF-OUT |
| Storage | 4x SATA 6G |
| Storage | 3x M.2 |
| Storage | M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| Storage | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices |
| Storage | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices |
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 2x USB 5Gbps Type A ports |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 1x Tuning Controller connector(JDASH) |
| Connectors | 2x RGB LED connector(JRGB) |
| Connectors | 1x USB 10Gbps Type C ports |
| Connectors | 3x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 5x System Fan |
| Connectors | 1x Combo Fan (Pump_Sys Fan) |
| Connectors | 1x EZ Conn-header (JAF_1) |
| Connectors | 1x Power Connector(PCIE_PWR 8pin) |
| Connectors | 1x Thunderbolt5 card connector(JTBT5, support RTD3) |
| Connectors | 1x OC dashboard connector(JDASH1) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1851 |
| Form Factor | ATX |
| Chipset | Intel B860 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 256 |
| M.2 Slots (count) | 4 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 7 |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 2 |
| RGB Lighting | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

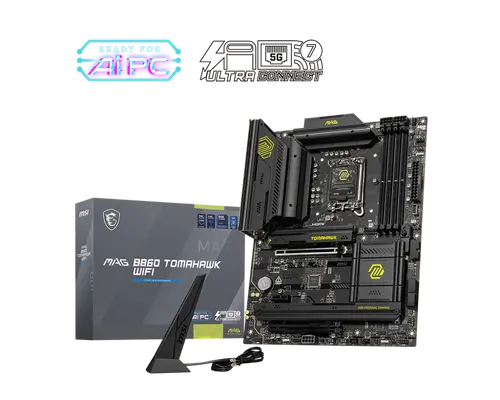

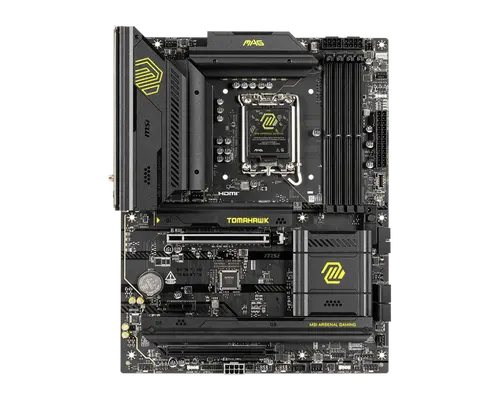

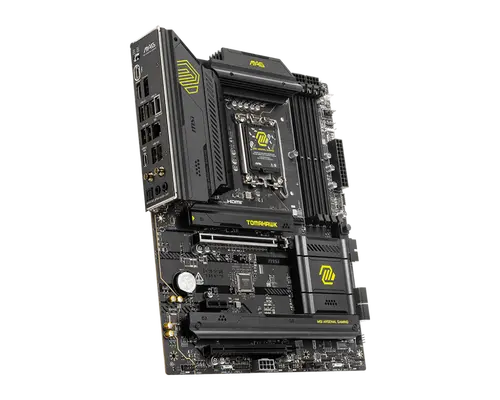

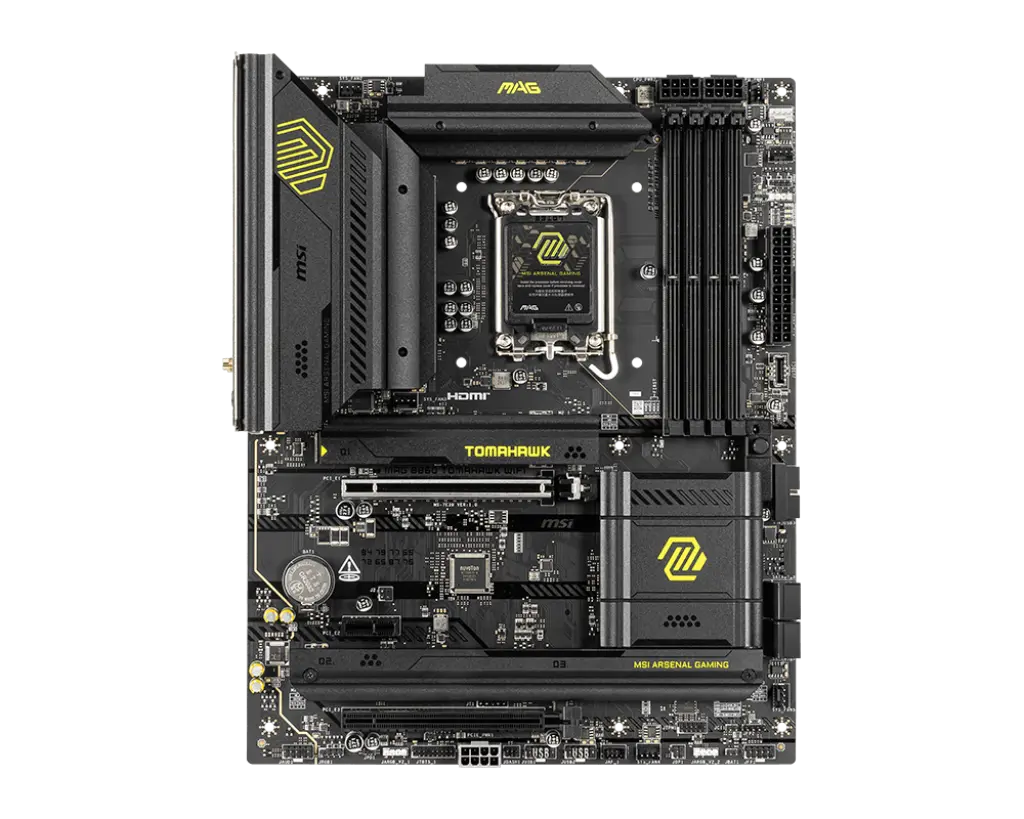

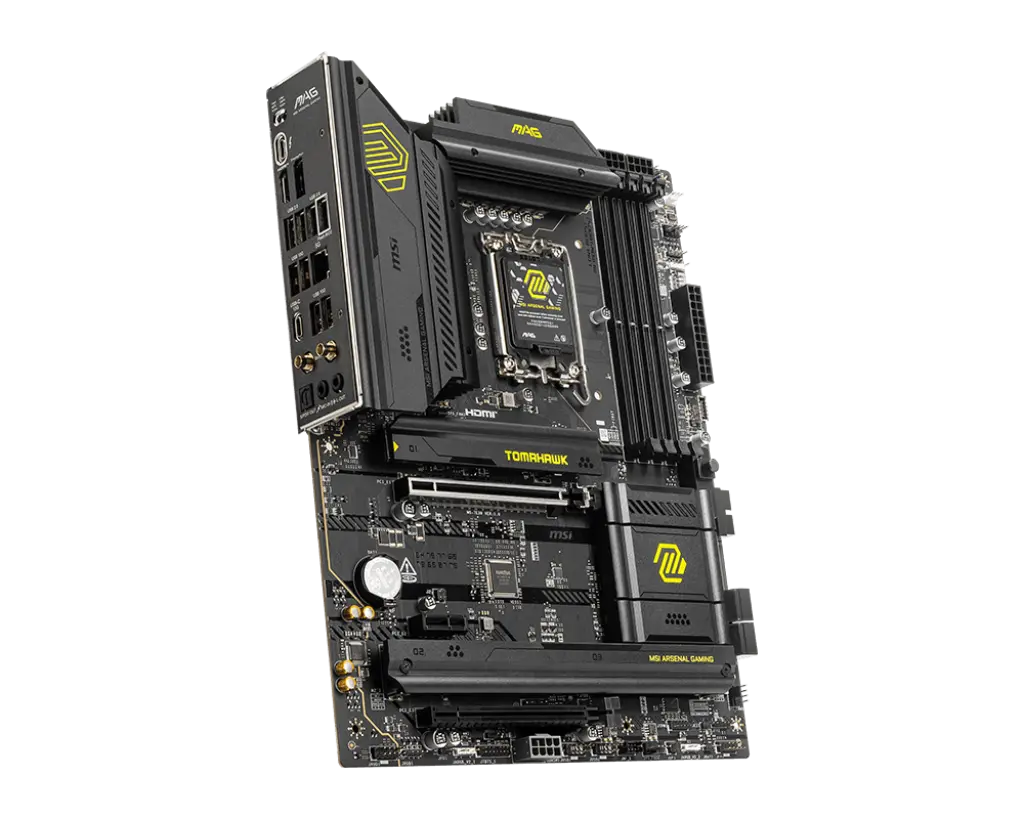

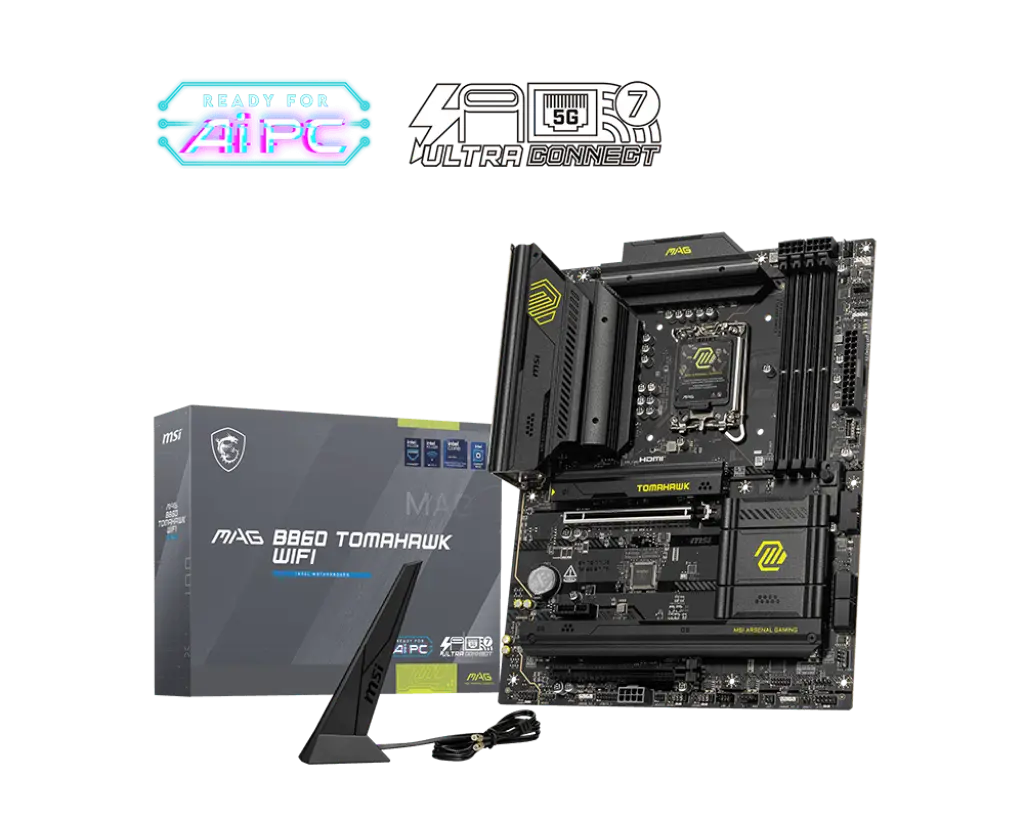

Дънна платка MSI MAG B860 TOMAHAWK WIFI
Проектирана за процесори Intel Core Ultra (LGA1851), MSI MAG B860 TOMAHAWK WIFI предлага стабилно захранване и усъвършенстван термичен дизайн за надеждна производителност. С поддръжка на PCIe 5.0, DDR5 памет и вграден Wi-Fi 7, тя е готова за игри и продуктивност от ново поколение.
Ключови Предимства
- Свързаност от ново поколение — PCIe 5.0 x16 слот и M.2 Gen5 за ултрабърза графика и съхранение.
- Поддръжка на DDR5 памет — До 256GB с възможности за високоскоростен овърклок.
- Вграден Wi-Fi 7 и 2.5G LAN — Светкавични безжични и кабелни скорости за безпроблемно онлайн игри.
- Разширен дизайн на радиаторите — Големи VRM радиатори и M.2 Shield Frozr поддържат компонентите хладни при натоварване.
- Издръжливост от серия MAG — Компоненти с военен клас и подсилени PCIe слотове осигуряват дългосрочна надеждност.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1851 |
| Форм фактор | ATX |
| Чипсет | Intel B860 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 4 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 2 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка MSI MAG B860 TOMAHAWK WIFI
- Ръководство за потребителя
- I/O щит
- SATA кабели (2)
- Wi-Fi антена
- M.2 винтове и дистанционери
- DVD с драйвери
Εγγραφείτε στο Newsletter μας
Εγγραφείτε στο online newsletter μας και μάθετε πρώτοι για προσφορές και νέα προϊόντα.
ΕΙΚ: 203294915 · Αρ. ΦΠΑ: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Τρόπος πληρωμής
- Αντικαταβολή
- Πιστωτική/Χρεωστική κάρτα
- Τραπεζική μεταφορά
- Με δόσεις ΠΒ Προσωπικά Οικονομικά
