- GIGABYTE
Τιμή
€146 47 / 286 47 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.gigabyte.com/Motherboard/B860-DS3H#kf
Graphics
Integrated Graphics Processor-Intel® HD Graphics support
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
CPU's supported
LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU
Chipset
Intel® B860 Express Chipset
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 4 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1~PCIEX1_4)
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/ 22110/ 2580/ 2280 PCIe 5.0 x4/ x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/ 22110/ 2580/ 2280 PCIe 4.0 x4/ x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel heade
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

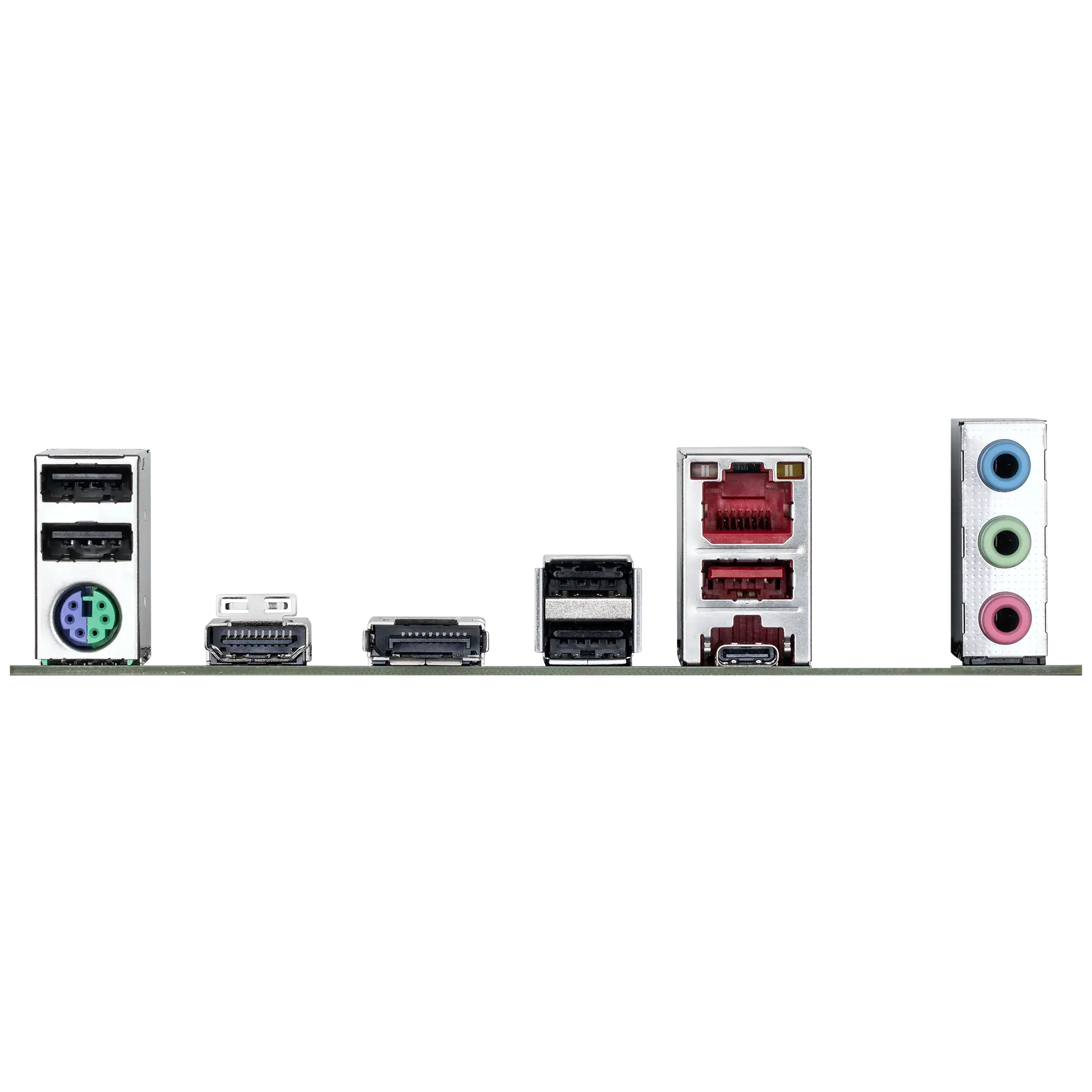

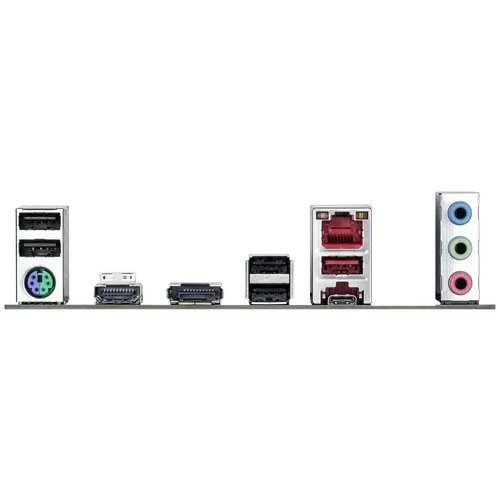

Back Panel Connectors:
1 x PS/2 keyboard/mouse port
1 x HDMI port*
1 x DisplayPort*
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors (2T2R)
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
* The Intel® NPU driver is only supported on Windows 11
Software: Norton® Internet Security (OEM version)
LAN bandwidth management software
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/B860-DS3H#kf |
| Chipset | Intel® B860 Express Chipset |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| OS | LAN bandwidth management software |
| OS | Software: Norton® Internet Security (OEM version) |
| OS | * The Intel® NPU driver is only supported on Windows 11 |
| Warranty | 36 Months |
| CPU's supported | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| CPU's supported | L3 cache varies with CPU |
| Memory type | Dual channel memory architecture |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory type | Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules |
| Form Factor | 30.5cm x 24.4cm |
| Form Factor | ATX Form Factor |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Audio | Support for S/PDIF Out |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| Expansion Slots | - 4 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1~PCIEX1_4) |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| Graphics | * Support for DisplayPort 2.1 version. |
| Features | Support for Q-Flash Plus |
| Features | Support for Q-Flash |
| Features | Support for GIGABYTE Control Center (GCC) |
| Features | * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Features | Support for Smart Backup |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | iTE® I/O Controller Chip |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 4 x SATA 6Gb/s connectors |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 25110/ 22110/ 2580/ 2280 PCIe 5.0 x4/ x2 SSD support) (M2A_CPU) |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 25110/ 22110/ 2580/ 2280 PCIe 4.0 x4/ x2 SSD support) (M2P_SB) |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x S/PDIF Out header |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x serial port header |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x reset jumper |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 2 x system fan headers |
| Connectors | 1 x RGB LED strip header |
| Connectors | 2 x M.2 Socket 3 connectors |
| Connectors | 1 x PS/2 keyboard/mouse port |
| Connectors | 1 x RJ-45 port |
| Connectors | 3 x audio jacks |
| Connectors | 1 x CPU fan/water cooling pump header |
| Connectors | 4 x USB 2.0/1.1 ports |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Connectors | 3 x addressable RGB Gen2 LED strip headers |
| Connectors | 2 x antenna connectors (2T2R) |
| Connectors | Back Panel Connectors: |
| Connectors | 1 x USB 3.2 Gen 2 Type-A port (red) |
| Connectors | 1 x HDMI port* |
| Connectors | 1 x DisplayPort* |
| Connectors | 2 x system fan/water cooling pump headers |
| Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
| Connectors | 1 x front panel heade |
| USB | Chipset: |
| USB | - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
| USB | - 2 x USB 3.2 Gen 1 ports available through the internal USB header |
| USB | - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| USB | Chipset+USB 2.0 Hub: |
| USB | - 4 x USB 2.0/1.1 ports on the back panel |
| USB | - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| USB | - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1851 |
| Form Factor | Micro-ATX |
| Chipset | Intel B860 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 96 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
Дънна платка GIGABYTE GB B860 DS3H – LGA1851, DDR5, Micro-ATX
Изградете мощна и ефективна система с процесор Intel Core Ultra (Arrow Lake-S) благодарение на дънната платка GIGABYTE B860 DS3H. Този модел във форм-фактор Micro-ATX съчетава най-новия сокет LGA1851 с поддръжка на DDR5 памет, PCIe 5.0 за графика и съхранение, както и стабилно VRM захранване за надеждна производителност. Идеален избор за геймъри и създатели на съдържание, които търсят солидна основа за следващото си изграждане.
Ключови Предимства
- Готовност за ново поколение — Сокет LGA1851 поддържа процесори Intel Core Ultra, осигурявайки най-висока производителност.
- Бърза памет и съхранение — Двуканален DDR5 и два PCIe 5.0 M.2 слота за светкавичен достъп до данни.
- Разширена свързаност — 2.5 GbE LAN, USB 3.2 Gen 2 Type-C и HDMI 2.1 за високоскоростна мрежа и модерен видеоизход.
- Smart Fan 6 и RGB Fusion — Усъвършенстван контрол на охлаждането и персонализирано RGB осветление за оптимална температура и естетика.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1851 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B860 |
| Тип памет | DDR5 |
| Слотове за памет | 2 (двуканален) |
| Максимална памет | 96 GB |
| M.2 слотове | 2 (PCIe 5.0 x4) |
| SATA портове | 4 |
| PCIe x16 слотове | 1 (PCIe 5.0) |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 (отзад) |
| RGB подсветка | Да (RGB Fusion) |
Какво има в кутията
- Дънна платка GIGABYTE B860 DS3H
- Ръководство за потребителя
- Заден панел (I/O Shield)
- 2 x SATA кабела
- Винтове и дистанционери за M.2
- DVD с драйвери (по избор)
