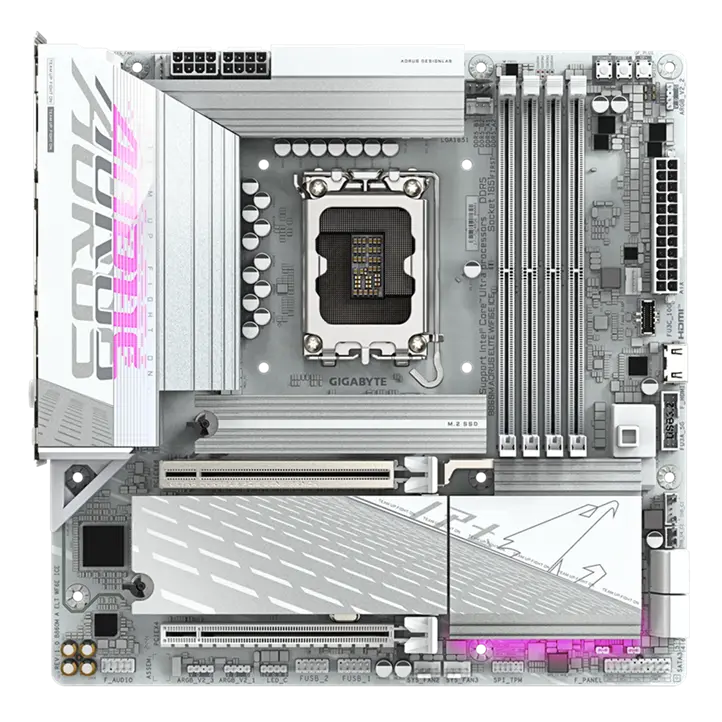

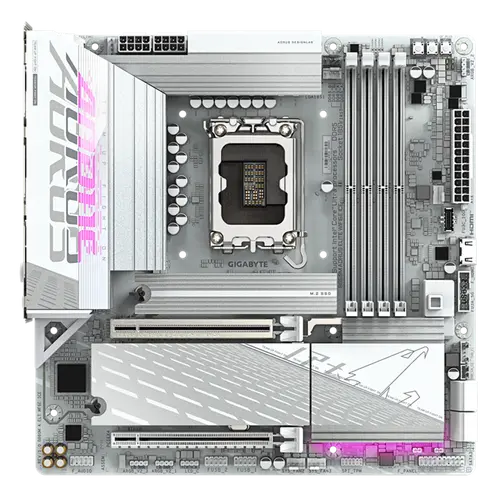

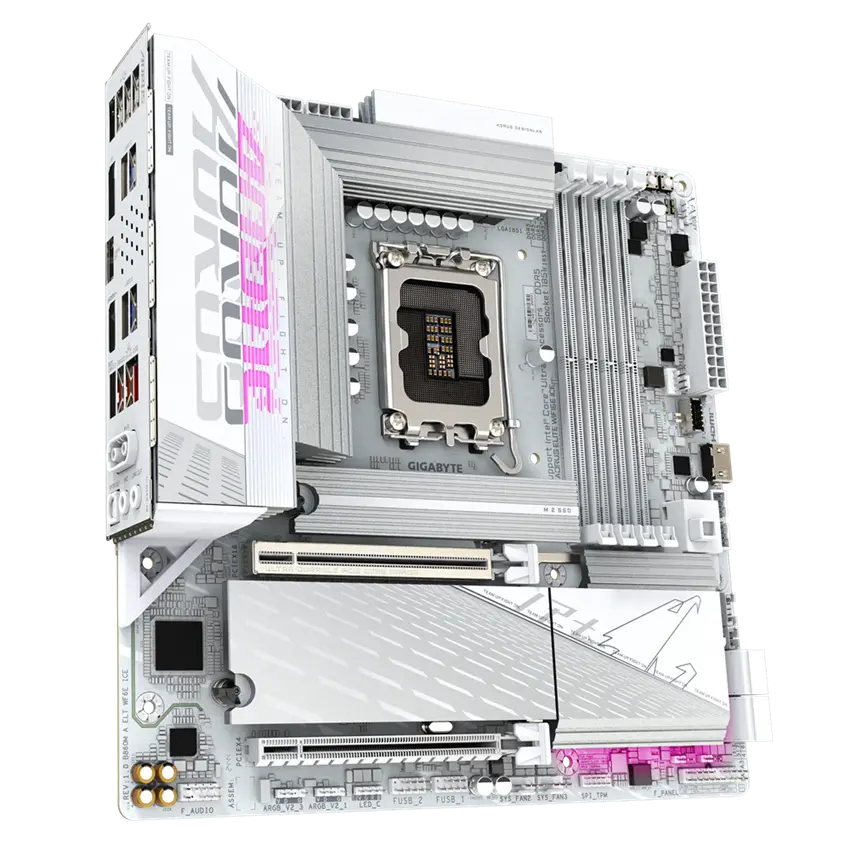

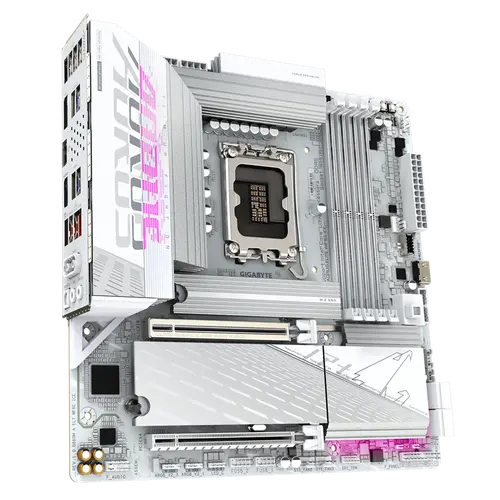

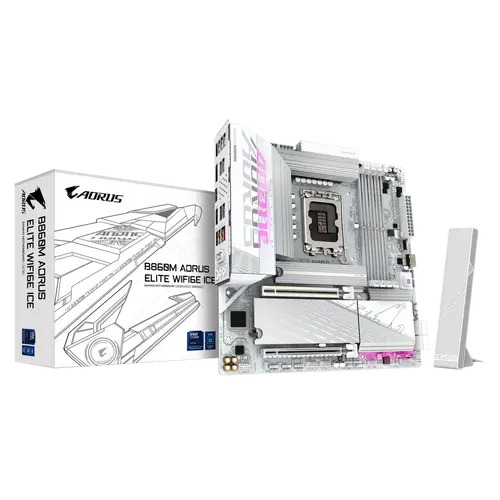

Μητρική κάρτα, GIGABYTE GB B860M A ELT WF6E ICE /1851

  • Μητρική κάρτα, GIGABYTE GB B860M A ELT WF6E ICE /1851 - 1
  • Μητρική κάρτα, GIGABYTE GB B860M A ELT WF6E ICE /1851 - 2
  • Μητρική κάρτα, GIGABYTE GB B860M A ELT WF6E ICE /1851 - 3
  • Μητρική κάρτα, GIGABYTE GB B860M A ELT WF6E ICE /1851 - 4
  • Μητρική κάρτα, GIGABYTE GB B860M A ELT WF6E ICE /1851 - 5
  • GIGABYTE
Μητρική κάρτα, GIGABYTE GB B860M A ELT WF6E ICE /1851
Τιμή
€201 28 / 393 67 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
 Προσθήκη στο καλάθι
Επεκτείνετε την εγγύησή σας
+1 έτος: + 27€
+2 έτη: + 39€
  • : B860M A ELT WF6E ICE 1.0
  • : Μητρικές
  • : 3 έτη
ΑΞΙΟΛΟΓΗΣΗ
Η ΑΞΙΟΛΟΓΗΣΗ ΣΑΣ
Κριτικές
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.gigabyte.com/Motherboard/B860M-AORUS-ELITE-WIFI6E-ICE#kf
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)
Support for up to quad-display at the same time
Chipset
Intel ® B860 Express Chipset
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

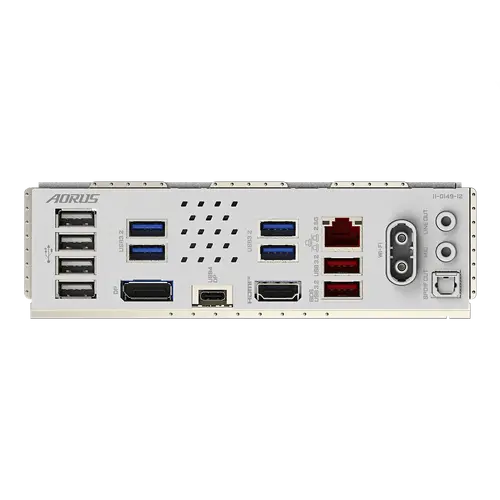

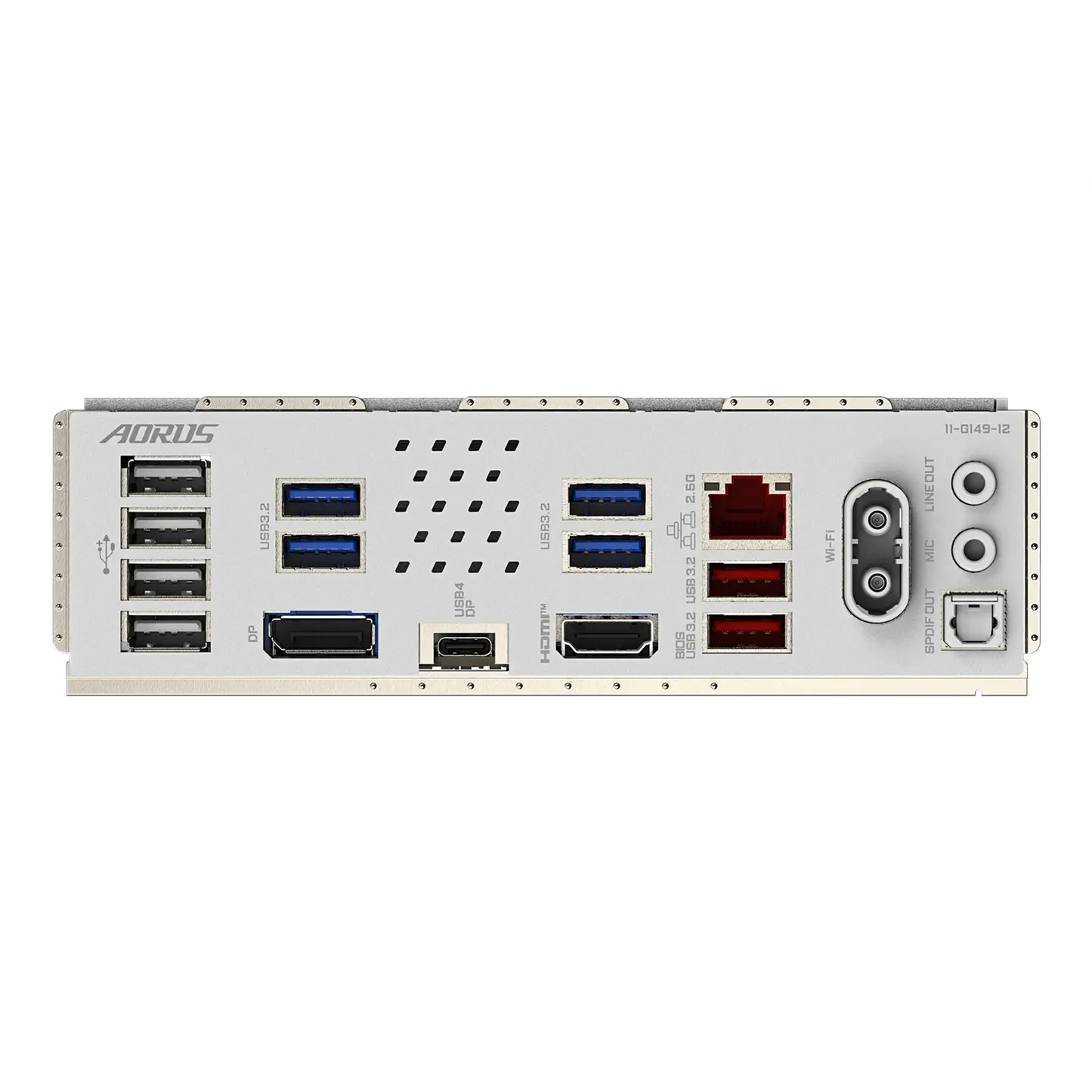

Back Panel Connectors:
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x DisplayPort*
1 x USB4® USB Type-C® port (DisplayPort*)
1 x HDMI port*
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Bluetooth
5.3
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Software: Norton® Internet Security (OEM version)
LAN bandwidth management software
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
ΧαρακτηριστικόΤιμή
Vendor_urlhttps://www.gigabyte.com/Motherboard/B860M-AORUS-ELITE-WIFI6E-ICE#kf
ChipsetIntel ® B860 Express Chipset
OSSupport for Windows 11 64-bit
OSLAN bandwidth management software
OSSoftware: Norton® Internet Security (OEM version)
Warranty36 Months
CPU's supportedL3 cache varies with CPU
CPU's supportedLGA1851 socket: Support for Intel ® Core™ Ultra Processors
Memory typeDual channel memory architecture
Memory typeSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory typeSupport for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Form FactorMicro ATX Form Factor
Form Factor24.4cm x 24.4cm
AudioRealtek® Audio CODEC
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
Audio* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
AudioSupport for S/PDIF Out
Rear panel I/OiTE® I/O Controller Chip
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion SlotsChipset:
Expansion SlotsCPU:
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Wireless- BLUETOOTH 5.3
Wireless- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless- Support for 11ax 160MHz wireless standard
WirelessRealtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
WirelessIntel® Wi-Fi 6E AX211 (PCB rev. 1.0)
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics* Support for HDMI 2.1 version and HDCP 2.3.
Graphics- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Graphics- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
GraphicsSupport for up to quad-display at the same time
GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
Graphics* Support for DisplayPort 2.1 version.
Graphics- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
Graphics* Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)
FeaturesSupport for Q-Flash Plus
FeaturesSupport for Q-Flash
FeaturesSupport for GIGABYTE Control Center (GCC)
Features* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
FeaturesSupport for Smart Backup
BIOS1 x 256 Mbit flash
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/OiTE® I/O Controller Chip
StorageRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
StorageCPU:
StorageChipset:
Storage- 4 x SATA 6Gb/s connectors
Storage- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Storage- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
Storage- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
Bluetooth5.3
Connectors1 x 24-pin ATX main power connector
Connectors2 x 8-pin ATX 12V power connectors
Connectors1 x CPU fan header
Connectors3 x system fan headers
Connectors1 x system fan/water cooling pump header
Connectors3 x M.2 Socket 3 connectors
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors1 x USB 3.2 Gen 1 header
Connectors2 x USB 2.0/1.1 headers
Connectors2 x Thunderbolt™ add-in card connectors
Connectors1 x reset button
Connectors1 x Q-Flash Plus button
Connectors1 x reset jumper
Connectors1 x Clear CMOS jumper
Connectors4 x SATA 6Gb/s connectors
Connectors1 x RGB LED strip header
Connectors4 x USB 3.2 Gen 1 ports
Connectors1 x RJ-45 port
Connectors1 x CPU fan/water cooling pump header
Connectors4 x USB 2.0/1.1 ports
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors3 x addressable RGB Gen2 LED strip headers
Connectors2 x USB 3.2 Gen 2 Type-A ports (red)
Connectors2 x antenna connectors (2T2R)
ConnectorsBack Panel Connectors:
Connectors1 x USB Type-C® header, with USB 3.2 Gen 2 support
Connectors1 x HDMI port*
Connectors1 x optical S/PDIF Out connector
Connectors2 x audio jacks
Connectors1 x power button
Connectors1 x DisplayPort*
Connectors1 x USB4® USB Type-C® port (DisplayPort*)
USBCPU:
USB- 4 x USB 3.2 Gen 1 ports on the back panel
USBChipset:
USB- 2 x USB 3.2 Gen 1 ports available through the internal USB header
USB- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
USBChipset+USB 3.2 Gen 1 Hub:
USB- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
USB- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
USBChipset+2 USB 2.0 Hubs:
USB- 1 x USB4® USB Type-C® port on the back panel
Βάρος0.00kg
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
ΧαρακτηριστικόΤιμή
SocketLGA1851
Form FactorMicro-ATX
ChipsetIntel B860
Memory TypeDDR5
Memory Slots (count)2
Max Memory (GB)96
M.2 Slots (count)2
SATA Ports (count)4
PCIe x16 Slots (count)1
Wi-Fi Built-inWi-Fi 6E
LAN Speed2.5 Gbps
USB-C Ports (count)1
RGB LightingNo
Βάρος0.00kg
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

Дънна платка GIGABYTE GB B860M A ELT WF6E ICE (LGA1851)

Изживейте производителност от ново поколение с GIGABYTE B860M A ELT WF6E ICE, проектирана за процесори Intel Core Ultra с гнездо LGA1851. Елегантният бял дизайн и богатият набор от функции я правят идеална основа за високопроизводителна система.

Ключови Предимства

  • Свързаност от ново поколение — Поддържа DDR5 памет и PCIe 5.0 за изключително бърз трансфер на данни и бъдеща съвместимост.
  • Интегриран Wi-Fi 6E — Насладете се на ултра-бърза безжична мрежа с ниско закъснение за игри и стрийминг.
  • Изцяло бял дизайн — Перфектен за изграждане на чист, модерен компютър с унифицирана цветова схема.

Технически Спецификации

СпецификацияСтойност
СокетLGA1851
Форм факторMicro-ATX
ЧипсетIntel B860
Тип паметDDR5
Слотове за памет2
Максимална памет96 GB
M.2 слотове2
SATA портове4
PCIe x16 слотове1
Вграден Wi-FiWi-Fi 6E
Скорост на LAN2.5 Gbps
USB-C портове1
RGB подсветкаНе

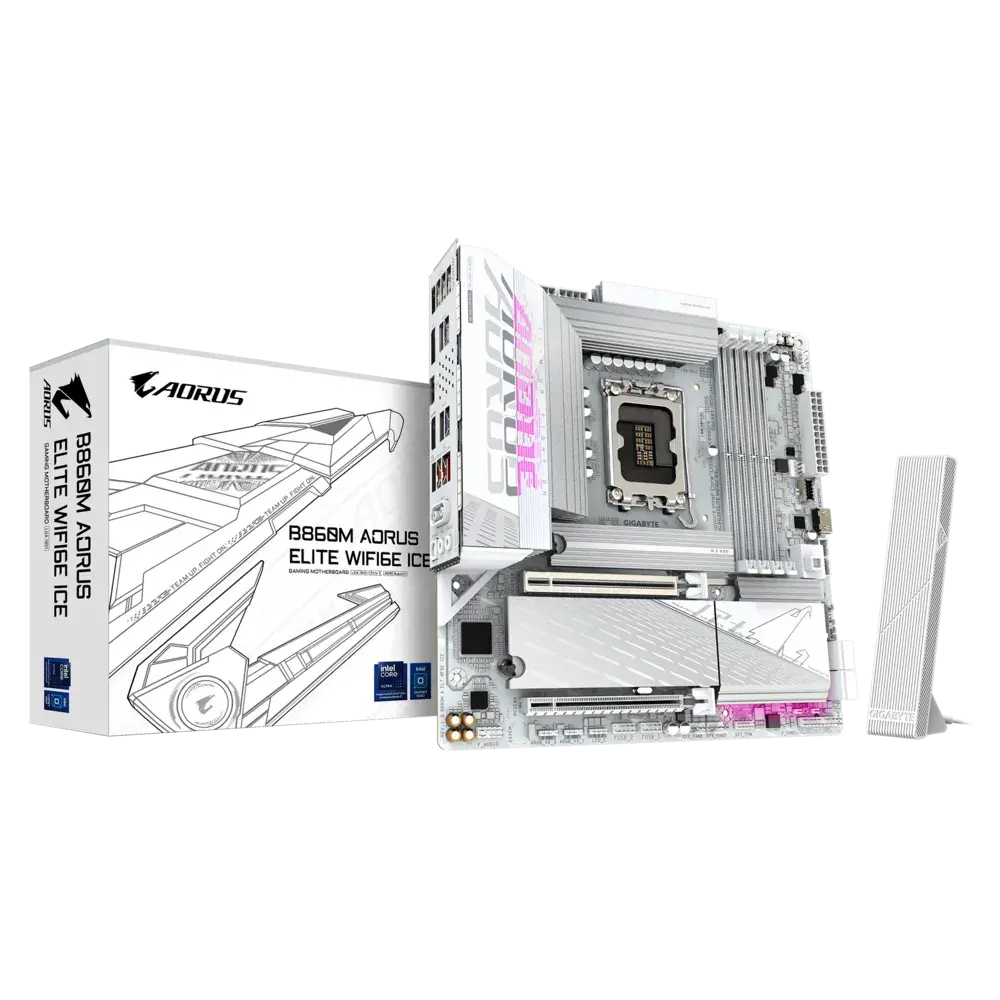

Какво има в кутията

  • Дънна платка
  • Ръководство за потребителя
  • I/O скоба
  • SATA кабели (2)

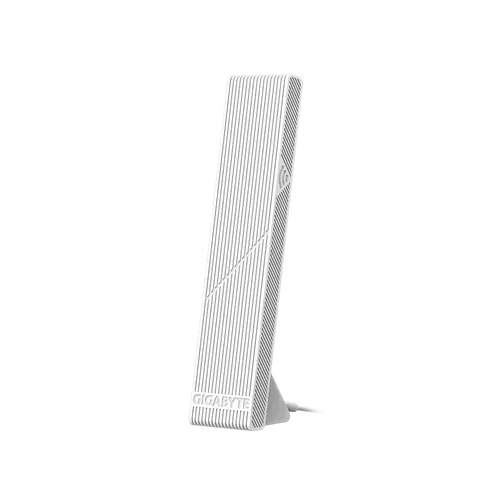

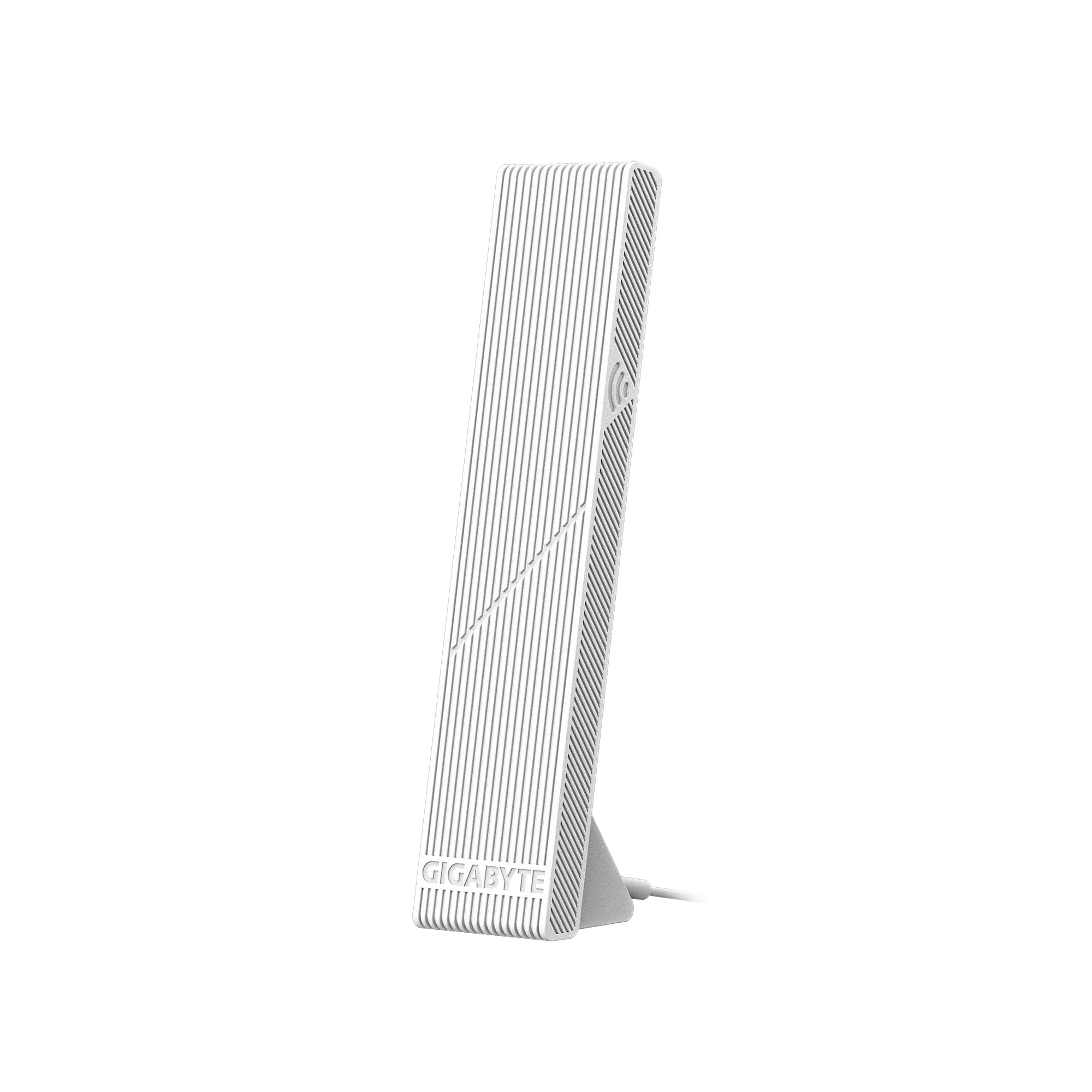

  • Wi-Fi антена
SKU: B860M A ELT WF6E ICE 1.0 © 2026 Xtreme.bg
Самсунг Т9 Нов
Huawei GT 7

Εγγραφείτε στο Newsletter μας

Εγγραφείτε στο online newsletter μας και μάθετε πρώτοι για προσφορές και νέα προϊόντα.

Αν έχετε ερωτήσεις, επικοινωνήστε μαζί μας!

info@xtreme.bg

+359 886 177 222
ЕКСТРИЙМ.БГ ООД
ΕΙΚ: 203294915 · Αρ. ΦΠΑ: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2

Πληροφορίες

Χρήστης

Τρόπος πληρωμής

  • Πιστωτική/Χρεωστική κάρτα
    MastercardVisaGoogle PayApple Pay
  • Τραπεζική μεταφορά
Copyright © 2023 Xtreme.bg - Με την επιφύλαξη παντός δικαιώματος. Ηλεκτρονικό κατάστημα με XCore
Κλείσιμο
