Model
PRO B760-P II
Socket
LGA 1700
Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
CPU's supported
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Chipset
INTEL B760
Expansion slots
5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory type
4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7000+(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

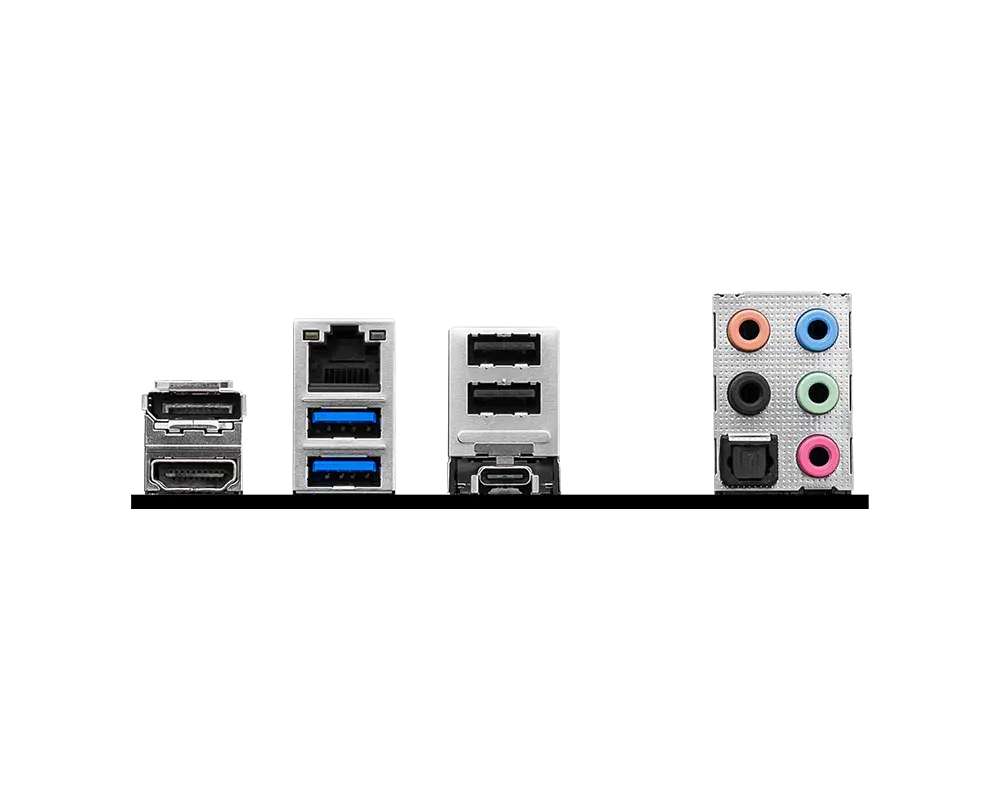

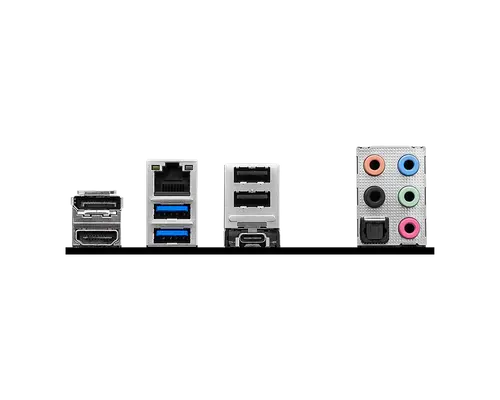

Rear panel I/O
DisplayPort
2.5G LAN
USB 2.0
Audio Connectors
HDMI™
USB 5Gbps (Type-A)
USB 10Gbps (Type-C)
S/PDIF-OUT
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type C (Rear)
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Lan
Realtek® RTL8125BG 2.5G LAN
BIOS
1x 256 Mb flash •UEFI AMI BIOS •ACPI 6.4, SMBIOS 3.5 •Multi-language
Form factor
ATX, 243.84mmx304.8mm
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA 1700 |
| Vendor_url | https://www.msi.com/Motherboard/PRO-B760-P-DDR4-II/Overview |
| Vendor_url | https://www.msi.com/Motherboard/PRO-B760-P-II/Overview |
| Chipset | INTEL B760 |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| CPU's supported | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | Max. overclocking frequency: |
| Memory type | • 2DPC 1R Max speed up to 6000+ MHz |
| Memory type | 4x DDR5, Maximum Memory Capacity 256GB |
| Memory type | • 1DPC 2R Max speed up to 6400+ MHz |
| Memory type | Supports Intel® XMP 3.0 OC |
| Memory type | Supports Dual-Controller Dual-Channel mode |
| Memory type | • 2DPC 2R Max speed up to 5600+ MHz |
| Memory type | Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Memory type | Memory Support: 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Memory type | • 1DPC 1R Max speed up to 7000+ MHz |
| Memory type | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory type | • 1DPC 2R Max speed up to 4800+ MHz |
| Memory type | • 2DPC 1R Max speed up to 4400+ MHz |
| Memory type | • 2DPC 2R Max speed up to 4000+ MHz |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) |
| Memory type | Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC) |
| Memory type | (4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC) |
| Memory type | (3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC) |
| Memory type | (2400(JEDEC)/ 2133(JEDEC) |
| Memory type | • 1DPC 1R Max speed up to 5333+ MHz |
| Form Factor | ATX, 243.84mmx304.8mm |
| Form Factor | ATX 243.84mmx304.8mm |
| Form Factor | ATX Form Factor •9.6 in. x 12 in. (244 mm x 304 mm) |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 Codec |
| Audio | Supports S/PDIF output |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | DisplayPort |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | 2.5G LAN |
| Rear panel I/O | 1x Power Connector(ATX_PWR) |
| Rear panel I/O | 1x CPU Fan |
| Rear panel I/O | 2x Front Panel (JFP) |
| Rear panel I/O | 1x Chassis Intrusion (JCI) |
| Rear panel I/O | 1x Front Audio (JAUD) |
| Rear panel I/O | 1x Com Port (JCOM) |
| Rear panel I/O | 1x TPM pin header(Support TPM 2.0) |
| Rear panel I/O | 4x USB 2.0 ports |
| Rear panel I/O | USB 5Gbps (Type-A) |
| Rear panel I/O | USB 10Gbps (Type-C) |
| Rear panel I/O | 2x USB 5Gbps Type A (Rear) |
| Rear panel I/O | 1x Pump Fan |
| Rear panel I/O | S/PDIF-Out |
| Rear panel I/O | 4x USB 2.0 (Front) |
| Rear panel I/O | 1x USB 5Gbps Type C (Front) |
| Rear panel I/O | 1x USB 10Gbps Type C (Rear) |
| Rear panel I/O | 4x USB 5Gbps Type A (Front) |
| Rear panel I/O | 2x USB 2.0 (Rear) |
| Rear panel I/O | 2x Power Connector(CPU_PWR) |
| Rear panel I/O | 5x System Fan |
| Rear panel I/O | 1x TBT connector (JTBT, supports RTD3) |
| Rear panel I/O | 2x Addressable V2 RGB LED connector (JARGB_V2) |
| Rear panel I/O | 2x RGB LED connector(JRGB) |
| Rear panel I/O | 4x USB 5Gbps Type A ports |
| Rear panel I/O | 1x USB 5Gbps Type C ports |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Model | PRO B760-P II |
| Expansion Slots | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Expansion Slots | 5x PCI-E x16 slot |
| Expansion Slots | PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | 5x PCIe x16 slots |
| Expansion Slots | • PCI_E1 slot (From CPU) |
| Expansion Slots | • Supports PCIe 4.0 x16 |
| Expansion Slots | • PCI_E2 slot (From B760 chipset) |
| Expansion Slots | • Supports PCIe 3.0 x1 |
| Expansion Slots | • PCI_E3 slot (From B760 chipset) |
| Expansion Slots | • Supports PCIe 4.0 x4 |
| Expansion Slots | • PCI_E4 slot (From B760 chipset) |
| Expansion Slots | • PCI_E5 slot (From B760 chipset) |
| Graphics | 1x HDMI™ |
| Graphics | Support HDMITM 2.1, maximum resolution of 4K 60Hz* |
| Graphics | 1x DisplayPort |
| Graphics | Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| Graphics | Support DP 1.4, maximum resolution of 4K 60Hz* |
| Graphics | 1x HDMI |
| Graphics | *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Other | Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics |
| Other | RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| BIOS | 1x 256 Mb flash •UEFI AMI BIOS •ACPI 6.4, SMBIOS 3.5 •Multi-language |
| I/O | 2x USB 5Gbps Type A (Rear) |
| I/O | 4x USB 2.0 (Front) |
| I/O | 1x USB 5Gbps Type C (Front) |
| I/O | 1x USB 10Gbps Type C (Rear) |
| I/O | 4x USB 5Gbps Type A (Front) |
| I/O | 2x USB 2.0 (Rear) |
| Storage | 4x SATA 6G |
| Storage | 2x M.2 |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| Storage | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x Com Port (JCOM) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 1x Pump Fan |
| Connectors | 2x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 2x RGB LED connector(JRGB) |
| Connectors | 5x System Fan |
| Connectors | 1x USB 5Gbps Type C ports |
| Connectors | 4x USB 5Gbps Type A ports |
| Connectors | •1x Front panel audio connector •2x System panel connectors |
| Connectors | •1x Chassis Intrusion connector •1x TPM module connector |
| Connectors | •1x Serial port connector •1x TBT connector (Supports RTD3) |
| Connectors | •1x 4-pin CPU fan connector |
| Connectors | •1x 4-pin water-pump fan connector |
| Connectors | •5x 4-pin system fan connectors |
| USB | 2x USB 2.0 (Rear) |
| USB | 4x USB 2.0 (Front) |
| USB | 2x USB 5Gbps Type A (Rear) |
| USB | 4x USB 5Gbps Type A (Front) |
| USB | 1x USB 5Gbps Type C (Front) |
| USB | 1x USB 10Gbps Type C (Rear) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 192 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

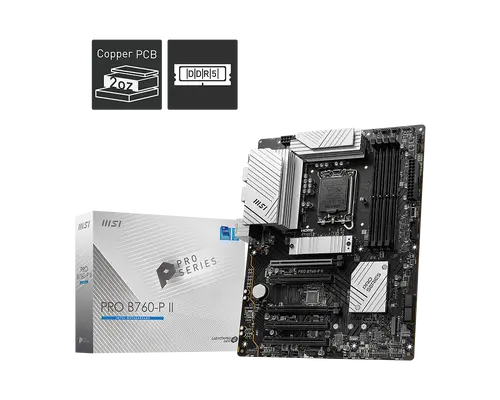

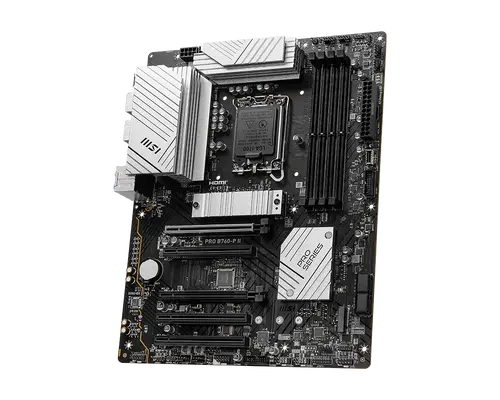

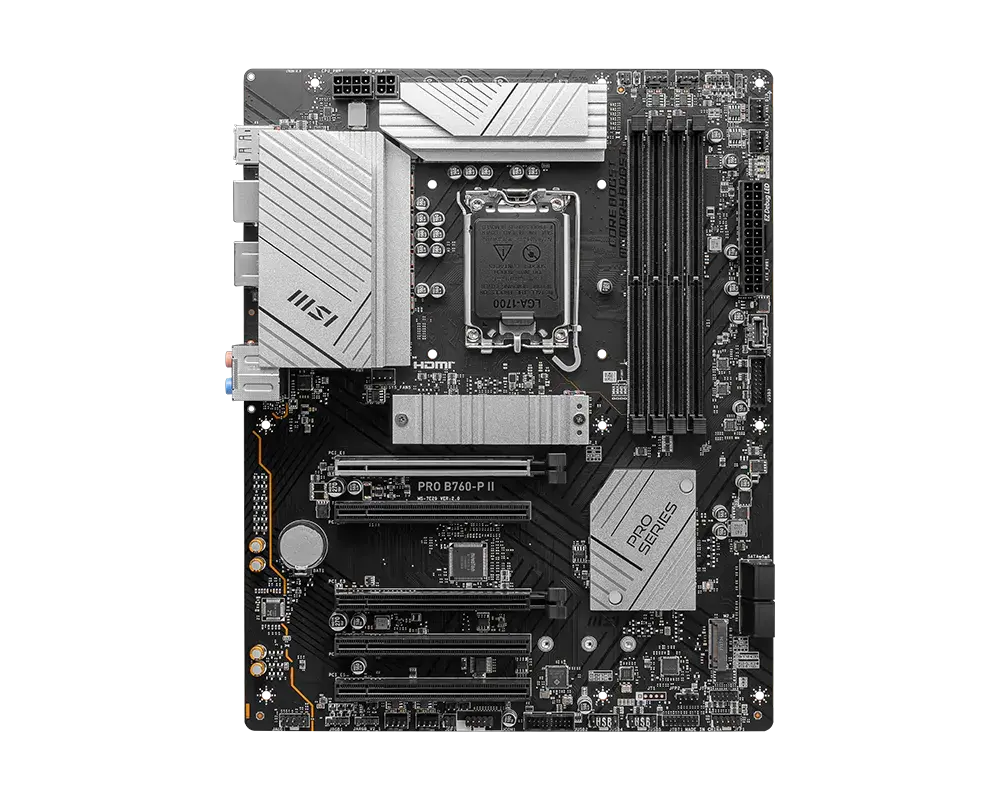

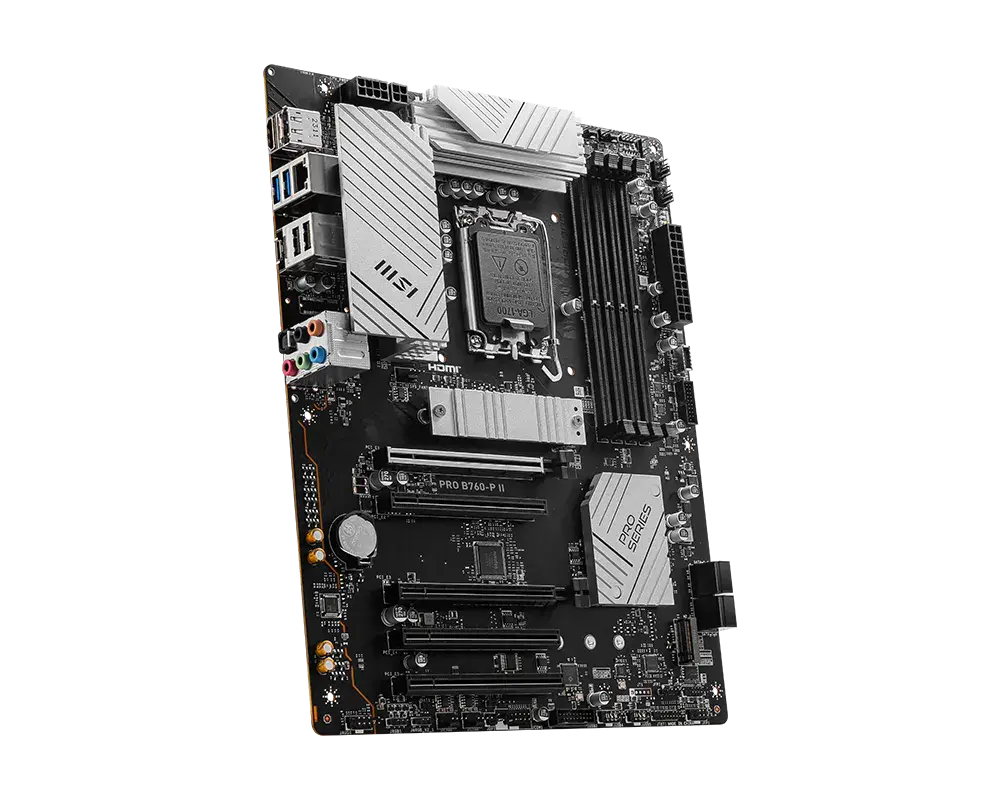

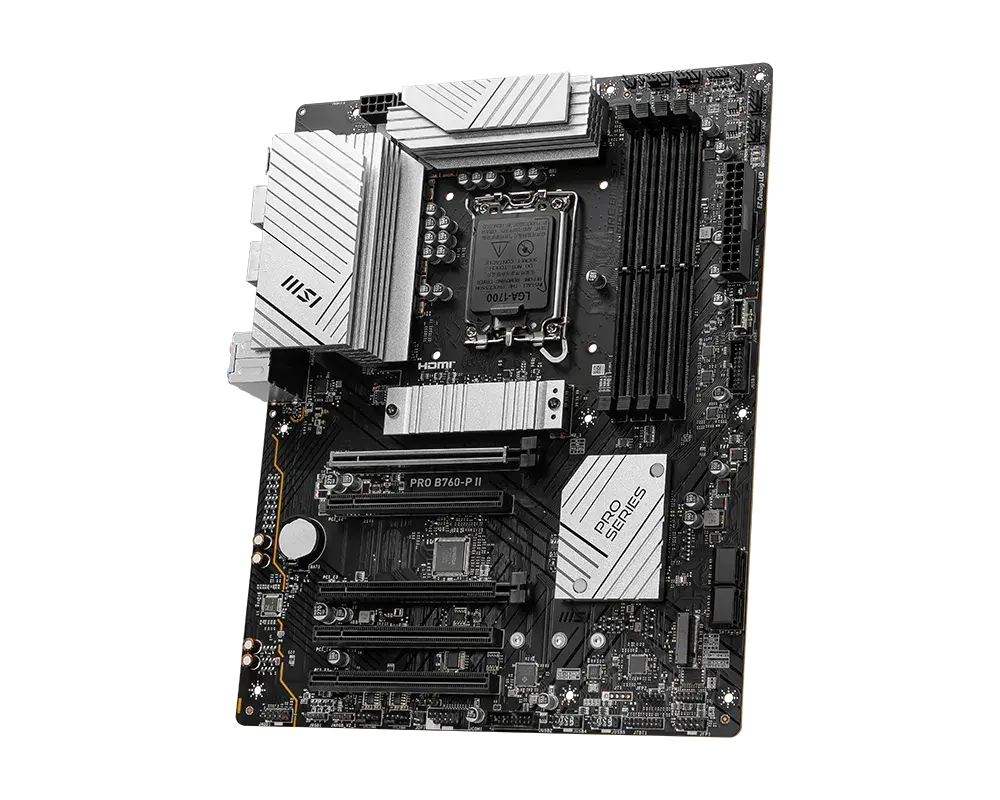

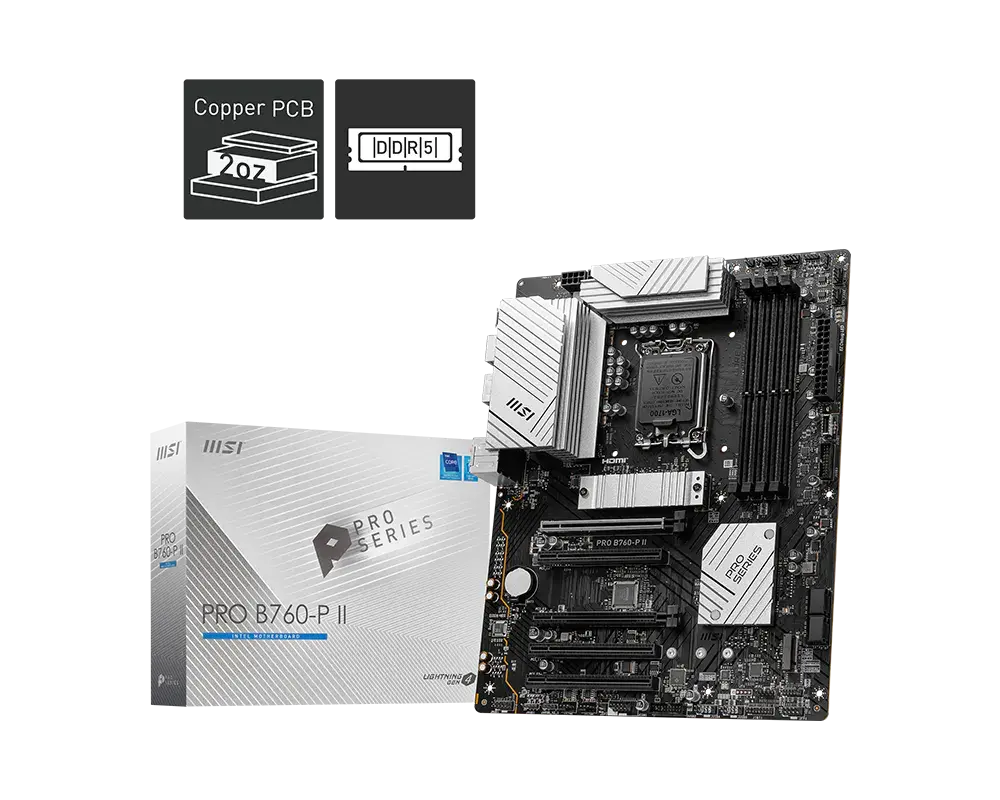

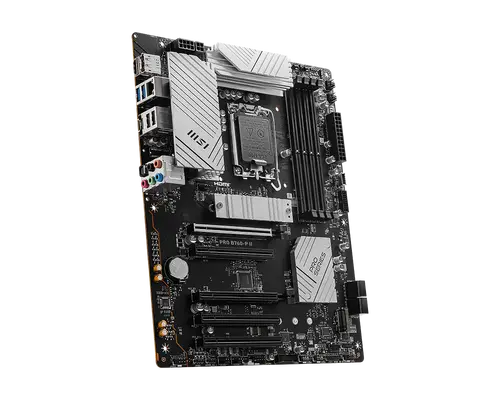

Дънна платка MSI PRO B760-P II – LGA1700, DDR5, ATX
Проектирана за професионалисти и напреднали потребители, MSI PRO B760-P II предлага изключителна стабилност и висока производителност за Intel процесори от 12-то, 13-то и 14-то поколение. С поддръжка на DDR5 памет, PCIe 4.0 слотове и усилено захранване, тази платка е идеалната основа за надеждна работна станция или гейминг конфигурация.
Ключови Предимства
- Поддръжка на DDR5 — По-бърза скорост на трансфер и подобрена многозадачност с двуканална DDR5 RAM.
- PCIe 4.0 готовност — Свържете най-новите видеокарти и NVMe SSD за светкавична производителност.
- Подобрено захранване — 12+1+1 Duet Rail VRM осигурява стабилно напрежение за взискателни процесори.
- Разширена свързаност — Включва 2.5G LAN, USB 3.2 Gen 2 Type-C и множество M.2 слотове.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Не |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка MSI PRO B760-P II
- Ръководство за потребителя
- Заден панел (I/O Shield)
- 2x SATA кабела
- M.2 винтове
