- GIGABYTE
Τιμή
€57 85 / 113 14 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.gigabyte.com/Motherboard/A520M-DS3H-V2-rev-11/sp#sp
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Chipset
AMD A520
Expansion slots
1 x PCI Express x16 slot, integrated in the CPU: Supporting PCIe 3.0 x16 mode
1 x PCI Express x1 slot, integrated in the Chipset: Supporting PCIe 3.0 x1 mode
Storage
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset: Supporting for RAID 0, RAID 1, and RAID 10
Memory type
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

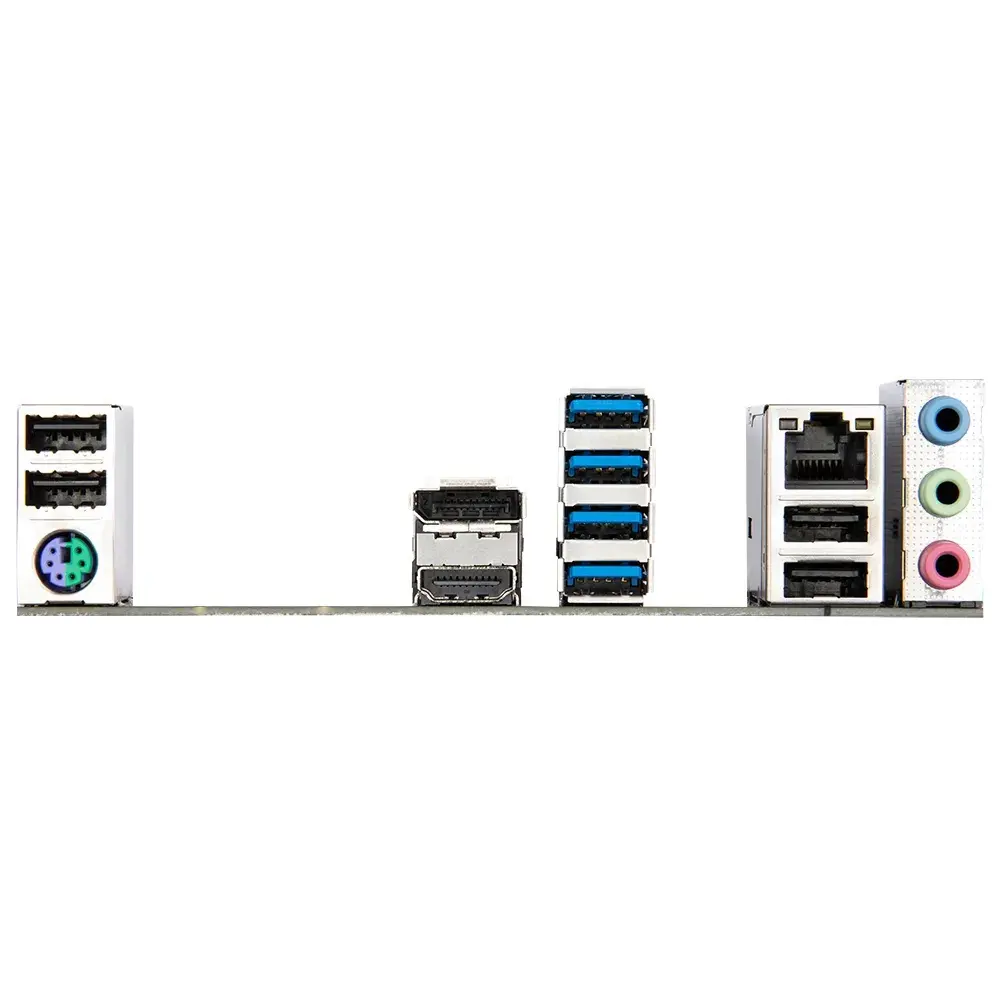

Rear panel I/O
1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Lan
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/A520M-DS3H-V2-rev-11/sp#sp |
| Chipset | AMD A520 |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules |
| Memory type | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Memory type | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules |
| Form Factor | Micro ATX Form Factor |
| Form Factor | 24.4cm x 24.4cm |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Rear panel I/O | 1 x PS/2 keyboard/mouse port |
| Rear panel I/O | 1 x HDMI port |
| Rear panel I/O | 4 x USB 3.2 Gen 1 ports |
| Rear panel I/O | 2 x USB 2.0/1.1 ports |
| Rear panel I/O | 1 x RJ-45 port |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x DisplayPort |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU: Supporting PCIe 3.0 x16 mode |
| Expansion Slots | 1 x PCI Express x1 slot, integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Graphics | Maximum shared memory of 16 GB |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz |
| Graphics | * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| BIOS | 1 x 128 Mbit flash |
| I/O | 4 x USB 3.2 Gen 1 ports |
| I/O | 1 x DisplayPort |
| I/O | 1 x RJ-45 port |
| I/O | 3 x audio jacks |
| I/O | 1 x HDMI Port |
| I/O | 1 x PS/2 keyboard/mouse port |
| I/O | 2 x USB 2.0/1.1 ports |
| Storage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs |
| Storage | 4 x SATA 6Gb/s connectors, integrated in the Chipset: Supporting for RAID 0, RAID 1, and RAID 10 |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 1 x system fan header |
| Connectors | 1 x M.2 Socket 3 connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Connectors | 1 x USB 2.0/1.1 header |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM4 |
| Form Factor | Micro-ATX |
| Chipset | AMD A520 |
| Memory Type | DDR4 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

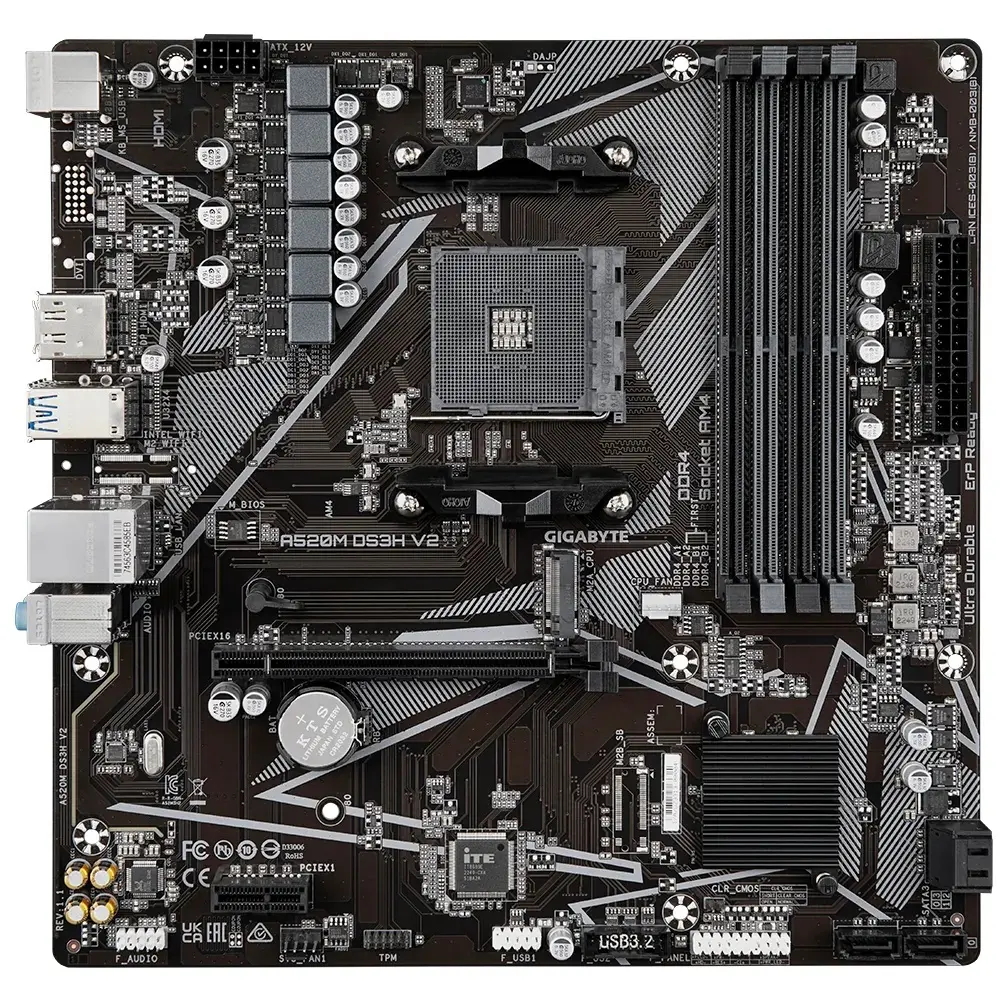

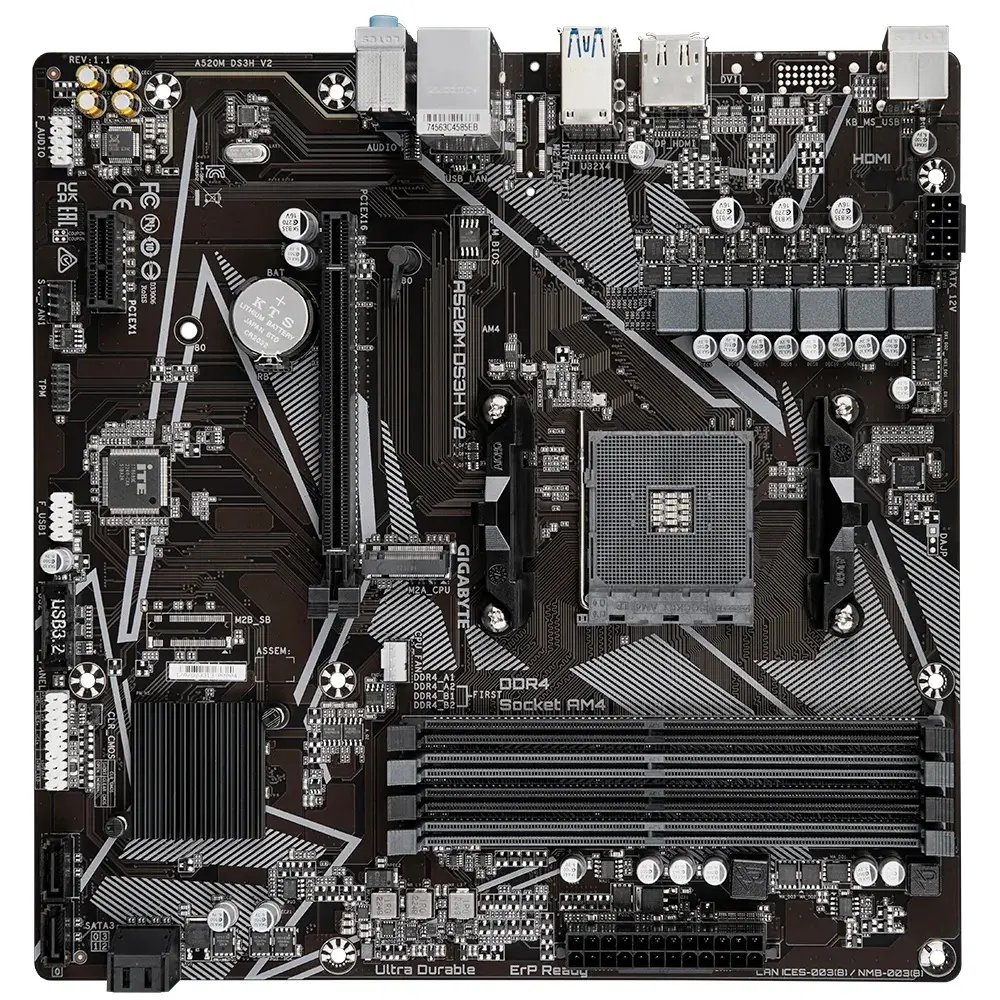

Дънна платка GIGABYTE A520M DS3H V2 – Надеждност за AM4 платформата
Изградете стабилна система с процесор AMD Ryzen, използвайки GIGABYTE A520M DS3H V2 – Micro-ATX дънна платка, която съчетава основни функции с качествено изпълнение. Идеална за бюджетни изграждания, предлага PCIe 3.0 поддръжка, двуканална DDR4 памет и лесен за работа BIOS.
Ключови Предимства
- AMD AM4 платформа — Поддържа AMD Ryzen 5000/4000/3000 серии за гъвкава производителност.
- DDR4 памет — Двуканална DDR4 до 4733 MHz (OC) за плавна работа.
- Бързо съхранение — Един PCIe 3.0 x4 M.2 слот за NVMe SSD и четири SATA 6Gb/s порта.
- Smart Fan 6 — Хибридни заглавки за вентилатори с FAN STOP за тихо охлаждане.
- GIGABYTE App Center — Лесно настройване на системата и актуализации на драйвери.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM4 |
| Форм фактор | Micro-ATX |
| Чипсет | AMD A520 |
| Тип памет | DDR4 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 1 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 0 |
| RGB подсветка | Не |
Какво има в кутията

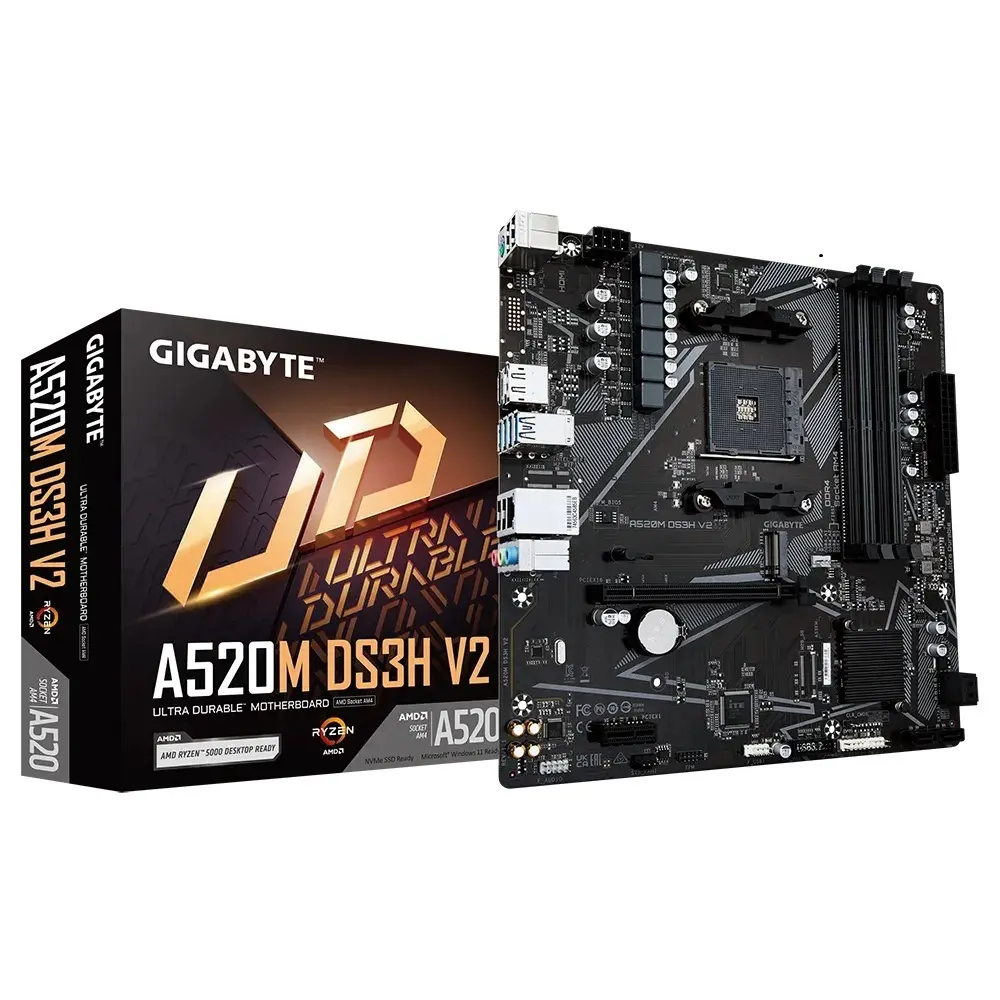

- Дънна платка GIGABYTE A520M DS3H V2
- Заден панел (I/O Shield)
- SATA кабели (x2)
- Ръководство за потребителя
- DVD с драйвери
