- ASUS
Τιμή
€49 66 / 97 13 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σειρά: Prime
Επεξεργαστής: Intel 1700
Chipset: Intel H610
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Μνήμη: DDR5
Αριθμός υποδοχών: 2 DIMM Slots, Max. capacity of system memory: 96GB
Ήχος: Realtek 7.1 Surround Sound High Definition Audio CODEC
Ασύρματο δίκτυο: -
Σύνδεσμοι: 24-pin Main Power connector, 4-pin +12V Power connector
Υποδοχές: PCIe 4.0 x16 slot, PCIe 3.0 x1 slot
Υποδοχή M.2: M.2 slot (Key M)
Διεπαφή: 2 USB 3.2 Gen 1(5G), 2 USB 2.0 ports, DisplayPort, VGA port, HDMI, Realtek 1Gb Ethernet port, 3 Audio jacks, PS/2 Keyboard (purple) port, PS/2 Mouse (green) port
Λογισμικό: ASUS Exclusive Software
Λειτουργικό σύστημα: Windows 11 64-bit, Windows 10 64-bit
Μορφότυπο: mATX
Ειδικές λειτουργίες: ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution
Εφαρμογή: για εξειδικευμένη χρήση
Επεξεργαστής: Intel 1700
Chipset: Intel H610
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Μνήμη: DDR5
Αριθμός υποδοχών: 2 DIMM Slots, Max. capacity of system memory: 96GB
Ήχος: Realtek 7.1 Surround Sound High Definition Audio CODEC
Ασύρματο δίκτυο: -
Σύνδεσμοι: 24-pin Main Power connector, 4-pin +12V Power connector
Υποδοχές: PCIe 4.0 x16 slot, PCIe 3.0 x1 slot
Υποδοχή M.2: M.2 slot (Key M)
Διεπαφή: 2 USB 3.2 Gen 1(5G), 2 USB 2.0 ports, DisplayPort, VGA port, HDMI, Realtek 1Gb Ethernet port, 3 Audio jacks, PS/2 Keyboard (purple) port, PS/2 Mouse (green) port
Λογισμικό: ASUS Exclusive Software
Λειτουργικό σύστημα: Windows 11 64-bit, Windows 10 64-bit
Μορφότυπο: mATX
Ειδικές λειτουργίες: ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution
Εφαρμογή: για εξειδικευμένη χρήση
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-r/
Graphics
1 x DisplayPort
1 x VGA port
1 x HDMITM port
CPU's supported
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports up to Intel® 65W CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel® H610 Chipset
Expansion slots
Intel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot
Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Memory type
2 x DIMM, Max. 96GB, DDR5 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

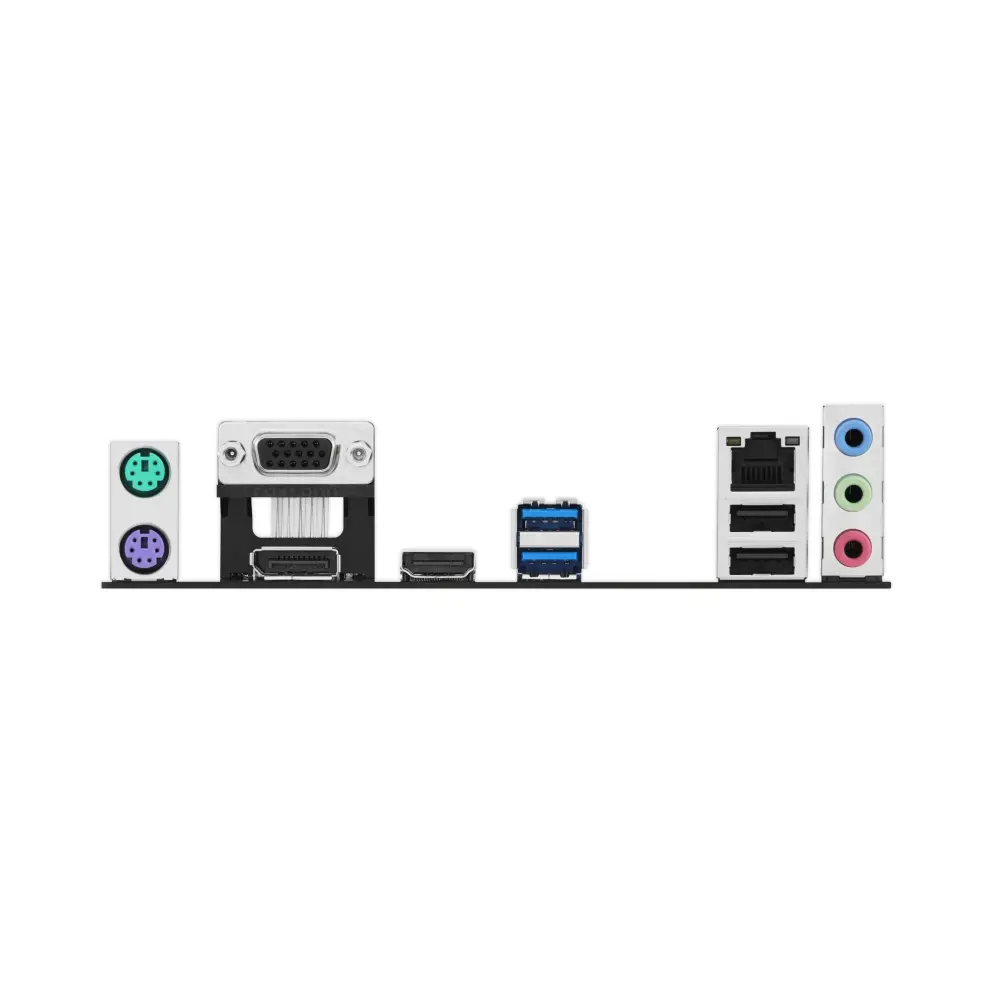

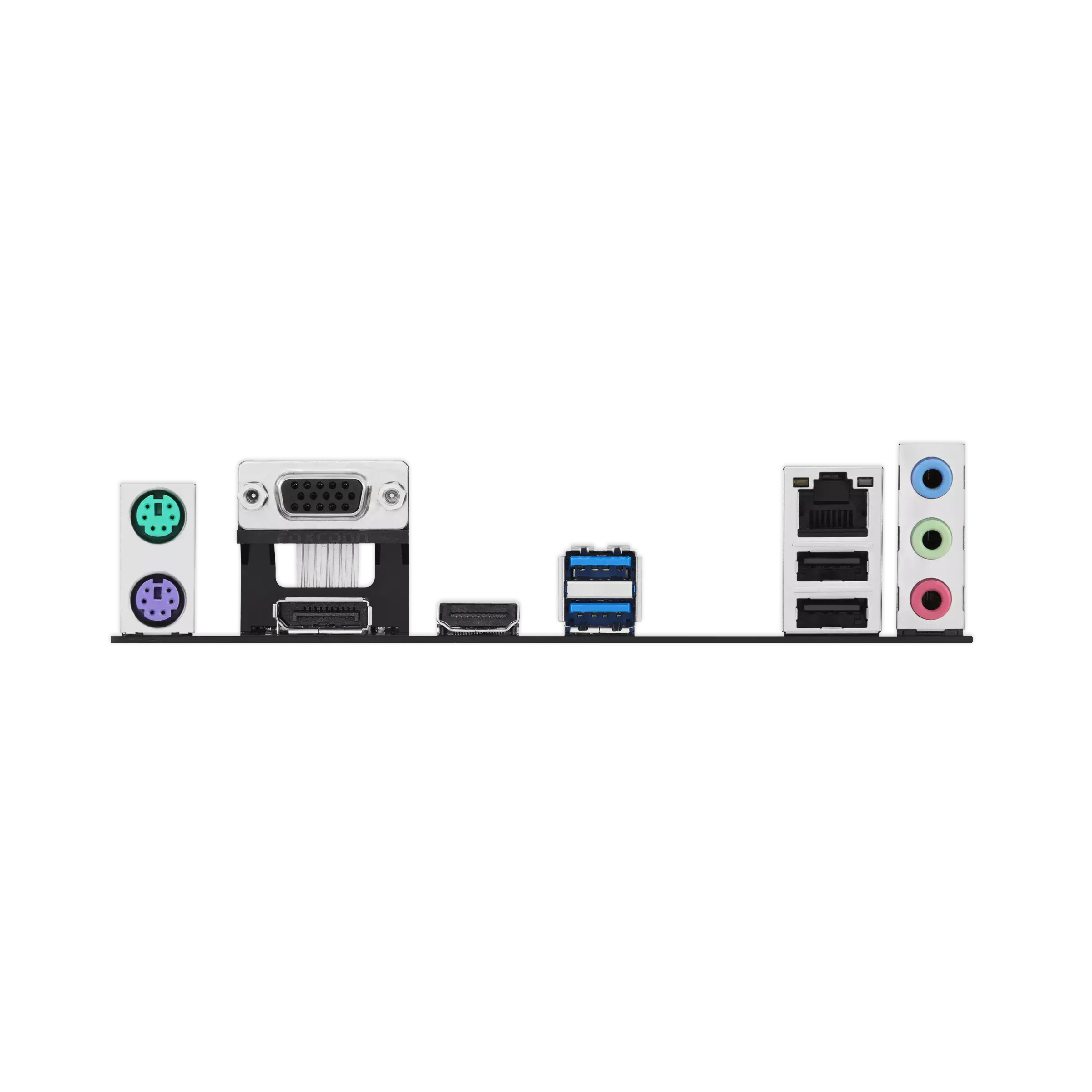

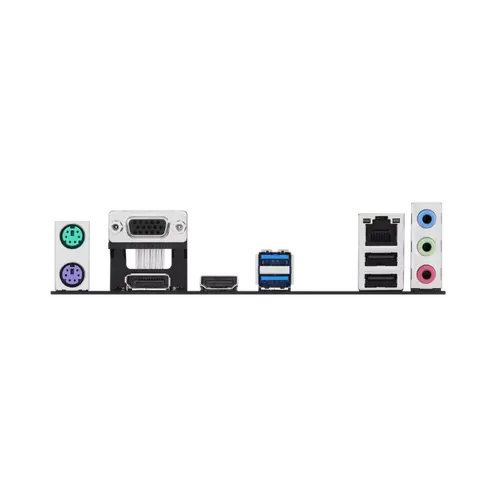

Rear panel I/O
2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
Lan
1 x Realtek 1Gb Ethernet
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form factor
mATX Form Factor, 22.6 cm x 19.5 cm
OS
Windows® 11 64-bit, Windows® 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-r/ |
| Chipset | Intel® H610 Chipset |
| OS | Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 36 Months |
| Warranty | 24 Months |
| CPU's supported | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| CPU's supported | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| CPU's supported | Supports up to Intel® 65W CPU |
| Memory type | Dual channel memory architecture |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) |
| Memory type | 2 x DIMM, Max. 96GB, DDR5 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
| Form Factor | mATX Form Factor, 22.6 cm x 19.5 cm |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | - Supports up to 24-Bit/192 kHz playback |
| Audio | - Premium audio capacitors |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio | * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 2 x USB 2.0 ports (2 x Type-A) |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x Realtek 1Gb Ethernet port |
| Rear panel I/O | 1 x PS/2 Keyboard (purple) port |
| Rear panel I/O | 1 x PS/2 Mouse (green) port |
| Rear panel I/O | 1 x VGA port |
| Rear panel I/O | 1 x HDMITM port |
| Rear panel I/O | 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) |
| LAN | 1 x Realtek 1Gb Ethernet |
| Expansion Slots | Intel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot |
| Expansion Slots | Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot |
| Graphics | 1 x HDMI™ port |
| Graphics | 1 x HDMITM port |
| Graphics | 1 x DisplayPort |
| Graphics | 1 x VGA port |
| Features | ASUS 5X PROTECTION III |
| Features | ASUS Q-Design |
| Features | ASUS Thermal Solution |
| Features | - Aluminum heatsink design |
| Features | - DIGI+ VRM |
| Features | - LANGuard |
| Features | - Overvoltage Protection |
| Features | - SafeSlot Core |
| Features | - Stainless-Steel Back I/O |
| Features | - Q-DIMM |
| Features | - Q-LED Core |
| Features | - Q-Slot |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 1 x DisplayPort |
| I/O | 3 x audio jacks |
| I/O | 2 x USB 2.0 ports (2 x Type-A) |
| I/O | 1 x Realtek 1Gb Ethernet port |
| I/O | 1 x PS/2 Keyboard (purple) port |
| I/O | 1 x PS/2 Mouse (green) port |
| I/O | 1 x VGA port |
| I/O | 1 x HDMITM port |
| I/O | 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
| Storage | Intel® H610 Chipset |
| Storage | M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) |
| Connectors | 1 x speaker header |
| Connectors | 1 x chassis intrusion header |
| Connectors | 1 x COM port header |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | Storage related |
| Connectors | 1 x M.2 slot (Key M) |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | USB |
| Connectors | 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 1 x Front Panel Audio header (AAFP) |
| Connectors | 1 x LPT header |
| Connectors | 1 x 10-1 pin System Panel header |
| Connectors | 1 x SPI TPM header (14-1 pin) |
| Connectors | 1 x 4-pin Chassis Fan header |
| Connectors | 1 x 4-pin +12V Power connector |
| Connectors | 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports |
| USB | 2 x USB 2.0 ports (2 x Type-A) |
| USB | 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| USB | Front USB (Total 6 ports) |
| USB | Rear USB (Total 4 ports) |
| USB | 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) |
| USB | 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports |
| Βάρος | 0.68kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel H610 |
| Memory Type | DDR4 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Βάρος | 0.68kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

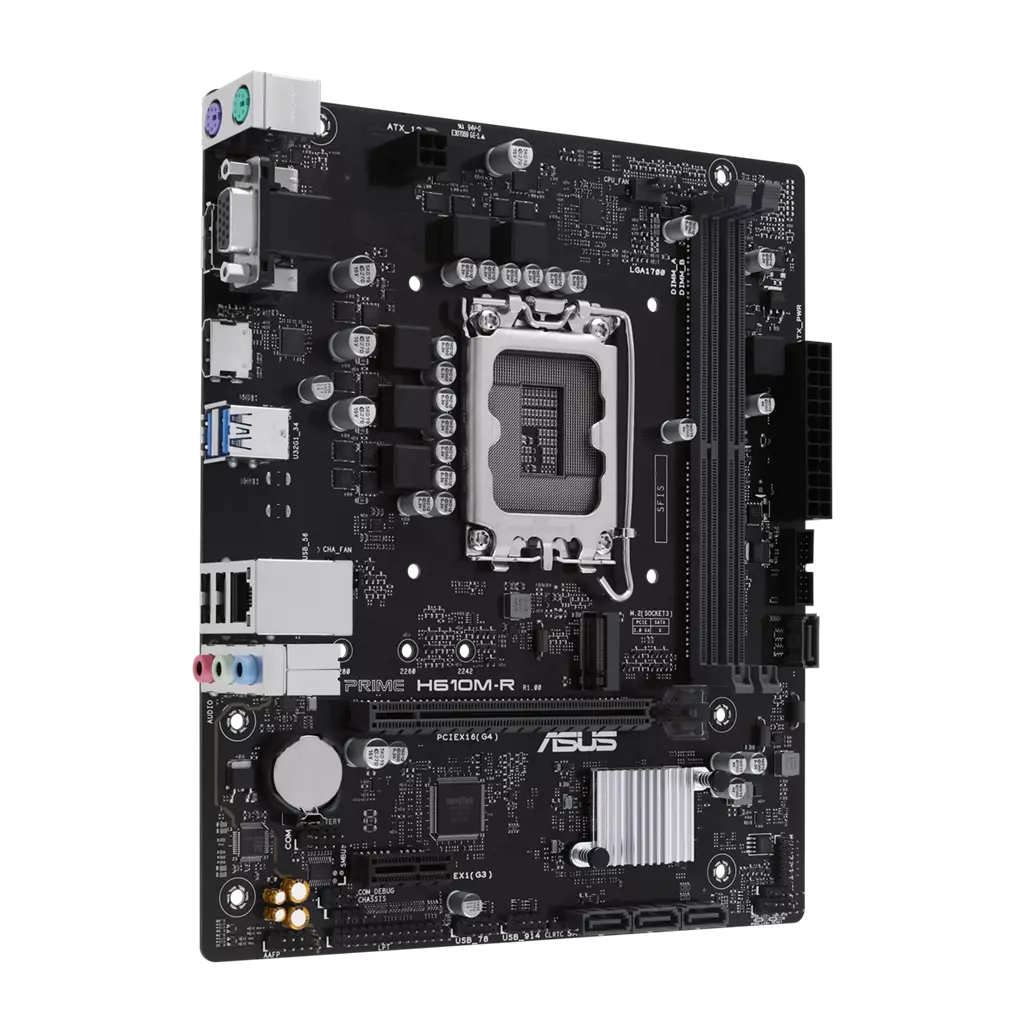

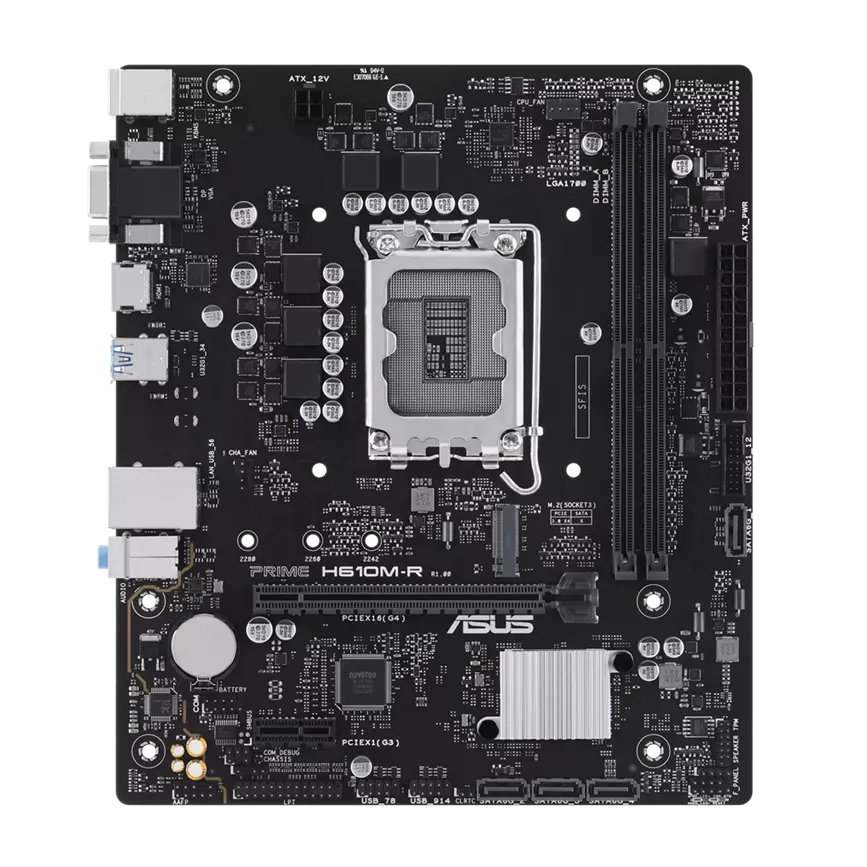

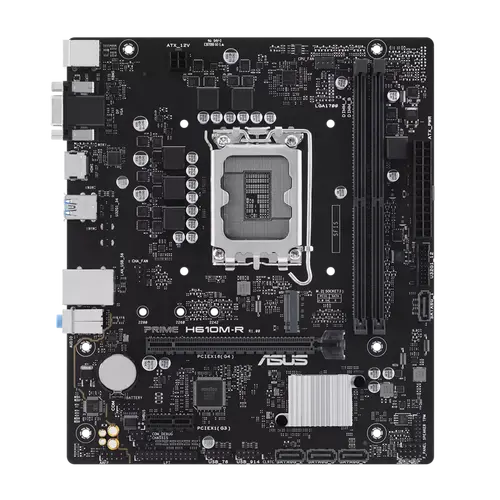

Дънна платка Asus Prime H610M-R – Надеждна производителност за ежедневни задачи
Създайте стабилна и ефективна компютърна система с Asus Prime H610M-R – micro-ATX платка, проектирана за процесори Intel Core от 12-о, 13-о и 14-о поколение. Тя предлага основните функции с ASUS 5X Protection III за дълготрайна издръжливост, което я прави идеална основа за домашни и офис системи.
Ключови Предимства
- Цялостна защита — ASUS 5X Protection III предпазва компонентите с LANGuard, защита от пренапрежение и неръждаем заден панел.
- Свръхбърза свързаност — PCIe 4.0 M.2 слот поддържа NVMe SSD за бърз достъп до данни и зареждане на системата.
- Гъвкава поддръжка на памет — Два DDR4 DIMM слота позволяват до 64 GB памет за плавна многозадачна работа.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel H610 |
| Тип памет | DDR4 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 1 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Скорост на LAN | 1 Gbps |
Какво има в кутията
- Дънна платка Asus Prime H610M-R

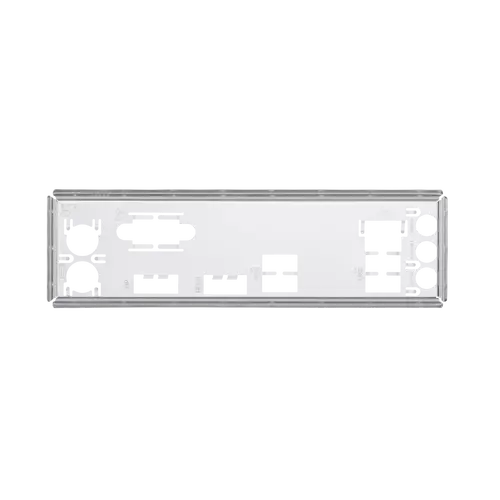

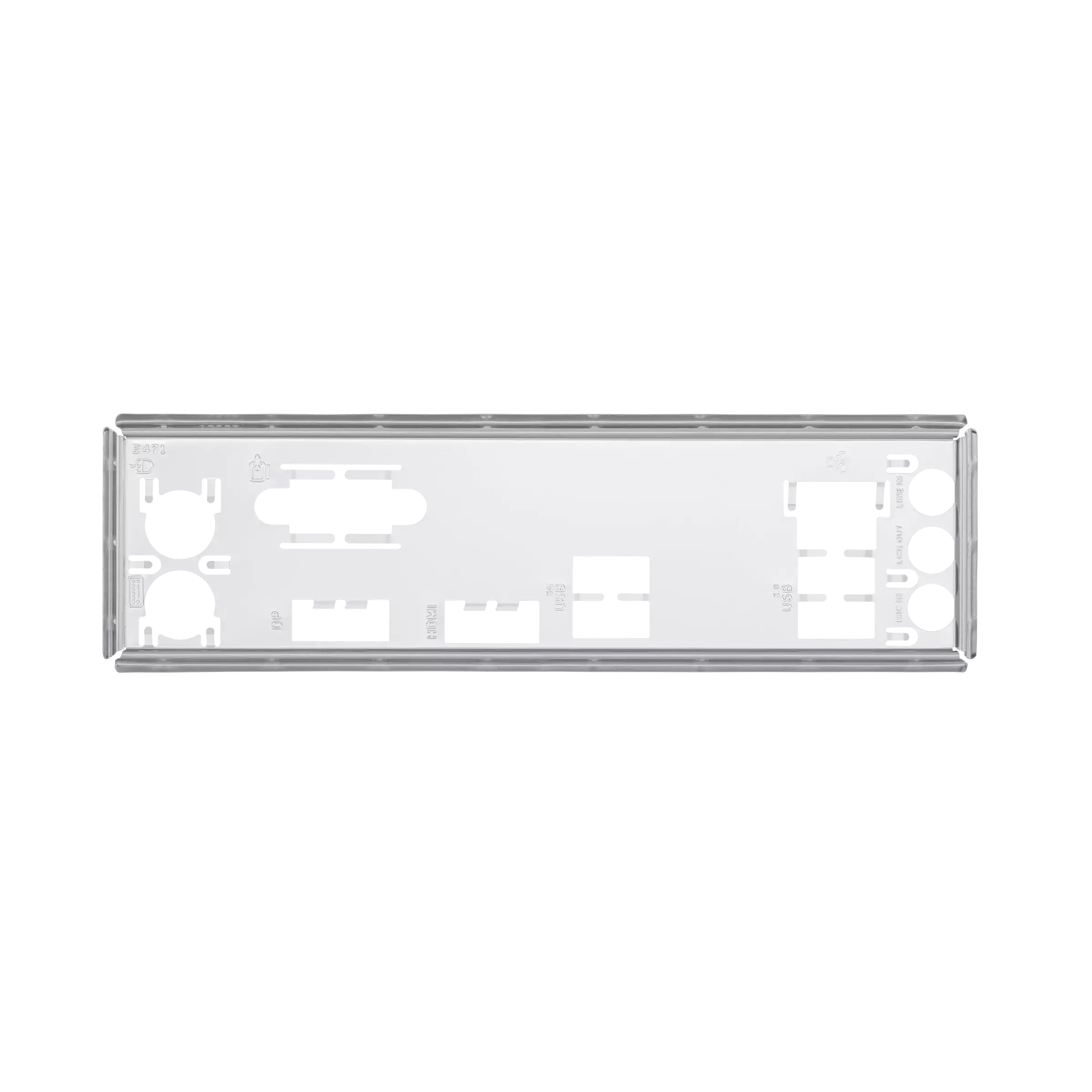

- I/O щит
- SATA кабели
- Пакет с винтове за M.2
- Ръководство на потребителя
