Vendor_url
https://www.gigabyte.com/Motherboard/B550M-DS3H-AC-R2
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
CPU's supported
AMD Socket AM4, support for:
AMD Ryzen™ 5000 G-Series Processors/
AMD Ryzen™ 5000 Series Processors/
AMD Ryzen™ 4000 G-Series Processors/
AMD Ryzen™ 3000 G-Series Processors/
AMD Ryzen™ 3000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD B550
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ 5000/ 3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
- AMD Ryzen™ 5000 G/ 4000 G/ 3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

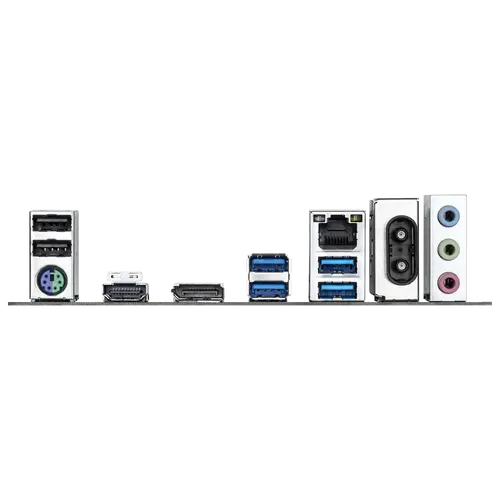

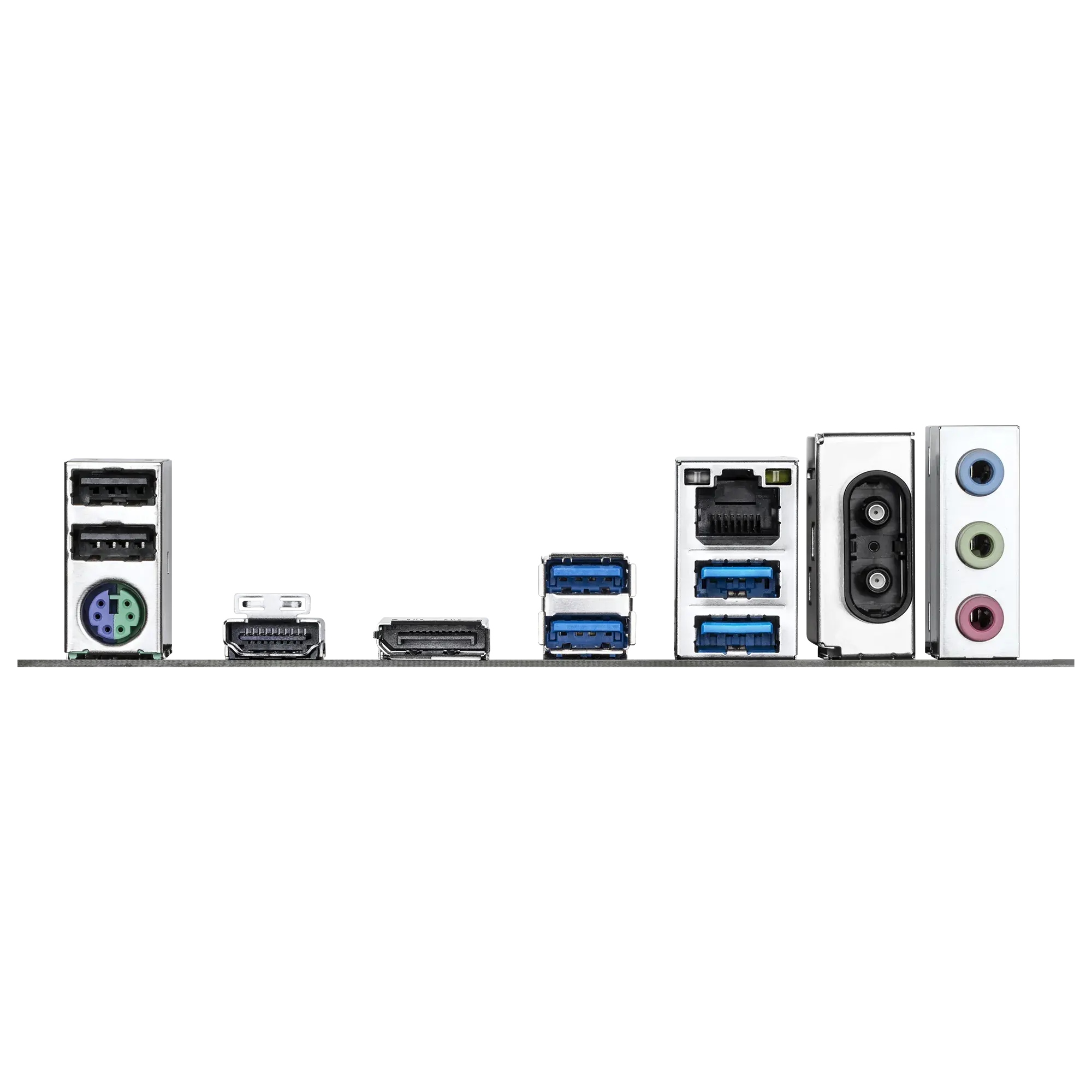

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x antenna connectors
3 x audio jacks
Audio
Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Lan
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Wireless
Realtek® Wi-Fi RTL8821CE
- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.0
- Support for 11ac wireless standard
Bluetooth
5.0
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/B550M-DS3H-AC-R2 |
| Chipset | AMD B550 |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM4, support for: |
| CPU's supported | AMD Ryzen™ 5000 G-Series Processors/ |
| CPU's supported | AMD Ryzen™ 5000 Series Processors/ |
| CPU's supported | AMD Ryzen™ 4000 G-Series Processors/ |
| CPU's supported | AMD Ryzen™ 3000 G-Series Processors/ |
| CPU's supported | AMD Ryzen™ 3000 Series Processors |
| CPU's supported | (Go to GIGABYTE's website for the latest CPU support list.) |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules |
| Memory type | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules |
| Memory type | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory |
| Form Factor | Micro ATX Form Factor |
| Form Factor | 24.4cm x 24.4cm |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Audio | Realtek® ALC1220 CODEC |
| Audio | * The back panel line out jack supports DSD audio. |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| Expansion Slots | - AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode |
| Expansion Slots | - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | Chipset: |
| Expansion Slots | - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 |
| Expansion Slots | - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 |
| Wireless | Realtek® Wi-Fi RTL8821CE |
| Wireless | - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band |
| Wireless | - BLUETOOTH 5.0 |
| Wireless | - Support for 11ac wireless standard |
| Graphics | * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Graphics | * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| Graphics | - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | ** Support for native HDMI 2.1 TMDS compatible ports. |
| Features | Support for APP Center |
| Features | * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Features | - @BIOS |
| Features | - EasyTune |
| Features | - RGB Fusion |
| Features | - Smart Backup |
| Features | - System Information Viewer |
| Features | Support for Q-Flash Plus |
| Features | Support for Q-Flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| BIOS | 1 x 128 Mbit flash |
| I/O | iTE® I/O Controller Chip |
| Storage | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| Storage | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Storage | 4 x SATA 6Gb/s connectors |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: |
| Storage | - AMD Ryzen™ 5000/ 3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs |
| Storage | - AMD Ryzen™ 5000 G/ 4000 G/ 3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs |
| Storage | 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs |
| Bluetooth | 5.0 |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 2 x addressable LED strip headers |
| Connectors | 2 x RGB LED strip headers |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 1 x serial port header |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Connectors | 2 x system fan headers |
| Connectors | 1 x USB 2.0/1.1 header |
| Connectors | 2 x M.2 Socket 3 connectors |
| Connectors | 1 x CPU cooler LED strip/RGB LED strip header |
| Connectors | Back Panel Connectors |
| Connectors | 2 x USB 2.0/1.1 ports |
| Connectors | 1 x PS/2 keyboard/mouse port |
| Connectors | 1 x HDMI port (Note) |
| Connectors | 1 x DisplayPort (Note) |
| Connectors | 4 x USB 3.2 Gen 1 ports |
| Connectors | 1 x RJ-45 port |
| Connectors | 2 x antenna connectors |
| Connectors | 3 x audio jacks |
| USB | CPU: |
| USB | - 4 x USB 3.2 Gen 1 ports on the back panel |
| USB | Chipset: |
| USB | - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
| USB | - 2 x USB 3.2 Gen 1 ports available through the internal USB header |
| USB | - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM4 |
| Form Factor | Micro-ATX |
| Chipset | AMD B550 |
| Memory Type | DDR4 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 5 |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

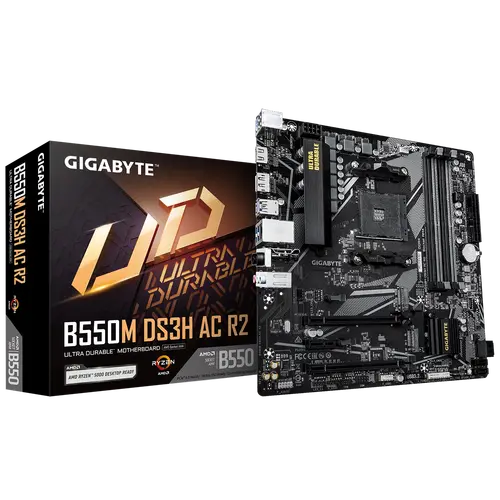

GIGABYTE B550M DS3H AC R2 – Надеждна AM4 Micro-ATX дънна платка с Wi-Fi
Изградете високопроизводителна игрална или работна станция с GIGABYTE B550M DS3H AC R2. Тази Micro-ATX платка съчетава AMD B550 чипсет с вграден 802.11ac Wi-Fi и богат набор от функции, което я прави отлична основа за следващото ви AMD Ryzen изграждане.
Ключови Предимства
- Изключителна производителност — Поддържа AMD Ryzen 5000 серия процесори с PCIe 4.0 за светкавично бърза графика и съхранение.
- Вграден Wi-Fi 5 — Интегрирана 802.11ac безжична мрежа осигурява удобна свързаност без кабели.
- Двоен M.2 слот — Един PCIe 4.0 M.2 слот и един PCIe 3.0/SATA M.2 слот за високоскоростни SSD дискове.
- Здраво захранване — 5+3 фаза цифров VRM гарантира стабилно захранване дори при тежки натоварвания.
- Разширено охлаждане — Умно управление на вентилаторите и хибридни главини за вентилатори поддържат системата хладна и тиха.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM4 |
| Чипсет | AMD B550 |
| Форм фактор | Micro-ATX |
| Тип памет | DDR4 |
| Слотове за памет | 4 (Dual Channel) |
| Максимална памет | 64 GB |
| M.2 слотове | 2 (1 x PCIe 4.0, 1 x PCIe 3.0/SATA) |
| SATA портове | 4 |
| PCIe x16 слотове | 2 (1 x Gen4 x16, 1 x Gen3 x4) |
| Wi-Fi | Wi-Fi 5 (802.11ac) |
| LAN | 1 Gbps Realtek GbE |
| USB-C на задния панел | Няма |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка GIGABYTE B550M DS3H AC R2
- Ръководство за потребителя
- Заден I/O панел
- 2 x SATA кабела
- Wi-Fi антена
- DVD с драйвери
