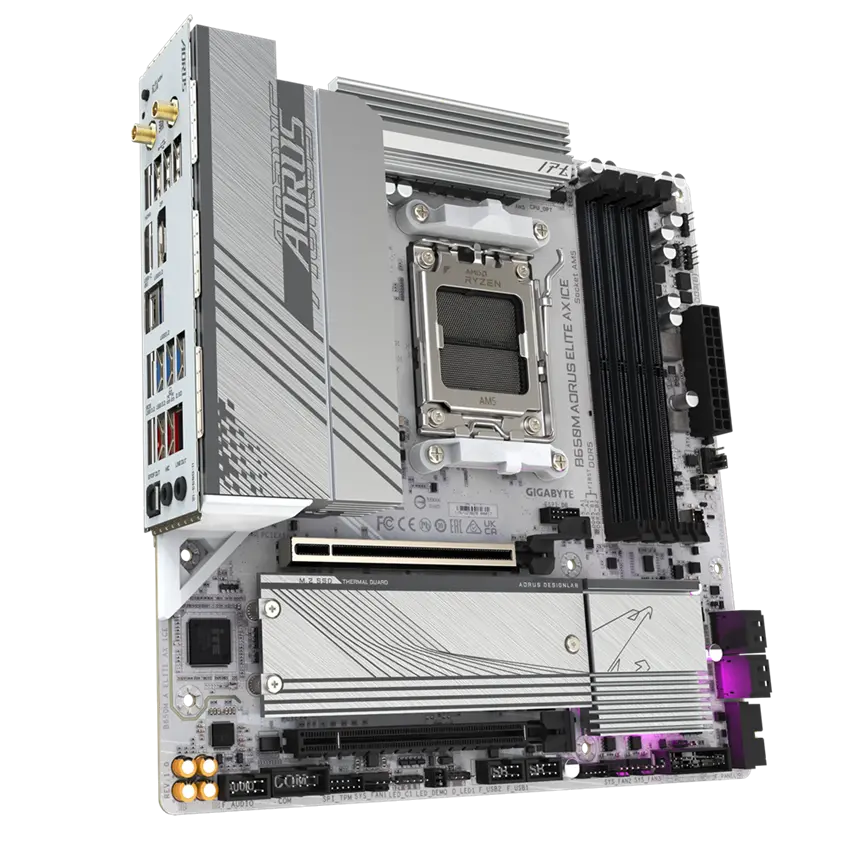

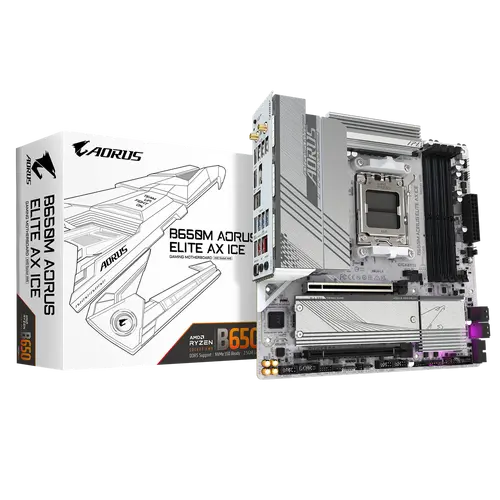

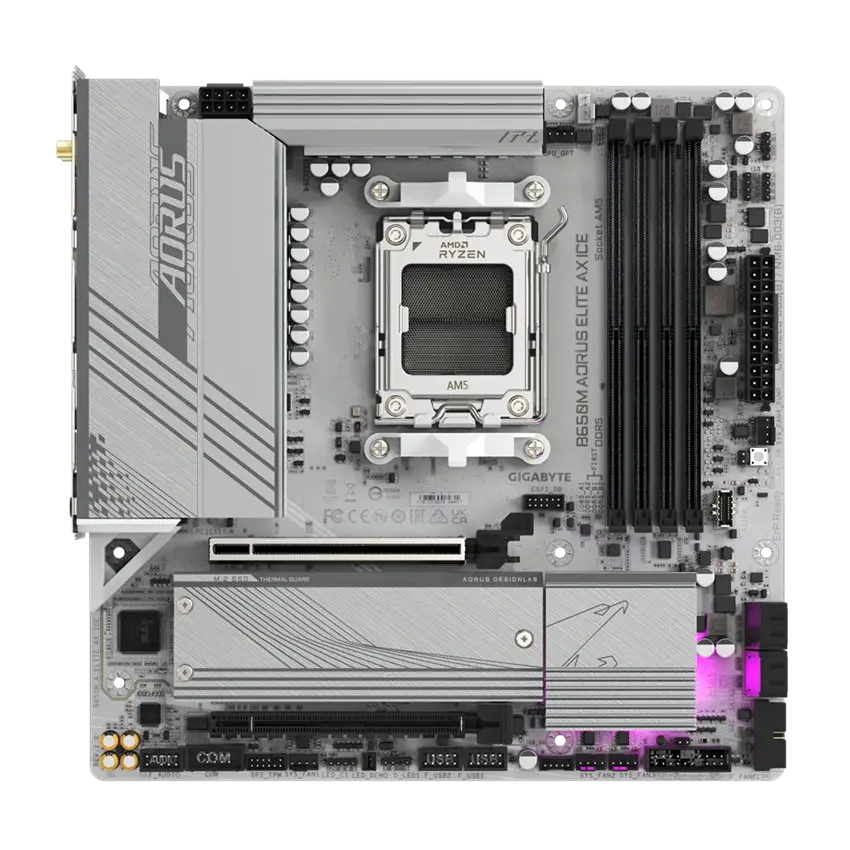

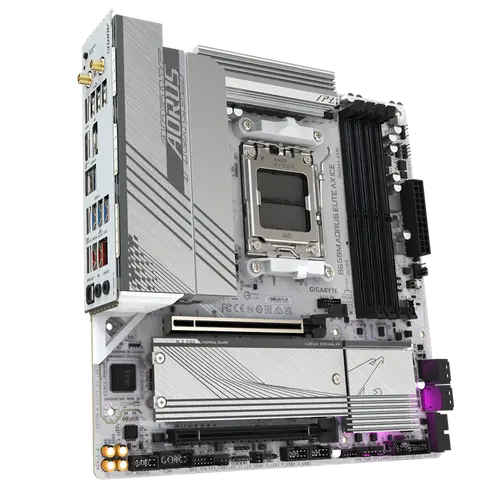

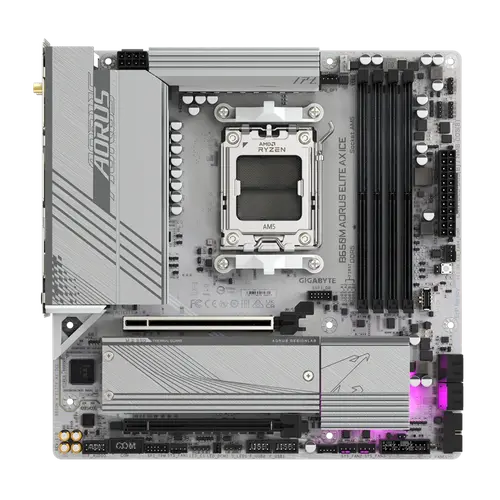

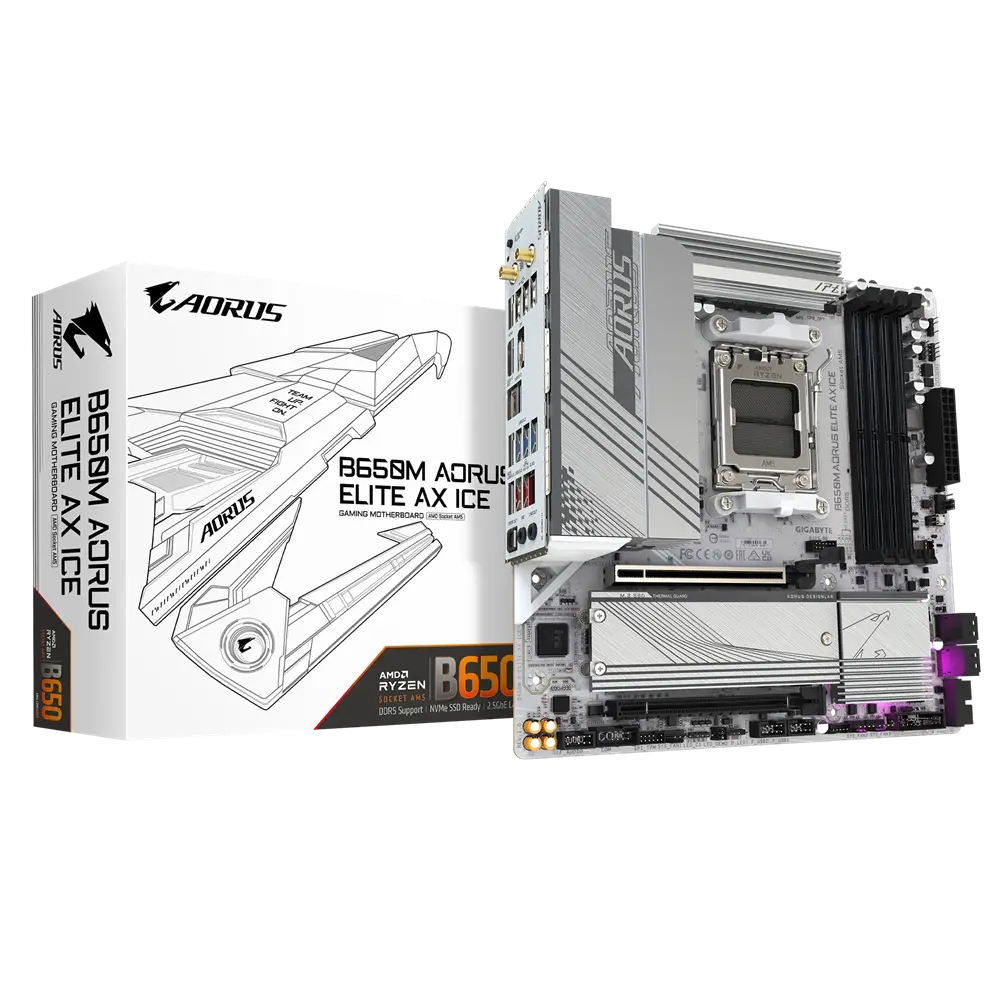

Дънна платка, GIGABYTE GB B650M AOR ELITE AX ICE /AM5

  • Дънна платка, GIGABYTE GB B650M AOR ELITE AX ICE /AM5 - 1
  • Дънна платка, GIGABYTE GB B650M AOR ELITE AX ICE /AM5 - 2
  • Дънна платка, GIGABYTE GB B650M AOR ELITE AX ICE /AM5 - 3
  • Дънна платка, GIGABYTE GB B650M AOR ELITE AX ICE /AM5 - 4
  • GIGABYTE
Дънна платка, GIGABYTE GB B650M AOR ELITE AX ICE /AM5
Цена
€171 04 / 334 53 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
 Добави в Количката
Удължи гаранцията си
+1 година: + 23€
+2 години: + 33€
РЕЙТИНГ
ТВОЯ РЕЙТИНГ
Мнения
Улеснено Поръчване - като въведете само телефон и име:
Съгласен съм с Общите условия
Ще Ви потърсим в рамките на работния ден. Внимание: При грешен телефонен номер, нямаме начин да се свържем с Вас.
CreditCredit
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/B650M-AORUS-ELITE-AX-ICE-rev-1x
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
CPU's supported
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipset
AMD B650
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200/ 4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Connectors
Internal I/O Connectors: 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

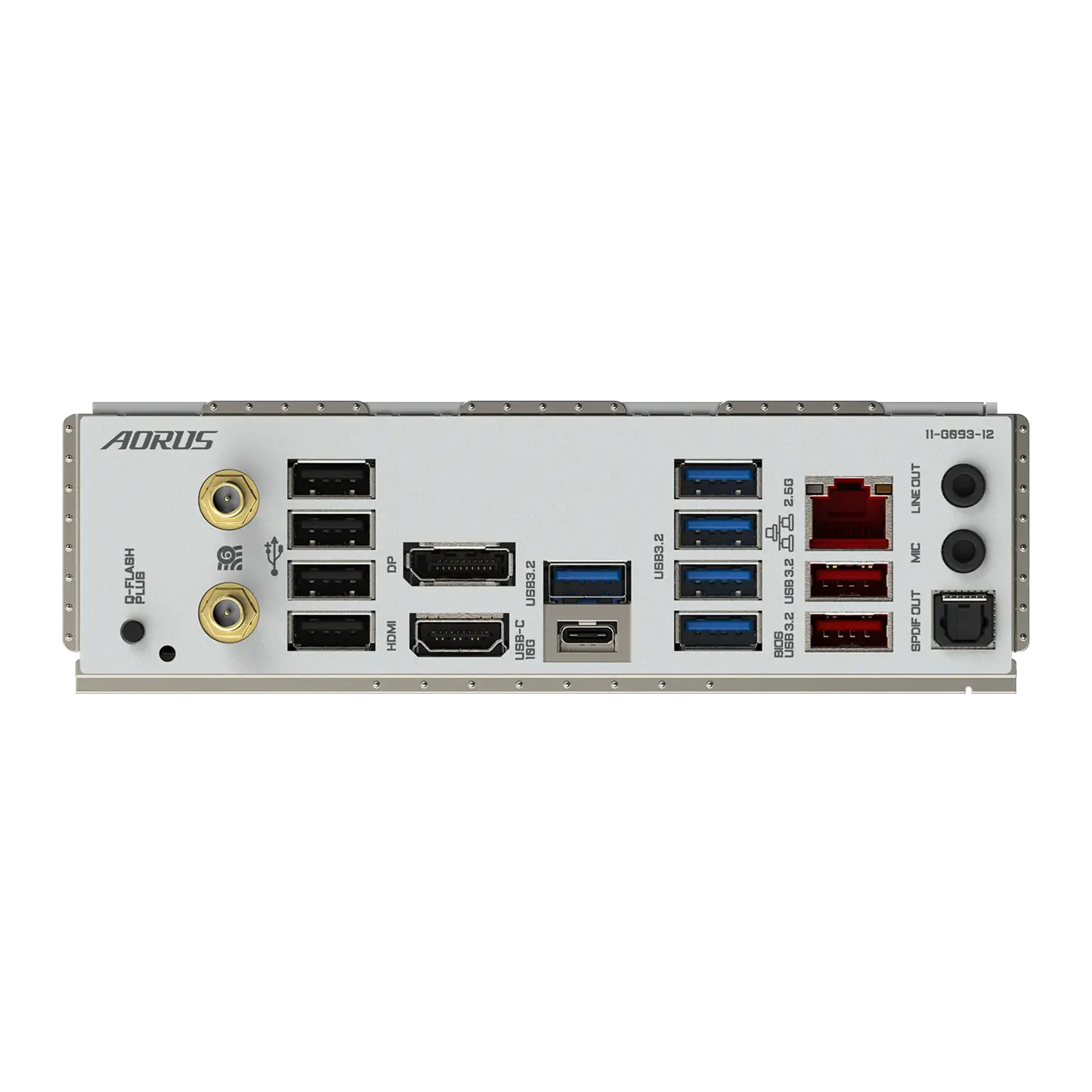

Back Panel Connectors: 1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)jk
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Данни, подадени от официалния вносител за България.
АтрибутСтойност
Vendor_urlhttps://www.gigabyte.com/Motherboard/B650M-AORUS-ELITE-AX-ICE-rev-1x
ChipsetAMD B650
OSSupport for Windows 10 64-bit
OSSupport for Windows 11 64-bit
Warranty36 Months
CPU's supportedAMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Memory typeDual channel memory architecture
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory typeSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory typeSupport for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
Form FactorMicro ATX Form Factor
Form Factor24.4cm x 24.4cm
AudioRealtek® Audio CODEC
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
Audio* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
AudioSupport for S/PDIF Out
Rear panel I/OiTE® I/O Controller Chip
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Expansion Slots* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion SlotsChipset:
Expansion SlotsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
Expansion SlotsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion SlotsAMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Wireless- BLUETOOTH 5.3
Wireless- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
WirelessRealtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
WirelessIntel® Wi-Fi 6E AX210 (PCB rev. 1.1)
Wireless- Support for 11ax 160MHz wireless standard
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support:
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics** Support for native HDMI 2.1 TMDS compatible ports.
Graphics* Support for HDMI 2.1 version and HDCP 2.3.
Graphics- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Graphics* Support for DisplayPort 1.4 version and HDR.
FeaturesSupport for Q-Flash Plus
FeaturesSupport for Q-Flash
FeaturesSupport for GIGABYTE Control Center (GCC)
Features* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
BIOS1 x 256 Mbit flash
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/OiTE® I/O Controller Chip
StorageRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
StorageRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage4 x SATA 6Gb/s connectors
StorageAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
StorageAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:
StorageAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
StorageAMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
StorageAMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
Storage1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:
Connectors1 x CPU fan header
Connectors3 x system fan headers
Connectors1 x system fan/water cooling pump header
Connectors2 x addressable LED strip headers
Connectors2 x RGB LED strip headers
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors1 x USB 3.2 Gen 1 header
Connectors2 x USB 2.0/1.1 headers
Connectors1 x serial port header
Connectors1 x reset button
Connectors1 x reset jumper
Connectors1 x Clear CMOS jumper
Connectors1 x 8-pin ATX 12V power connector
Connectors4 x SATA 6Gb/s connectors
Connectors2 x M.2 Socket 3 connectors
Connectors1 x CPU cooler LED strip/RGB LED strip header
Connectors1 x RJ-45 port
Connectors1 x CPU fan/water cooling pump header
Connectors4 x USB 2.0/1.1 ports
Connectors1 x DisplayPort
Connectors1 x HDMI port
Connectors2 x USB 3.2 Gen 2 Type-A ports (red)
Connectors1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
Connectors1 x USB Type-C® port, with USB 3.2 Gen 2 support
Connectors5 x USB 3.2 Gen 1 ports
Connectors1 x THB_U4 add-in card connector
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
ConnectorsInternal I/O Connectors: 1 x 24-pin ATX main power connector
ConnectorsBack Panel Connectors: 1 x Q-Flash Plus button
Connectors2 x SMA antenna connectors (2T2R)jk
Connectors1 x optical S/
USBCPU:
USB- 4 x USB 3.2 Gen 1 ports on the back panel
USBChipset:
USB- 4 x USB 2.0/1.1 ports available through the internal USB headers
USB- 4 x USB 2.0/1.1 ports on the back panel
USB- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
USB- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
USBCPU + USB 2.0 Hub:
USB- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
USB- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
USBChipset+USB 3.2 Gen 1 Hub:
Тегло0.00кг
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
АтрибутСтойност
СокетAMD AM5
Форм факторmicroATX (mATX)
ЧипсетAMD B650
Тип паметDDR5
Слотове за памет (count)4
Максимална памет (GB)192
M.2 слотове (count)2
SATA портове (count)4
PCIe x16 слотове (count)2
Вграден Wi-FiWi-Fi 6E
Скорост на LAN2.5 Gbps
USB-C портове (count)1
RGB подсветкаДа
Тегло0.00кг
Внимание! Тъй като не всички вносители подават коректно данните за продуктите, информацията по-долу е извлечена с помощта на изкуствен интелект от различни източници в интернет и не е 100% коректна. Ако се съмнявате в нещо, моля свържете се с нас, за да проверим точно желаните от вас характеристики.

GIGABYTE B650M AORUS ELITE AX ICE: бяла AM5 Micro-ATX дънна платка с DDR5, Wi-Fi 6E и 2.5GbE

Сглобете бърза и компактна система с AMD Ryzen, която изглежда толкова добре, колкото и работи. B650M AORUS ELITE AX ICE събира платформата AM5, DDR5 памет, Wi-Fi 6E и 2.5-гигабитова мрежа в изцяло бял дизайн. Поддържа процесори Ryzen 7000, 8000 и 9000 във формат micro-ATX, който е подходящ за бели и компактни конфигурации.

Ключови предимства

  • Платформа AM5 с възможност за ъпгрейд: Сокетът AM5 поддържа настолните процесори AMD Ryzen 7000, 8000 и 9000, така че по-късно можете да преминете към по-нов процесор.
  • Бърза DDR5 памет: Четирите DDR5 слота работят в двуканален режим и поддържат AMD EXPO профили за лесен овърклок на паметта.
  • Бързо съхранение: Двата M.2 слота поемат NVMe SSD, а четирите SATA порта са за допълнителни дискове.
  • Модерна свързаност: Вграденият Wi-Fi 6E, Bluetooth и 2.5 Gigabit Ethernet дават бърза и стабилна връзка за игри, стрийминг и големи изтегляния.
  • Дизайн AORUS ICE: Бялата платка, радиаторите и капакът на I/O панела подхождат на изчистени конфигурации в светли цветове.
  • Компактен формат micro-ATX: Побира се в midi tower и по-малки кутии и пак има всичко нужно за геймърски компютър.

Технически спецификации

ХарактеристикаСтойност
ПроизводителGIGABYTE (AORUS)
МоделB650M AORUS ELITE AX ICE (rev. 1.1)
СокетAMD AM5
ЧипсетAMD B650
Поддържани процесориAMD Ryzen 7000 / 8000 / 9000
Форм факторMicro-ATX
Тип паметDDR5, двуканален режим, поддръжка на AMD EXPO
Слотове за памет4 x DIMM
Максимална памет192 GB
M.2 слотове2
SATA портове4 x SATA 6Gb/s
Безжична връзкаWi-Fi 6E + Bluetooth
LAN2.5 Gbps Ethernet
USB-C на задния панел1 x USB Type-C
Видео изходиHDMI, DisplayPort
ЦвятБял (ICE)
EAN4719331859336

Какво има в кутията

  • Дънна платка GIGABYTE B650M AORUS ELITE AX ICE
  • Wi-Fi антена
  • SATA кабели
  • Винтове за M.2
  • Документация
SKU: B650M AORUS ELITE AX ICE 1.1 © 2026 Xtreme.bg
Huawei GT 7
Epson

Запишете се за нашият Бюлетин

Запиши се за нашия онлайн бюлетин и научи първи за промоционални и нови продукти.

Ако имате въпроси свържете се с нас!

info@xtreme.bg

+359 886 177 222
ЕКСТРИЙМ.БГ ООД
ЕИК: 203294915 · ДДС №: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2

Информация

Потребител

Методи за Плащане

  • Наложен Платеж
  • Кредитна/Дебитна Карта
    MastercardVisaGoogle PayApple Pay
  • Банков Превод
  • На изплащане ПБ Лични Финанси
Copyright © 2023 Xtreme.bg - Всички права запазени. Онлайн магазин вървящ на XCore
Затвори
