- GIGABYTE
Цена
€135 31 / 264 64 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/B650M-D3HP-AX-rev-10/sp#sp
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
Support for up to triple-display at the same time
(Graphics specifications may vary depending on CPU support.)
Chipset
AMD B650
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200/ 4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE`s website for more information.)

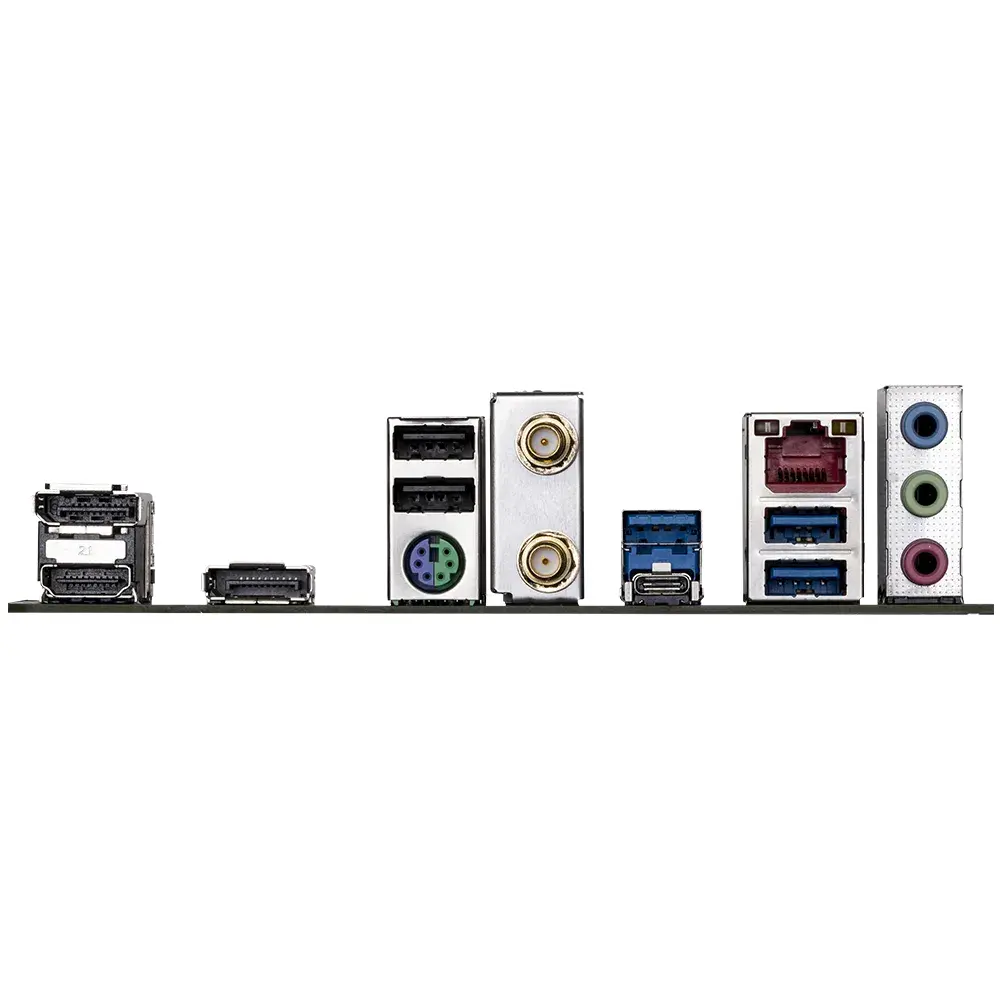

Rear panel I/O
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x DisplayPorts
1 x RJ-45 port
3 x audio jacks
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Other
Realtek® Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless
Warranty
36 Months
| Атрибут | Стойност |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/B650M-D3HP-AX-rev-10/sp#sp |
| Chipset | AMD B650 |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Memory type | Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory |
| Memory type | (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Memory type | (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE`s website for more information.) |
| Form Factor | Micro ATX Form Factor |
| Form Factor | 24.4cm x 24.4cm |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Rear panel I/O | 1 x PS/2 keyboard/mouse port |
| Rear panel I/O | 1 x HDMI port |
| Rear panel I/O | 2 x USB 2.0/1.1 ports |
| Rear panel I/O | 1 x RJ-45 port |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 3 x USB 3.2 Gen 1 ports |
| Rear panel I/O | 1 x USB Type-C® port, with USB 3.2 Gen 1 support |
| Rear panel I/O | 2 x DisplayPorts |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode |
| Expansion Slots | - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| Expansion Slots | - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Expansion Slots | Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | ** Support for native HDMI 2.1 TMDS compatible ports. |
| Graphics | (Graphics specifications may vary depending on CPU support.) |
| Graphics | * Support for DisplayPort 1.4 version. |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | Support for up to triple-display at the same time |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support |
| Graphics | - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz |
| Other | Realtek® Wi-Fi 6E RTL8852CE |
| Other | - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Other | - BLUETOOTH 5.3 |
| Other | - Support for 11ax 160MHz wireless |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | 1 x RJ-45 port |
| I/O | 3 x audio jacks |
| I/O | 1 x HDMI Port |
| I/O | 1 x PS/2 keyboard/mouse port |
| I/O | 2 x USB 2.0/1.1 ports |
| I/O | 3 x USB 3.2 Gen 1 ports |
| I/O | 1 x USB Type-C® port, with USB 3.2 Gen 1 support |
| I/O | 2 x DisplayPorts |
| Storage | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| Storage | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Storage | 4 x SATA 6Gb/s connectors |
| Storage | - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 2 x addressable LED strip headers |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x reset jumper |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 2 x system fan headers |
| Connectors | 1 x RGB LED strip header |
| Connectors | 2 x M.2 Socket 3 connectors |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Тегло | 0.00кг |

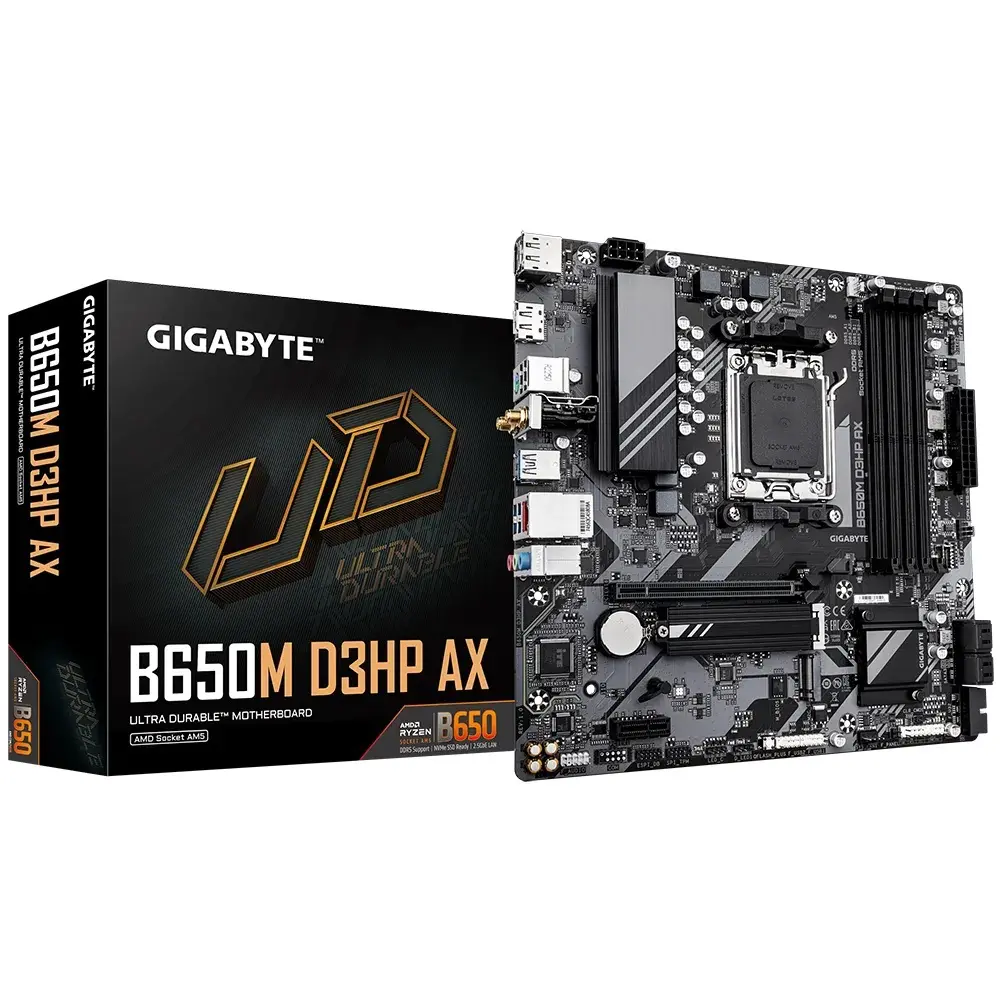

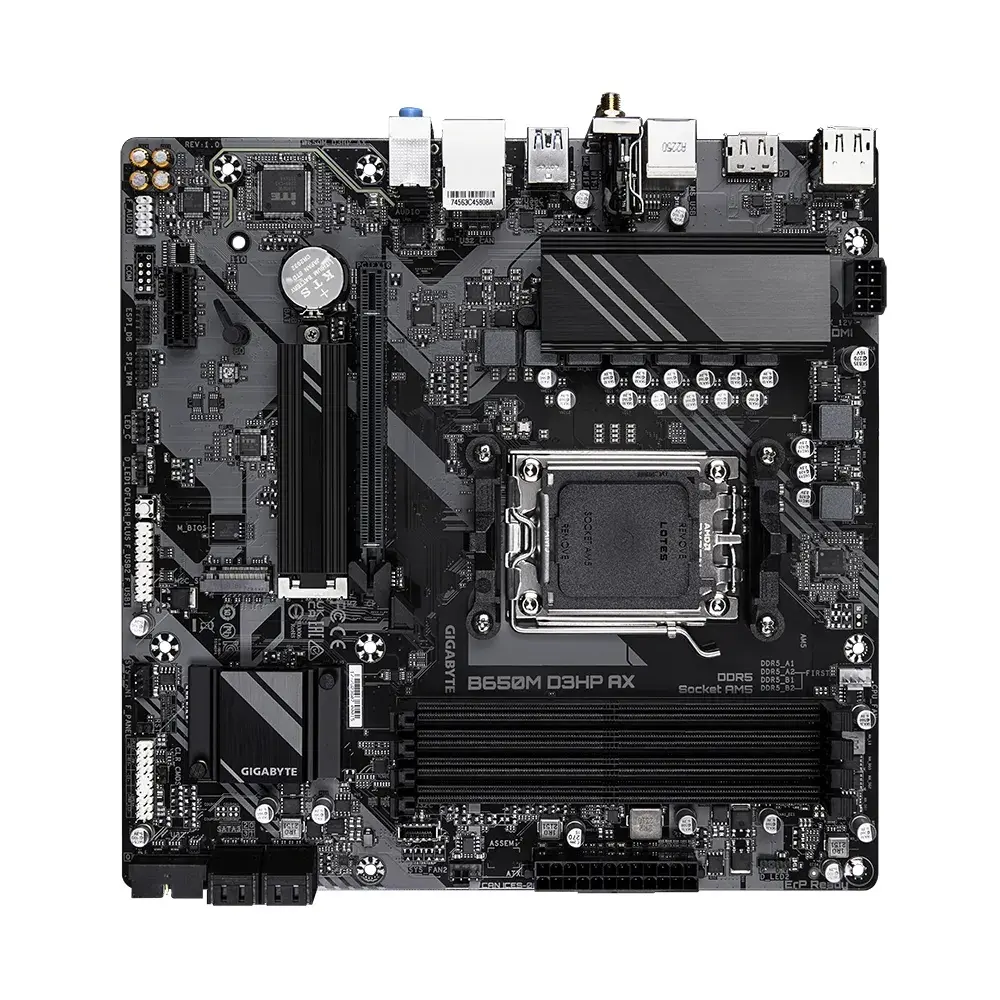

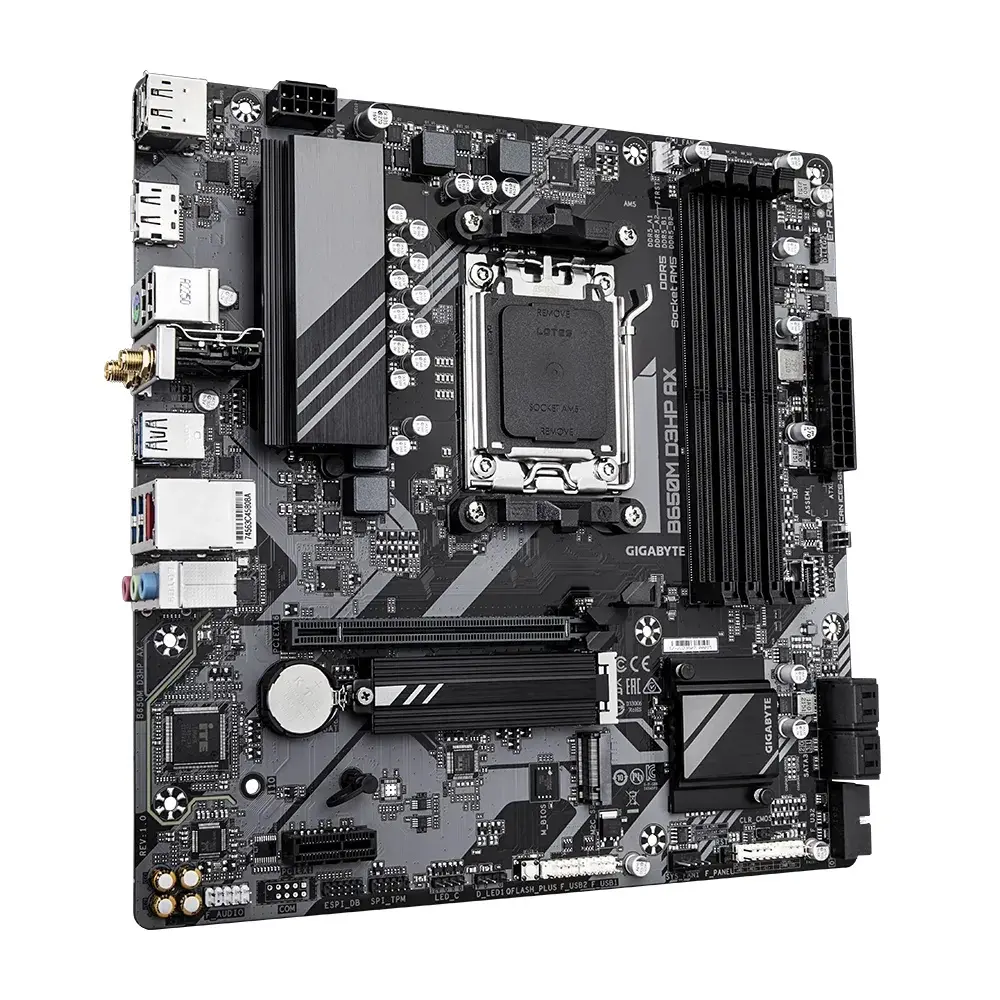

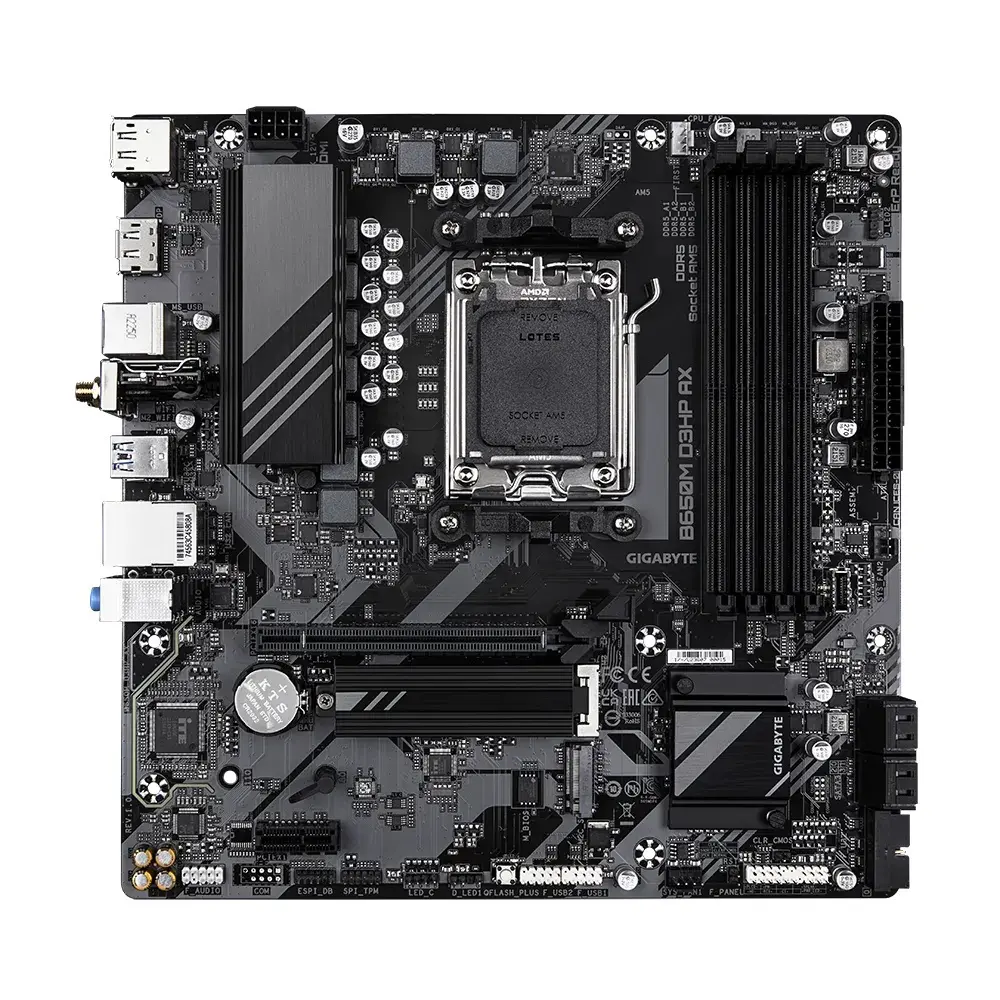

Дънна платка GIGABYTE B650M D3HP AX: Вашата основа за производителност от следващо поколение
Изградете вашата мечтана система на AMD Ryzen™ с увереност. Дънната платка GIGABYTE B650M D3HP AX е създадена да отключи пълния потенциал на вашите компоненти, предлагайки безпроблемно, мощно и бъдещо-готово изчислително преживяване за геймъри, креатори и професионалисти.
Защо Ще Обичите Тази Дънна Платка:
- Страхотна Скорост: Слотове PCIe 4.0 M.2 и поддръжка на DDR5 памет - изживейте светкавично бързо зареждане, лесно мултитаскиране и superior гейминг производителност, която оставя старите платформи зад себе си.
- Стабилно и Ефективно Захранване: Здравовата схема на захранването гарантира стабилна и ефективна работа, дори когато натоварвате процесора си AMD Ryzen 7000 серия до предела. Вземете мощта, от която се нуждаете, без компромиси.
- Свързаност Без Ограничения: Вградени Wi-Fi 6 и 2.5GbE LAN осигуряват невероятно бързи и стабилни жични и безжични връзки. Стриймвайте, изтегляйте и играйте онлайн с ултра ниска латентност.
- SmartFan 6 & Всеобхладно Охлаждане: Поддържайте системата си хладна и тиха дори при натоварване. Множество хибридни connectors за вентилатори и температурни сензори ви дават прецизен контрол над акустиката и топлинните характеристики на системата.
- Сглобявайте Лесно и Уверено: Потребителско-ориентирано разположение, Q-Flash Plus и цялостен набор от GIGABYTE програми правят сглобяването, конфигурирането и поддръжката на вашия компютър по-лесни от всякога.
Основни Технически Спецификации:
- Сокет: AM5 (Поддържа AMD Ryzen™ 7000 серия процесори)
- Памет: 4x DDR5 DIMM слота
- Разширения: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4 режим)
- Съхранение: 2x M.2 конектора (PCIe 4.0), 4x SATA 6Gb/s
- Мрежа: Wi-Fi 6 802.11ax, 2.5 Gigabit LAN
- Аудио: Висококачествен аудио с Audio Noise Guard
Инвестирайте в основа, която расте с вас. GIGABYTE B650M D3HP AX е умният избор за мощна, надеждна и богата на функции AMD AM5 система.
