- GIGABYTE
Цена
€168 24 / 329 05 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/B760M-AORUS-ELITE-WIFI6E-GEN5
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
CPU's supported
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
2 x antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Intel® Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Bluetooth
5.3
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
| Атрибут | Стойност |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/B760M-AORUS-ELITE-WIFI6E-GEN5 |
| Chipset | Intel® B760 Express Chipset |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | L3 cache varies with CPU |
| CPU's supported | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,Pentium® Gold and Celeron® Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory type | Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| Form Factor | Micro ATX Form Factor |
| Form Factor | 24.4cm x 24.4cm |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Audio | Support for S/PDIF Out |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| Wireless | - BLUETOOTH 5.3 |
| Wireless | - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Wireless | - Support for 11ax 160MHz wireless standard |
| Wireless | Intel® Wi-Fi 6E AX210 |
| Graphics | * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | ** Support for native HDMI 2.1 TMDS compatible ports. |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| Graphics | - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Features | Support for Q-Flash Plus |
| Features | Support for Q-Flash |
| Features | Support for GIGABYTE Control Center (GCC) |
| Features | * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | iTE® I/O Controller Chip |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 4 x SATA 6Gb/s connectors |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| Bluetooth | 5.3 |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 3 x system fan headers |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 2 x Thunderbolt™ add-in card connectors |
| Connectors | 1 x reset button |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x reset jumper |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x RGB LED strip header |
| Connectors | 2 x M.2 Socket 3 connectors |
| Connectors | Back Panel Connectors |
| Connectors | 1 x HDMI port (Note) |
| Connectors | 1 x DisplayPort (Note) |
| Connectors | 1 x RJ-45 port |
| Connectors | 4 x USB 2.0/1.1 ports |
| Connectors | 3 x addressable RGB Gen2 LED strip headers |
| Connectors | 1 x 4-pin ATX 12V power connector |
| Connectors | 2 x antenna connectors (2T2R) |
| Connectors | 1 x USB 3.2 Gen 2 Type-A port (red) |
| Connectors | 3 x USB 3.2 Gen 1 ports |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 2 support |
| Connectors | 1 x optical S/PDIF Out connector |
| Connectors | 2 x audio jacks |
| Connectors | 1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
| USB | Chipset: |
| USB | - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| USB | Chipset+USB 2.0 Hub: |
| USB | - 4 x USB 2.0/1.1 ports on the back panel |
| USB | Chipset+USB 3.2 Gen 1 Hub: |
| USB | - 1 x USB 3.2 Gen 1 port on the back panel |
| USB | - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| USB | - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| USB | - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header |
| USB | - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support |
| Тегло | 0.00кг |

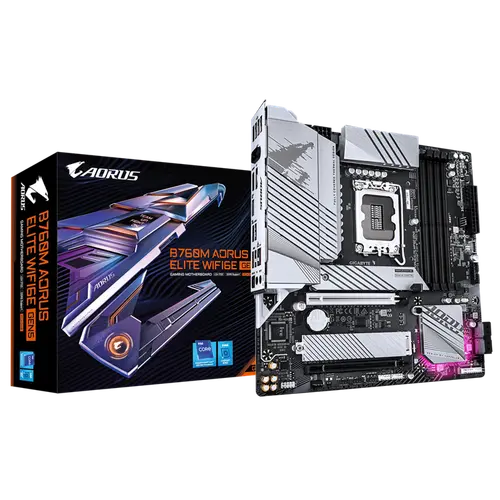

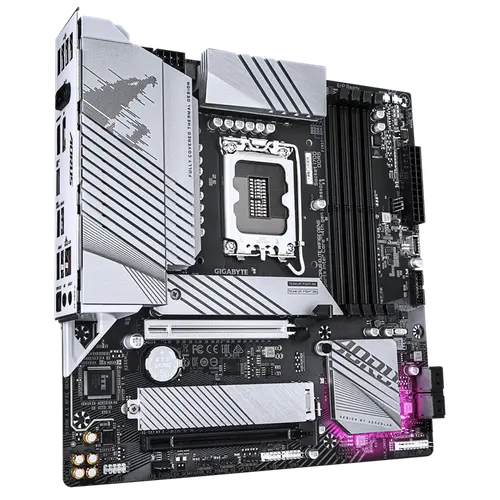

Дънна платка GIGABYTE B760M AORUS ELITE WF6E GEN5
Извлечете максимума от своя Intel Core процесор от 12-то/13-то/14-то поколение с GIGABYTE B760M AORUS ELITE WF6E GEN5. Тази micro-ATX платка осигурява безупречна PCIe 5.0 свързаност за изключително бързи SSD дискове и графики от ново поколение, подкрепена от стабилно захранване и премиум охлаждане. Създадена за геймъри и творци, които изискват надеждност и скорост.
Ключови Предимства
- PCIe 5.0 готовност — Един M.2 слот, свързан директно към процесора, за скорости до 12 GB/s.
- Wi-Fi 6E и 2.5GbE LAN — Без забавяне в онлайн игрите с безжична и кабелна свързаност.
- Поддръжка на DDR5 — До 192 GB високоскоростна DDR5 памет за изискващи многозадачни задачи.
- Smart Fan 6 — Разширено управление на температурата с хибридни конектори за вентилатори и сензори.
- RGB Fusion 2.0 — Персонализирайте осветлението с адресируеми RGB конектори и синхронизирайте с други AORUS устройства.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 4 (Двуканален режим) |
| Максимална памет | 192 GB |
| M.2 слотове | 2 (1x PCIe 5.0, 1x PCIe 4.0) |
| SATA портове | 4 |
| PCIe x16 слотове | 1 (PCIe 5.0) |
| Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 GbE |
| USB-C портове (отзад) | 1 |
| RGB подсветка | Да (RGB Fusion 2.0) |
Какво има в кутията
- Дънна платка GIGABYTE B760M AORUS ELITE WF6E GEN5
- Ръководство за потребителя
- 2x SATA кабела
- Wi-Fi антена
- I/O скоба
- M.2 винтове и дистанционери
