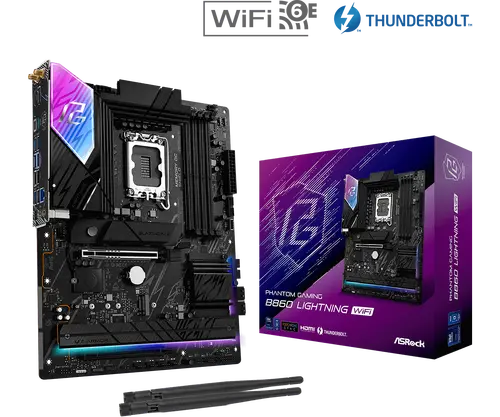

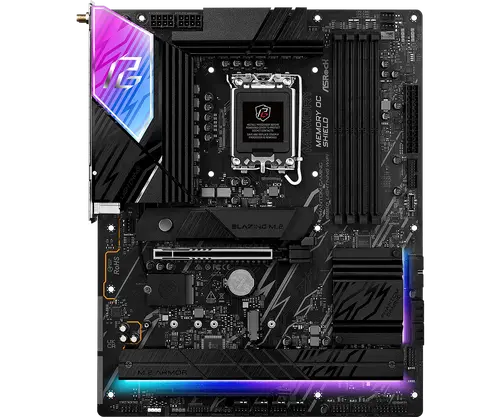

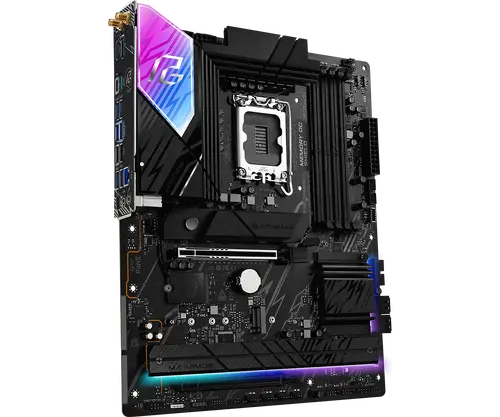

Дънна платка, ASROCK B860 LIGHTNING WIFI

  • ASROCK
Дънна платка, ASROCK B860 LIGHTNING WIFI
Цена
€204 62 / 400 20 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
 Добави в Количката
Удължи гаранцията си
+1 година: + 27€
+2 години: + 39€
РЕЙТИНГ
ТВОЯ РЕЙТИНГ
Мнения
Улеснено Поръчване - като въведете само телефон и име:
Съгласен съм с Общите условия
Ще Ви потърсим в рамките на работния ден. Внимание: При грешен телефонен номер, нямаме начин да се свържем с Вас.
CreditCredit
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://pg.asrock.com/mb/Intel/B860%20Lightning%20WiFi/index.asp#Overview
Graphics
Intel® Xe LPG Graphics Architecture
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Chipset
Intel® B860
Expansion slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x2 mode
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory type
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC)
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 256GB
Supports Intel® Extreme Memory Profile (XMP) 3.0x

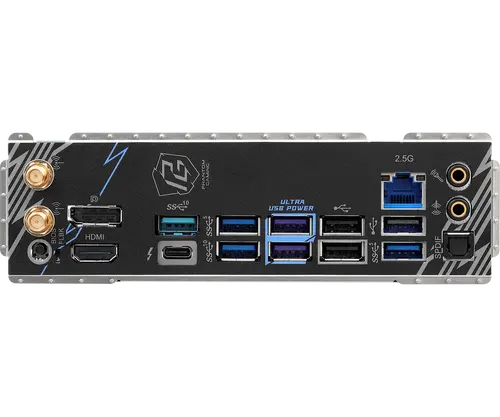

Rear panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol
40Gb/s for Thunderbolt™ protocol)
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
4 x USB 3.2 Gen1 Ports
3 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
USB
CPU:
- 1 x Thunderbolt™ 4 Type-C (Rear) Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 2 x USB 3.2 Gen2 Type-A (Rear)- 8 x USB 3.2 Gen1 (4 Rear, 4 Front)
- 7 x USB 2.0 (3 Rear, 4 Front)
Connectors
1 x Thermistor Cable Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Nahimic Audio
Lan
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Killer E3100G
Supports Killer LAN Software
Supports Killer DoubleShot™ Pro
Wireless
802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.3
Supports MU-MIMO
Supports Killer LAN Software
Supports Killer DoubleShot™ Pro802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.3
Supports MU-MIMO
Supports Killer LAN Software
Supports Killer DoubleShot™ Pro
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
OS
Microsoft Windows® 11 64-bit
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Данни, подадени от официалния вносител за България.
АтрибутСтойност
Vendor_urlhttps://pg.asrock.com/mb/Intel/B860%20Lightning%20WiFi/index.asp#Overview
ChipsetIntel® B860
OSMicrosoft Windows® 11 64-bit
OSSoftware
OSUEFI
OS- ASRock Full HD UEFI
OS- ASRock Auto Driver Installer
OS- ASRock Instant Flash
OS- ASRock Polychrome SYNC
OS- ASRock EZ Mode
OS- ASRock My Favorites in UEFI
OS- ASRock Motherboard Utility (Phantom Gaming Tuning)
OS- Killer Control Center
Warranty36 Months
CPU's supportedSupports Intel® Hybrid Technology
CPU's supportedSupports Intel® Turbo Boost Max 3.0 Technology
CPU's supportedSupports Intel® Thermal Velocity Boost (TVB)
CPU's supportedSupports Intel® Adaptive Boost Technology (ABT)
CPU's supportedSupports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
CPU's supportedIntegrated NPU for dedicated AI acceleration
Memory typeDual Channel DDR5 Memory Technology
Memory type4 x DDR5 DIMM Slots
Memory typeMax. capacity of system memory: 256GB
Memory typeSupports Clocked Unbuffered DIMM (CUDIMM)
Memory typeSupports Intel® Extreme Memory Profile (XMP) 3.0x
Memory typeSupports DDR5 non-ECC, un-buffered memory up to 8933+(OC)
Form FactorATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Form Factor2oz Copper PCB
AudioNahimic Audio
AudioIndividual PCB Layers for R/L Audio Channel
AudioImpedance Sensing on Rear Out port
Audio7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Rear panel I/O1 x HDMI port
Rear panel I/O1 x RJ-45 LAN Port
Rear panel I/O1 x BIOS Flashback Button
Rear panel I/O2 x Antenna Ports
Rear panel I/O1 x DisplayPort 1.4
Rear panel I/O1 x Optical SPDIF Out Port
Rear panel I/O1 x Line Out Jack (Gold Audio Jack)
Rear panel I/O1 x Microphone Input Jack (Gold Audio Jack)
Rear panel I/O2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
Rear panel I/O1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol
Rear panel I/O40Gb/s for Thunderbolt™ protocol)
Rear panel I/O4 x USB 3.2 Gen1 Ports
Rear panel I/O3 x USB 2.0 Ports
LAN2.5 Gigabit LAN 10/100/1000/2500 Mb/s
LANKiller E3100G
LANSupports Killer LAN Software
LANSupports Killer DoubleShot™ Pro
Expansion SlotsChipset:
Expansion SlotsCPU:
Expansion Slots- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Expansion Slots- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Expansion Slots- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x2 mode
Wireless802.11axe Wi-Fi 6E Module
WirelessSupports IEEE 802.11a/b/g/n/ac/ax/axe
Wireless2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
WirelessSupports MU-MIMO
WirelessSupports Bluetooth 5.3
WirelessSupports Dual-Band 2x2 160MHz with extended 6GHz band* support
WirelessSupports Killer LAN Software
WirelessSupports Killer DoubleShot™ Pro
WirelessSupports Killer DoubleShot™ Pro802.11axe Wi-Fi 6E Module
Graphics1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Graphics1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
GraphicsIntel® Xe LPG Graphics Architecture
Graphics1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
FeaturesSuperb Productivity
Features- Dual Channel DDR5
FeaturesRock-Solid Durability
Features- ASRock Auto Driver Installer
FeaturesEZ Troubleshooter
Features- ASRock Post Status Checker
Features- PCIe Gen5 (Graphics, M.2)
Features- Flexible Integrated I/O Shield
Features- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
FeaturesEZ Update- BIOS Flashback Button
FeaturesUltrafast Gaming
Features- Server-Grade Low-Loss PCB
Features- Thunderbolt™ 4 Type-C Port (40 Gb/s)
Features- 14+1+1+1+1 Power Phase, 80A Dr.MOS for VCore+GT+SA with Enlarged Heatsink Armor
Features- Memory OC Shield
Features- Killer 2.5G LAN, 802.11axe Wi-Fi 6E Module
Features- Killer DoubleShot™ Pro
BIOS256Mb AMI UEFI Legal BIOS with GUI support
I/O1 x HDMI Port
I/O1 x DisplayPort 1.4
I/O2 x Antenna Ports
I/O1 x RJ-45 LAN Port
I/O1 x BIOS Flashback Button
I/O1 x Optical SPDIF Out Port
I/O1 x Line Out Jack (Gold Audio Jack)
I/O1 x Microphone Input Jack (Gold Audio Jack)
I/O2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
I/O1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol
I/O40Gb/s for Thunderbolt™ protocol)
I/O4 x USB 3.2 Gen1 Ports
I/O3 x USB 2.0 Ports
Storage- 4 x SATA3 6.0 Gb/s Connectors
StorageCPU:
StorageChipset:
Storage- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Storage- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Storage- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
StorageSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Storage- 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode
Connectors1 x SPI TPM Header
Connectors1 x Power LED and Speaker Header
Connectors1 x 24 pin ATX Power Connector
Connectors1 x Front Panel Audio Connector
Connectors1 x RGB LED Header
Connectors3 x Addressable LED Headers
Connectors1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
Connectors2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
Connectors2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
Connectors2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
Connectors1 x Thermistor Cable Header
Connectors1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Connectors2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
Connectors5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
USBCPU:
USB- 1 x USB 3.2 Gen2x2 Type-C (Front)
USB- 1 x Thunderbolt™ 4 Type-C (Rear) Chipset:
USB- 7 x USB 2.0 (3 Rear, 4 Front)
USB- 2 x USB 3.2 Gen2 Type-A (Rear)- 8 x USB 3.2 Gen1 (4 Rear, 4 Front)
Тегло0.00кг
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
АтрибутСтойност
СокетLGA1851
Форм факторATX
ЧипсетIntel B860
Тип паметDDR5
Слотове за памет (count)4
Максимална памет (GB)256
M.2 слотове (count)3
SATA портове (count)4
PCIe x16 слотове (count)2
Вграден Wi-FiWi-Fi 7
Скорост на LAN2.5 Gbps
USB-C портове (count)1
RGB подсветкаДа
Тегло0.00кг

Дънна платка ASROCK B860 LIGHTNING WIFI

Извлечете максимума от процесорите Intel Core Ultra с дънната платка ASRock B860 Lightning WiFi. Създадена за геймъри и творци, тя предлага бърза DDR5 памет, PCIe 5.0 графика и Wi-Fi 7 свързаност в здрав ATX форм фактор.

Ключови Предимства

  • Свързаност от ново поколение — Wi-Fi 7 и 2.5 GbE LAN осигуряват безпроблемен онлайн гейминг и свръхбърз трансфер на файлове.
  • Мълниеносно бързи дискове — Три M.2 слота, включително един PCIe 5.0, за моментално зареждане.
  • Поддръжка на DDR5 памет — До 256 GB DDR5-8000+ (OC) за безпроблемна многозадачност и високи честотни ленти.
  • Премиум аудио и RGB — Realtek ALC1220 аудио кодек и вградени RGB конектори с Polychrome Sync.

Технически Спецификации

СпецификацияСтойност
СокетLGA1851
Форм факторATX
ЧипсетIntel B860
Тип паметDDR5
Слотове за памет4
Максимална памет256 GB
M.2 слотове3
SATA портове4
PCIe x16 слотове2
Вграден Wi-FiWi-Fi 7
Скорост на LAN2.5 Gbps
USB-C портове1
RGB подсветкаДа

Какво има в кутията

  • Дънна платка ASRock B860 Lightning WiFi
  • Ръководство за потребителя
  • CD с драйвери
  • 2 x SATA кабела
  • Wi-Fi антена
  • I/O щит
SKU: B860 LIGHTNING WIFI © 2026 Xtreme.bg
Amazon
Huawei

Запишете се за нашият Бюлетин

Запиши се за нашия онлайн бюлетин и научи първи за промоционални и нови продукти.

Ако имате въпроси свържете се с нас!

info@xtreme.bg

+359 886 177 222

Информация

Потребител

Методи за Плащане

  • Наложен Платеж
  • Кредитна/Дебитна Карта
    MastercardVisaGoogle PayApple Pay
  • Банков Превод
  • На изплащане ПБ Лични Финанси
Copyright © 2023 Xtreme.bg - Всички права запазени. Онлайн магазин вървящ на XCore
Затвори
