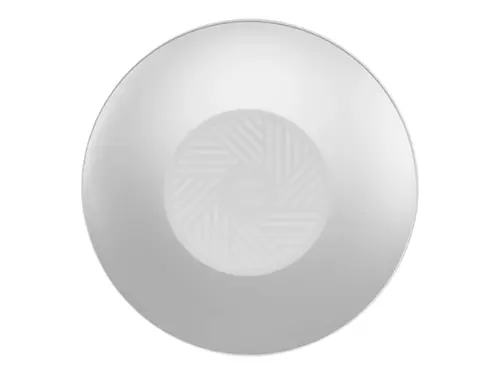

TELTONIKA NETWORKS TAP200 WiFi-5 Access Point with PoE 15W

Equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality, the Teltonika Networks TAP200 is a Wi-Fi 5 wireless access point designed to enhance Wi-Fi coverage in medium-density spaces where high network performance is essential. The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.

Description
Marketing Description	Equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality, the Teltonika Networks TAP200 is a Wi-Fi 5 wireless access point designed to enhance Wi-Fi coverage in medium-density spaces where high network performance is essential. The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.
General
Device Type	Radio access point
Width	15.8 cm
Depth	3 cm
Height	15.8 cm
Weight	190 g
Bundled with	PoE injector
Processor / Memory / Storage
Processors Installed	1 x MediaTek MIPS 1004Kc 800 MHz
Max Supported Qty	1
RAM	256 MB DDR3 SDRAM
Flash Memory	16 MB
Networking
Form Factor	External
Connectivity Technology	Wireless
Data Link Protocol	Gigabit Ethernet, Fast Ethernet, Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 2 (draft 5.0), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network / Transport Protocol	TCP/IP, UDP/IP, IPv4, IPv6, ICMP/IP, HTTP, HTTPs, ARP, DHCP
Remote Management Protocol	SMNP, HTTP, HTTPS, SSH, SSH-2, JSON-RPC
Frequency Band	2.4 GHz, 5 GHz
Capacity	Concurrent connections: up to 100
Status Indicators	Power
Features	Auto Cipher modes, isolate mode, hidden SSID, MAC address filtering, DHCP client, command-line interface (CLI) management, VLAN support, firmware upgradable, event log, system log, trouble shooting, kernel log, Teltonika Remote Management System (RMS), reset button, UV stabilised enclosure, plastic housing
Encryption Algorithm	WPA2-EAP, WPA3-EAP, WPA2-PSK, WPA3-SAE, Opportunistic Wireless Encryption (OWE), WPA-PSK, AES-CCMP, TKIP, SSL, TLS
Authentication Method	Secure Shell (SSH)
Compliant Standards	IEEE 802.11r, IEEE 802.3af
Aerial
Antenna	Internal
Antenna Qty	4
Directivity	Omni-directional
Expansion / Connectivity
Interfaces	1 x network - RJ-45
Miscellaneous
Included Accessories	Mounting bracket
Compliant Standards	IP30, UKCA, FCC, IC, RCM, CB, EAC, UCRF, WEEE, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 61000-4-2:2009, IEC/EN 61000-4-3, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, EN 300 328 V2.2.2, EN 300 893 V2.1.1, EN 300 440 V2.2.1, IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020
Power
Power Over Ethernet (PoE) Supported	PoE Class 1
Power Device	Power injector
Voltage Required	DC 44 - 57 V
Software / System Requirements
OS Provided	RutOS
Dimensions & Weight (Shipping)
Shipping Width	35.5 cm
Shipping Depth	17.5 cm
Shipping Height	6 cm
Environmental Parameters
Min Operating Temperature	-40 °C
Max Operating Temperature	75 °C
Humidity Range Operating	10 - 90% (non-condensing)
Compatibility Information
Designed For	P/N: PR2LA15B, PR322EU7
