Placă de bază, GIGABYTE GB B840M DS3H WF6 / AM5

  • Placă de bază, GIGABYTE GB B840M DS3H WF6 / AM5 - 1

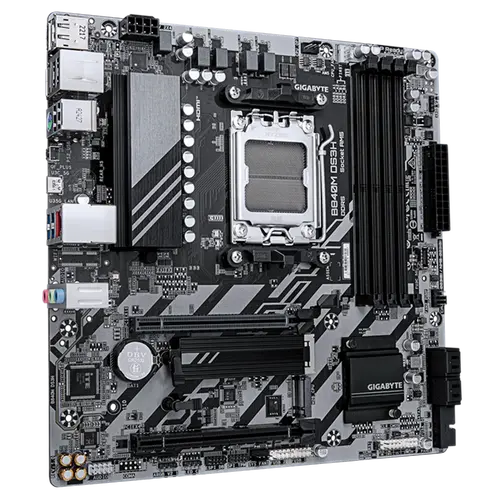

  • Placă de bază, GIGABYTE GB B840M DS3H WF6 / AM5 - 2

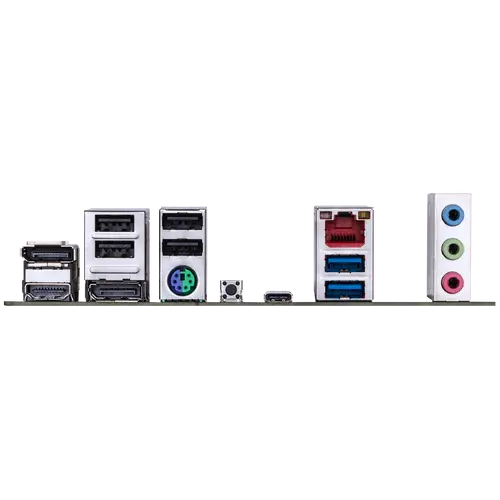

  • Placă de bază, GIGABYTE GB B840M DS3H WF6 / AM5 - 3

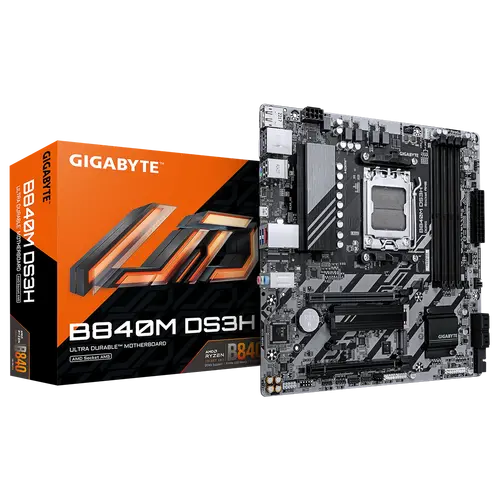

  • Placă de bază, GIGABYTE GB B840M DS3H WF6 / AM5 - 4

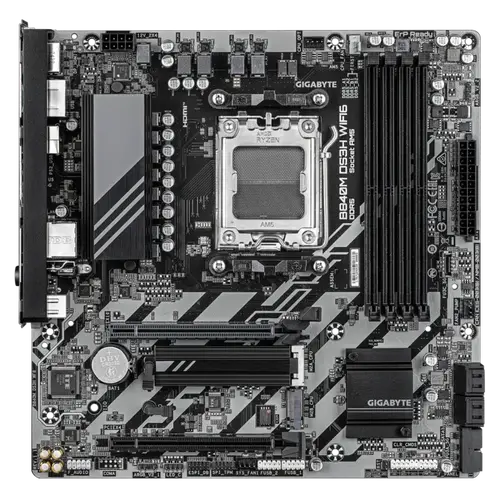

  • Placă de bază, GIGABYTE GB B840M DS3H WF6 / AM5 - 5
  • Placă de bază, GIGABYTE GB B840M DS3H WF6 / AM5 - 6
  • Placă de bază, GIGABYTE GB B840M DS3H WF6 / AM5 - 7
  • Placă de bază, GIGABYTE GB B840M DS3H WF6 / AM5 - 8
  • GIGABYTE

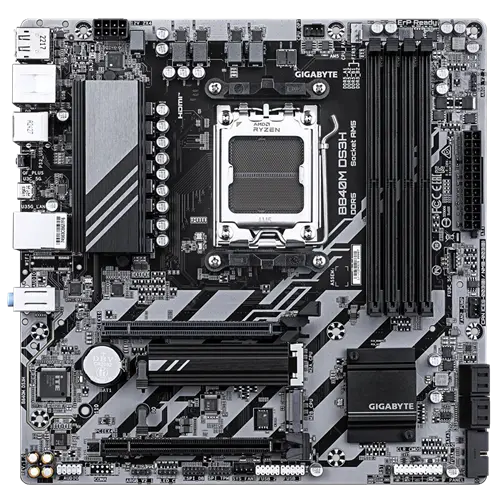

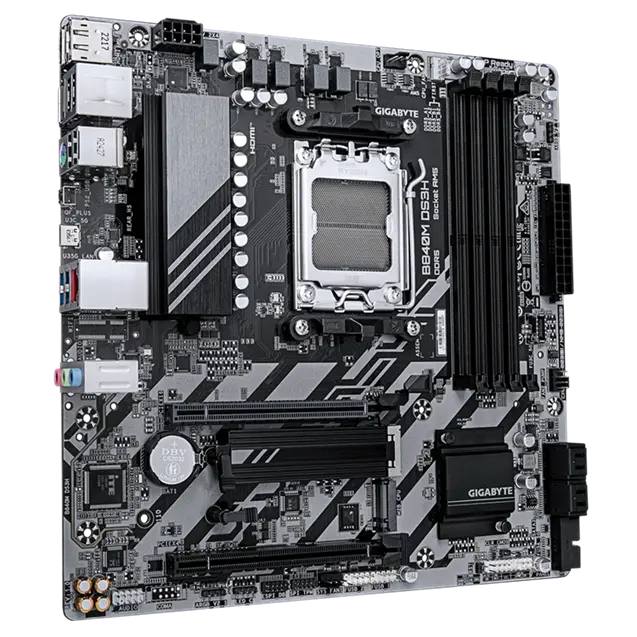

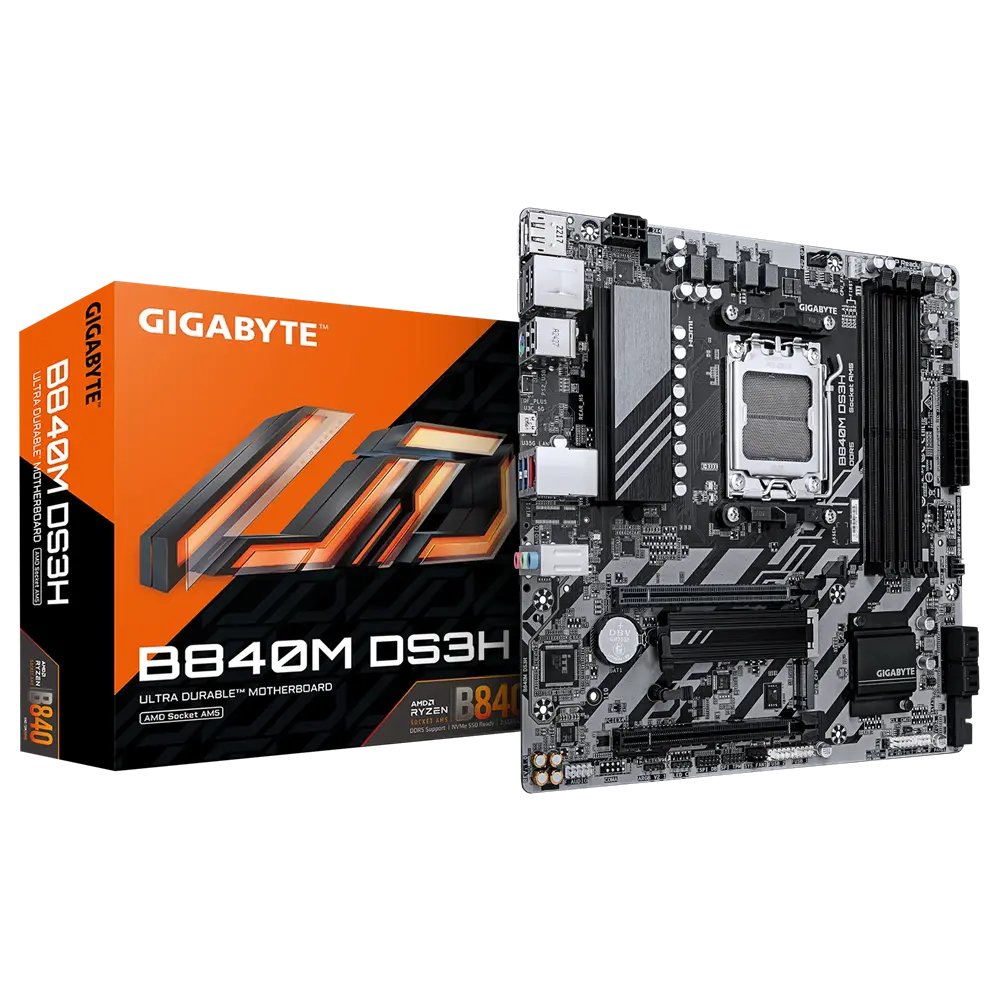

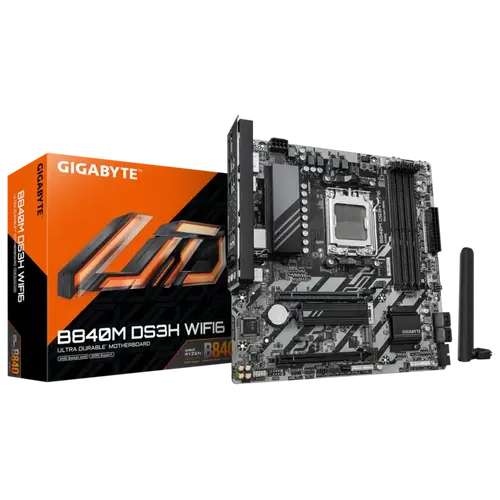

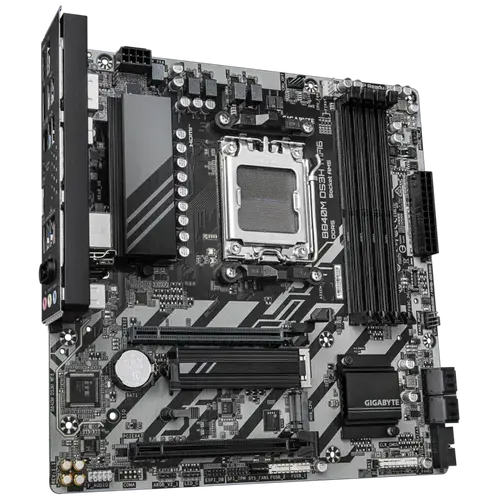

Placă de bază, GIGABYTE GB B840M DS3H WF6 / AM5
Preț
€131 95 / 258 07 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
 Adaugă în coș
Prelungiți garanția
+1 an: + 18€
+2 ani: + 26€
EVALUARE
EVALUAREA DUMNEAVOASTRĂ
Recenzii
Comandă ușoară - introducând doar telefonul și numele:
Sunt de acord cu Termenii și condițiile
Vă vom contacta în cursul zilei lucrătoare. Atenție: în cazul unui număr de telefon greșit, nu avem nicio modalitate de a vă contacta.
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
  • Descriere
  • Detalii
  • Recenzii
  • Descriere IA
Vendor_url
https://www.gigabyte.com/bg/Motherboard/B840M-DS3H-WIFI6-rev-11
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
Support for up to triple-display at the same time
(Graphics specifications may vary depending on CPU support.)
CPU's supported
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
Chipset
AMD B840
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage
1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200/ 4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

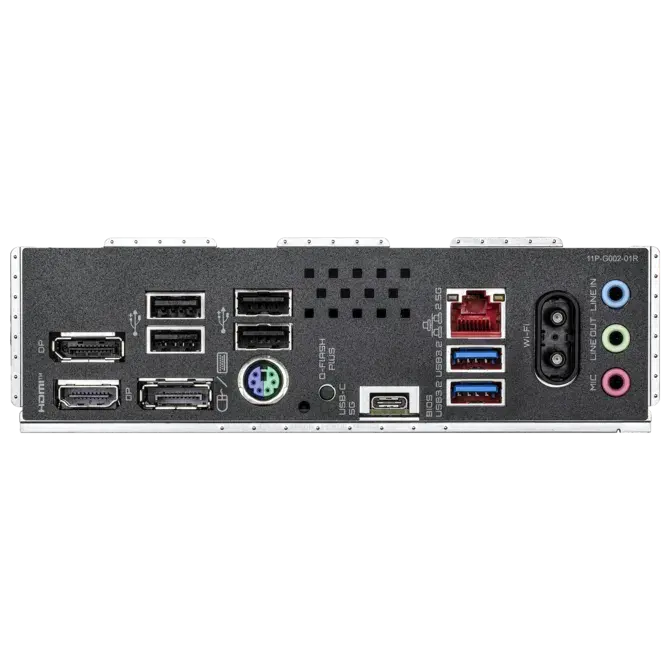

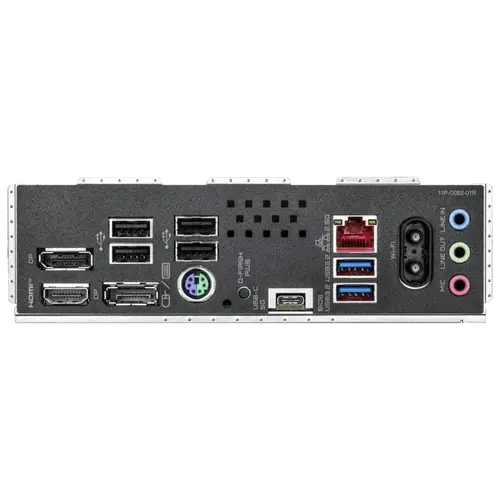

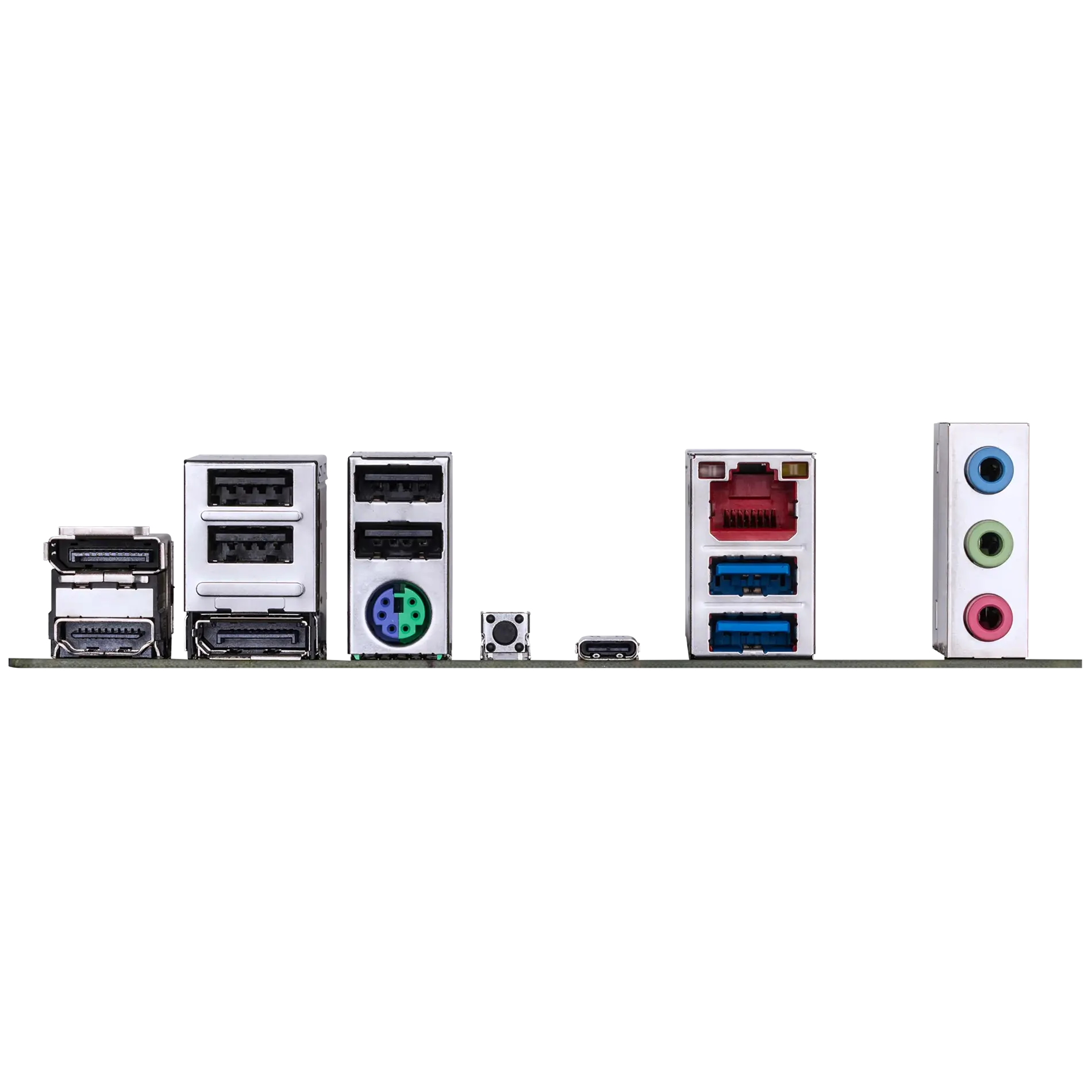

Rear panel I/O
iTE® I/O Controller Chip
USB
CPU:
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 port available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x Q-Flash Plus button
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x antenna connectors (1T1R)
1 x RJ-45 port
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Realtek® Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless
(Actual data rate may vary depending on environment and equipment.)
Bluetooth
5,3
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
AtributValoare
Vendor_urlhttps://www.gigabyte.com/bg/Motherboard/B840M-DS3H-WIFI6-rev-11
ChipsetAMD B840
OSSupport for Windows 10 64-bit
OSSupport for Windows 11 64-bit
Warranty36 Months
CPU's supportedAMD Socket AM5, support for:
CPU's supportedAMD Ryzen™ 9000 Series Processors/
CPU's supportedAMD Ryzen™ 8000 Series Processors/
CPU's supportedAMD Ryzen™ 7000 Series Processors
Memory typeDual channel memory architecture
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory typeSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory typeSupport for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Form FactorMicro ATX Form Factor
Form Factor24.4cm x 24.4cm
AudioRealtek® Audio CODEC
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
Rear panel I/OiTE® I/O Controller Chip
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Expansion Slots* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion SlotsChipset:
Expansion SlotsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
Expansion SlotsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion SlotsAMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
WirelessRealtek® Wi-Fi 6 RTL8851BE
Wireless- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
Wireless- BLUETOOTH 5.3
Wireless(Actual data rate may vary depending on environment and equipment.)
Wireless- Support for 11ax 80MHz wireless
Graphics* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support:
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics** Support for native HDMI 2.1 TMDS compatible ports.
Graphics(Graphics specifications may vary depending on CPU support.)
Graphics* Support for DisplayPort 1.4 version.
GraphicsSupport for up to triple-display at the same time
Graphics- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
FeaturesSupport for Q-Flash Plus
FeaturesSupport for Q-Flash
FeaturesSupport for GIGABYTE Control Center (GCC)
FeaturesSupport for Smart Backup
BIOS1 x 256 Mbit flash
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/OiTE® I/O Controller Chip
StorageRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
StorageRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage4 x SATA 6Gb/s connectors
StorageAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
StorageAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
StorageAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Storage1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
StorageAMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
Storage1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs:
Storage* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
Bluetooth5,3
Connectors1 x 24-pin ATX main power connector
Connectors1 x CPU fan header
Connectors1 x system fan/water cooling pump header
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors1 x USB Type-C® header, with USB 3.2 Gen 1 support
Connectors1 x USB 3.2 Gen 1 header
Connectors2 x USB 2.0/1.1 headers
Connectors1 x Q-Flash Plus button
Connectors1 x reset jumper
Connectors1 x Clear CMOS jumper
Connectors1 x 8-pin ATX 12V power connector
Connectors1 x system fan header
Connectors4 x SATA 6Gb/s connectors
Connectors1 x RGB LED strip header
Connectors2 x M.2 Socket 3 connectors
ConnectorsBack Panel Connectors
Connectors1 x PS/2 keyboard/mouse port
Connectors1 x HDMI port (Note)
Connectors1 x RJ-45 port
Connectors3 x audio jacks
Connectors1 x CPU fan/water cooling pump header
Connectors4 x USB 2.0/1.1 ports
Connectors2 x antenna connectors (1T1R)
Connectors1 x USB Type-C® port, with USB 3.2 Gen 1 support
Connectors2 x USB 3.2 Gen 1 ports
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors2 x addressable RGB Gen2 LED strip headers
Connectors2 x DisplayPorts (Note)
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
USBCPU:
USBChipset:
USB- 4 x USB 2.0/1.1 ports available through the internal USB headers
USB- 4 x USB 2.0/1.1 ports on the back panel
USBCPU+USB 2.0 Hub:
USB- 1 x USB 3.2 Gen 1 port on the back panel
USB- 1 x USB Type-C® port, with USB 3.2 Gen 1 support on the back panel
USB- 1 x USB Type-C® port, with USB 3.2 Gen 1 support, available through the internal USB header
USB- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 port available through the internal USB header)
Greutate0.00kg
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
AtributValoare
SocketAM5
Form FactorMicro-ATX
ChipsetAMD B840
Memory TypeDDR5
Memory Slots (count)2
Max Memory (GB)64
M.2 Slots (count)1
SATA Ports (count)4
PCIe x16 Slots (count)1
Wi-Fi Built-inWi-Fi 6
LAN Speed1 Gbps
USB-C Ports (count)1
RGB LightingNo
Greutate0.00kg
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

Дънна платка GIGABYTE B840M DS3H WF6 (AM5)

Създадена за най-новите AMD Ryzen процесори, GIGABYTE B840M DS3H WF6 осигурява солидна основа за следващото ви PC. С поддръжка на DDR5 памет и вграден Wi-Fi 6, тази Micro-ATX платка предлага модерна свързаност на достъпна цена.

Ключови Предимства

  • Платформа AMD AM5 — Готова за Ryzen 7000/8000/9000 серии, осигуряваща отлична производителност и път за надграждане.
  • Поддръжка на DDR5 памет — Възползвайте се от по-високи скорости и честотна лента за по-плавна работа и игри.
  • Вграден Wi-Fi 6 — Насладете се на бърза и стабилна безжична мрежа без нужда от допълнителна карта.

Технически Спецификации

СпецификацияСтойност
СокетAM5
Форм факторMicro-ATX
ЧипсетAMD B840
Тип паметDDR5
Слотове за памет2
Максимална памет64GB
M.2 слотове1
SATA портове4
PCIe x16 слотове1
Вграден Wi-FiWi-Fi 6
Скорост на LAN1 Gbps
USB-C портове1
RGB подсветкаНе

Какво има в кутията

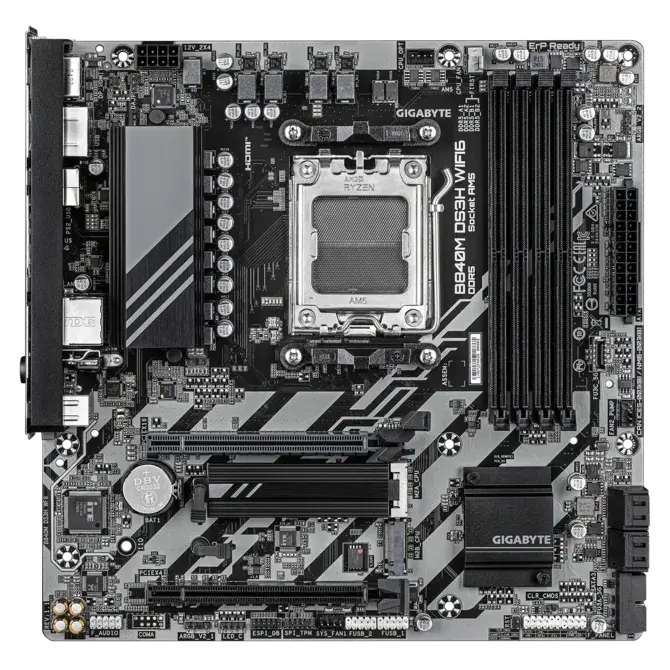

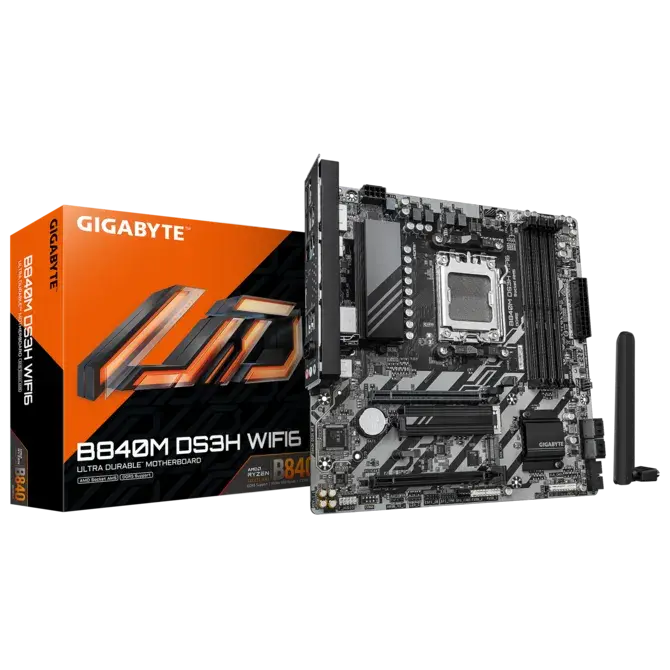

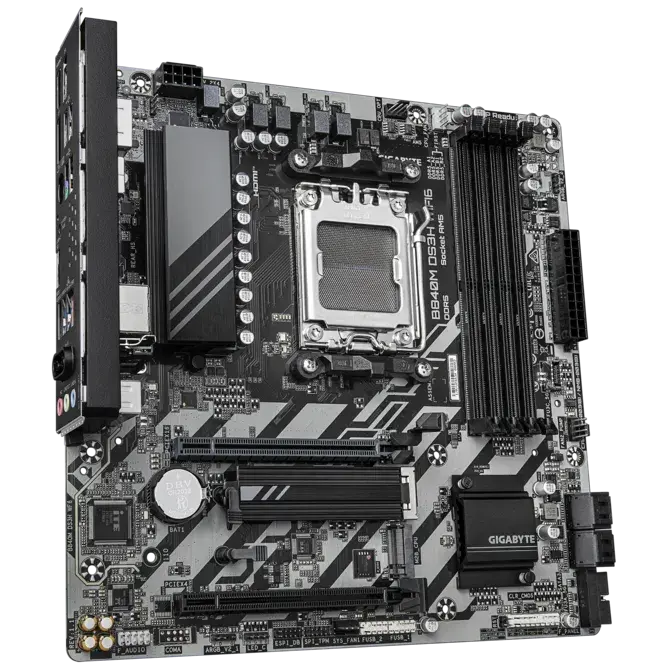

  • Дънна платка GIGABYTE B840M DS3H WF6
  • Ръководство за потребителя
  • I/O панел
  • 2x SATA кабела
  • Wi-Fi антена
SKU: B840M DS3H WF6 1.1 © 2026 Xtreme.bg
990 Pro
Honor

Abonați-vă la newsletterul nostru

Abonați-vă la newsletterul nostru online și aflați primii despre promoții și produse noi.

Dacă aveți întrebări, contactați-ne!

info@xtreme.bg

+359 886 177 222
ЕКСТРИЙМ.БГ ООД
CUI: 203294915 · Nr. TVA: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2

Informații

Utilizator

Metodă de plată

  • Plata la livrare
  • Card de credit/debit
    MastercardVisaGoogle PayApple Pay
  • Transfer bancar
  • În rate prin PB Personal Finance
Copyright © 2023 Xtreme.bg - Toate drepturile rezervate. Magazin online care rulează pe XCore
Închide
