Name: Дънна платка, MSI B650M PROJECT ZERO
Brand: MSI
SKU: 911-7E09-010
Price: 158.93 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Доставка· Условия· Рекламация· Контакти·

Вход

⇆Сравни ⚙Сглоби PC Количка

Цена

€158⁹³ / 310⁸⁴ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 21€

+2 години: + 31€

Код: 911-7E09-010
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.msi.com/Motherboard/B650M-PROJECT-ZERO

Graphics

1x HDMI™

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz

Expansion slots

1x PCI-E x16 slot

• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)

• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Memory type

4x DDR5, Maximum Memory Capacity 256GB

Memory Support DDR5 7600+(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7600+ MHz

• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5400+ MHz

Rear panel I/O

DisplayPort

2.5G LAN

USB 2.0

USB 5Gbps (Type-A)

Wi-Fi / Bluetooth

Audio connectors

Flash BIOS Button

Clear CMOS Button

HDMI™

USB 10Gbps (Type-A)

USB 10Gbps (Type-C)

USB 20Gbps (Type-C)

USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)

1x USB 10Gbps Type C (Front)

1x USB 20Gbps Type C (Rear)

Connectors

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

3x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Supports up to 32-Bit/384 kHz playback on front panel

Lan

Realtek® RTL8125BG 2.5Gbps LAN

Wireless

AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth

5.3

Form factor

mATX, 243.84mmx243.84mm

Support for Windows® 11 64-bit, Windows® 10 64-bit

Атрибут	Стойност
Vendor_url	https://www.msi.com/Motherboard/B650M-PROJECT-ZERO
OS	Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty	36 Months
CPU's supported	Socket AM5, Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Memory type	Max. overclocking frequency:
Memory type	• 2DPC 2R Max speed up to 5400+ MHz
Memory type	4x DDR5, Maximum Memory Capacity 256GB
Memory type	Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Memory type	• 1DPC 1R Max speed up to 7600+ MHz
Memory type	• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6400+ MHz
Form Factor	mATX, 243.84mmx243.84mm
Audio	7.1-Channel High Definition Audio
Audio	Realtek® ALC897 Codec
Audio	Supports up to 32-Bit/384 kHz playback on front panel
Rear panel I/O	Audio Connectors
Rear panel I/O	HDMI™
Rear panel I/O	DisplayPort
Rear panel I/O	Flash BIOS button
Rear panel I/O	USB 2.0
Rear panel I/O	2.5G LAN
Rear panel I/O	Wi-Fi / Bluetooth
Rear panel I/O	USB 5Gbps (Type-A)
Rear panel I/O	Clear CMOS Button
Rear panel I/O	USB 10Gbps (Type-A)
Rear panel I/O	USB 10Gbps (Type-C)
Rear panel I/O	USB 20Gbps (Type-C)
LAN	Realtek® RTL8125BG 2.5Gbps LAN
Expansion Slots	1x PCI-E x16 slot
Expansion Slots	1x PCI-E x1 slot
Expansion Slots	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
Expansion Slots	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Expansion Slots	• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
Expansion Slots	• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
Expansion Slots	• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
Wireless	AMD Wi-Fi 6E
Wireless	The Wireless module is pre-installed in the M.2 (Key-E) slot
Wireless	Supports MU-MIMO TX/RX
Wireless	Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Wireless	Supports 802.11 a/ b/ g/ n/ ac/ ax
Graphics	1x HDMI™
Graphics	1x DisplayPort
Graphics	Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
Graphics	Support DP 1.4, maximum resolution of 4K 60Hz
Features	4x EZ Debug LED
I/O	Audio Connectors
I/O	HDMI™
I/O	DisplayPort
I/O	2.5G LAN
I/O	USB 2.0
I/O	Flash BIOS button
I/O	Wi-Fi / Bluetooth
I/O	USB 5Gbps (Type-A)
I/O	Clear CMOS Button
I/O	USB 10Gbps (Type-A)
I/O	USB 10Gbps (Type-C)
I/O	USB 20Gbps (Type-C)
Storage	4x SATA 6G
Storage	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Storage	2x M.2
Storage	M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Storage	• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
Storage	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Storage	Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Bluetooth	5.3
Connectors	1x Power Connector(ATX_PWR)
Connectors	1x CPU Fan
Connectors	2x Front Panel (JFP)
Connectors	1x Chassis Intrusion (JCI)
Connectors	1x Front Audio (JAUD)
Connectors	1x TPM pin header(Support TPM 2.0)
Connectors	4x USB 2.0 ports
Connectors	2x USB 5Gbps Type A ports
Connectors	2x Power Connector(CPU_PWR)
Connectors	1x Pump Fan
Connectors	3x System Fan
Connectors	1x USB 10Gbps Type C ports
Connectors	3x Addressable V2 RGB LED connector (JARGB_V2)
USB	2x USB 2.0 (Rear)
USB	4x USB 2.0 (Front)
USB	2x USB 5Gbps Type A (Front)
USB	2x USB 5Gbps Type A (Rear)
USB	3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)
USB	1x USB 10Gbps Type C (Front)
USB	1x USB 20Gbps Type C (Rear)
Тегло	0.00кг

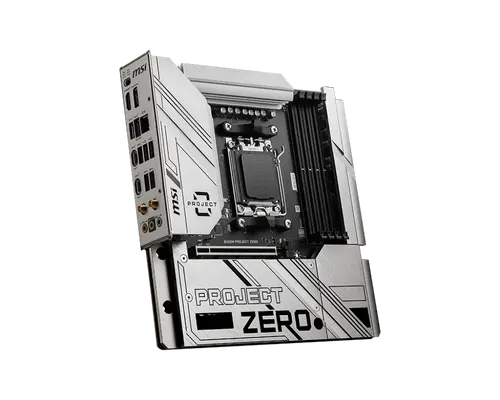

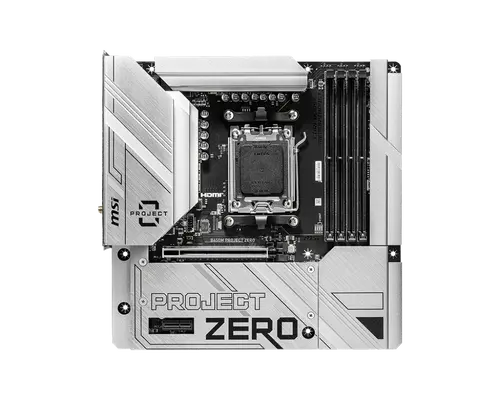

MSI B650M PROJECT ZERO – Най-чистото изграждане на системен блок

Открийте революционния дизайн на MSI Project Zero, който премества всички конектори на гърба на дънната платка за напълно безкабелен преден изглед. Тази B650M Micro-ATX платка предлага изключителна производителност за процесори AMD Ryzen 7000 с поддръжка на DDR5 и PCIe 5.0.

Ключови Предимства

Project Zero дизайн – Всички кабели са скрити отзад, осигурявайки ултра-чист и професионален вид.
Свързаност от ново поколение – Поддръжка на DDR5 памет, PCIe 5.0 за графики и съхранение, както и вграден Wi-Fi 6E и 2.5G LAN.
Стабилно захранване – Висококачествени VRM компоненти осигуряват стабилна мощност дори за най-взискателните процесори.

Технически Спецификации

Спецификация	Стойност
Сокет	AM5
Чипсет	AMD B650
Форм фактор	Micro-ATX
Тип памет	DDR5
Слотове за памет	4 (двуканален режим)
Максимална памет	256 GB
M.2 слотове	2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4)
SATA портове	4
PCIe x16 слотове	2 (1x PCIe 5.0 x16, 1x PCIe 4.0 x16 @ x4)
Wi-Fi	Wi-Fi 6E
LAN	2.5 Gbps
USB-C портове	1 (на задния панел)
RGB подсветка	Да (с Mystic Light)
