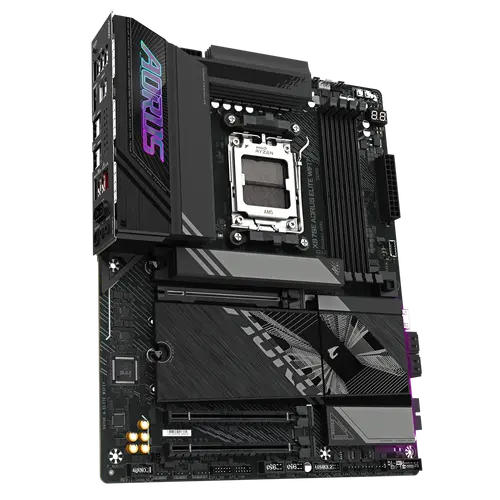

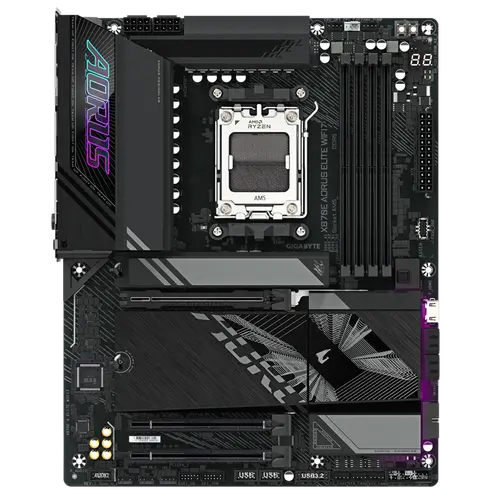

Дънна платка, GIGABYTE GB X870E AORU ELITE WIFI7 /AM5

  • GIGABYTE
Дънна платка, GIGABYTE GB X870E AORU ELITE WIFI7 /AM5
Цена
€323 13 / 631 99 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
 Добави в Количката
Удължи гаранцията си
+1 година: + 43€
+2 години: + 62€
РЕЙТИНГ
ТВОЯ РЕЙТИНГ
Мнения
Улеснено Поръчване - като въведете само телефон и име:
Съгласен съм с Общите условия
Ще Ви потърсим в рамките на работния ден. Внимание: При грешен телефонен номер, нямаме начин да се свържем с Вас.
CreditCredit
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/X870E-AORUS-ELITE-WIFI7-rev-10-11#kf
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support native HDMI 2.1 TMDS compatible ports.
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version
(Graphics specifications may vary depending on CPU support.)
Support for up to quad-display at the same time
Chipset
AMD X870E
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB 3.2 Gen 1 port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors:
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x HDMI port (Note)
2 x USB4® USB Type-C® ports (DisplayPort (Note))
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Audio
Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1/1.2)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
**Wi-Fi 7 channels on 6 GHz band availability depends on individual country`s regulations.
Bluetooth
5.4
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Software: Norton® Internet Security (OEM version)
LAN bandwidth management software
Данни, подадени от официалния вносител за България.
АтрибутСтойност
Vendor_urlhttps://www.gigabyte.com/Motherboard/X870E-AORUS-ELITE-WIFI7-rev-10-11#kf
ChipsetAMD X870E
OSSupport for Windows 11 64-bit
OSLAN bandwidth management software
OSSoftware: Norton® Internet Security (OEM version)
Warranty36 Months
CPU's supportedAMD Socket AM5, support for:
CPU's supportedAMD Ryzen™ 9000 Series Processors/
CPU's supportedAMD Ryzen™ 8000 Series Processors/
CPU's supportedAMD Ryzen™ 7000 Series Processors
Memory typeDual channel memory architecture
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory typeSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory typeSupport for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Form Factor30.5cm x 24.4cm
Form FactorATX Form Factor
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
Audio* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
AudioSupport for S/PDIF Out
AudioRealtek® ALC1220 CODEC
Audio* The back panel line out jack supports DSD audio.
Rear panel I/OiTE® I/O Controller Chip
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Expansion SlotsChipset:
Expansion SlotsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
Expansion SlotsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion SlotsAMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
Expansion Slots* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
Expansion SlotsWhen the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
Expansion Slots(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Wireless- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless(Actual data rate may vary depending on environment and equipment.)
Wireless- BLUETOOTH 5.4
Wireless- Support for 11be 160MHz wireless standard
Wireless* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
WirelessMediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
Wireless**Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
WirelessRealtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1/1.2)
Wireless**Wi-Fi 7 channels on 6 GHz band availability depends on individual country`s regulations.
Graphics* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support:
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics(Graphics specifications may vary depending on CPU support.)
Graphics* Support for DisplayPort 1.4 version and HDR.
Graphics** Support native HDMI 2.1 TMDS compatible ports.
Graphics* Support for HDMI 1.4 version
Graphics- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Graphics- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
GraphicsSupport for up to quad-display at the same time
FeaturesSupport for Q-Flash Plus
FeaturesSupport for Q-Flash
FeaturesSupport for GIGABYTE Control Center (GCC)
Features* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
FeaturesSupport Smart Backup
BIOS1 x 256 Mbit flash
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/OiTE® I/O Controller Chip
StorageRAID 0, RAID 1, and RAID 10 support for SATA storage devices
StorageAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
StorageAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
Storage* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
StorageAMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
Storage* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.
Storage1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
Storage4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
Storage2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
Bluetooth5.4
Connectors1 x 24-pin ATX main power connector
Connectors2 x 8-pin ATX 12V power connectors
Connectors1 x CPU fan header
Connectors3 x system fan headers
Connectors1 x system fan/water cooling pump header
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors2 x USB 2.0/1.1 headers
Connectors1 x reset button
Connectors1 x Q-Flash Plus button
Connectors1 x reset jumper
Connectors1 x Clear CMOS jumper
Connectors4 x SATA 6Gb/s connectors
Connectors1 x RGB LED strip header
Connectors1 x HDMI port (Note)
Connectors4 x USB 3.2 Gen 1 ports
Connectors1 x RJ-45 port
Connectors1 x CPU fan/water cooling pump header
Connectors4 x USB 2.0/1.1 ports
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors3 x addressable RGB Gen2 LED strip headers
Connectors2 x USB 3.2 Gen 2 Type-A ports (red)
Connectors1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
Connectors2 x antenna connectors (2T2R)
ConnectorsBack Panel Connectors:
Connectors1 x optical S/PDIF Out connector
Connectors2 x audio jacks
Connectors4 x M.2 Socket 3 connectors
Connectors2 x USB 3.2 Gen 1 headers
Connectors1 x power button
Connectors2 x USB4® USB Type-C® ports (DisplayPort (Note))
USBCPU:
USBChipset:
USB- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
USB- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
USB- 1 x USB 3.2 Gen 1 port on the back panel
USBCPU+ASMedia USB4® controller:
USB- 2 x USB4® USB Type-C® ports on the back panel
USB- 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
USB- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Тегло0.00кг
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
АтрибутСтойност
СокетAM5
Форм факторATX
ЧипсетAMD X870E
Тип паметDDR5
Слотове за памет (count)4
Максимална памет (GB)256
M.2 слотове (count)4
SATA портове (count)4
PCIe x16 слотове (count)2
Вграден Wi-FiWi-Fi 7
Скорост на LAN2.5 Gbps
USB-C портове (count)2
RGB подсветкаДа
Тегло0.00кг

Дънна платка GIGABYTE X870E AORUS ELITE WIFI7 (AM5)

Потопете се в свръхбърза свързаност и производителност с GIGABYTE X870E AORUS ELITE WIFI7, създадена за процесори AMD Ryzen 9000. С Wi-Fi 7, поддръжка на PCIe 5.0 и усъвършенстван DDR5 оувърклок, тази ATX дънна платка осигурява безкомпромисна скорост на трансфер и многозадачност.

Ключови Предимства

  • Wi-Fi 7 & 2.5GbE LAN — Ултра ниска латентност за безжични и кабелни мрежи за игри и стрийминг без забавяне.
  • PCIe 5.0 готовност — Графични карти и NVMe SSD от ново поколение с двойна честотна лента спрямо PCIe 4.0.
  • DDR5 оувърклок — Оптимизирана памет и BIOS за екстремни скорости на DDR5 до 8000+ MHz.
  • Разширено термо решение — Удължени радиатори и M.2 термични предпазители поддържат компонентите хладни при натоварване.

Технически Спецификации

СпецификацияСтойност
СокетAM5
Форм факторATX
ЧипсетAMD X870E
Тип паметDDR5
Слотове за памет4 (Двуканален)
Максимална памет256 GB
M.2 слотове4 (1x PCIe 5.0, 3x PCIe 4.0)
SATA портове4
PCIe x16 слотове2 (1x PCIe 5.0, 1x PCIe 4.0)
Вграден Wi-FiWi-Fi 7
Скорост на LAN2.5 Gbps
USB-C портове2 (на задния панел)
RGB подсветкаДа (RGB Fusion)

Какво има в кутията

  • Дънна платка GIGABYTE X870E AORUS ELITE WIFI7
  • Ръководство за потребителя
  • I/O щит
  • 2x SATA кабела
  • Wi-Fi антена
  • M.2 винтове
SKU: X870E AORUS ELITE WIFI7 1.2 © 2026 Xtreme.bg
Kobo
Huawei

Запишете се за нашият Бюлетин

Запиши се за нашия онлайн бюлетин и научи първи за промоционални и нови продукти.

Ако имате въпроси свържете се с нас!

info@xtreme.bg

+359 886 177 222

Информация

Потребител

Методи за Плащане

  • Наложен Платеж
  • Кредитна/Дебитна Карта
    MastercardVisaGoogle PayApple Pay
  • Банков Превод
  • На изплащане ПБ Лични Финанси
Copyright © 2023 Xtreme.bg - Всички права запазени. Онлайн магазин вървящ на XCore
Затвори
