- GIGABYTE
Цена
€186 43 / 364 63 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/B850M-AORUS-ELITE-WIFI6E-ICE-rev-1x
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.
(Graphics specifications may vary depending on CPU support.)
CPU's supported
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
Chipset
AMD B850
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
1 x DisplayPort (Note)
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
5 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Audio
Realtek® Audio CODEC (Only for rev. 1.0)
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Realtek® ALC1220 CODEC (Only for rev. 1.1)
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Realtek® Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Bluetooth
5.3
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
| Атрибут | Стойност |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/B850M-AORUS-ELITE-WIFI6E-ICE-rev-1x |
| Chipset | AMD B850 |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5, support for: |
| CPU's supported | AMD Ryzen™ 9000 Series Processors/ |
| CPU's supported | AMD Ryzen™ 8000 Series Processors/ |
| CPU's supported | AMD Ryzen™ 7000 Series Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory type | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. |
| Form Factor | Micro ATX Form Factor |
| Form Factor | 24.4cm x 24.4cm |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Audio | Support for S/PDIF Out |
| Audio | * The back panel line out jack supports DSD audio. |
| Audio | Realtek® Audio CODEC (Only for rev. 1.0) |
| Audio | Realtek® ALC1220 CODEC (Only for rev. 1.1) |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | Chipset: |
| Expansion Slots | - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| Expansion Slots | - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Expansion Slots | - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Wireless | - BLUETOOTH 5.3 |
| Wireless | - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Wireless | - Support for 11ax 160MHz wireless standard |
| Wireless | Realtek® Wi-Fi 6E RTL8852CE |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| Graphics | (Graphics specifications may vary depending on CPU support.) |
| Graphics | - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Graphics | * Support for DisplayPort 1.4 version and HDR. |
| Graphics | - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz |
| Graphics | * Support for HDMI 1.4 version. |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| Storage | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Storage | 4 x SATA 6Gb/s connectors |
| Storage | - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs: |
| Storage | 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: |
| Storage | - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| Storage | * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. |
| Storage | - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs |
| Bluetooth | 5.3 |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 3 x system fan headers |
| Connectors | 1 x system fan/water cooling pump header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x reset button |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x reset jumper |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x RGB LED strip header |
| Connectors | 2 x M.2 Socket 3 connectors |
| Connectors | Back Panel Connectors |
| Connectors | 1 x HDMI port (Note) |
| Connectors | 1 x DisplayPort (Note) |
| Connectors | 1 x RJ-45 port |
| Connectors | 1 x CPU fan/water cooling pump header |
| Connectors | 4 x USB 2.0/1.1 ports |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Connectors | 3 x addressable RGB Gen2 LED strip headers |
| Connectors | 2 x USB 3.2 Gen 2 Type-A ports (red) |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
| Connectors | 2 x antenna connectors (2T2R) |
| Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| Connectors | 5 x USB 3.2 Gen 1 ports |
| Connectors | 1 x optical S/PDIF Out connector |
| Connectors | 2 x audio jacks |
| USB | CPU: |
| USB | - 4 x USB 3.2 Gen 1 ports on the back panel |
| USB | Chipset: |
| USB | - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| USB | - 4 x USB 2.0/1.1 ports on the back panel |
| USB | - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| USB | CPU+USB 2.0 Hub: |
| USB | - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| USB | - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header |
| USB | - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) |
| USB | Chipset+USB 3.2 Gen 1 Hub: |
| Тегло | 0.00кг |

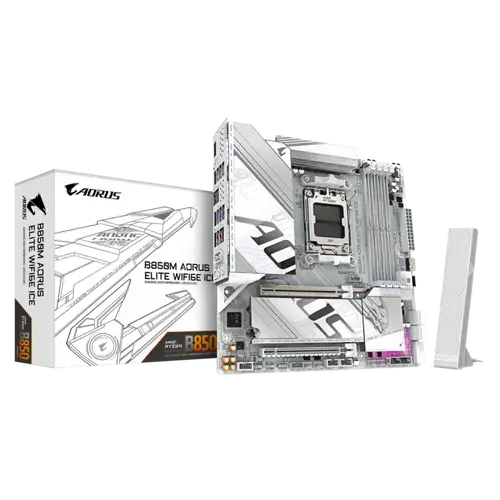

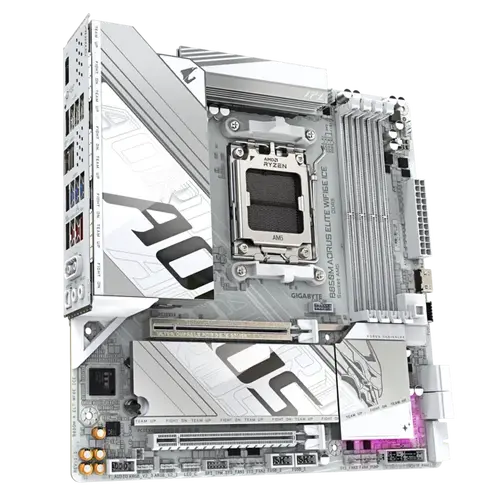

Дънна платка GIGABYTE B850M AORUS ELITE WF6E ICE – Разгърнете Производителността
Подобрете вашето гейминг и работно изживяване с GIGABYTE B850M AORUS ELITE WF6E ICE – Micro-ATX дънна платка, проектирана за най-новите AMD Ryzen процесори. С мощно захранване, разширена свързаност и впечатляваща бяла естетика, тази платка е създадена за ентусиасти, търсещи безкомпромисна производителност и стил.
Ключови Предимства
- Производителност от Следващо Поколение — Поддържа AMD Ryzen 7000/8000/9000 серии процесори със сокет AM5, готова за най-взискателните задачи и игри.
- Свръхбърза Памет — Оборудвана с 4 DDR5 DIMM слота, поддържащи до 256 GB системна памет и овърклокнати скорости за несравнима отзивчивост.
- Превъзходна Свързаност — Интегриран Wi-Fi 6E и 2.5 Gigabit Ethernet осигуряват мрежова връзка с ултра ниска латентност и високоскоростен трансфер на данни.
- Разширени Опции за Съхранение — Разполага с два M.2 слота, включително един PCIe 5.0 M.2 слот, заедно с четири SATA 6Gb/s порта за обширни решения за съхранение.
- Издръжлив и Стилен Дизайн — Изградена с 6-слойна PCB, 2X Copper PCB и премиум компоненти, всичко това представено в елегантно ICE бяло покритие с поддръжка на RGB FUSION.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | Micro-ATX |
| Чипсет | AMD B850 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 (PCIe 5.0) |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 2 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка GIGABYTE B850M AORUS ELITE WF6E ICE
- Wi-Fi антена
- SATA кабели
- M.2 винтове/стойки
- Ръководство за потребителя / Кратко ръководство за инсталация (може да е цифрово)
Запишете се за нашият Бюлетин
Запиши се за нашия онлайн бюлетин и научи първи за промоционални и нови продукти.
Методи за Плащане
- Наложен Платеж
- Кредитна/Дебитна Карта
- Банков Превод
- На изплащане ПБ Лични Финанси
