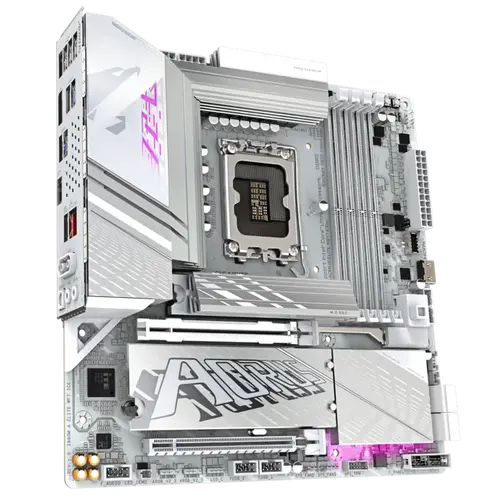

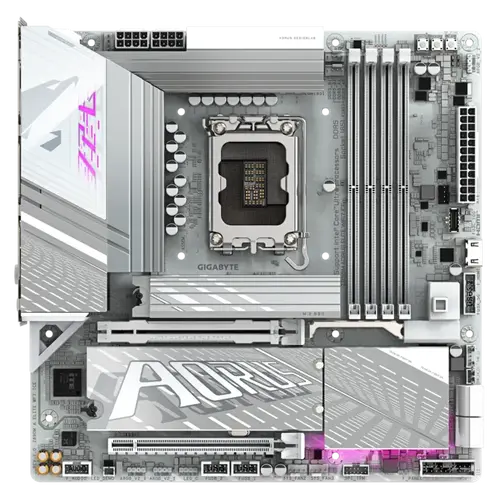

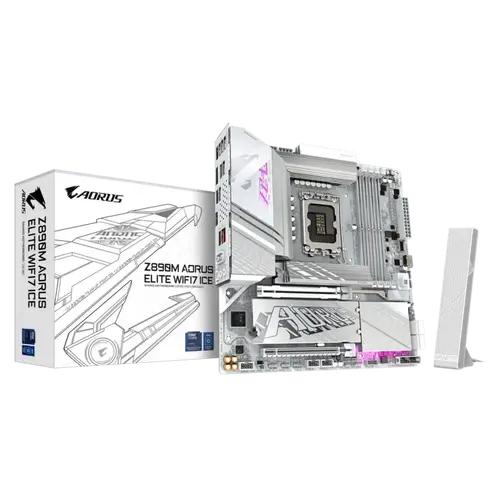

Дънна платка, GIGABYTE GB Z890M AORUS ELITE WF7 ICE

Цена

€238²⁶ / 466⁰⁰ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 31€

+2 години: + 46€

Код: Z890M AORUS ELITE WF7 ICE
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.gigabyte.com/Motherboard/Z890M-AORUS-ELITE-WIFI7-ICE

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 2.1 version

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 2.1 version

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

* Support for HDMI 1.4 version

Support for up to 3 displays at the same time

CPU's supported

LGA1851 socket: Support for Intel® Core™ Ultra Processors

L3 cache varies with CPU

Chipset

Intel® Z890 Express Chipset

Expansion slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

- 1 x

M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Memory type

Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

Support for DDR5 6400/5600 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Support CUDIMM memory module

Rear panel I/O

iTE® I/O Controller Chip

USB

CPU:

- 1 x USB4® USB Type-C® port on the back panel

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

=3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x HDMI port(Note)

1 x power button

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors

1 x USB4® USB Type-C® port (DisplayPort(Note))

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x antenna connectors (2T2R)

1 x DisplayPort (Note)

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Lan

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

Bluetooth

5.4

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form factor

Micro ATX Form Factor

24.4cm x 24.4cm

Support for Windows 11 64-bit

Warranty

36 Months

Данни, подадени от официалния вносител за България.

Атрибут	Стойност
Vendor_url	https://www.gigabyte.com/Motherboard/Z890M-AORUS-ELITE-WIFI7-ICE
Chipset	Intel® Z890 Express Chipset
OS	Support for Windows 11 64-bit
Warranty	36 Months
CPU's supported	LGA1851 socket: Support for Intel® Core™ Ultra Processors
CPU's supported	L3 cache varies with CPU
Memory type	Dual channel memory architecture
Memory type	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory type	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory type	Support for Extreme Memory Profile (XMP) memory modules
Memory type	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory type	Support for DDR5 6400/5600 MT/s memory modules
Memory type	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 600
Memory type	Support CUDIMM memory module
Form Factor	Micro ATX Form Factor
Form Factor	24.4cm x 24.4cm
Audio	Realtek® Audio CODEC
Audio	High Definition Audio
Audio	2/4/5.1/7.1-channel
Audio	Support for S/PDIF Out
Rear panel I/O	iTE® I/O Controller Chip
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion Slots	Chipset:
Expansion Slots	CPU:
Expansion Slots	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Expansion Slots	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Wireless	- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
Wireless	- BLUETOOTH 5.4
Wireless	- Support for 11be 160MHz wireless standard
Wireless	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
Wireless	Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
Graphics	Support for up to 3 displays at the same time
Graphics	- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Graphics	* Support for HDMI 1.4 version
Graphics	- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
Graphics	- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
Graphics	* Support for DisplayPort 2.1 version
BIOS	1 x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
BIOS	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Storage	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
Storage	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Storage	CPU:
Storage	Chipset:
Storage	- 4 x SATA 6Gb/s connectors
Storage	- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Storage	- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Storage	- 1 x
Storage	M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
Bluetooth	5.4
Connectors	1 x 24-pin ATX main power connector
Connectors	2 x 8-pin ATX 12V power connectors
Connectors	1 x CPU fan header
Connectors	3 x system fan headers
Connectors	1 x system fan/water cooling pump header
Connectors	1 x front panel header
Connectors	1 x front panel audio header
Connectors	1 x USB 3.2 Gen 1 header
Connectors	2 x USB 2.0/1.1 headers
Connectors	1 x reset button
Connectors	1 x Q-Flash Plus button
Connectors	1 x reset jumper
Connectors	1 x Clear CMOS jumper
Connectors	4 x SATA 6Gb/s connectors
Connectors	1 x RGB LED strip header
Connectors	Back Panel Connectors
Connectors	1 x DisplayPort (Note)
Connectors	4 x USB 3.2 Gen 1 ports
Connectors	1 x RJ-45 port
Connectors	1 x CPU fan/water cooling pump header
Connectors	4 x USB 2.0/1.1 ports
Connectors	3 x addressable RGB Gen2 LED strip headers
Connectors	2 x antenna connectors (2T2R)
Connectors	1 x USB 3.2 Gen 2 Type-A port (red)
Connectors	1 x USB Type-C® header, with USB 3.2 Gen 2 support
Connectors	1 x optical S/PDIF Out connector
Connectors	2 x audio jacks
Connectors	1 x power button
Connectors	1 x HDMI port(Note)
Connectors	2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
Connectors	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
Connectors	=3 x M.2 Socket 3 connectors
Connectors	1 x USB4® USB Type-C® port (DisplayPort(Note))
USB	CPU:
USB	Chipset:
USB	- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
USB	- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
USB	- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
USB	Chipset+2 USB 2.0 Hubs:
USB	- 1 x USB4® USB Type-C® port on the back panel
USB	- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Тегло	0.00кг

Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.

Атрибут	Стойност
Сокет	LGA1851
Форм фактор	Micro-ATX
Чипсет	Intel Z890
Тип памет	DDR5
Слотове за памет (count)	4
Максимална памет (GB)	256
M.2 слотове (count)	3
SATA портове (count)	4
PCIe x16 слотове (count)	2
Вграден Wi-Fi	Wi-Fi 7
Скорост на LAN	2.5 Gbps
USB-C портове (count)	2
RGB подсветка	Да
Тегло	0.00кг

Дънна платка GIGABYTE Z890M AORUS ELITE WF7 ICE – Отключете производителността от следващо поколение

Навлезте в бъдещето на компютърните игри и създаването на съдържание с дънната платка GIGABYTE Z890M AORUS ELITE WF7 ICE. Проектирана за най-новите процесори Intel Core Ultra (Series 2), тази Micro-ATX дънна платка предлага несравнима скорост, стабилност и авангардна свързаност в зашеметяващ бял дизайн.

Насладете се на екстремен потенциал за овърклок, светкавично бърз трансфер на данни и стабилно термично управление, което я прави перфектната основа за вашата високопроизводителна система.

Ключови Предимства

Поддръжка за процесори от следващо поколение — Готова за процесори Intel® Core™ Ultra (Series 2) със сокет LGA 1851, гарантирайки, че сте оборудвани за бъдещи иновации.
Изключително бърза памет — Поддържа 4x DDR5 DIMM слота за до 256GB памет, със скорости до 9200 MT/s (OC) за безпроблемен мултитаскинг и гейминг.
Свръхбързо съхранение и свързаност — Разполага с 3x M.2 слота (включително 1x PCIe 5.0) и 4x SATA 6Gb/s порта за обширни опции за съхранение, заедно с Wi-Fi 7 и 2.5GbE LAN за превъзходна мрежова свързаност.
Разширени функции за лесен монтаж — Дизайнът EZ-Latch Plus и EZ-Latch Click на GIGABYTE опростява инсталирането на PCIe и M.2 устройства, правейки процеса на сглобяване по-гладък и без нужда от инструменти.
Премиум термичен дизайн — Оборудвана с VRM Thermal Armor Advanced и M.2 Thermal Guard L за осигуряване на стабилна производителност дори при тежки натоварвания.

Технически Спецификации

Спецификация	Стойност
Сокет	LGA 1851
Чипсет	Intel Z890
Форм фактор	Micro-ATX
Тип памет	DDR5
Слотове за памет	4
Максимална памет	256 GB
M.2 слотове	3
SATA портове	4
PCIe x16 слотове	2 (1x PCIe 5.0 x16, 1x PCIe 4.0 x4)
Скорост на LAN	2.5 Gbps
Безжична свързаност	Wi-Fi 7, Bluetooth 5.4
USB-C портове (отзад)	1 (USB4 с DP-Alt)
USB-C хедъри (вътрешни)	1 (USB 3.2 Gen 2)
RGB подсветка	Да (RGB FUSION)
